SiRON K012 7 Factory Price Specular Reflection Type Sensing Distance 2m NPN/PNP Infrared LED Photoelectric Sensor
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (1600797707904):
Product Overview
Description
Features
* Mirror reflection, optional shooting;
* Shell material ABS; lens material pmma;
* Shell protection level: IP65;

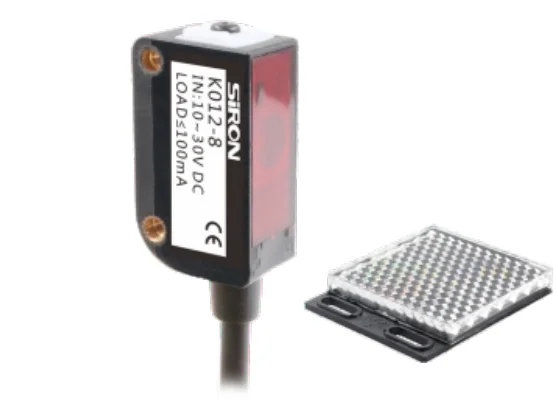

* K012-8 uses the same light shaft design, which is suitable for detection of transparent objects and high-incidence of light objects.
* Shell material ABS; lens material pmma;
* Shell protection level: IP65;
* K012-8 uses the same light shaft design, which is suitable for detection of transparent objects and high-incidence of light objects.
Specification
Name | Photoelectric sensor | ||||||||
Model | NPN | K012-5 | K012-6 | K012-7 | K012-8 | ||||
PNP | K012-5P | K012-6P | K012-7P | ||||||
Type | reflection of mirror | thru-beam | Mirror reflection (transparent body test) | ||||||
Appearance | |||||||||
Detection distance | 2m | 4m | 5m | 2m | |||||
Operating Voltage | <25cm | / | / | ||||||
Type of light | Infrared 880nm | Infrared 880nm | Infrared 650nm | ||||||
On-off level | 500Hz | ||||||||
Working voltage | 10~30V DC | ||||||||
Reaction time | <2ms | 1ms | |||||||
Load current | 100mA | ||||||||
Power-on delay | <300ms | ||||||||
Sensitive regulation | Single -circle potentiometer | Double -click the key to the lens | |||||||
Anti -light interference | <5000Lux | ||||||||
Protection level | IP65 | ||||||||
Ambient temperature | -25~55ºC | ||||||||
Environment humidity | 35~85% | ||||||||
shell material | ABS | ||||||||
Lens material | PMMA | ||||||||
LED indication | Output: red; Power: Yellow | ||||||||
Line length | 2M | ||||||||

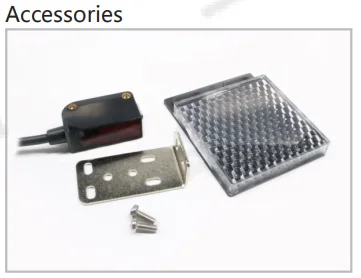

Appendix | Reflector | / | Reflector | ||||||
Interface | PVC Cable:4*0.18mm2 | PVC Cable:3*0.35mm2 | |||||||
Product Paramenters
Company Profile
Certifications
Delivery
FAQ
1.What type of company are you?
We are a manufacturer, we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switch, and
Auxiliary Equipment, Human Machine Interface, Frequency Converter, Servo Motor, Module, Reducer and Other Industrial Automation Control Products.
Auxiliary Equipment, Human Machine Interface, Frequency Converter, Servo Motor, Module, Reducer and Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE, CCC, UL, and RoHs etc.,
we could send the certification test of our company to you.
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South Korea..., and we do hope you become our agent in the future, welcome to discuss the deep details with us.
