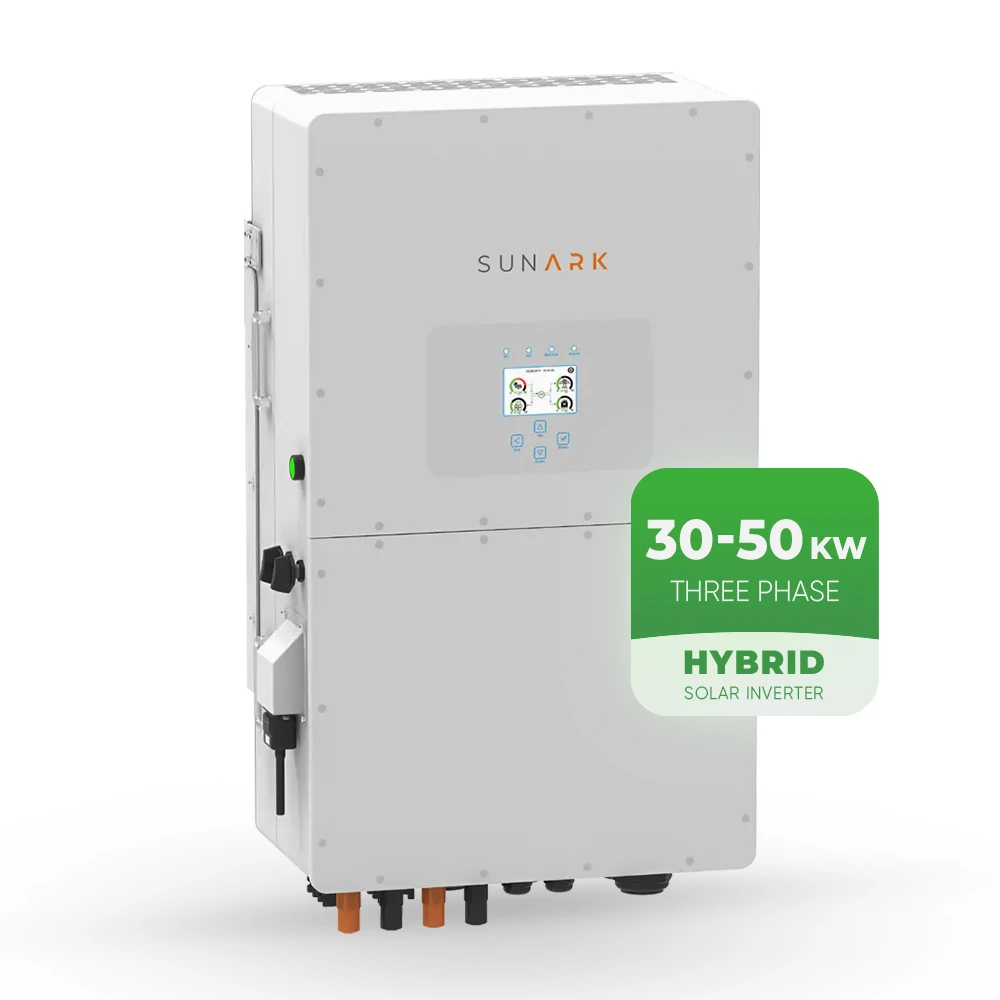

Deye Hybrid Inverter Solar 5Kw 6Kw 8Kw 10Kw 25Kw 30Kw 50Kw Off Grid Single Three Phase Hybrid Solar Power Inverters 120V 240V
Deye Hybrid Inverter Solar 5Kw 6Kw 8Kw 10Kw 25Kw 30Kw 50Kw Off Grid Single Three Phase Hybrid Solar Power Inverters 120V 240V
Deye Hybrid Inverter Solar 5Kw 6Kw 8Kw 10Kw 25Kw 30Kw 50Kw Off Grid Single Three Phase Hybrid Solar Power Inverters 120V 240V
Deye Hybrid Inverter Solar 5Kw 6Kw 8Kw 10Kw 25Kw 30Kw 50Kw Off Grid Single Three Phase Hybrid Solar Power Inverters 120V 240V
Deye Hybrid Inverter Solar 5Kw 6Kw 8Kw 10Kw 25Kw 30Kw 50Kw Off Grid Single Three Phase Hybrid Solar Power Inverters 120V 240V
Deye Hybrid Inverter Solar 5Kw 6Kw 8Kw 10Kw 25Kw 30Kw 50Kw Off Grid Single Three Phase Hybrid Solar Power Inverters 120V 240V
Deye Hybrid Inverter Solar 5Kw 6Kw 8Kw 10Kw 25Kw 30Kw 50Kw Off Grid Single Three Phase Hybrid Solar Power Inverters 120V 240V

Deye Hybrid Inverter Solar 5Kw 6Kw 8Kw 10Kw 25Kw 30Kw 50Kw Off Grid Single Three Phase Hybrid Solar Power Inverters 120V 240V

Share on (1600797736375):


Price:$1,890.00 - $2,147.00

Quantity:


Product Overview

Description





Products Description






Model
SUN-8K-SG04LP3
SUN-10K-SG04LP3
SUN-12K-SG04LP3
Battery Input Data
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
40~60V
Max. Charging Current (A)
190A
210A
240A
Max. Discharging Current (A)
190A
210A
240A
Charging Curve
3 Stages / Equalization
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
10400W
13000W
15600W
PV Input Voltage (V)
550V (150V~800V)
MPPT Range (V)
200V-650V
Start-up Voltage (V)
160V
PV Input Current (A)
13A+13A
26A+13A
26A+13A
No.of MPPT Trackers
2
No.of Strings Per MPPT Tracker
1+1
2+1
2+1
AC Output Data
Rated AC Output and UPS Power (W)
8000W
10000W
12000W
Max. AC Output Power (W)
8800W
11000W
12000W
Peak Power (off grid)
2 times of rated power, 10 S
AC Output Rated Current (A)
12A
15A
18A
Max. AC Current (A)
18A
23A
27A
Max. Continuous AC Passthrough (A)
50A
Output Frequency and Voltage
50/60Hz; 230/400Vac (Three phase)
Grid Type
Current Harmonic Distortion
Current Harmonic Distortion
THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Certififications and Standards
Grid Regulation
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC / Standard
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (℃ )
-25~60℃ , >45℃ Derating
Cooling
Smart cooling
Noise (dB)
<30 dB
Communication with BMS
RS485; CAN
Weight (kg)
36.8
Size (mm)
422W×658H×281D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 years

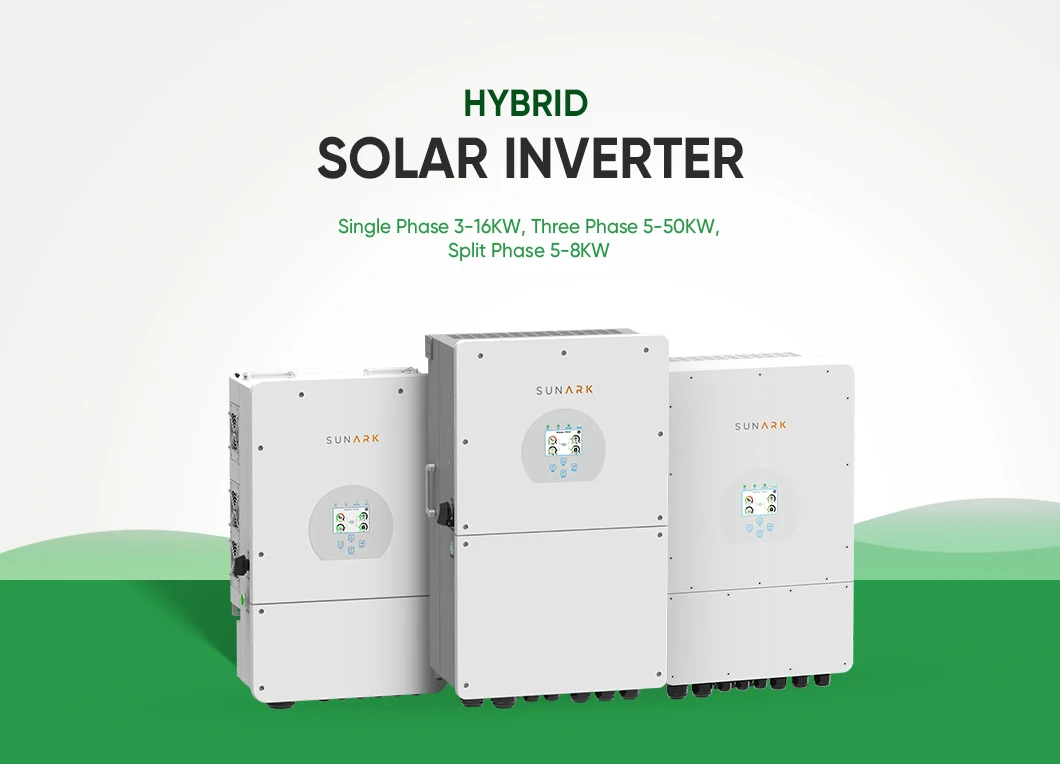

Products Series


SUN-3/3.6/5/6K-SG04LP1
Output Power: 3-6KW Single PhaseOutput Voltage: 220/230/240V
Battery Voltage: 20-30V /40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-3.6/5/6K-SG03LP1-EU
Output Power: 3.6-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-3.6/5/6/7.6/8K-SG05LP1-EU
Output Power: 3.6-8KW Single Phase Output Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion


SUN-5/6/7.6/8K-SG01LP1-US
Output Power: 5-8KW Split PhaseOutput Voltage: 120V/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-5/6/8/10/12K-SG04LP3
Output Power: 5-12KW Three PhaseOutput Voltage: 230/400VBattery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-12/14/16K-SG01LP1
Output Power: 12-16KW Single Phase
Output Voltage: 230/400VBattery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion


SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2
Output Power: 5-25KW Three PhaseOutput Voltage: 380/400VBattery Voltage: 160~700V
Battery Type:Lithium-ion
SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4
Output Power: 29.9-50KW Three PhaseOutput Voltage: 380/400VBattery Voltage: 160~800V
Battery Type:Lithium-ion

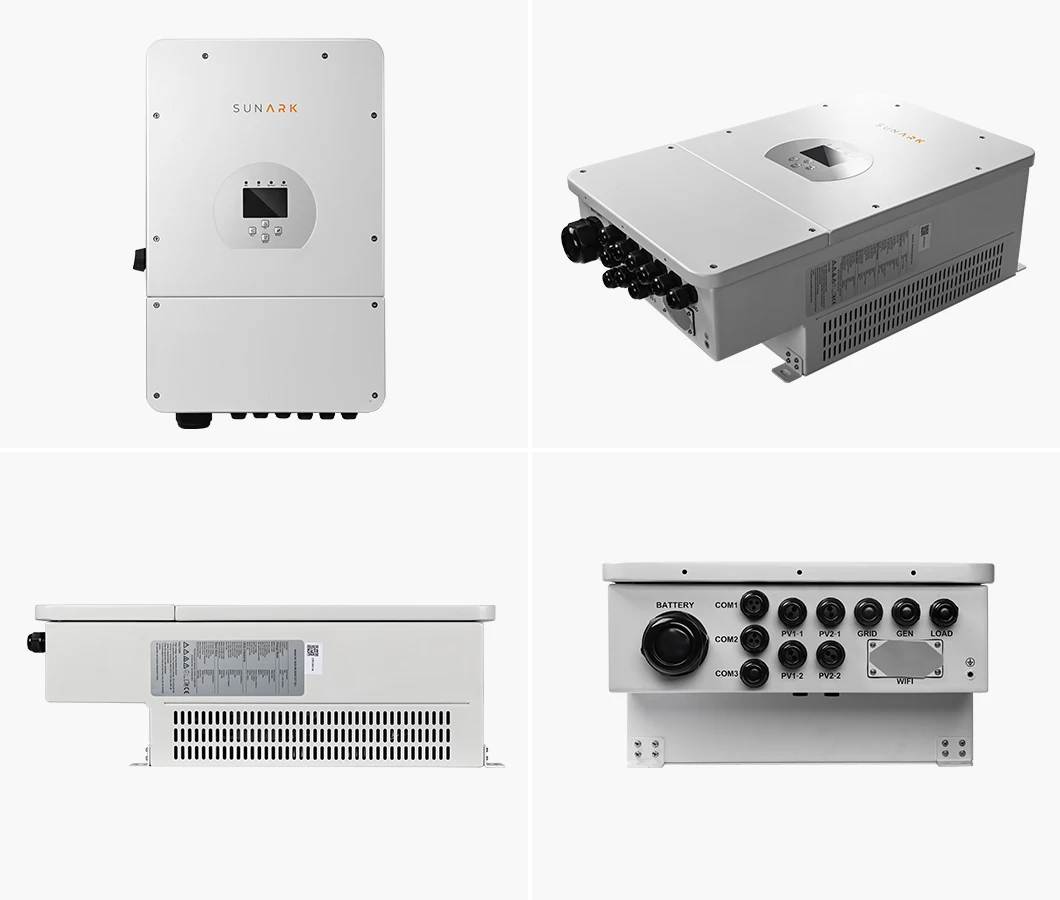

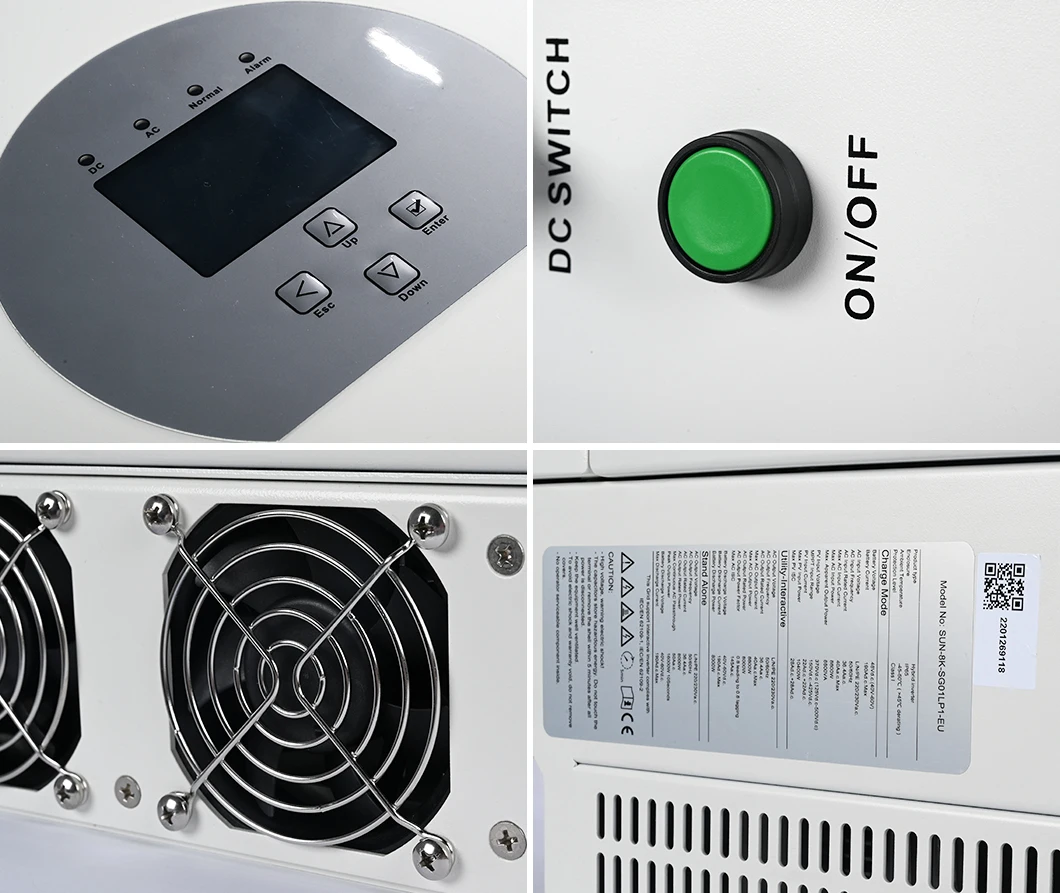

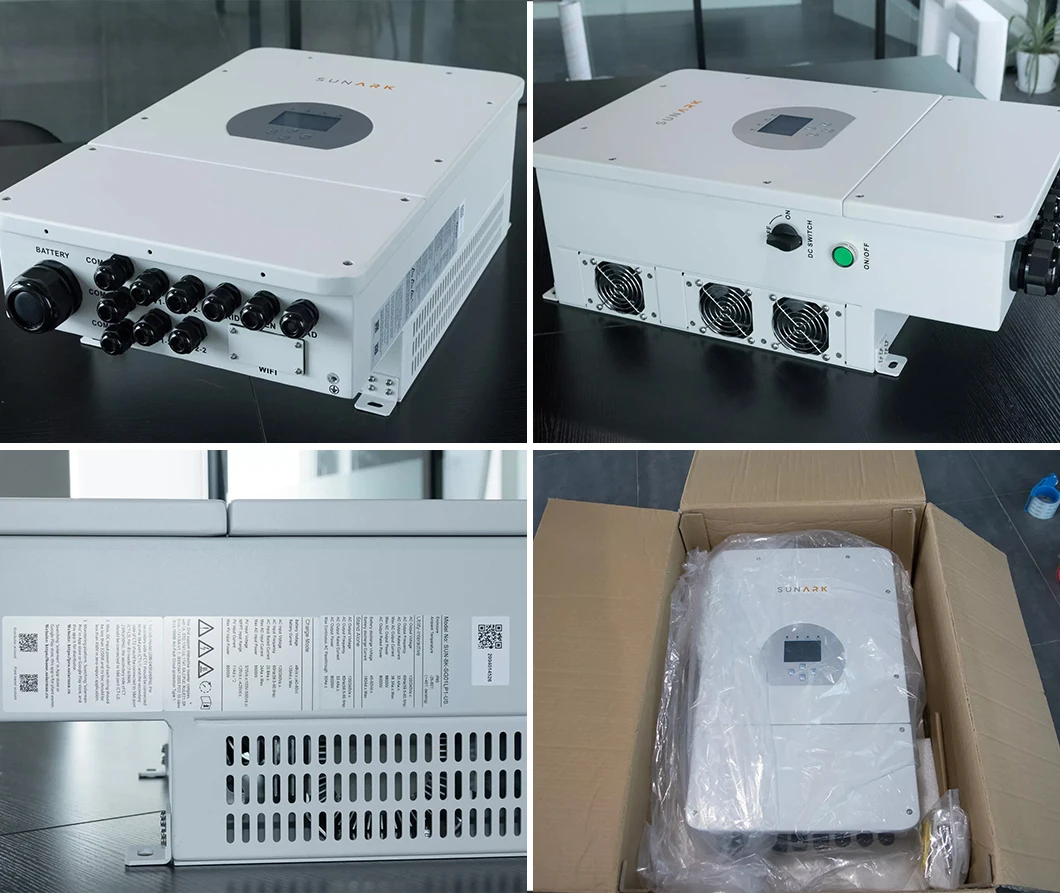

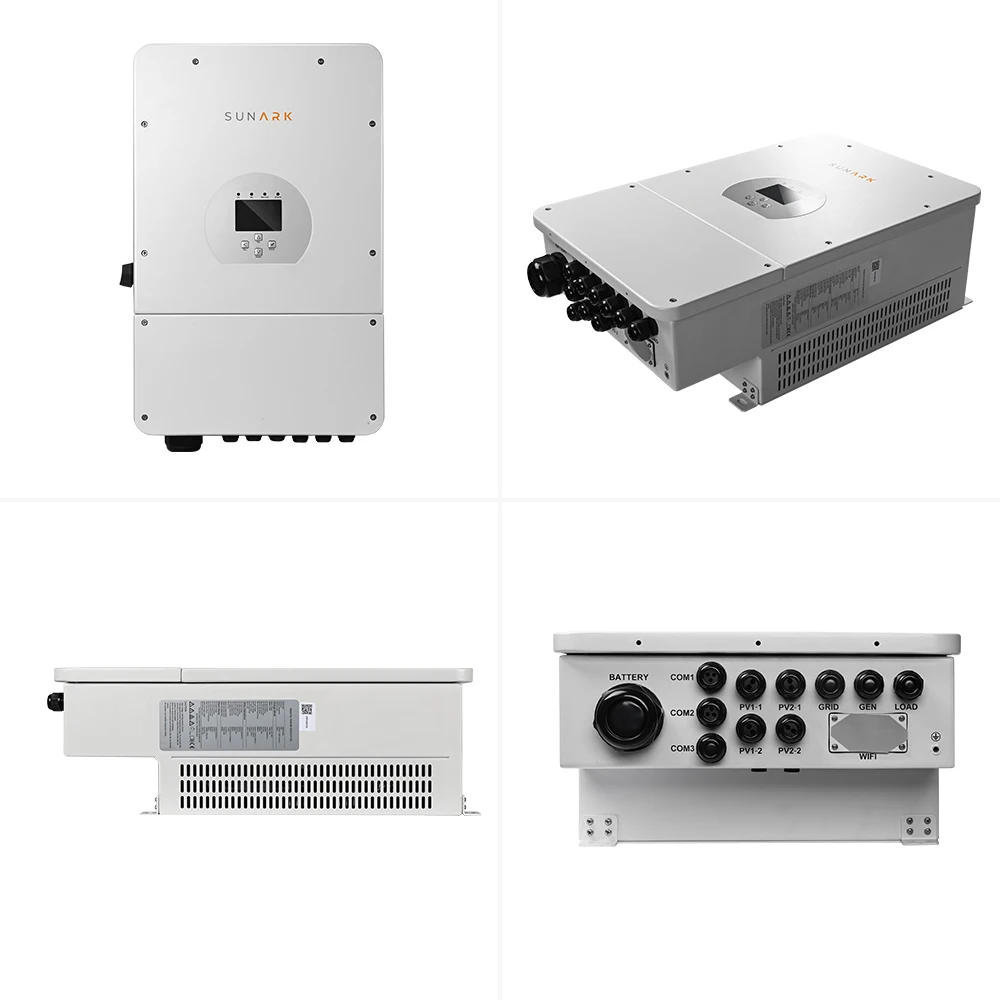

Pictures and Packages

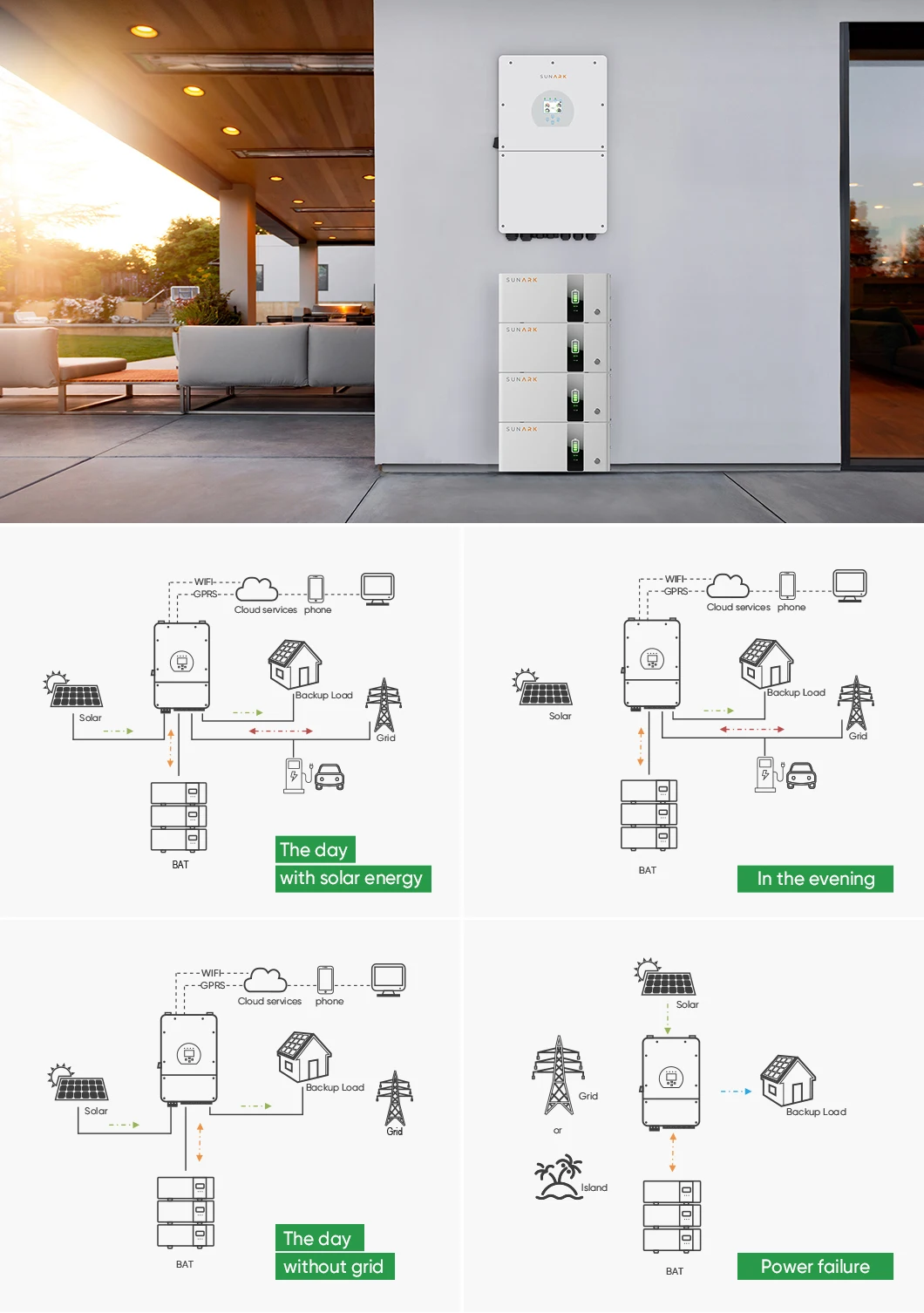

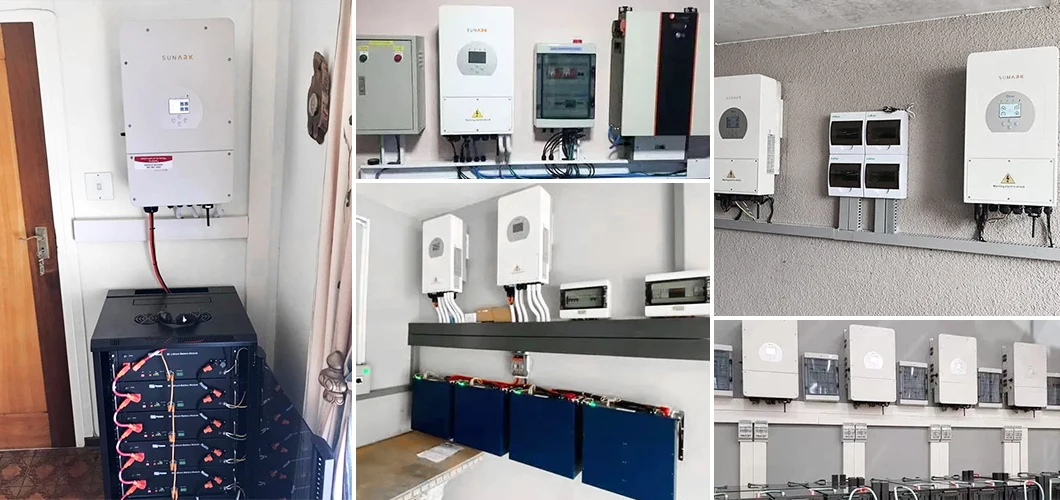

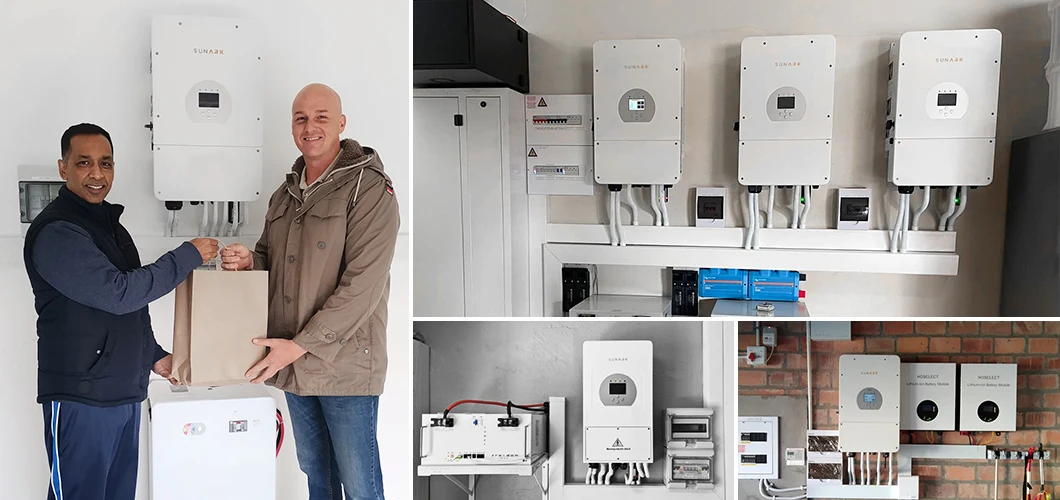

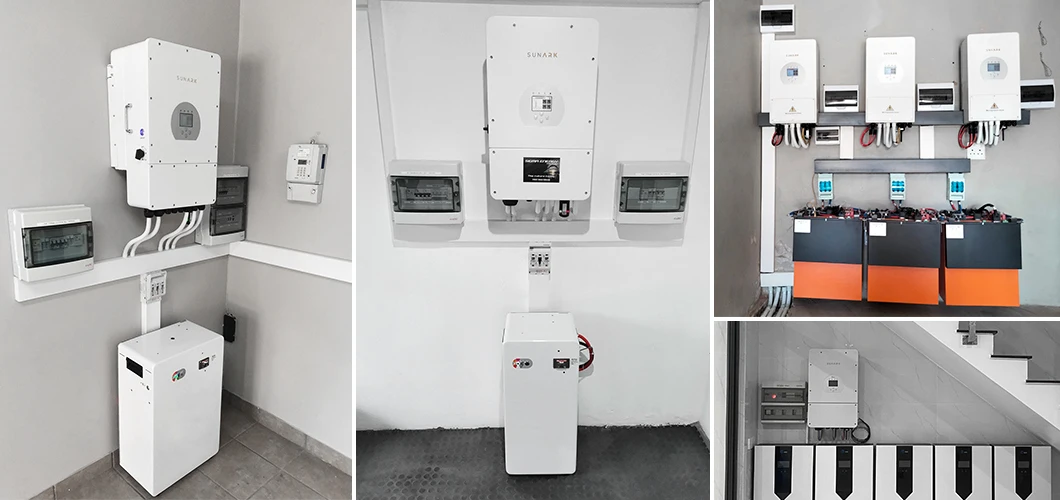

Applications












Compatible Lithium Battery

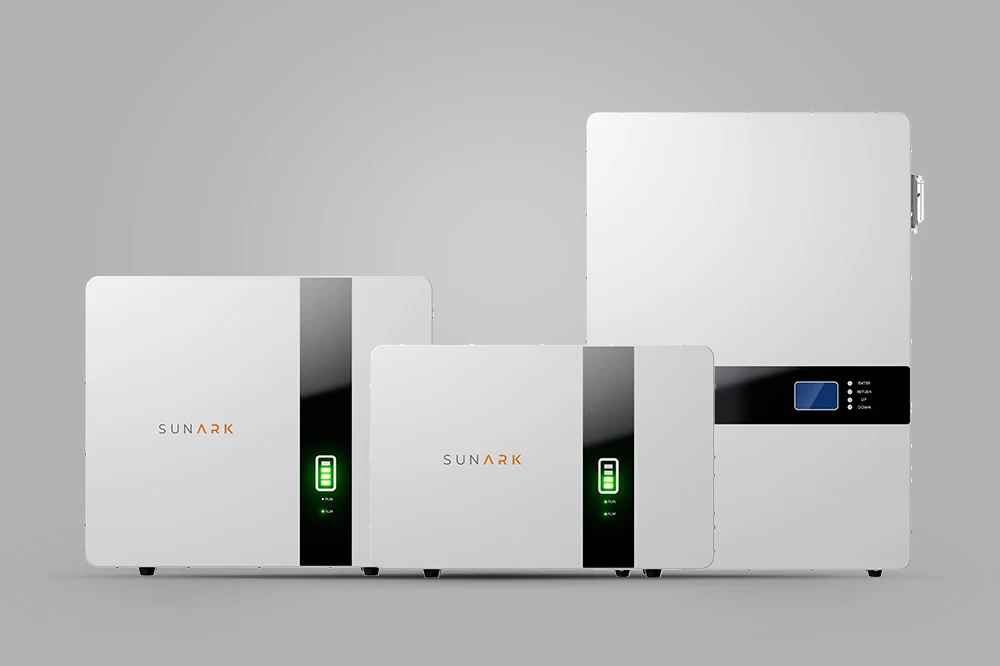

WallArk Series

Wall Mounted Battery Solution
48V/51.2V 50-200AH 2.56-10.24KWH





GroundArk Series

Ground Mounted Battery SolutionVoltage 51.2V 2.6-10.4KWH

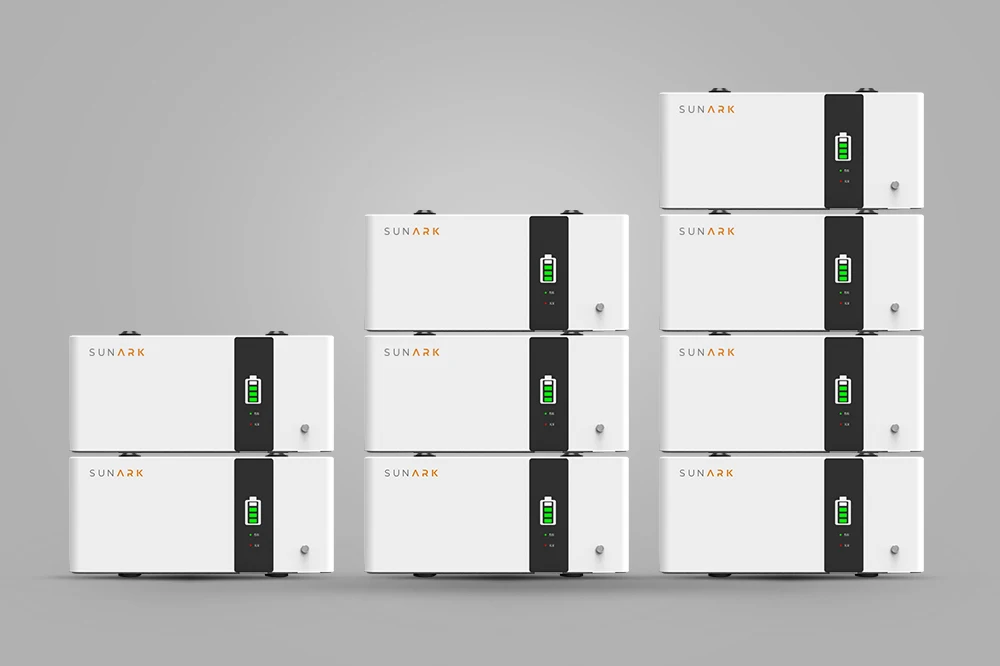

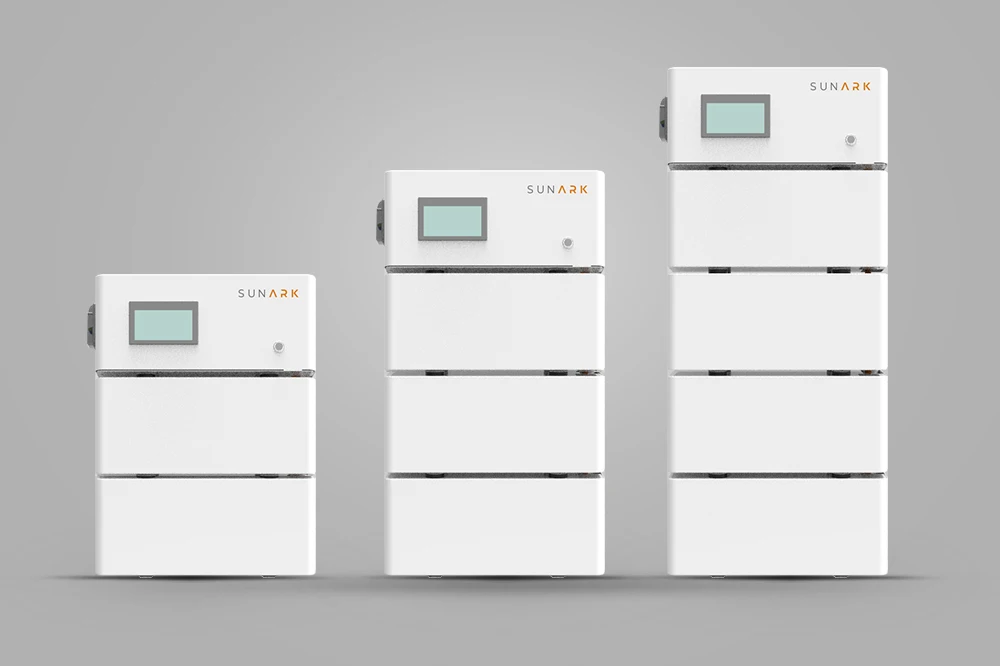

StackArk Series

Stack Mounted Battery Solution51.2V
8KWH-20KWH

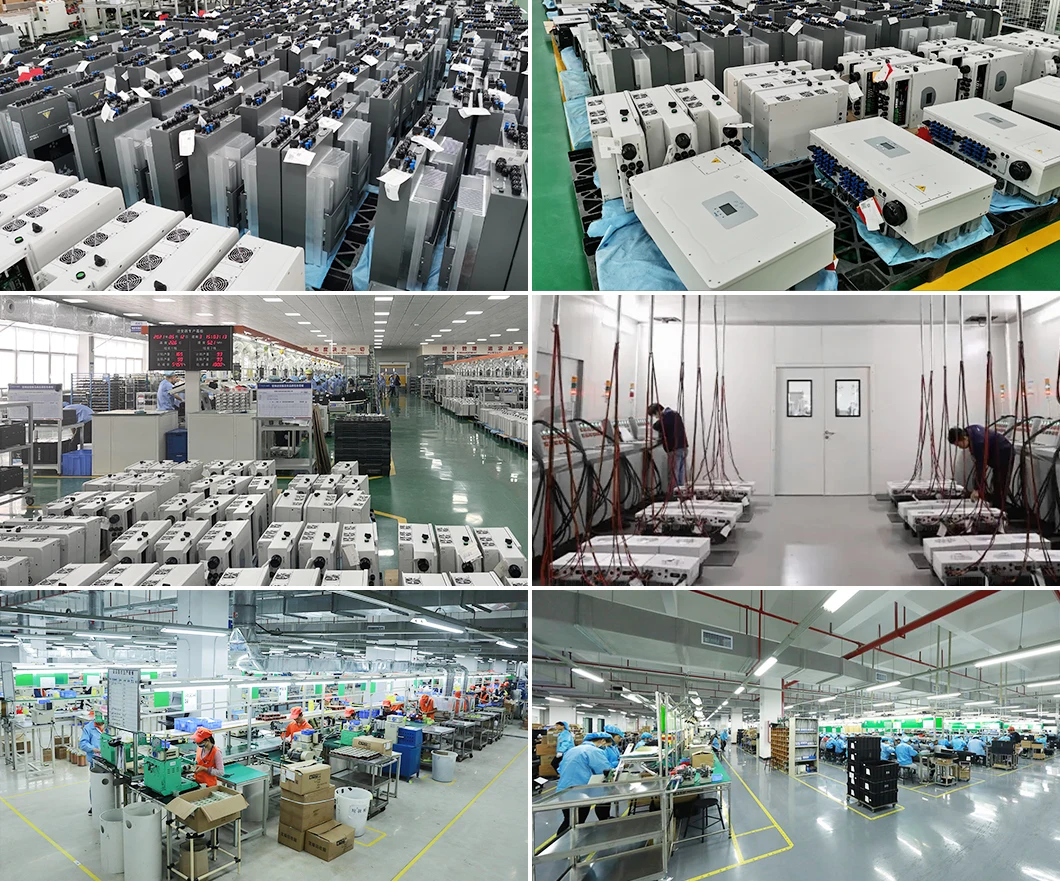

Our Factory




Contact Us






FAQ


Q1.How to solve the technical problem?
A:24 hours after-service consultancy just for you and to make your problem to solve easily.

Q2.What is your Delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30days,It depends on the quantity of order

Q3.Why should we choose you?
A:1: Reliable company - 14 years manufacturing and exporting experience.
2: Qualified products - TUV, CE, UL, IEC, CEC, INMETRO, ISO certified.
3: Good payment term for clients.
4: Module with lower degradation rate than standard degradation in the PV field

Q4.How to proceed an order?
A:1.let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and pay deposit for formal order.
4. We arrange the production.

If you want to know more information, you can send inquiry to our team, we will cover more details.
