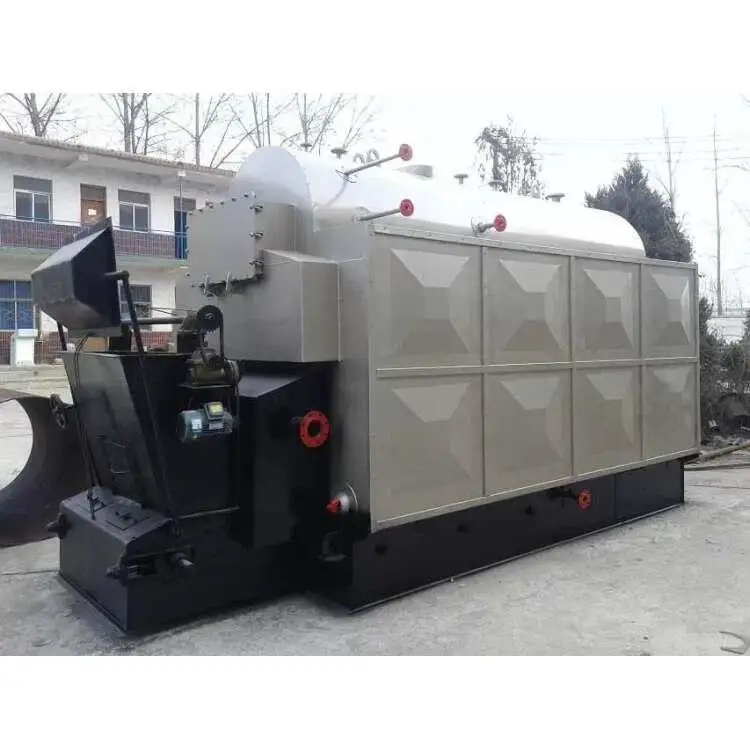

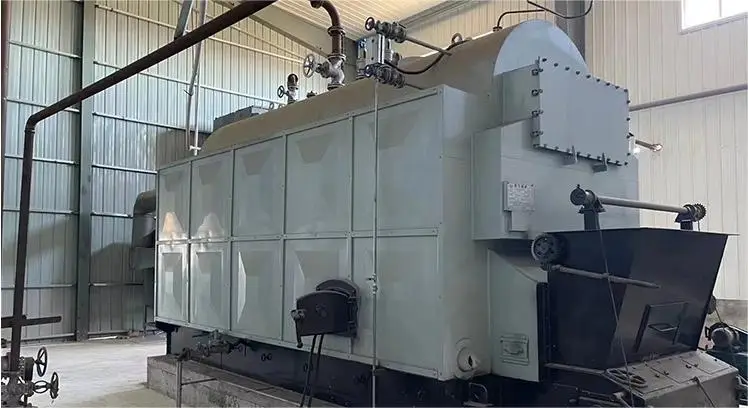

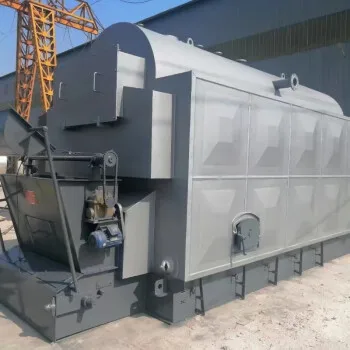

Horizontal steam boiler caldera de vapor de biomasa 20 toneladas horas
- Category: >>>
- Supplier: Xinxiang Xinda Boiler Co. ltd.
Share on (1600797736769):
Product Overview
Description
Product Description

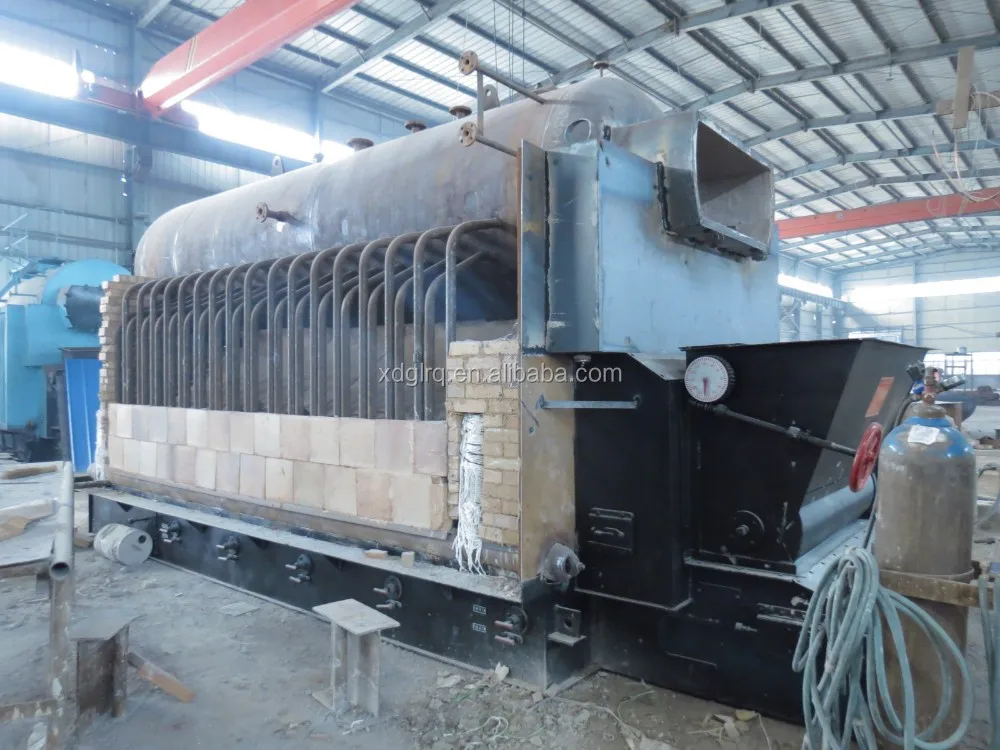

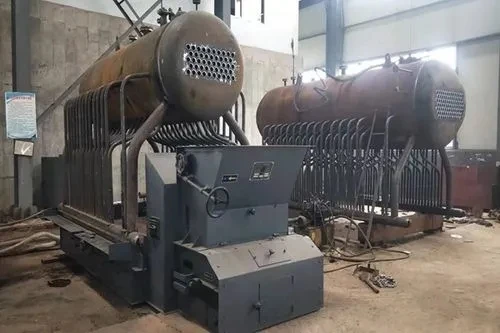

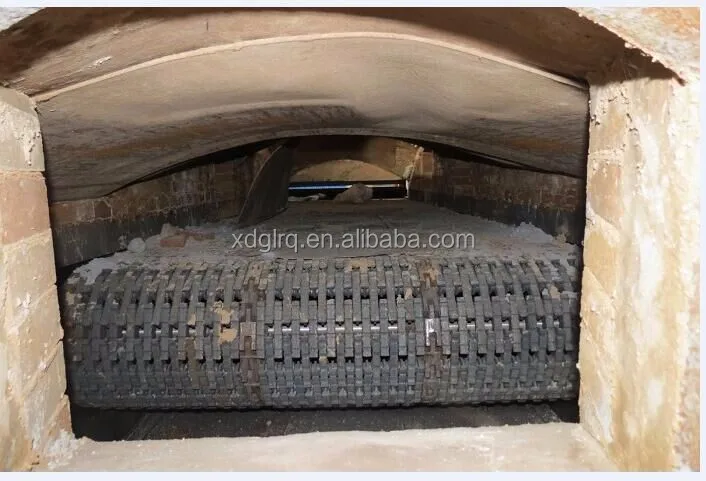

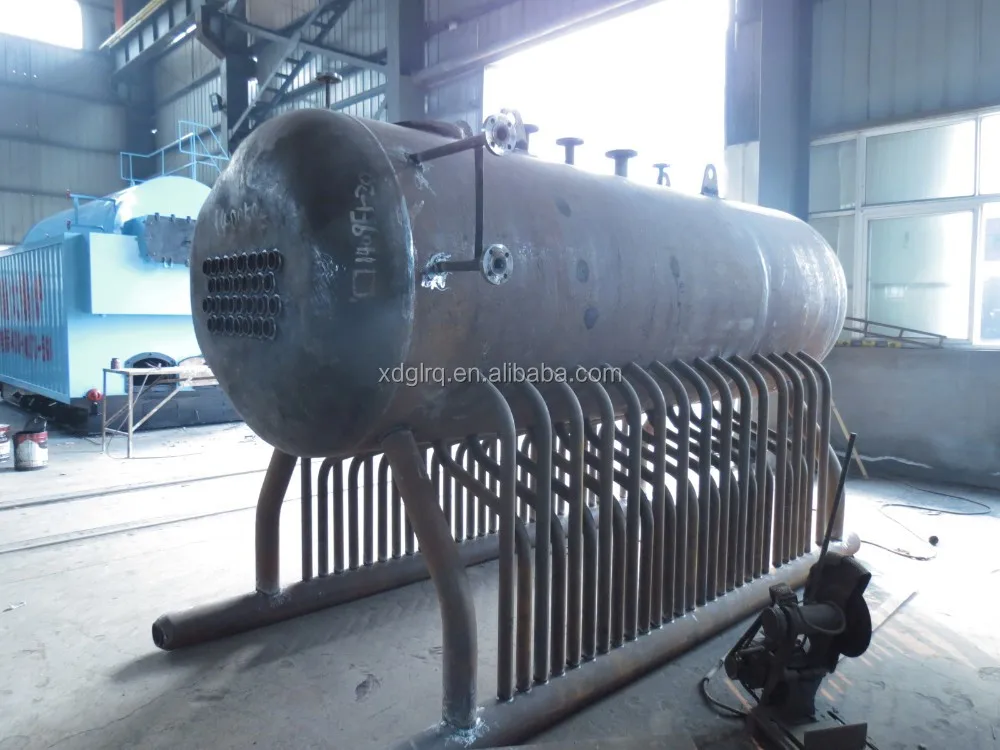

DZL series boiler is a single-drum vertical water-fire tube shell boiler, and the combustion equipment is a chain grate. The water walls on the left and right sides of the furnace are radiant heating surfaces, the two wings of the furnace are convective heating surfaces, and the convection heating surfaces of threaded smoke pipes are arranged in the drum. Shield shell. This series of boilers uses newer scientific research results, such as arched tube sheets, threaded smoke tubes, etc., to solve the problems of shell-type boiler tube sheet cracks, bulges at the bottom of the drum, tube bursts on the water wall, low thermal efficiency, and insufficient output.

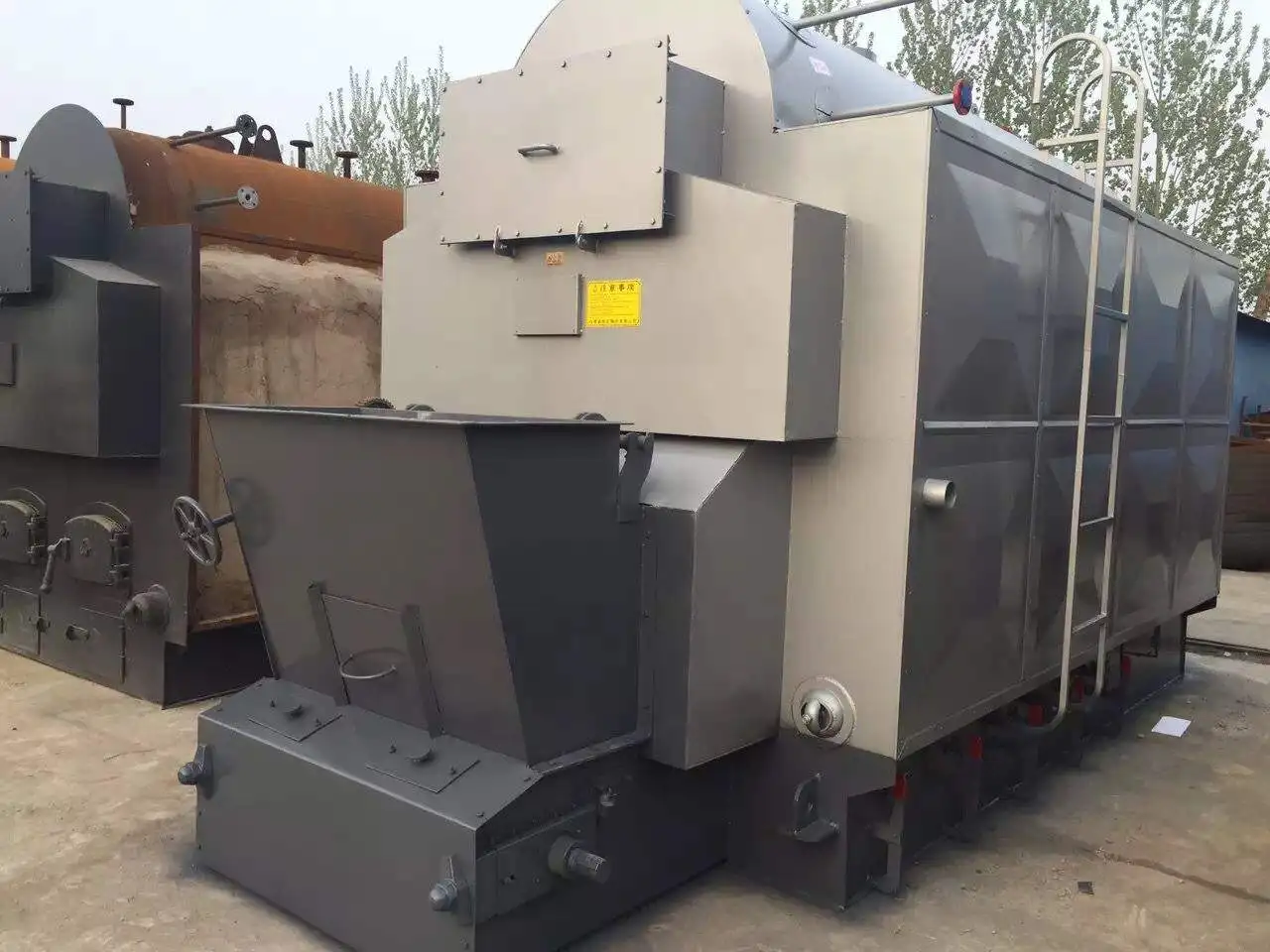

Industrial DZL Series Horizontal Chain Grate Biomass Steam Boilers
Model:DZL chain grate biomass boiler
Capacity: 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton coal boiler
Fuel: Soft Coal II, biomass(pellet), wood(pellet), rice husk, coal, etc
Type: automatic feeding boiler
Rated Steam Pressure: 0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature: 170/184/194/204/225 C
Structure: Fire tube and water tube structure
Application: food fish cannery factory,chemical factory,feed mill,textile factory,dyeing,laundry hose,hotel,hospital
Model:DZL chain grate biomass boiler
Capacity: 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton coal boiler
Fuel: Soft Coal II, biomass(pellet), wood(pellet), rice husk, coal, etc
Type: automatic feeding boiler
Rated Steam Pressure: 0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature: 170/184/194/204/225 C
Structure: Fire tube and water tube structure
Application: food fish cannery factory,chemical factory,feed mill,textile factory,dyeing,laundry hose,hotel,hospital
Core Technology:
Automatic, Chain Grate, layer combustion;
Automatic Control System---PLC control panel;
Automatic Feeding System;
Automatic fuel combustion adjustment & feed water adjustment;
Good coal adaptability and smoke eliminating effect;
Protections: Low and high water level alarm, low water level interlock protection;

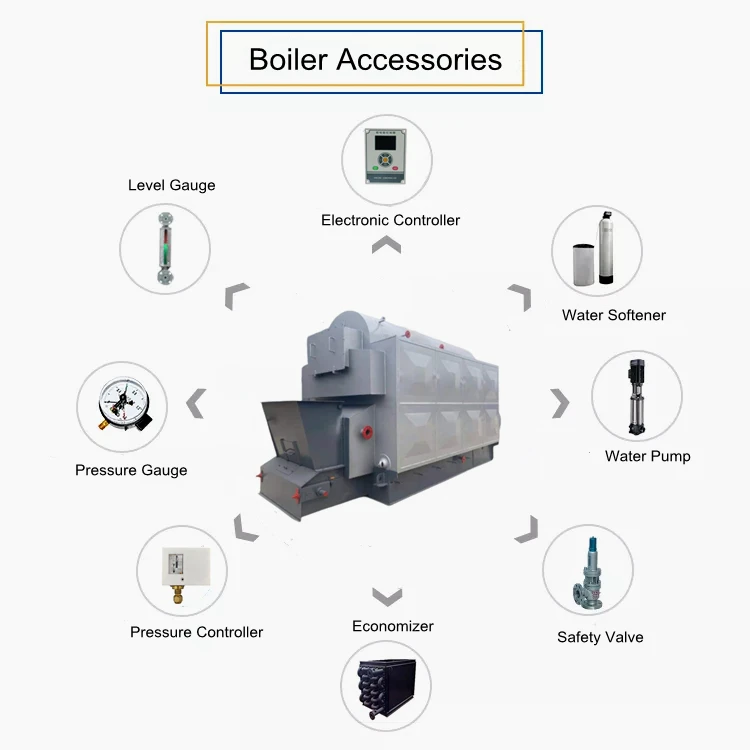

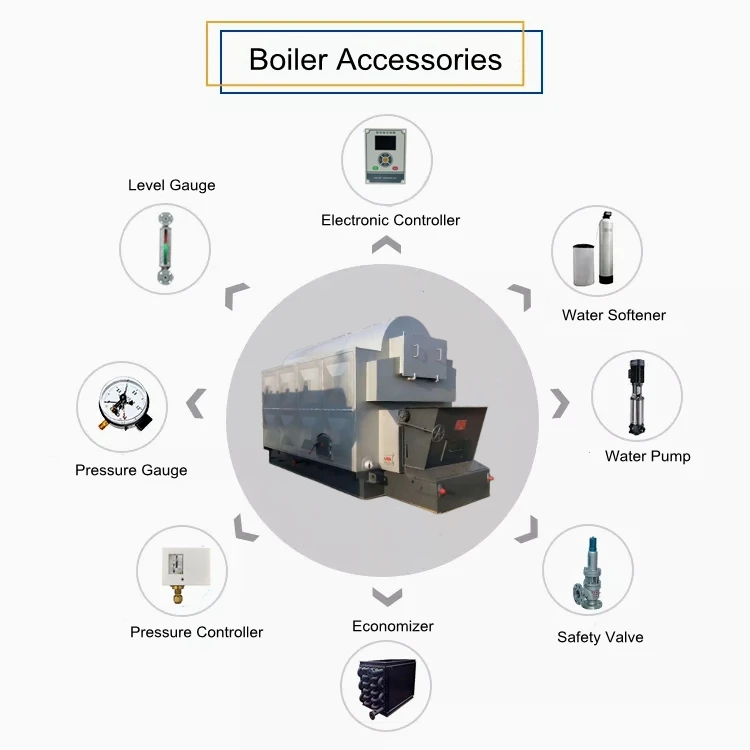

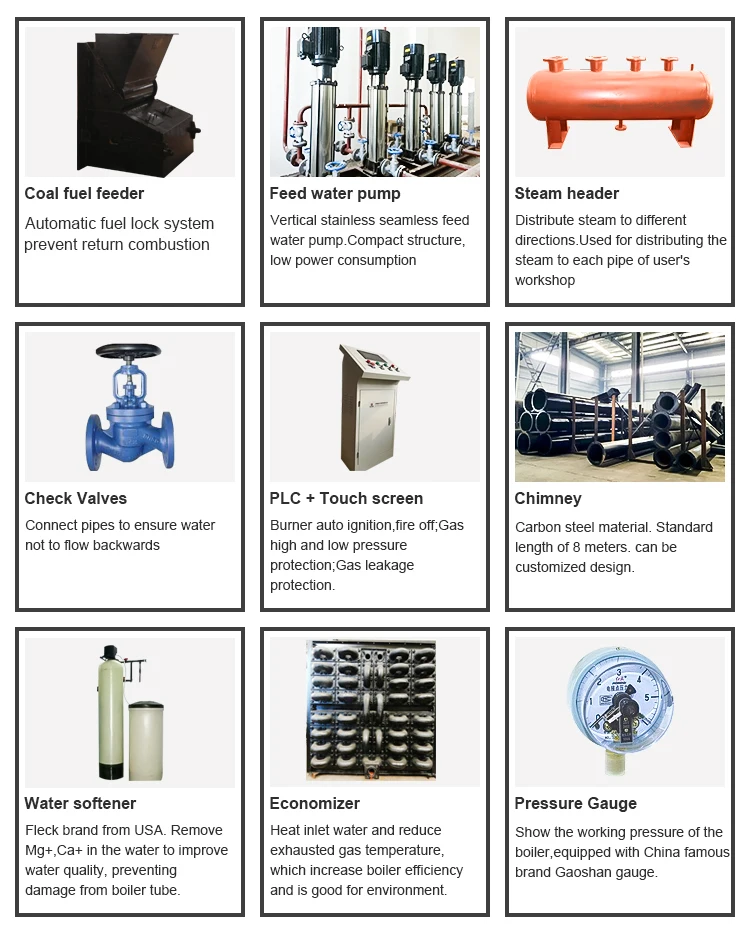

Equipped with Economizer, Induced Draft Fan, Forced Draft Fan, Automatic Feeding System, and all Safety Devices by law.
Automatic, Chain Grate, layer combustion;
Automatic Control System---PLC control panel;
Automatic Feeding System;
Automatic fuel combustion adjustment & feed water adjustment;
Good coal adaptability and smoke eliminating effect;
Protections: Low and high water level alarm, low water level interlock protection;
Equipped with Economizer, Induced Draft Fan, Forced Draft Fan, Automatic Feeding System, and all Safety Devices by law.
Technical Parameters
Type | Rated capacity | Rated Pressure | Temperature | Active grate area | Design efficiency | Fuel consumption |
t/h | MPa | ℃ | ㎡ | % | kg/h | |
DZL1-1.0-All | 1 | 1 | 184 | 1.85 | 80 | 118 |
DZL2-1.25-All | 2 | 1.25 | 194 | 3.4 | 80 | 238 |
DZL4-1.25-All | 4 | 1.25 | 194 | 5.18 | 80 | 472 |
DZL6-1.25-All | 6 | 1.25 | 194 | 7.55 | 80 | 685 |
DZL10-1.25-All | 10 | 1.25 | 194 | 12 | 80 | 1128 |
SZL15-1.25-All | 15 | 1.25 | 194 | 18 | 80 | 1698 |
SZL20-1.25-All | 20 | 1.25 | 194 | 22.9 | 80 | 2241 |
SZL30-1.25-All | 30 | 1.25 | 194 | 27.5 | 81 | 3380 |
SZL40-1.25-All | 40 | 1.25 | 194 | 34.5 | 81 | 4481 |
Fuel
DZL industrial low pressure horizontal automatic chain grate stoker biomass steam boilers are suitable for coal and many kinds of biomass fuels, such as charcoals, biomass pellets, wood pellets, wood chips, wood shavings, sawdust, wood waste, wood residues, wood cuttings, wood strips, rice husks, rice stalks, straws, paddy stalks, corncobs, cornstalks, cotten stalks, bagasses, peanuts shell, coconuts shell, walnuts shells, oil palm shell, grain shell, olive residues, leaves, barks, crop wastes, etc.
Application

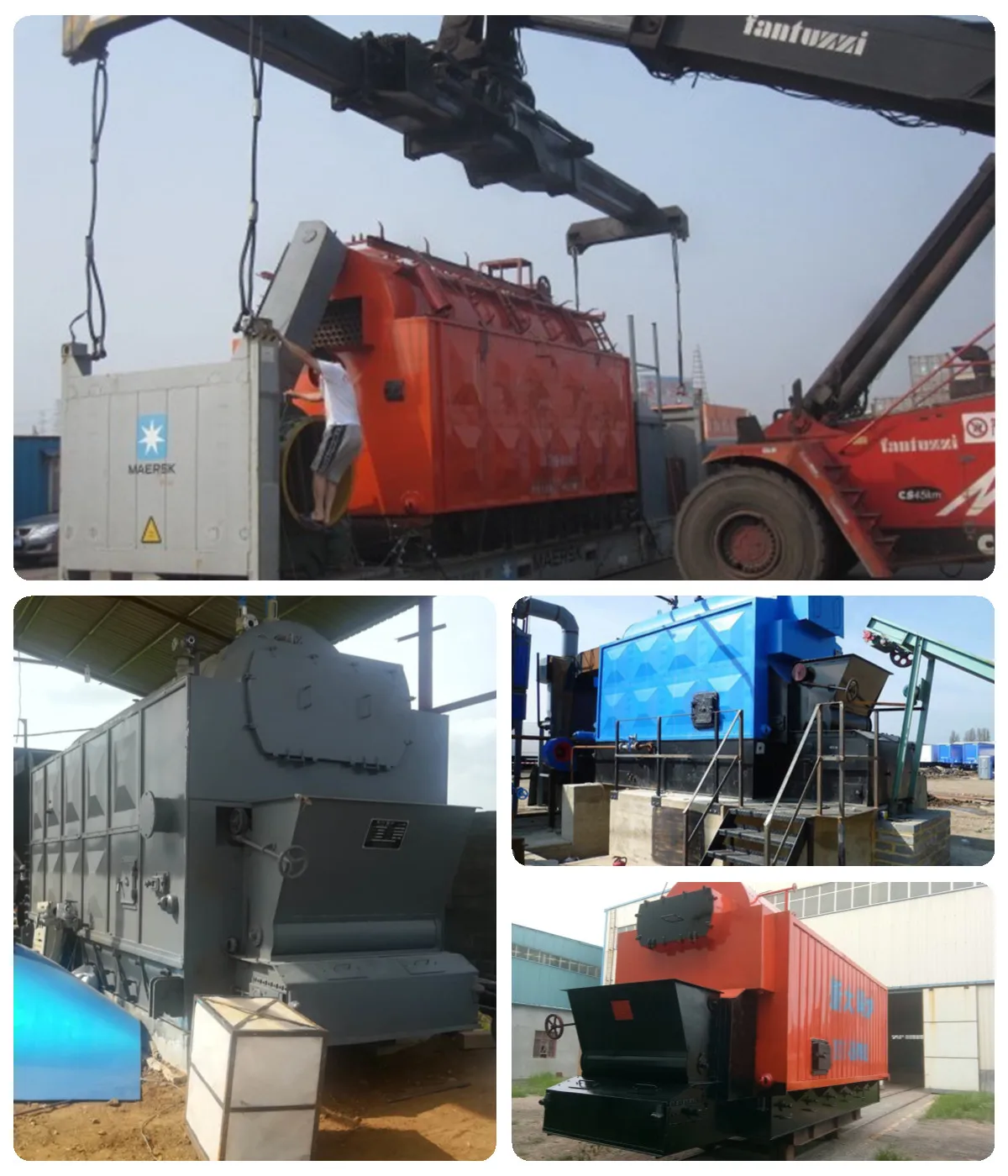

Packing & Delivery
Company Profile

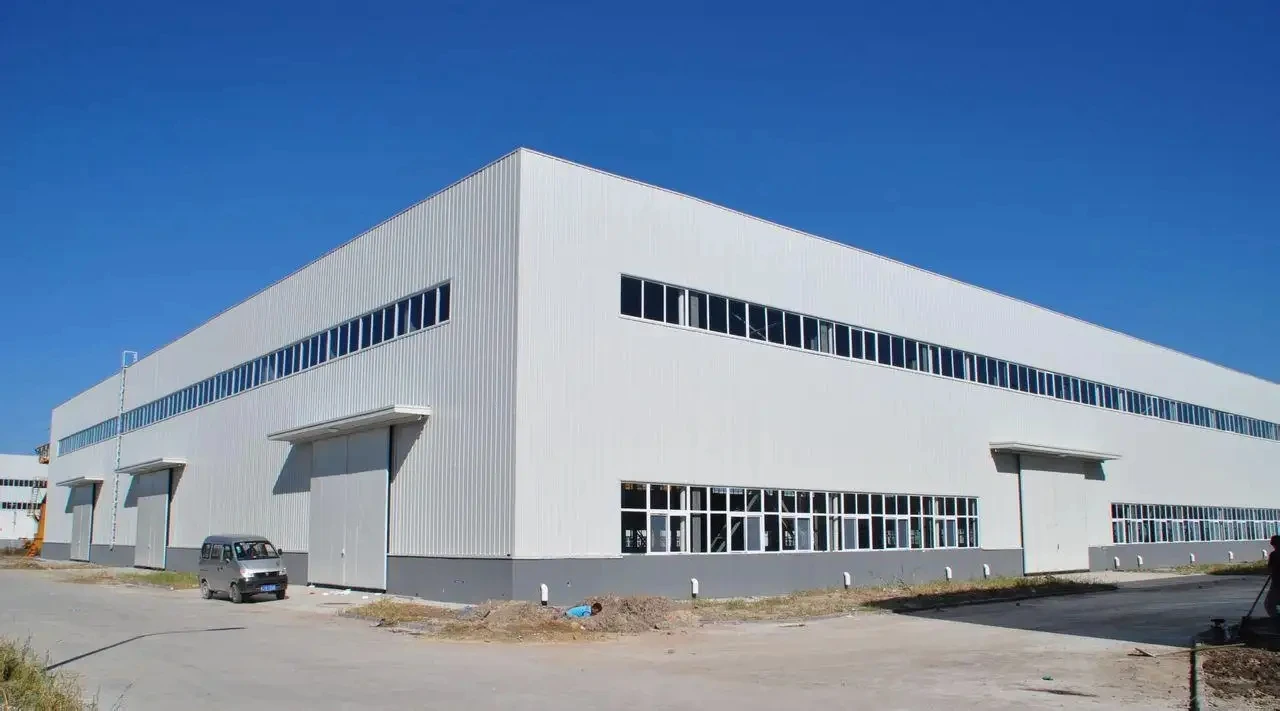

Henan Xinda Boiler Co., Ltd., a Grade A boiler manufacturer, specializes in the design, production, sales, installation and maintenance services of environmental protection and energy saving products. The factory floor covers an area of 12,000 square meters and is equipped with the latest technology production facilities.
After years of continuous development and progress, we have obtained more than ten invention patents and a number of national energy-saving and environmental protection product honors, and passed the ISO9001 international quality management system certification. The company also has professional research and development capabilities, providing efficient, stable and long-life products that meet CE and ASME standards.
By the end of 2018, we have exported to 67 countries around the world and have successfully provided tailor-made solutions to more than 100,000 customers. Our main products are:
(1) LHS/LSS vertical gas oil steam boiler and hot water boiler
(2) LHG vertical biomass steam boiler and hot water boiler
(3) WNS gas steam boiler and hot water boiler
(4) DZL/DZH biomass/wood/coal steam boiler and hot water boiler
(5) SZL biomass steam boiler and hot water boiler
(6) LDR electric steam generator and hot water boiler
(7) Various types of pressure vessels
Xinda Boiler has been committed to improving the efficiency and safety of boilers and providing safe, energy-saving and environmentally friendly products. We look forward to working with you to create a brilliant future.
Customer Visiting
Exhibition
Our Services
FAQ
Q1: How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2: Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety.
Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation and commissioning.
But the buyer will be in charge of :
(1) The round air-tickets costs from Xinxiang city to your project site.
(2) Board and lodging of seller's workers for entire period at the end user's site.
(3) Service fee for guiding engineer:100$/day/person.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2: Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety.
Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation and commissioning.
But the buyer will be in charge of :
(1) The round air-tickets costs from Xinxiang city to your project site.
(2) Board and lodging of seller's workers for entire period at the end user's site.
(3) Service fee for guiding engineer:100$/day/person.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
