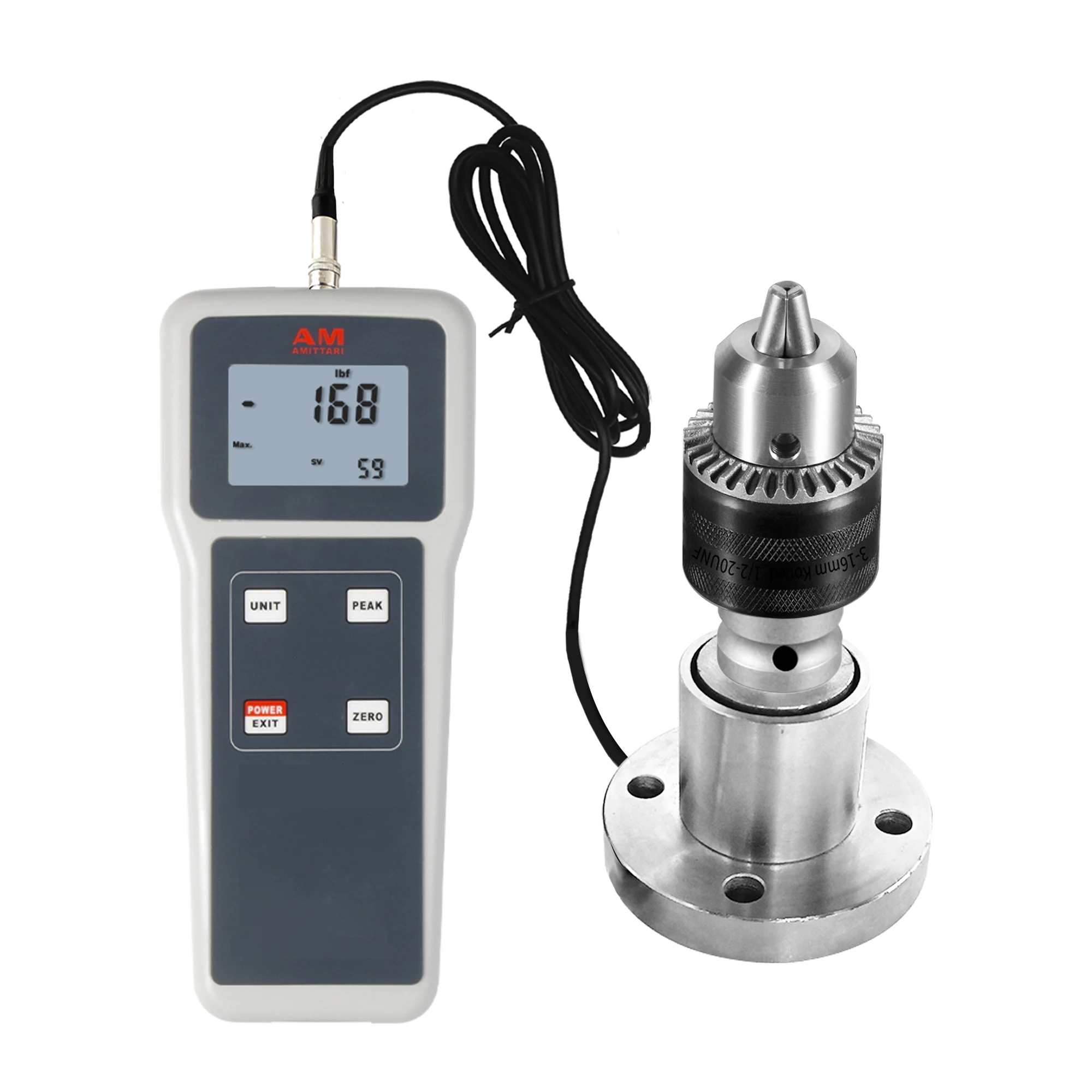

Цифровой измеритель крутящего момента, портативный измеритель крутящего момента 20N

Share on:


Price:294,00 $ - 412,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Features





* High accuracy and high resolution.


* A variety of measuring units for choice, mutual conversion.


* With peak value hold function.


* Can use alkaline battery power; External power supply is also available.


Principle





Digital display hand-held torque meter is a small, simple, multi-functional and high-precision torque meter testing instrument, widely used in electronic appliances,


building hardware, light industry textileTorque load of weaving, auto parts, lighters and other ignition devices, fire fighting equipment, pen making, lock making, fishing tackle, chemical industry, power machinery, scientific research institutions and other industries,Test, etc.


Specifications












































































































Model


TG-104-1N.mTG-104-5N.mTG-104-20N.m

Force Range


±0.1kgf.m±0.5kgf.m±2kgf.m
±100gf.m±500gf.m±2000gf.m
±1N.m±5N.m±20N.m
±0.2Lbf.m±1.1Lbf.m±4.4Lbf.m
Resolution0.001kgf.m0.001kgf.m0.001kgf.m

1gf.m



1gf.m



1gf.m


0.01N.m0.01N.m0.01N.m
0.001Lbf.m0.001Lbf.m0.001Lbf.m

Standard three-jaw


chuck size


0.6mm-6mm1.5mm-13mm3mm-16mm

Accuracy



± 0.5%FS ± 1Digit


Unitkgf, gf, N, Lbf

Measurement State



Peak Value Measurement, Real Time Measurement


Display

Four large LCD, large screen display


Power Off10 Minutes Auto Power Off, Manual Power Off

Backlight



Blue Backlight


Safe Load150%FS (Buzzer Alarm Over 110%FS)
Power Supply2x1.5 AA(UM-3) Battery or 5V DC Power Supply

Operating Conditions


Temperature: 0~40°C   Humidity: <80%
Surrounding

No Vibration Source or Corrosive Medium Around


SizeMain Unit: 211x80x36mm
The host weight390g
