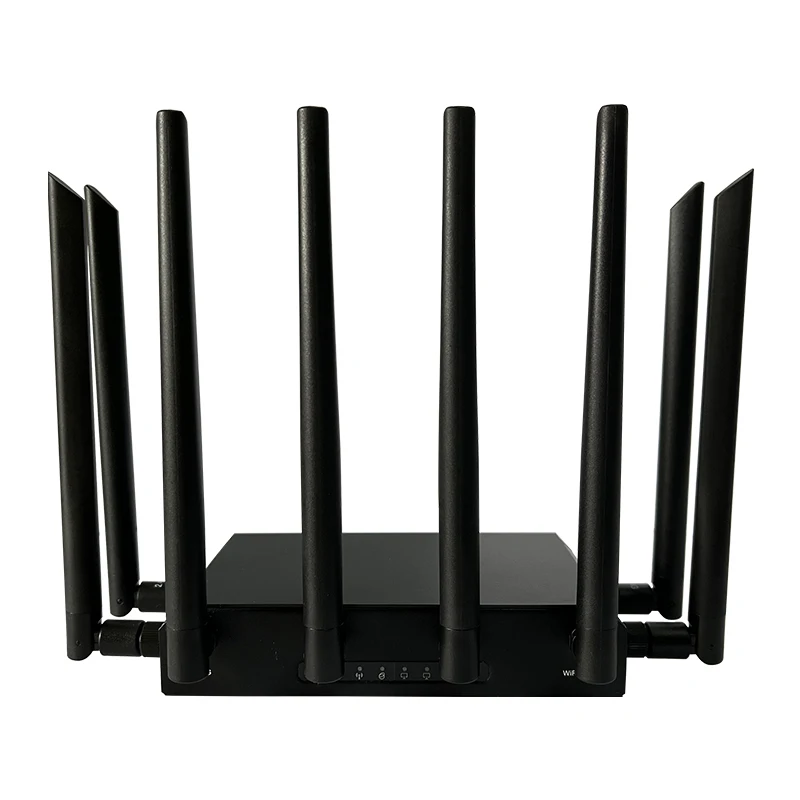

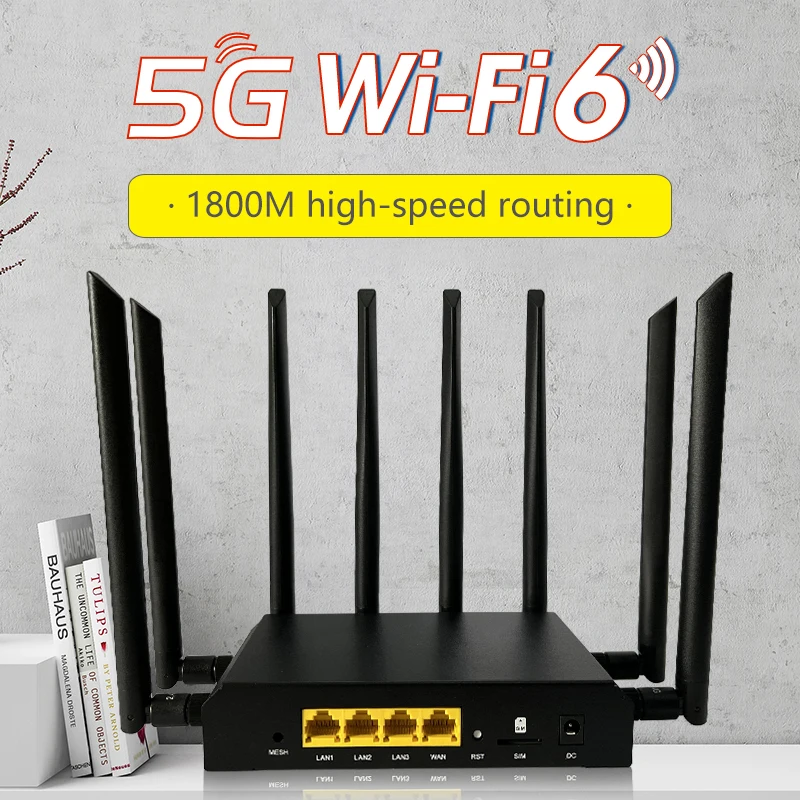

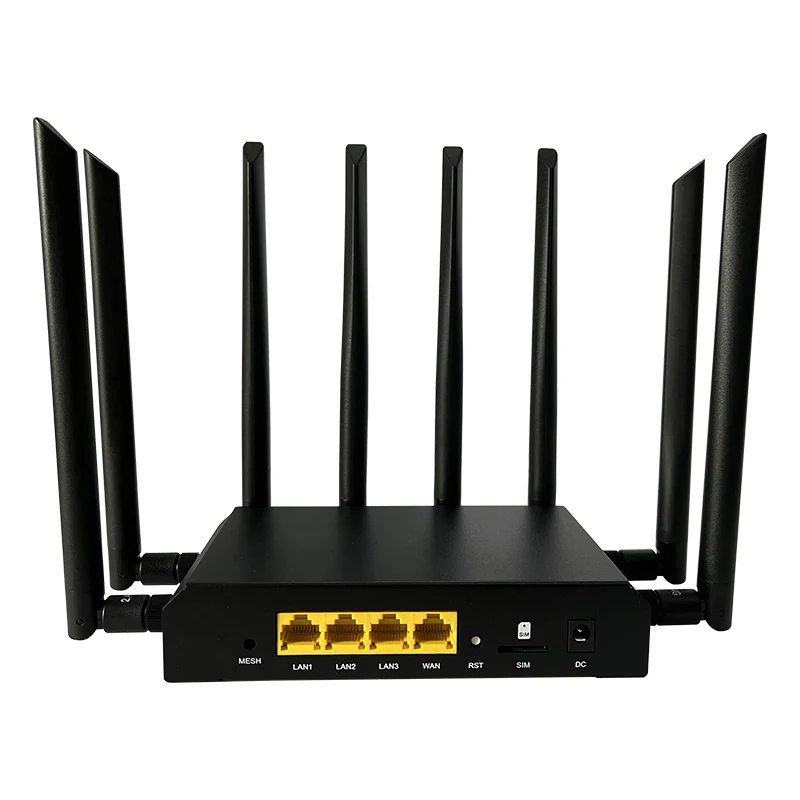

ZBT Z6001AX M2 T Wholesales AX800 1WAN 3LAN support VPN 5G wifi6 routers
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronics Co. Ltd.
Share on (1600797792889):
Product Overview
Description
ZBT Z6001AX-M2-T Wholesales AX800 1WAN+3LAN support VPN 5G wifi6 routers
The web price is not including 4G/5G, if you need 4G/5G version, please contact us.
Products Description
* Independent WiFi chip is adopted, with QCN5022 for 2.4G and QCN5052 for 5.8G
* The 2.4G rate is up to 573.5mbps, and the 5.8G rate is up to 1201mbps, collectively referred to as 1800 Mbps
* Support MU-MIMO, and WiFi modulation mode supports 1024-qam and OFDMA
* High speed 256MB DDR3 with 128MB NAND flash storage
* Full 1000m adaptive network interface of 1wan and 3lan, supporting automatic flip (auto MDI / mdix)
* A built-in m.2 interface is used to connect 5g communication module, and the module power supply is independently controlled through GPIO
* External standard SIM card interface, supporting SIM / USIM card
* IPQ6000 has its own watchdog function, which automatically restarts in case of crash

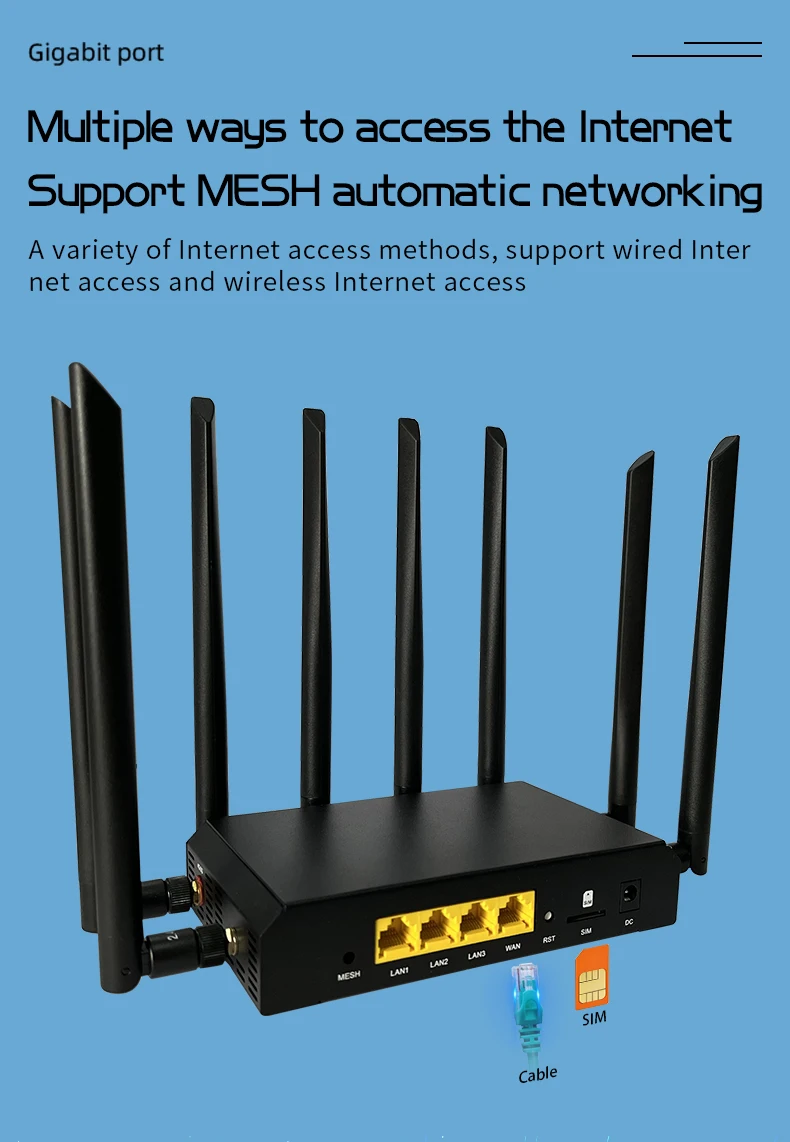

* When multiple products are used at the same time, mesh automatic networking is supported
* The 2.4G rate is up to 573.5mbps, and the 5.8G rate is up to 1201mbps, collectively referred to as 1800 Mbps
* Support MU-MIMO, and WiFi modulation mode supports 1024-qam and OFDMA
* High speed 256MB DDR3 with 128MB NAND flash storage
* Full 1000m adaptive network interface of 1wan and 3lan, supporting automatic flip (auto MDI / mdix)
* A built-in m.2 interface is used to connect 5g communication module, and the module power supply is independently controlled through GPIO
* External standard SIM card interface, supporting SIM / USIM card
* IPQ6000 has its own watchdog function, which automatically restarts in case of crash
* When multiple products are used at the same time, mesh automatic networking is supported

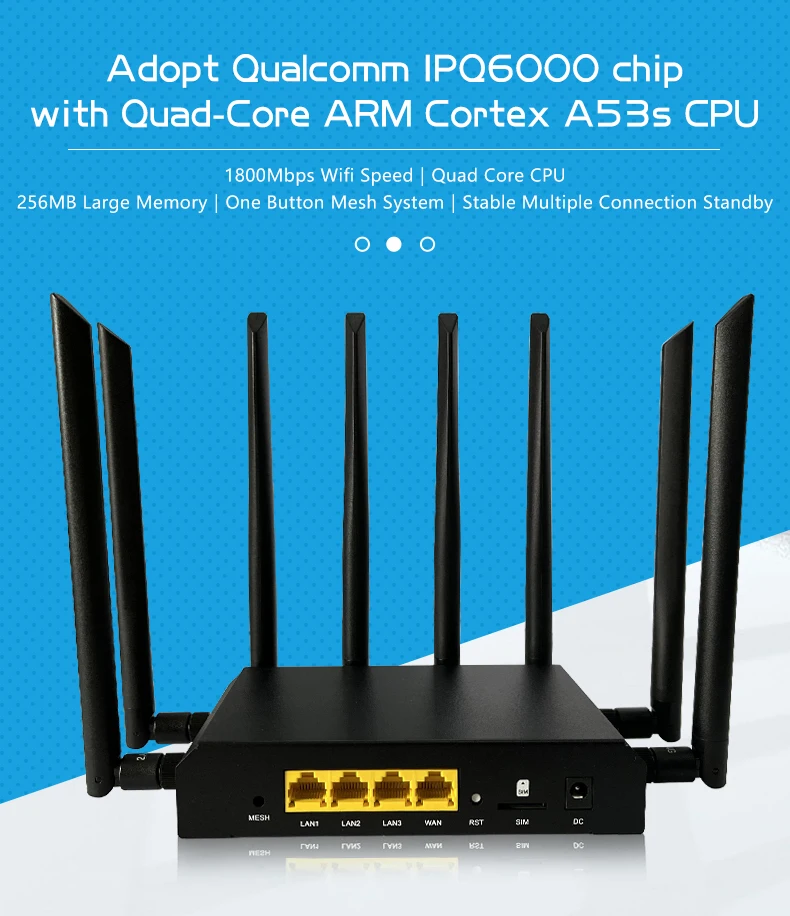

Processor | IPQ6000, 4-Core ARM Cortex A53s CPU, 1.2GHZ Main Frequency |
2.4GWIFI chipset | QCN5022, IEEE 802.11ax/n/g/b,Speed up to 573.5Mbps,2T2R |
5.8GWIFI chipset | QCN5052 IEEE 802.11ax/ac/a,Speed up 1201Mbps,2T2R |
Ram | DDR3 256MB(One DDR matches 32bit firmware） |
Flash | 128MB NAND FLASH |

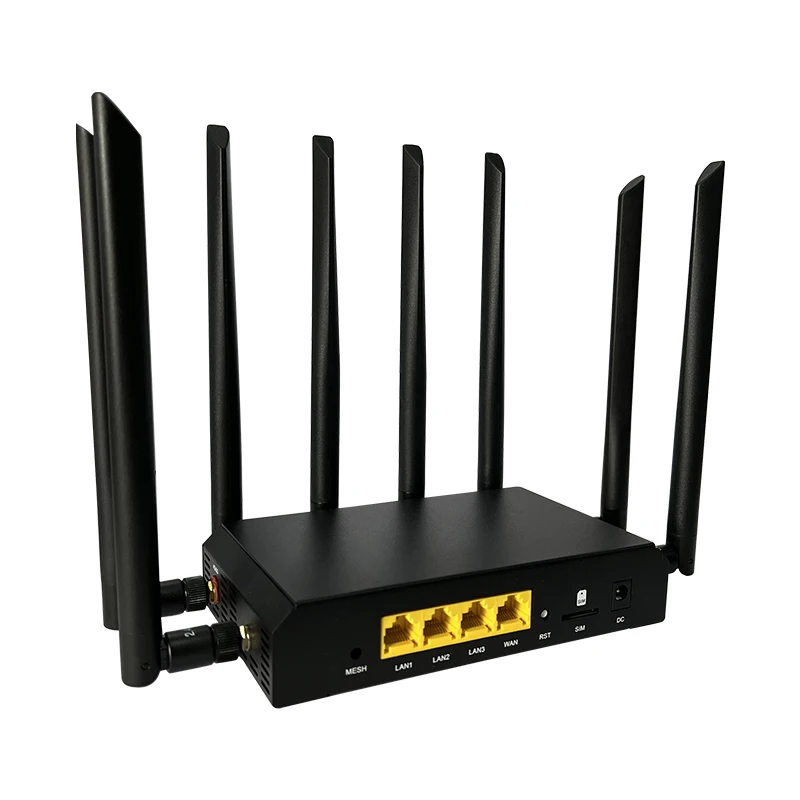

Ethernet Port | WAN*1, 1000Mbps(Auto MDI/MDIX), IEEE 802.3/802.3u/802.ab |
LAN*3, 1000Mbps(Auto MDI/MDIX, IEEE 802.3/802.3u/802.ab | |
Power Port | DC5.5*2.1MM |
Buttons | Reset Button* 1, MESH Button*1 |
SIM Card | Standard SIM card Slot *1, Support SIM/USIM |
Antennas | Omnidirectional 3dbi 2.4G antenna*2 |
Omnidirectional 3dbi 5.8G antenna*2 | |
Omnidirectional 3dbi 5Gantennas*4, support 4G/3G/2G bands | |
M.2 Slot | Built-in M.2*1, Support USB3.0 and PCIE Bus, support 5G module |
