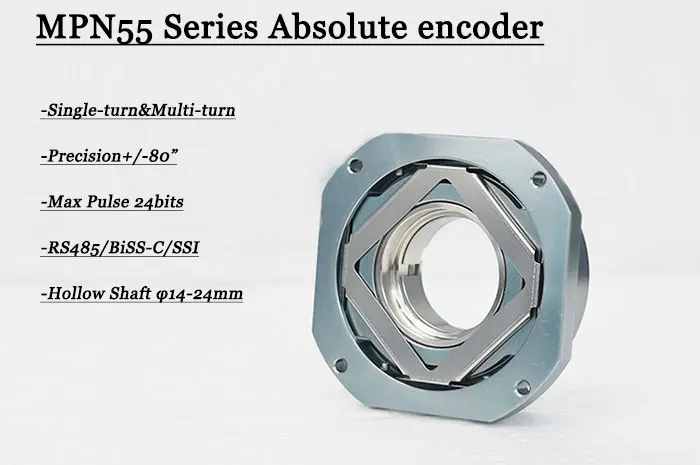

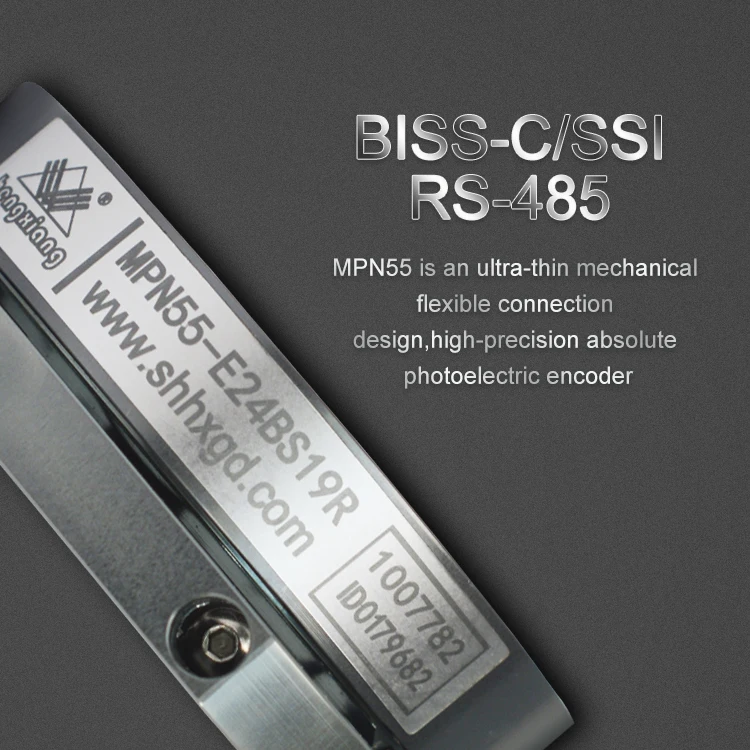

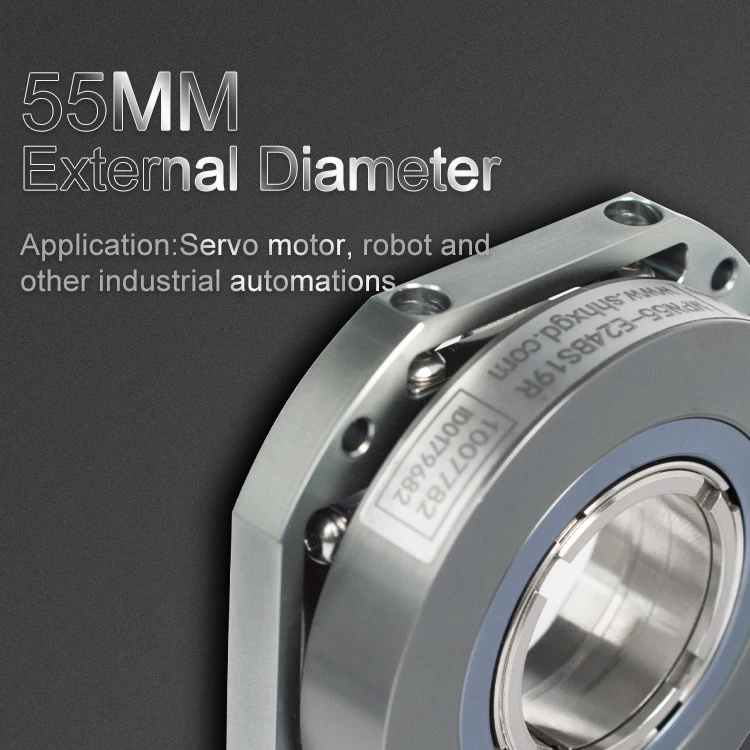

  • About MPN55 absolute encoder


-- RS485/SSI/Biss-C signal
--Single-turn and multi-turn
--Extra thin 15mm

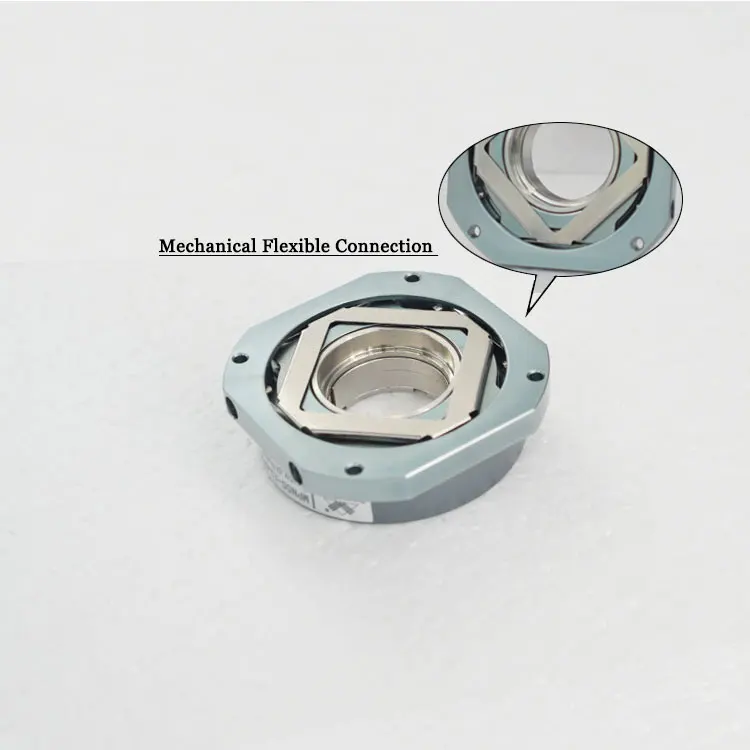

--Machanical flexible connection design
--Especially designed for limiting installtion spaces
-Clamping flange;Housing: Ø 65 mm
--17/24-bit Single-turn/Multi-turn;
--Through hollow shaft up to ø24 mm
Encoder multiturn / RS485/SSI/Biss-C

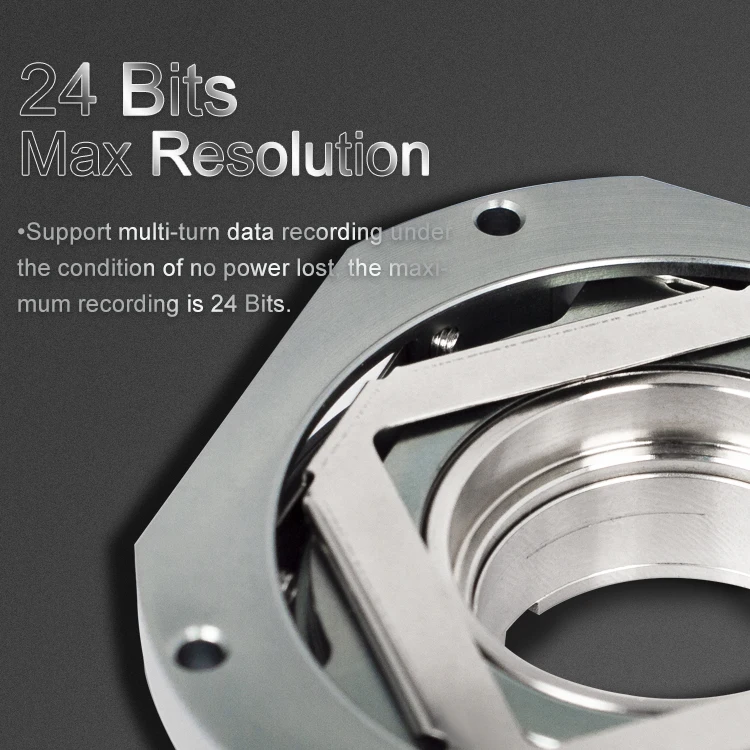

-Resolution: singleturn 24 bit, multiturn 24+16bit

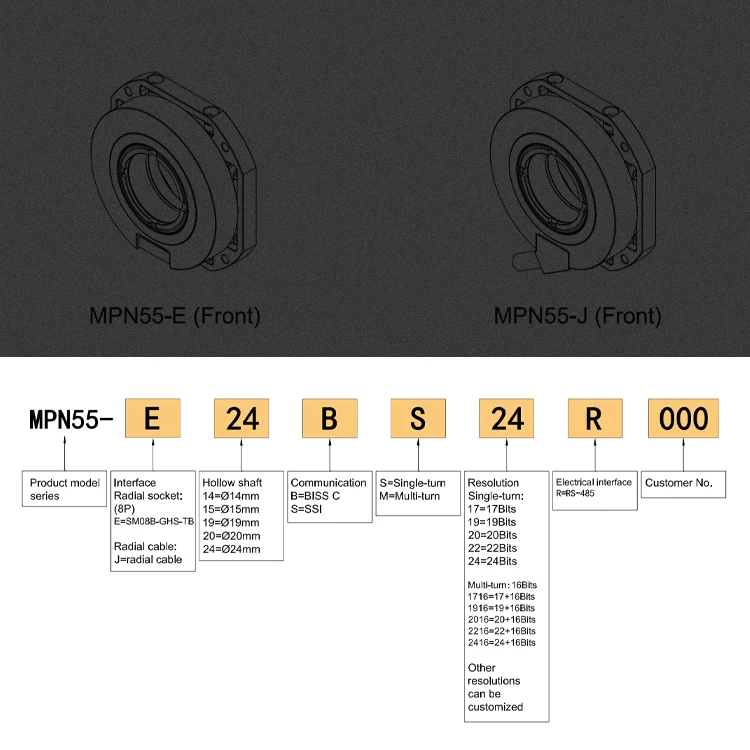

MPN55 Series Rotary encoder Parameters


Items
Basic parameters
Brand
Hengxiang
Encoder type
Absolute encoder

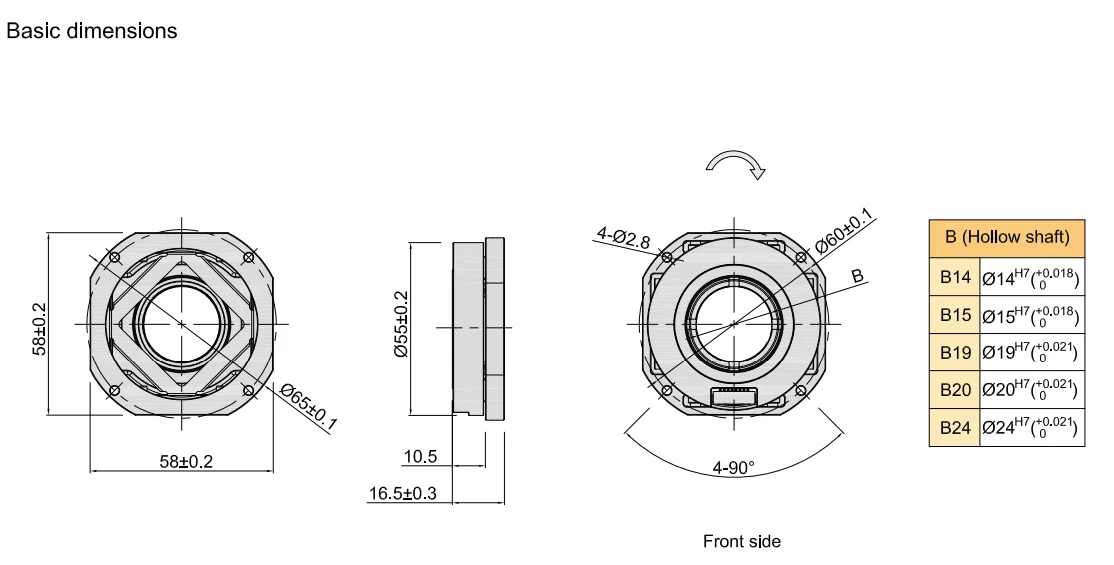

External diameter
55mm（Mounting flange 65mm）
Thickness
15mm
Hollow shaft type
Through hole
Hollow shaft diameter
14mm; 15mm; 19mm; 20mm; 24mm
Resolution
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface

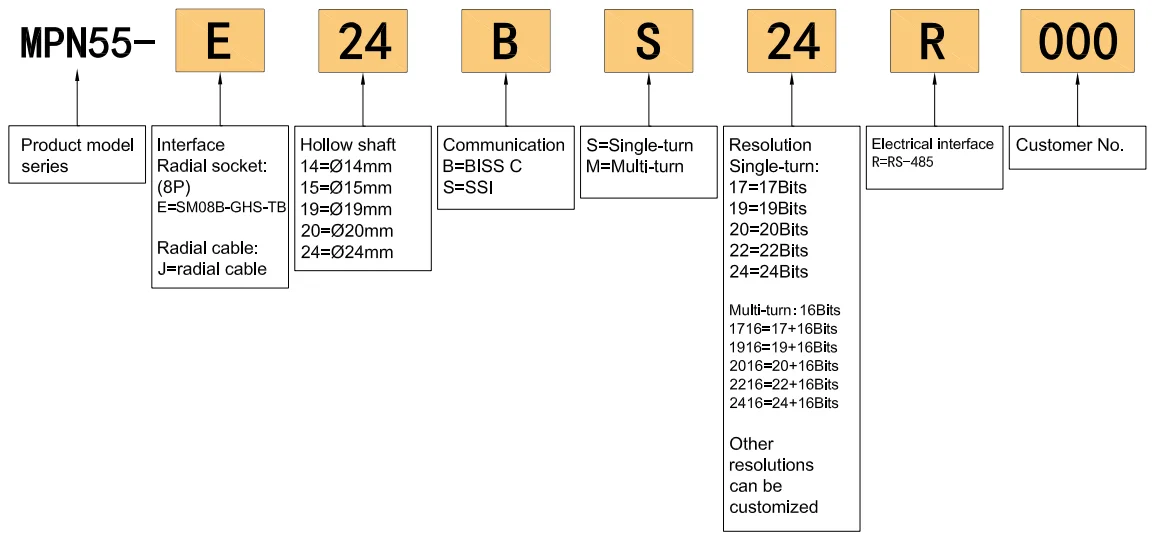

E=SM08B-GHS-TB ；J=radial cable
Communication
B=BISS-C; S=SSI
Electrical connection
R=RS-485
Output mode
M=multi-turn
S=single-turn
Scanning principle
Reflective grating code
Accuracy
±80"
Response speed
Normal action: 6000min-1
RMS position signal noise
±2@18 bits/r
Communication clock frequency
≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time
typical value: 13ms
Absolute position sampling period
≤75 ns
Allowable speed
≤32200 r/min (restricted by mechanical speed limit)
Cable
Differential twisted-paired cable
Cable length
200mm-10000mm
Mechanical Connection

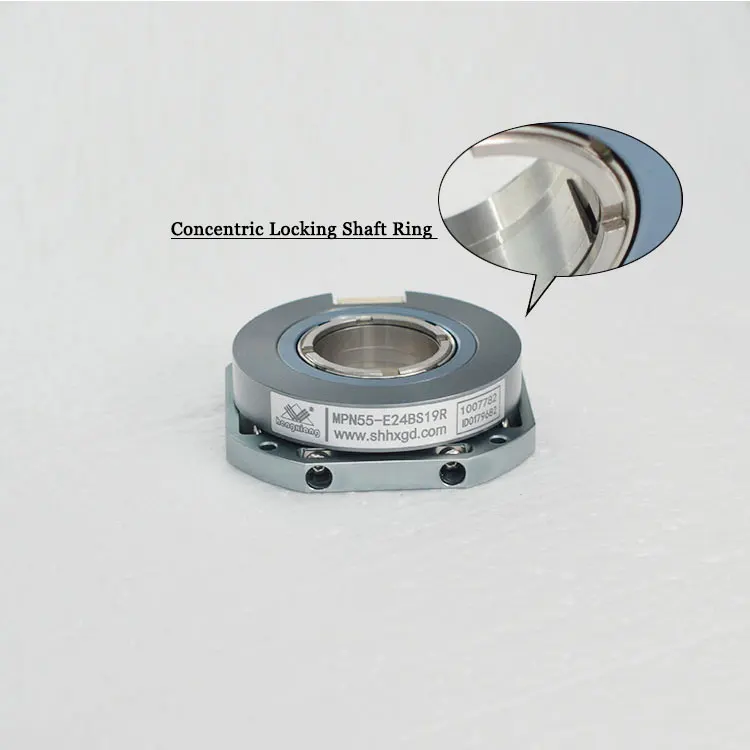

With bearing& encircled locking shaft
Starting Torque
less than 9.8×10-3 N.m
Inertial moment
less than 6.5×10-6 kg.m2
Shaft load
Radial 30N; Axial 20N
Slew speed
≤6000rpm
Shell Material
Aluminum
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity
Operating and storage: 35~85%RH(Noncondensing)
Vibration
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock
980m/s2 11ms, three times for X,Y,Z direction individually
Protection
IP50
Net weight
About 150g


Why Choose Us




Certifications




Customers' Feedback




FAQ


Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
