Промышленная сушилка для компрессора, осушитель воздуха для промышленного использования
- Category: Industrial Compressor Parts >>>
- Supplier: Henan,Chaodun,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

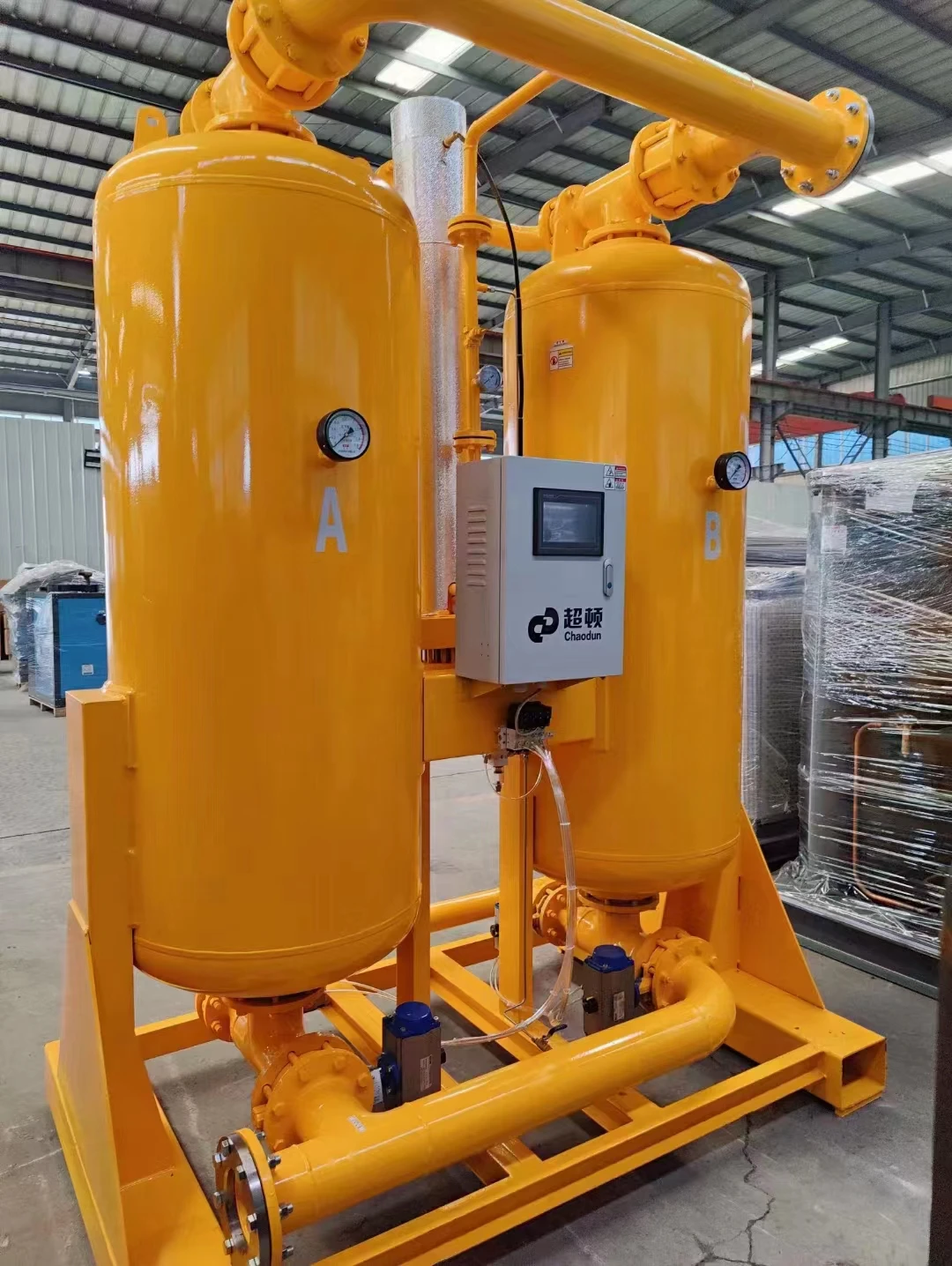

High Quality Heated Compressed Desiccant Air Dryer
Product Name | Micro Heat Adsorption Air Dryer |
Brand | Chaodun |
Intake Air Temperature | ≤ 45 ℃ |
Working Pressure | 0.6-0.95mpa |
Regeneration Gas Consumption | ≤ 7% |
Inlet Oil Content | ≤ 0.1ppm |
Pressure Dew Point | - 20 ~ - 40 ℃ |
Adsorbent | activated alumina (molecular sieve) |
Control Mode | microcomputer automatic control |
Working Principle
Micro heat regeneration adsorption dryer is a kind of energy-saving and efficient dryer, which is a product developed by absorbing the advantages of micro heat regeneration and heatless generation. The regenerated gas is used to purge and regenerate the adsorption tower bed after the micro thermal heating increases the temperature, which can save the regeneration gas consumption, has good reeffect and longer adsorption working time.

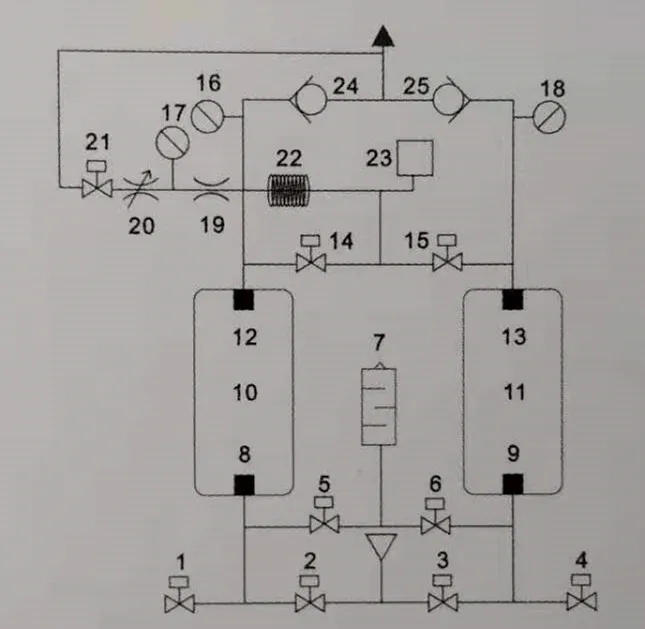

1, 4 vent valve 2, 3 intake valve
5, 6 pressure relief valve 7 silencer
8, 9 intake diffuser 10, 11 adsorption cylinder 12, 13 outlet diffuse 14, 15 regeneration valve 16, 18 pressure gauge of tower A and B
17 regeneration pressure gauge
19 orifice plate
19 orifice plate
20 control valve of generation gas
21 shut-off valve for pressure reducing
22 heater 23 temperature probe
24, 25 outlet check valve
Core Advantages
A. High quality accessories
1. High performance pneumatic valve is adopted with reliable performance and sensitive action, which can avoid air leakage or stuck valve due to poor performance of the valve;
2. NASS coil reversing solenoid valve is adopted to switch quickly and reliably with long service life;
3. Large torque aluminum alloy pneumatic actuator is adopted, with large torque, smooth action, self-lubricating inside and no need to add lubricant;
4. Using high-performance adsorbent has large specific surface area, strong adsorption capacity, strong wear resistance and high wear resistance; Ensure long-term use of dew point stability without pulverization;
5. PLC and LCD controller, Chinese interface, easy to understand, easy to operate and maintain;
6. Stainless steel heater, outer fin combined with PID temperature control mode, has the advantages of fast heating speed and high control accuracy.
2. NASS coil reversing solenoid valve is adopted to switch quickly and reliably with long service life;
3. Large torque aluminum alloy pneumatic actuator is adopted, with large torque, smooth action, self-lubricating inside and no need to add lubricant;
4. Using high-performance adsorbent has large specific surface area, strong adsorption capacity, strong wear resistance and high wear resistance; Ensure long-term use of dew point stability without pulverization;
5. PLC and LCD controller, Chinese interface, easy to understand, easy to operate and maintain;
6. Stainless steel heater, outer fin combined with PID temperature control mode, has the advantages of fast heating speed and high control accuracy.
B. Performance improvement
1. Low noise during operation. Silent check valve and high-performance muffler are adopted to ensure the minimum noise during operation and exhaust;
2. Low pressure automatic protection function, when the working pressure is lower than the normal control pressure of the valve, it will stop automatically for protection, and restart automatically when the pressure rises, so as to avoid the abnormal system pressure caused by misoperation;
3. Automatic pressure charging function, automatic pressure charging before valve switching, so that the cylinder pressure can be switched after equalizing, so as to ensure the stability of cylinder pressure, avoid the impact of pipeline pressure fluctuation on adsorption, and ensure the service life of adsorbent.
Treatment gas volume: 0.8nm3/min ~ 600nm3 / min
Product Paramenters
Model | Capacity Nm3/min | Voltage | Power （KW） | Diameter of Air Inlet and Outlet | Overall Dimension LWH(mm) |
CD-015WL | 1.5 | 220V | 1.12 | DN25 | 650*450*1400 |
CD-026WL | 2.6 | 220V | 1.7 | DN25 | 780*500*1500 |
CD-038WL | 3.8 | 220V | 2.2 | DN40 | 780*500*1500 |
CD-072WL | 7.2 | 220V | 2.7 | DN40 | 930*630*1900 |
CD-110WL | 11.0 | 220V | 3.2 | DN50 | 1100*650*2100 |
CD-140WL | 14.0 | 220V | 4.2 | DN50 | 1260*750*2200 |
CD-180WL | 18.0 | 380V | 5.2 | DN65 | 1450*750*2300 |
CD-230WL | 23.0 | 380V | 6.2 | DN65 | 1450*750*2300 |
CD-280WL | 28.0 | 380V | 6.2 | DN80 | 1500*1100*2400 |
CD-330WL | 33.0 | 380V | 8.2 | DN80 | 1500*1100*2500 |
CD-380WL | 38.0 | 380V | 10.2 | DN100 | 1500*1300*2600 |
CD-450WL | 45.0 | 380V | 10.2 | DN100 | 1800*1500*2700 |
CD-550WL | 55.0 | 380V | 12.2 | DN125 | 2000*1650*2800 |
CD-670WL | 67.0 | 380V | 12.2 | DN125 | 2200*1750*2900 |
CD-750WL | 75.0 | 380V | 15.2 | DN150 | 2300*1950*3000 |
CD-850WL | 85.0 | 380V | 18.2 | DN150 | 2500*2200*3000 |
CD-950WL | 95.0 | 380V | 22.2 | DN150 | 2600*2300*3100 |
CD-1100WL | 110.0 | 380V | 25.2 | DN150 | 2800*2400*3400 |
CD-1200WL | 120.0 | 380V | 27.0 | DN150 | 2800*1200*3400 |

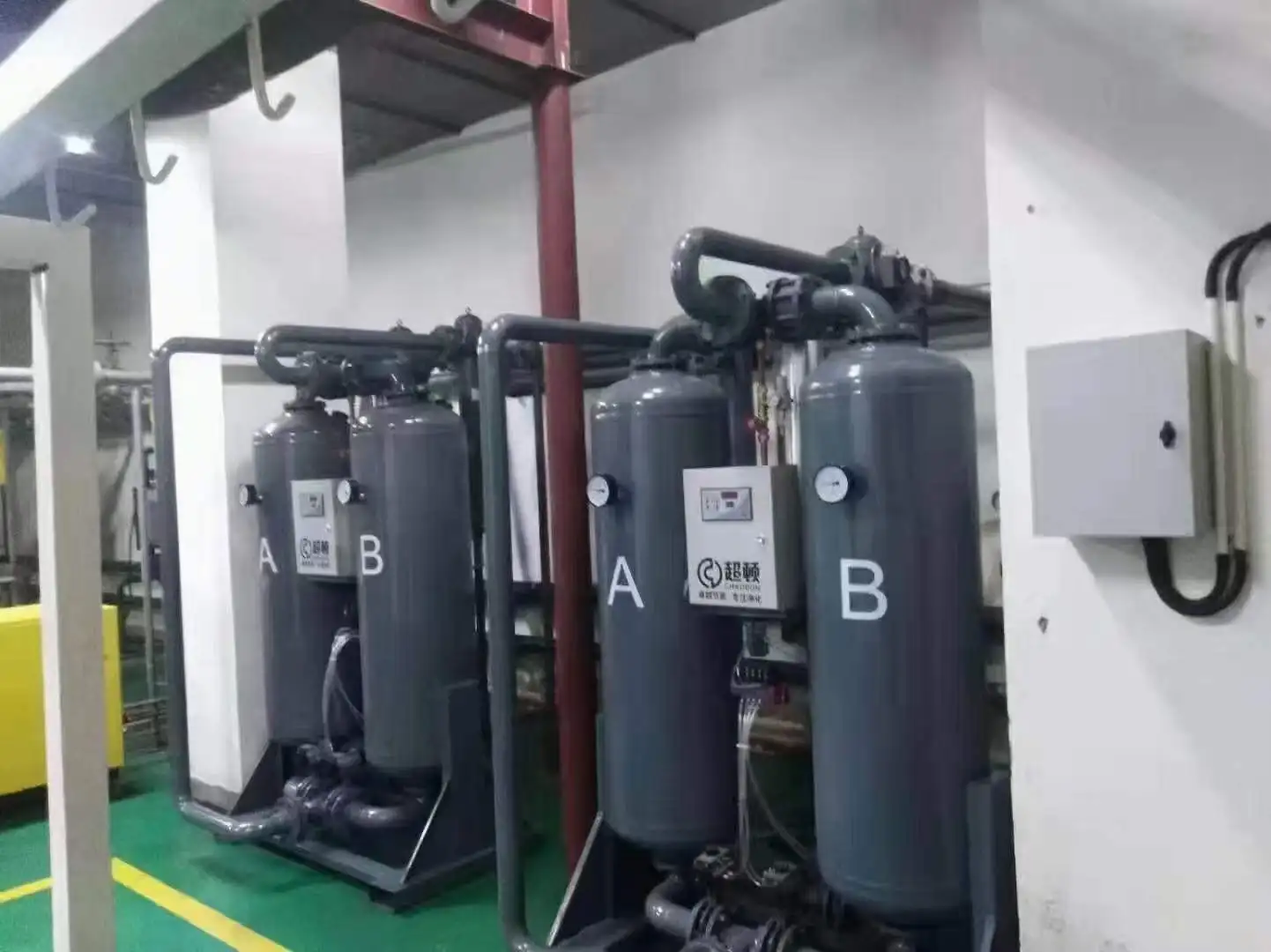

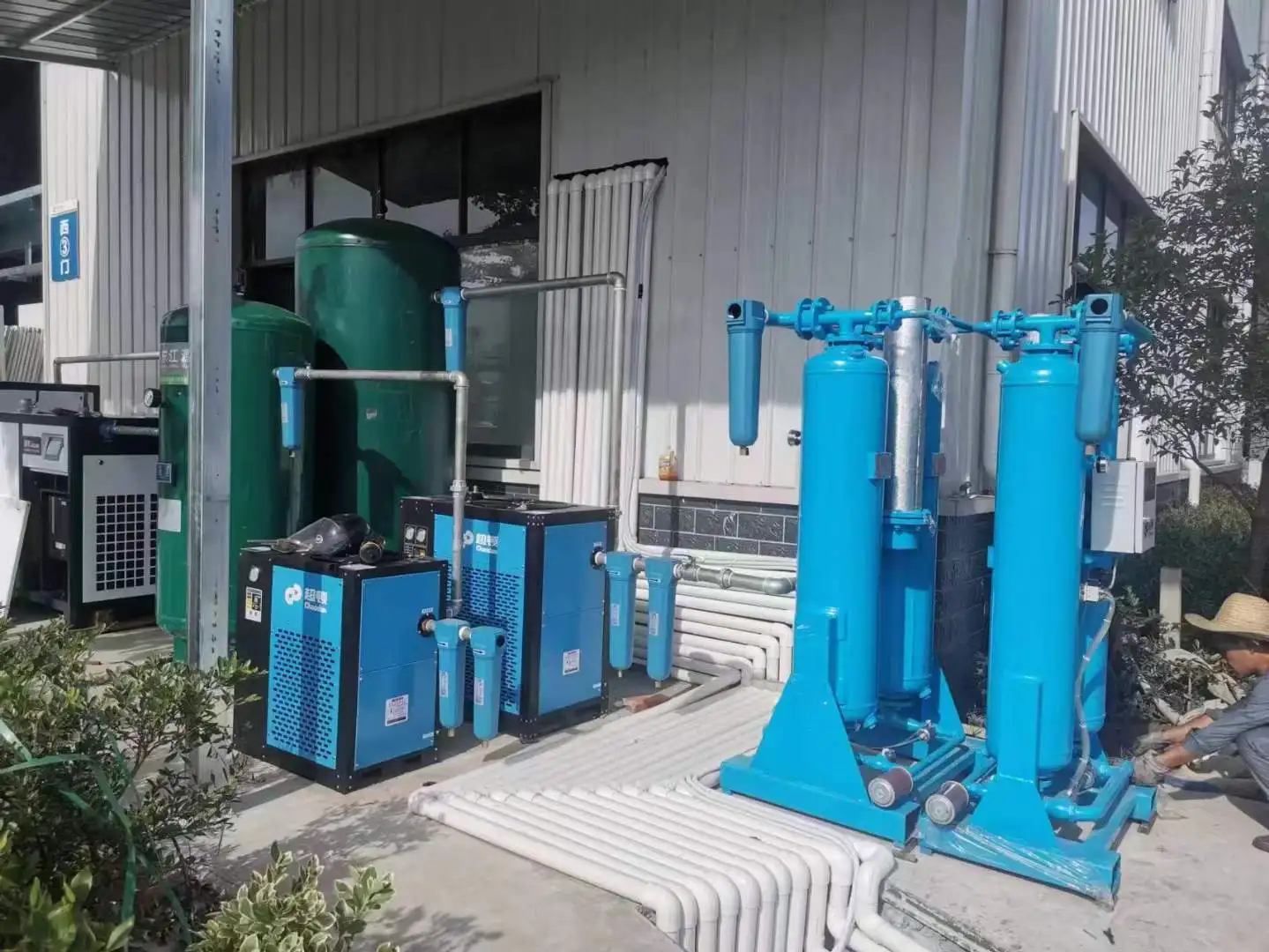

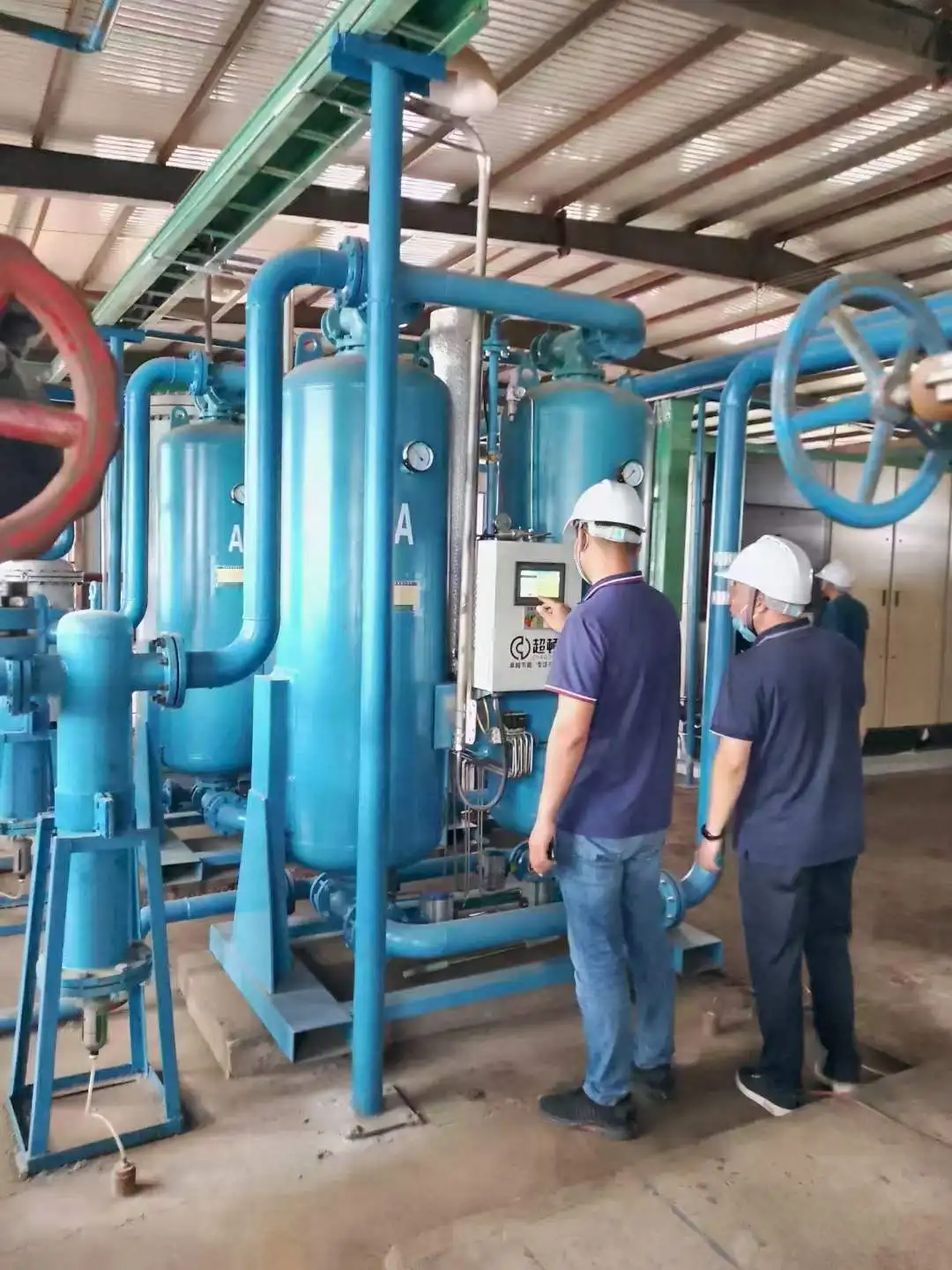

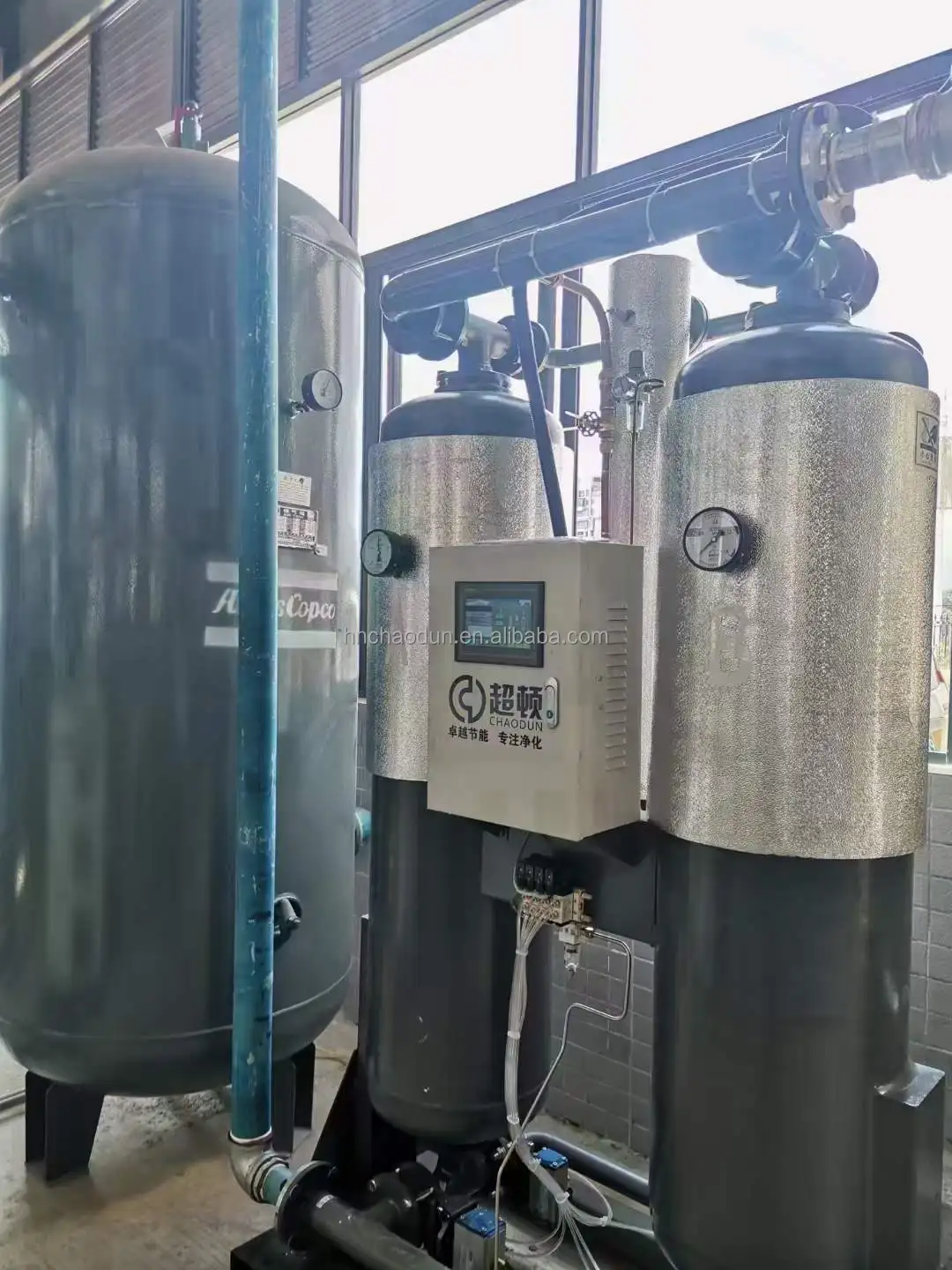

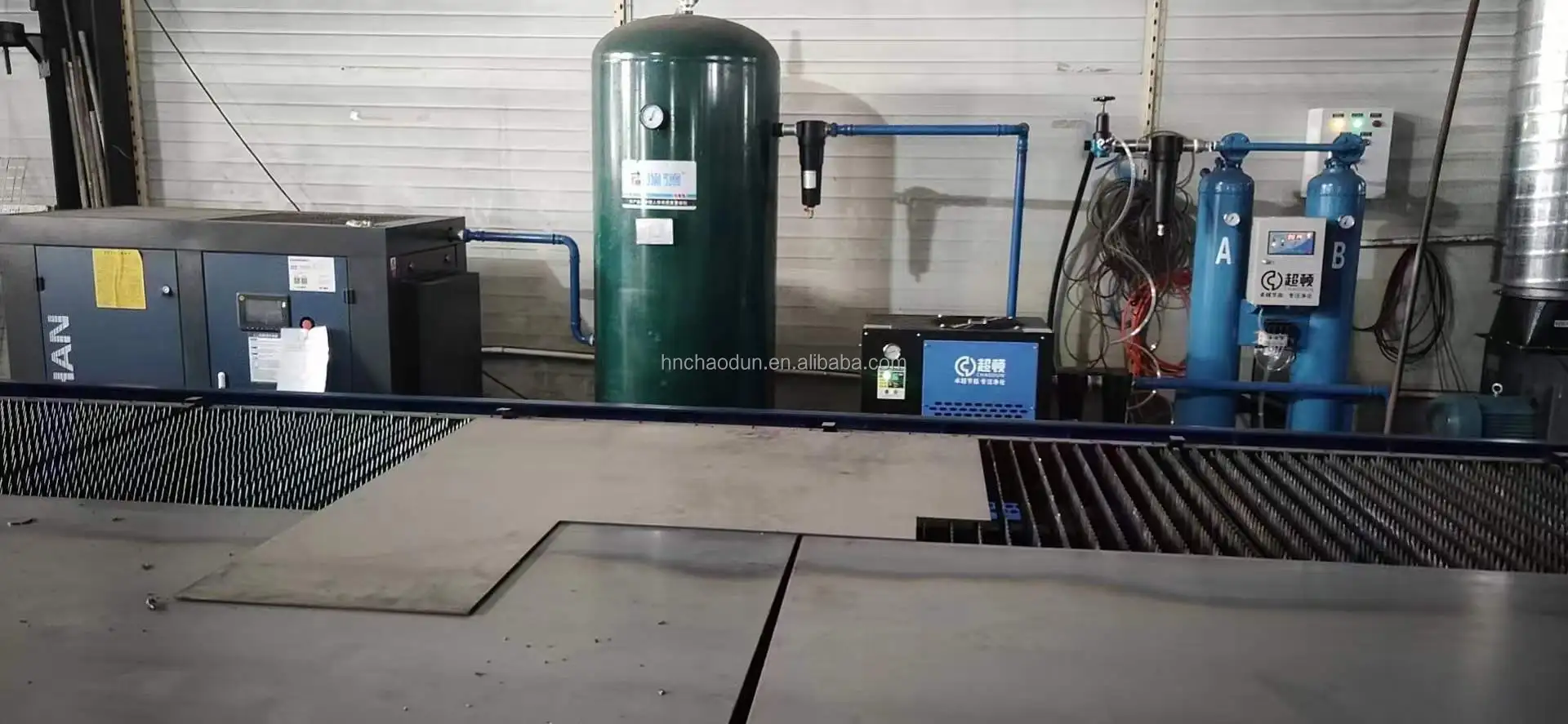

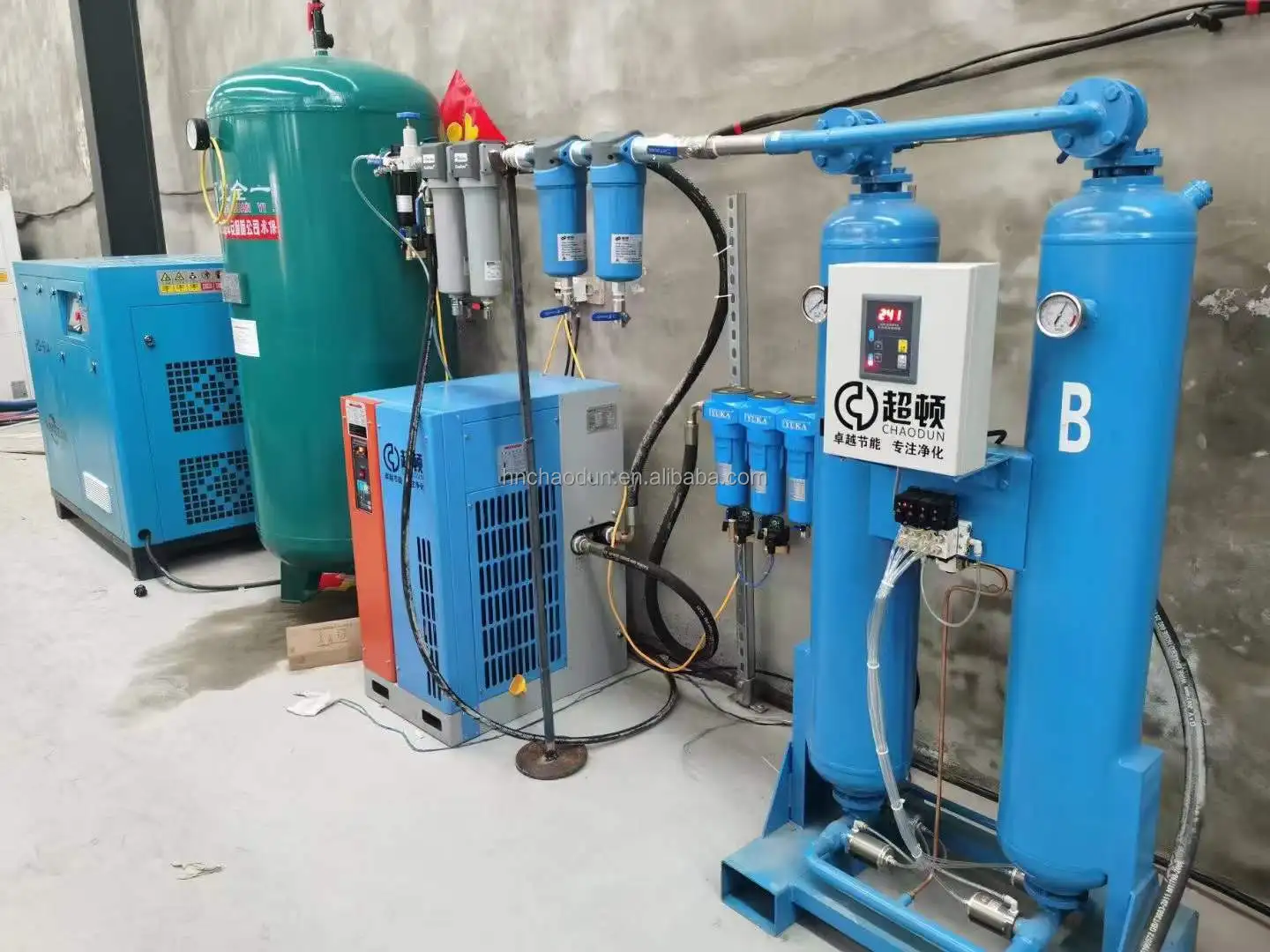

Customers'Site

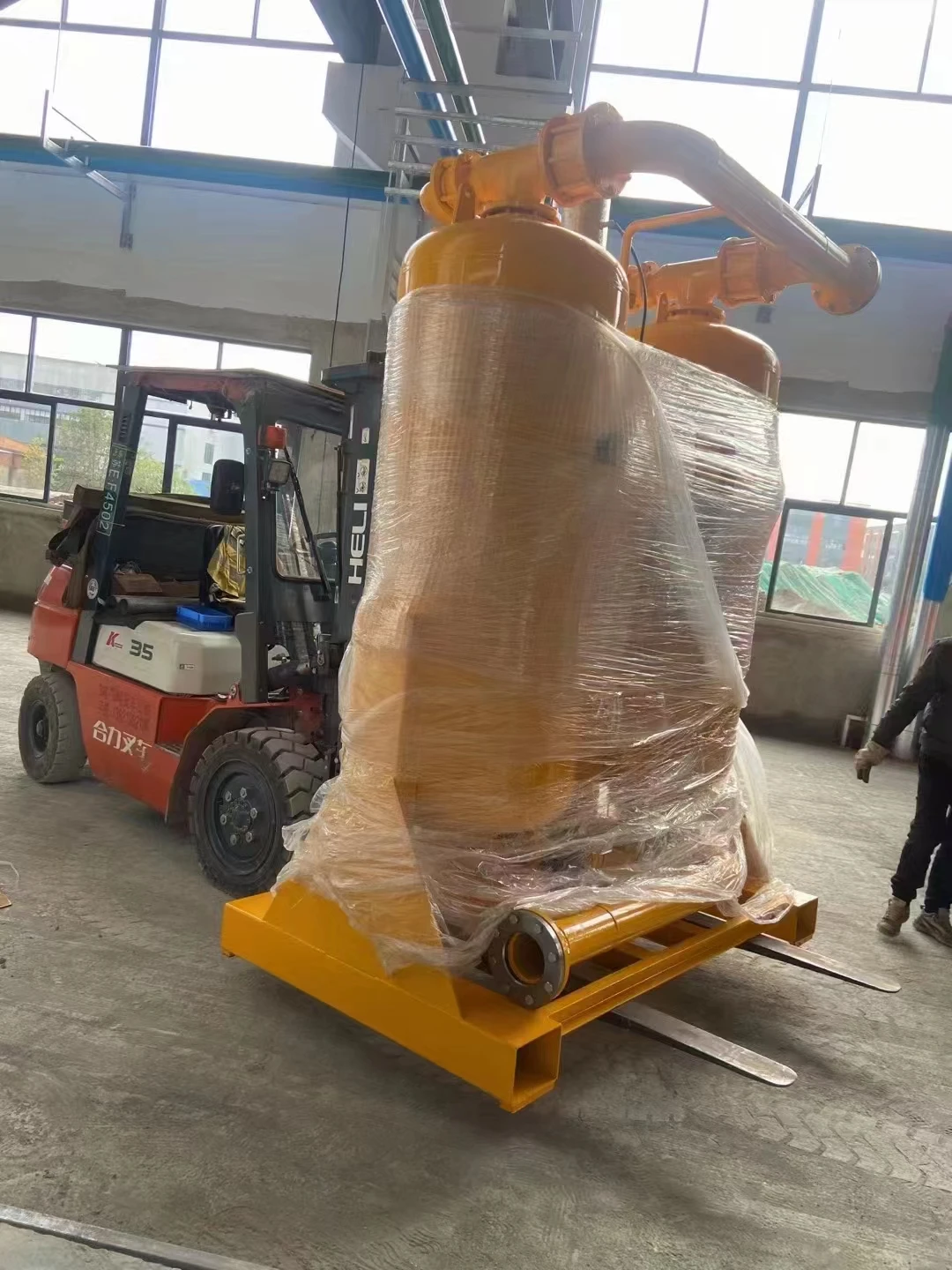

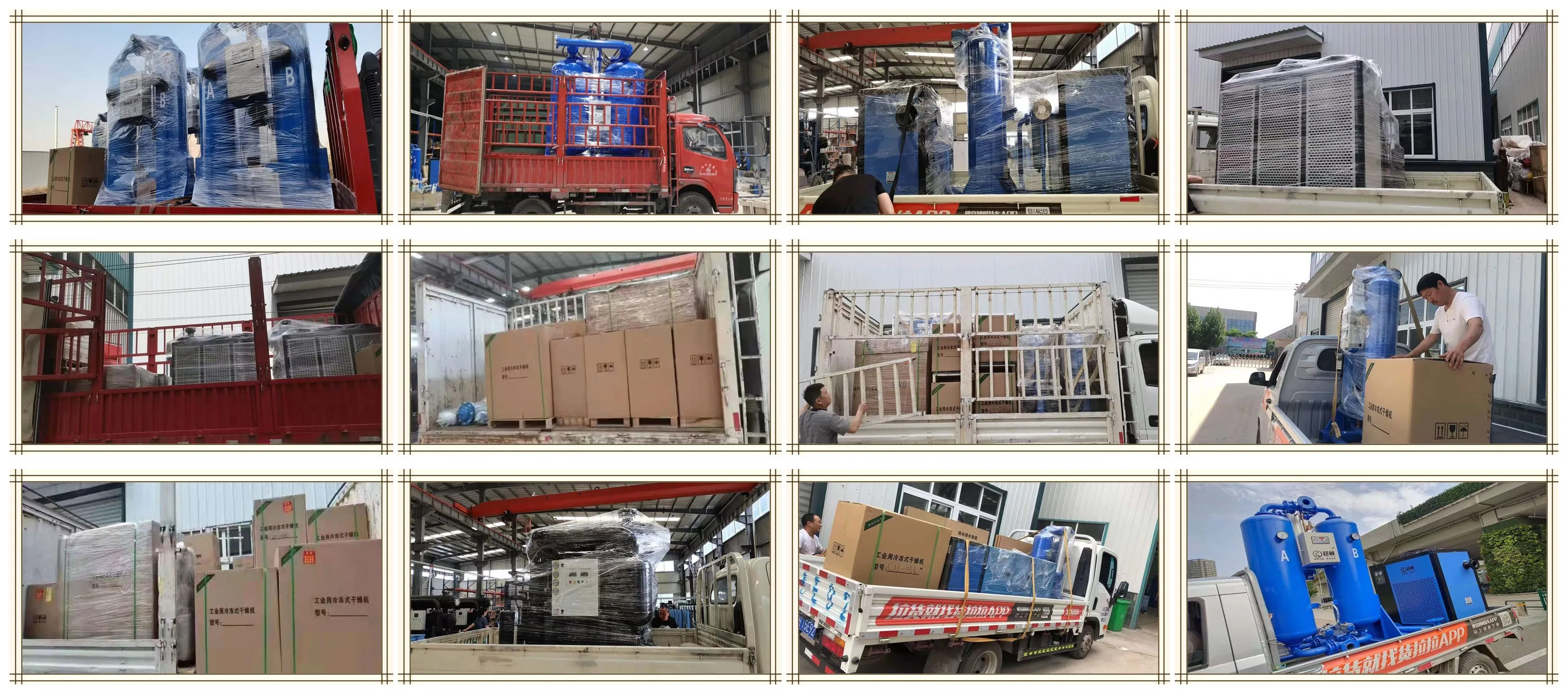

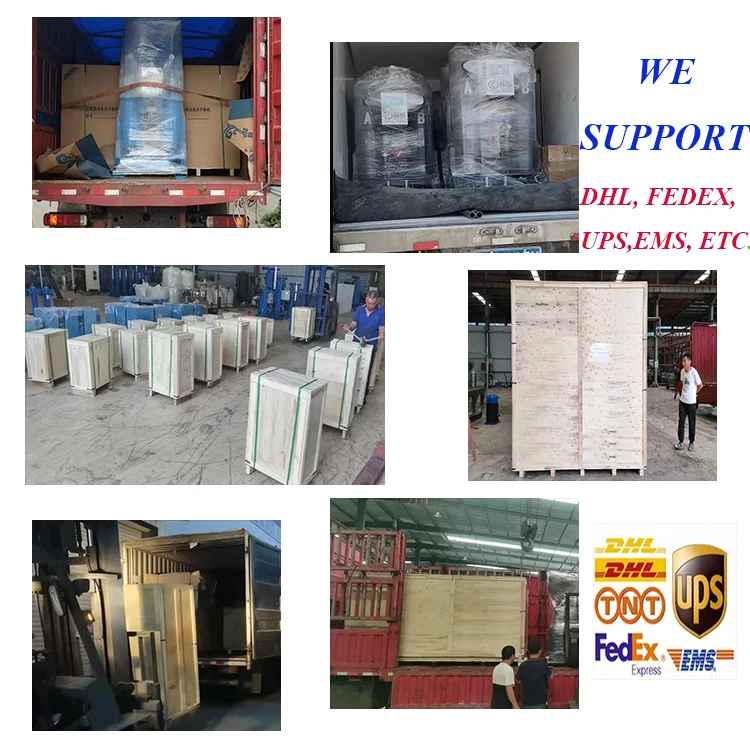

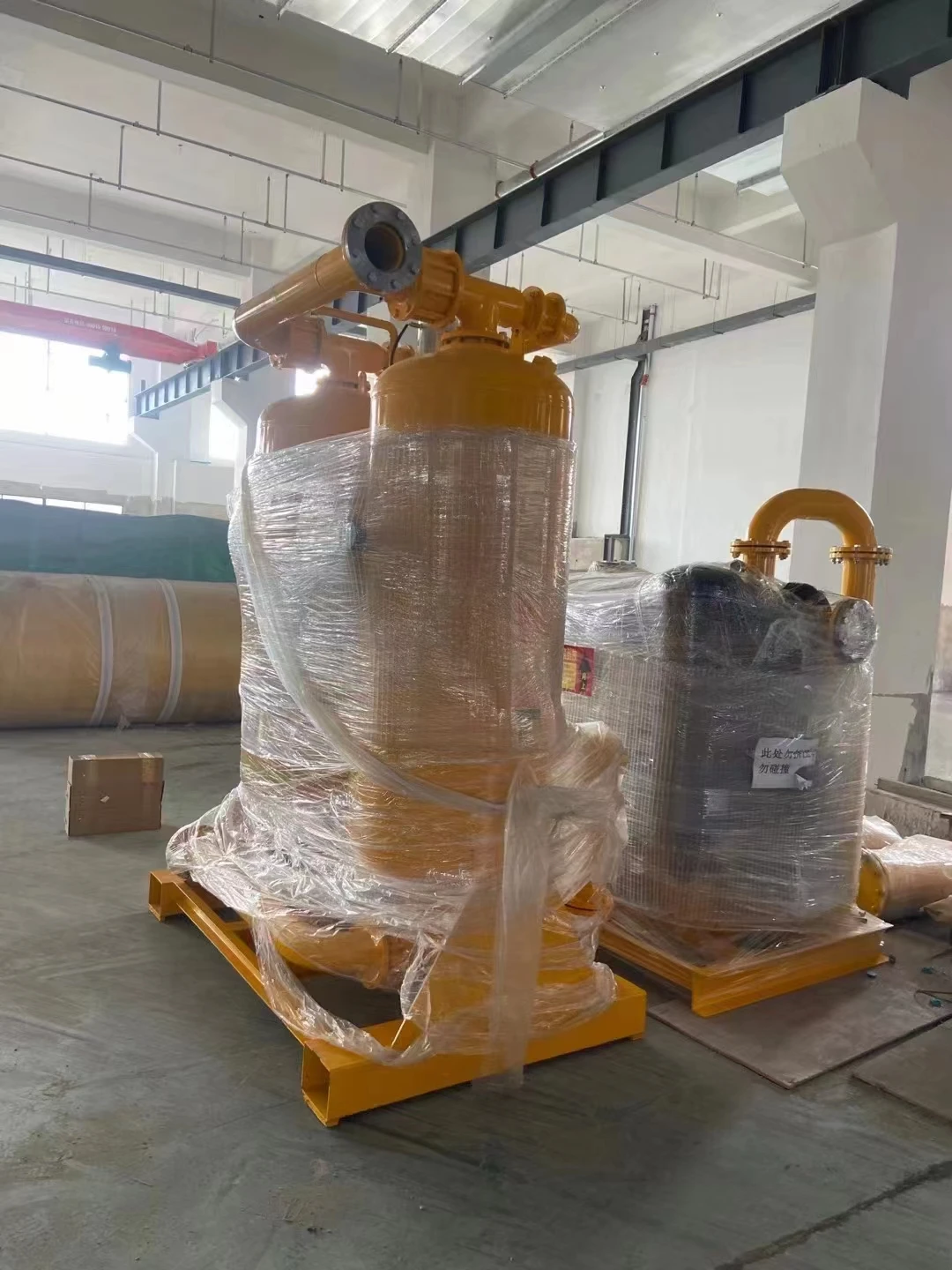

Packing&Shipping

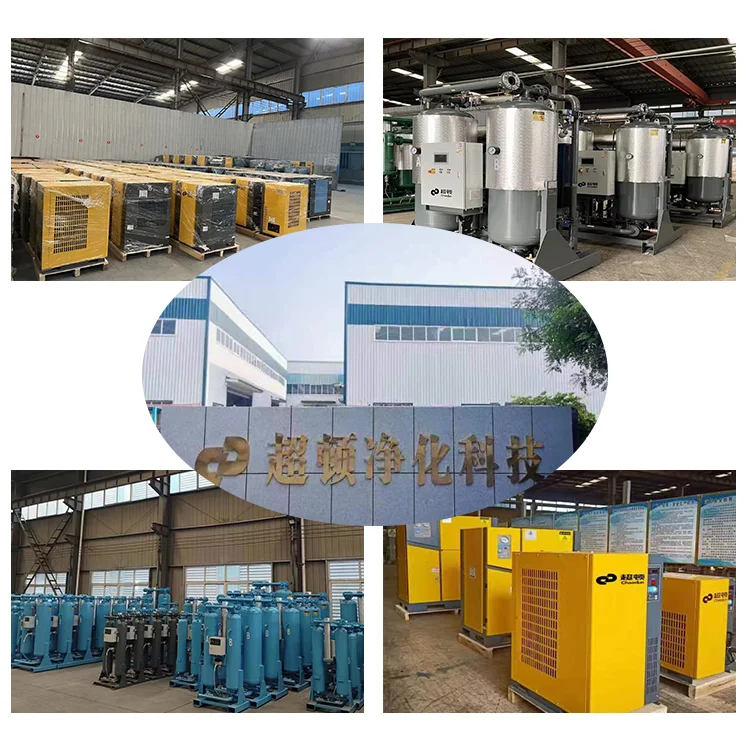

Company Introduction
"Quality decides everything, service creates value". Since its establishment, Henan Chaodun Industry Co., Ltd. has been committed to the R & D and manufacturing of compressed air after-treatment purification equipment, and gradually upgraded to a high-tech enterprise integrating R & D, creation, marketing and after-sales service. The company continues to strengthen the investment in scientific research, strive to improve the manufacturing capacity, and strive to promote the continuous innovation and upgrading of compressed air after-treatment purification equipment. The company has a professional research team, advanced manufacturing equipment and perfect detection means.
It can be customized for customers with air cooling, water cooling, high temperature, explosion-proof, high pressure, stainless steel and other multi-function, wide range, adapt to a variety of complex working conditions of compressed air dryer. Our products are suitable for electronic, chemical fiber, petroleum, chemical, paper, petrochemical, automobile, electric power, food, environmental protection, pharmaceutical and other industries. Through the joint efforts of all colleagues, our products have been recognized and praised by customers.
