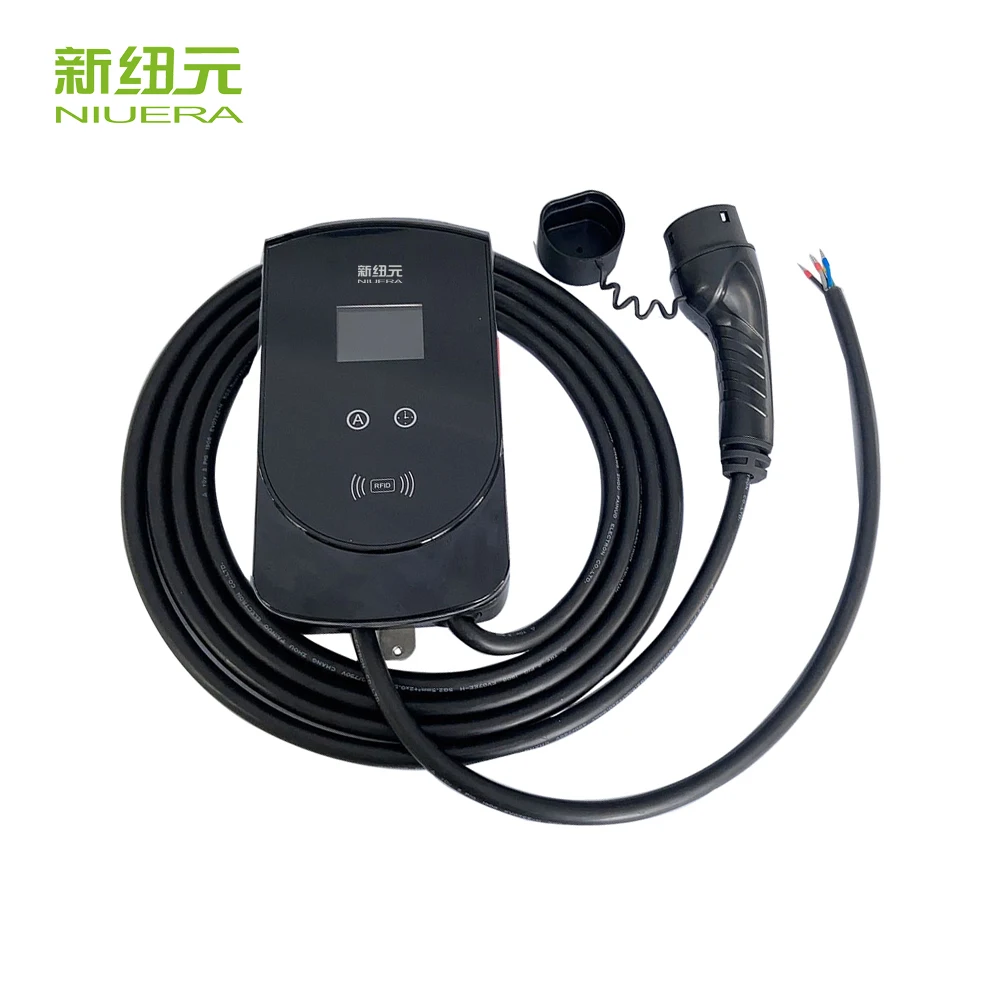

Classic Design Smart Ev Charger 22kw Wallbox Ev Chargers Manufacturers Charging Pile 22kw 32A 3 Phase Ev Charger System

Share on (1600797927693):


Price:$298.00 - $328.00

Quantity:


Product Overview

Description



Product Features


Classic Design Smart Ev Charger 22kw Wallbox Ev Charger Manufacturers Charging Pile 22kw 32A Ev Charger

You can swipe your card to start car charging. It is
• Suitable for families and small communities..
• 2.8-inch LCD screen and led breathing lamp--visual enjoyment.
• Multi gear current regulation
• Cumulative power display, and the cumulative power can be reset manually.
• You can set the scheduled charging time.(1-15H)
• It has the function of setting the charging time.(1-15H)
• Support app control




Product Features
1. With RFID function to start or stop charging.
2. Connect to APP via Bluetooth or WIFI.
3. With the function of appointing charging time and appointing charging duration.

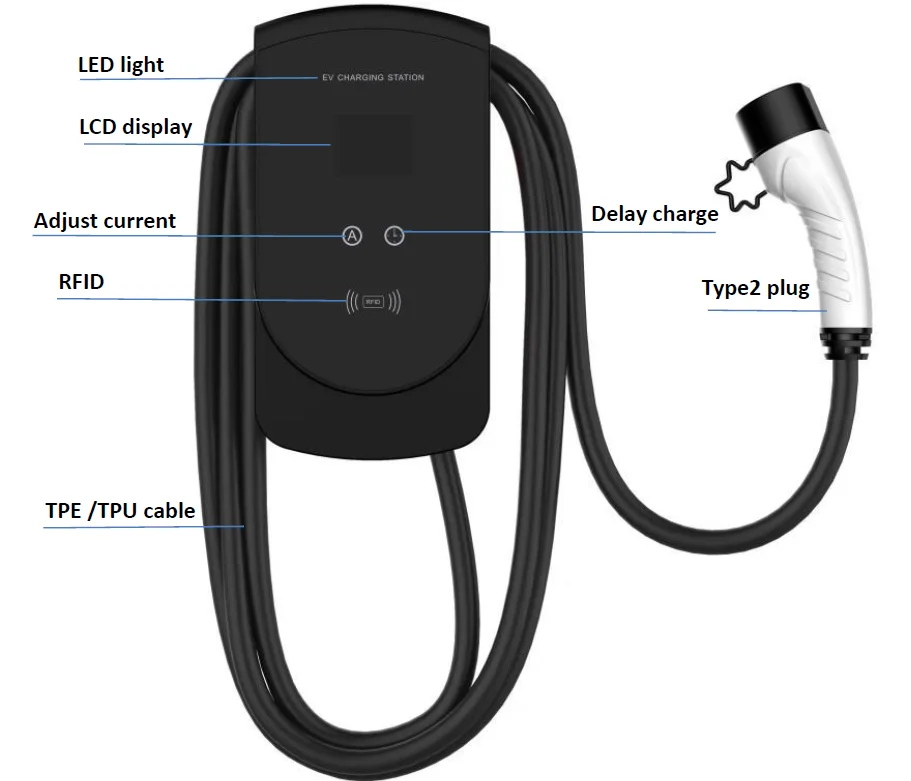

4. Equipped with display screen to show charging information in real time.
5. With overload protection, over-voltage protection, under-voltage protection,over-temperature protection, leakage protection, emergency stop and other functions.

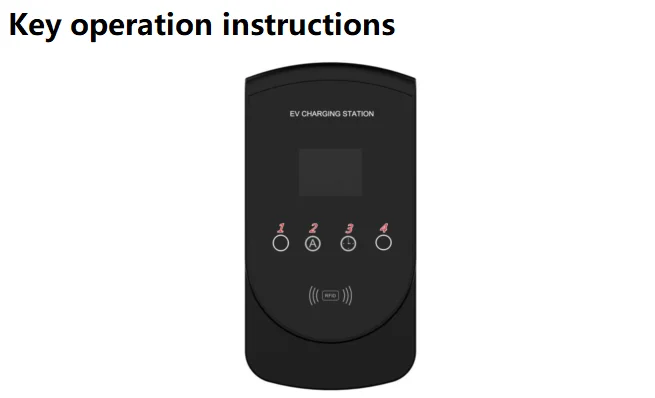

Enable or disable the card swipe function:
Before the charging interface is inserted, long press the first button for 5 seconds to set the opening or closing of the card swiping function.
Setting the current adjustment function:
Touch the second button to adjust the current, the current can be set 8A 10A 13A 16A 32A.
Setting the appointment charging function:
Touch the third button to set an appointment for charging and then start charging with an RFID card , the device will start charging after a delay of (× ) hours according to the set appointment time, which can be set from 0 to 15 hours (each touch increases the time by 1 hour)
For example, if it is set to 1 hour, then the charger will start charging after 1 hour
Setting the charging time:
Touch the fourth button on the station to set the charging duration.and then start charging with an RFID card, the device will continue charging for ( X ) hours according to the time you set before which can be set from 0 to 15 hours (each touch increases the time by 1 hour).
For example, if it set to 1 hour, then the charger will continue charging for 1 hour and then stop charging automatically. Clear the accumulated power function: When the charging interface is not inserted, press and hold the fourth button for 5 seconds to clear the accumulated charge history.

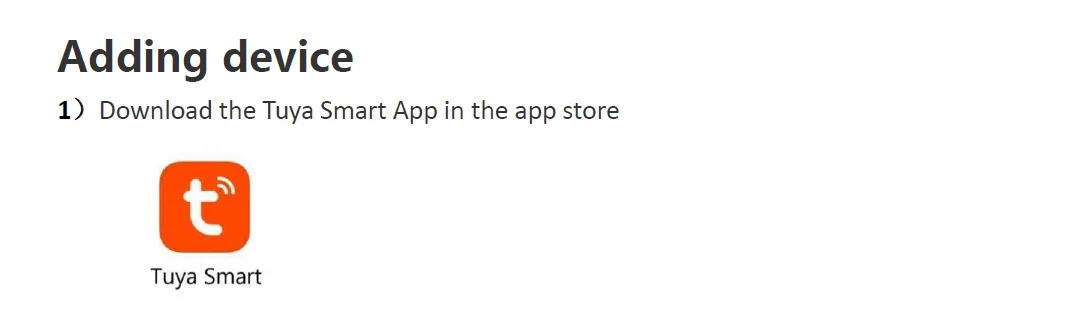

APP Control

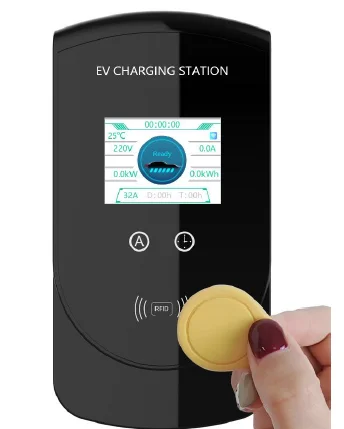

RFID Control


Specification


Model
FE-AM3-16P3-WB
FE-AM3-32-WB
FE-AM3-32P3-WB
Current (Adjustable
current)
16A
( 8/10/13/16A )
32A
(8/10/13/16/32A)
 32A
(8/10/13/16/32A)
Voltage
415V
250V
415V
Power
11kW
7kW
22kW
Frequency
50/60Hz
Communication(Optional)
WIFI,Bluetooth,App(Tuya)
Certificate
CE,TUV
User interface
LED light + LCD display (2.8 inch)+RFID
Charging interface
Type2+5M cables or custom cable length
Degree of protection
Charging gun:IP55, charging station: lP65
Operating temperature
-30℃ to 55℃
Operating humidity
5%-95%
Product dimensions
(H"W*D)mm
310*161*79.8mm

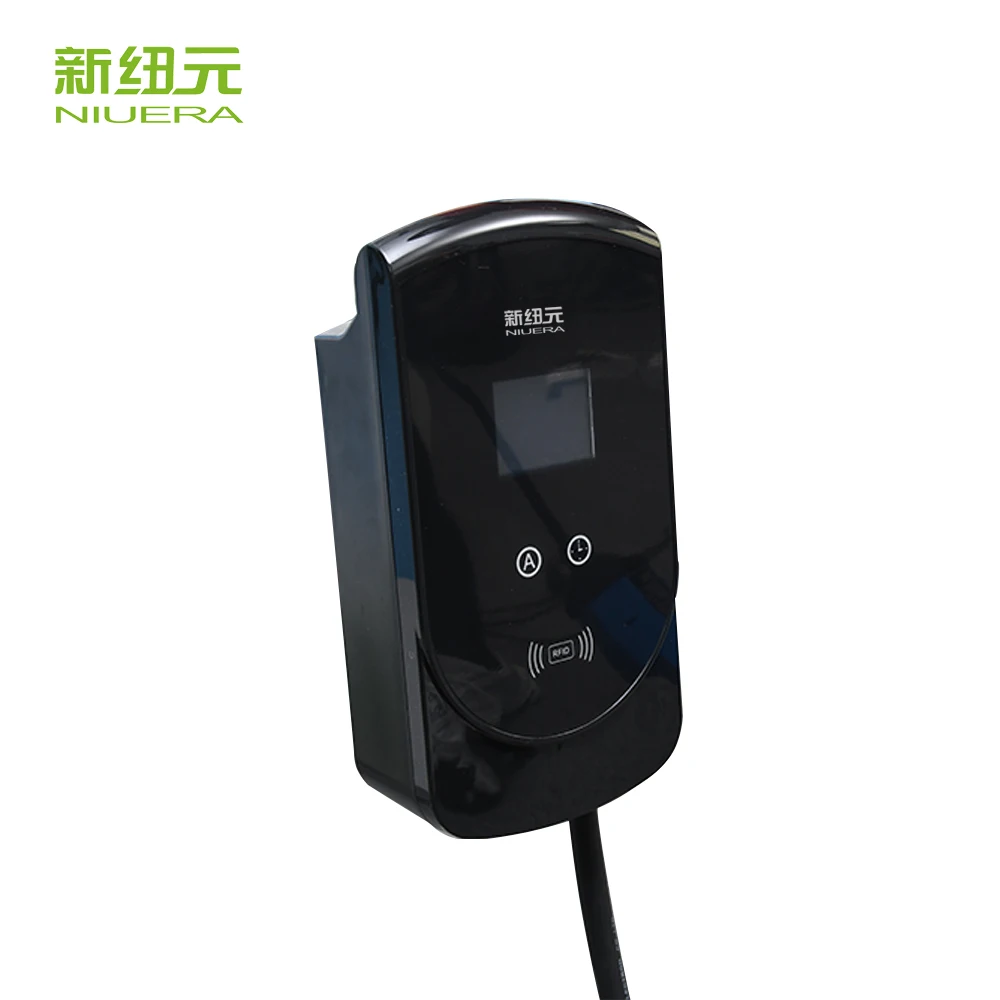

Details Images






Installation Steps


Step 1:
According to the size of the steel plate’s hole, using an electric drill to drill a hole in the wall at a suitable height, then put in the expansion tube. and use long screws to fix the steel plate(the large one) in the wall.
Step 2:
Installation of charging station.


Step 3:
After installing the steel plate (the small one) on the end of the control box using short screws, hang the equipment on the steel plate (the large one) and fix the steel plate (the small one) on the wall using long screws.
Step 4:
Install the hook.


Step 5:
Turn on the power to confirm that the LED
light and the display start normally.
Step 6:
Try to start charging by inserting the gun and swiping the card.


Main Products

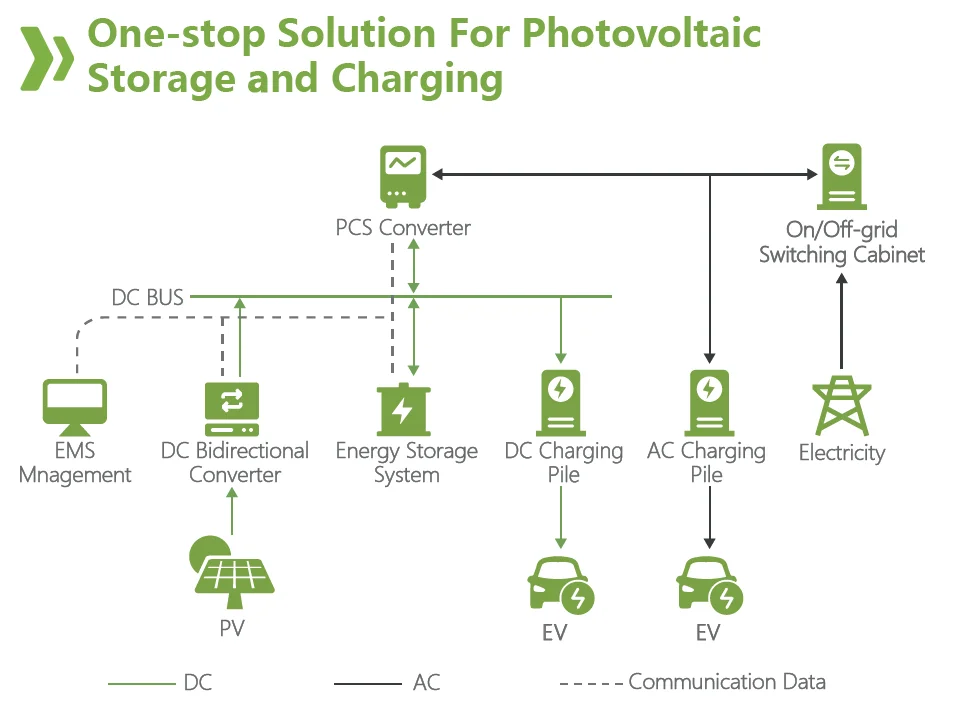

1.For the current new energy electric vehicle supporting infrastructure and con-struction status, we provide integrated
photovoltaic storage and charging power plant system, including: power distribution facilities, photovoltaic power generation components, photovoltaic inverters, energy storage batteries, energy storage converters, charging pile loads, etc.
2.The system can not only suppress the impact load, reduce the cost of distribution capacity increase, but also promote the new energy absorption, realize the peak and valley elimination of the grid load, and improve the operating income of the power station.




Company Profile






Why Choose Us




Exhibitions&Certificates










1. Who are we?
We are based in Jiangsu, China, start from 2016,sell to Southeast Asia(40.00%),North America(20.00%),Eastern Europe(20.00%),Eastern Asia(10.00%),Africa(10.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Electric vehicle charging post,Electric vehicle charging gun

4. Why should you buy from us not from other suppliers?
Suzhou Niuera Electronic Technology Co., LTD., founded in 2016, is a subsidiary of Suzhou Nux Power Technology Co., LTD. New Zealand independent research and development products are widely used in new energy vehicle charging,5G base station power.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
