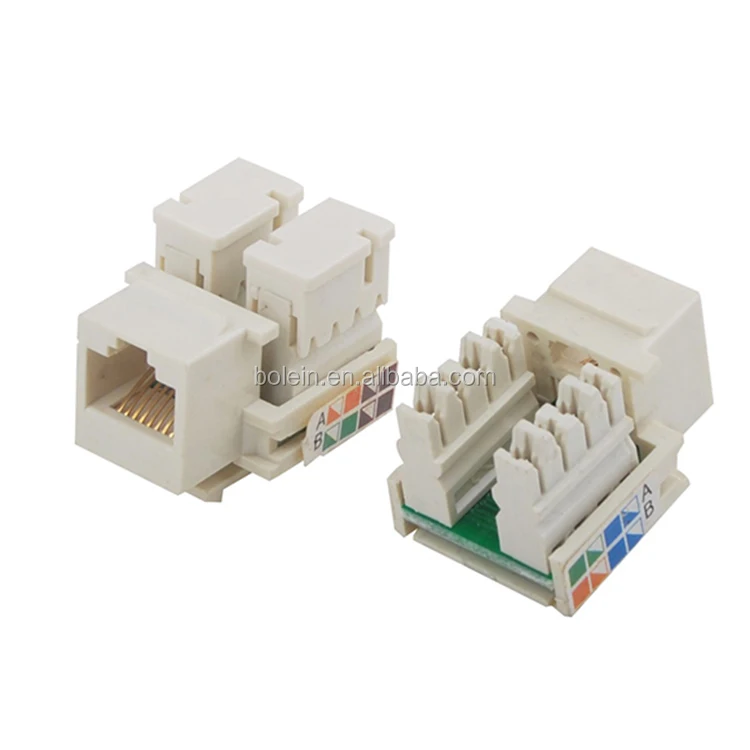

Krone 110 Universal Module 90 Degree Cat5E AMP RJ45 UTP Female Connector Keystone Jack
- Category: >>>
- Supplier: Chengdu Bolein Technology Co. Ltd.
Share on (1600798010393):
Product Overview
Description
Krone 110 Universal Module 90 Degree Cat5E AMP RJ45 UTP Female Connector Keystone Jack
JACK PIN | EIA-T568A | EIA-T568B |
1 | White/Green | White/Orange |
2 | Green | Orange |
3 | White/Orange | White/Green |
4 | Blue | Blue |
5 | White/Blue | White/Blue |
6 | Orange | Green |
7 | White/Brown | White/Brown |
8 | Brown | Brown |
Product Description
BOLEIN Keystone Jack Features:
A). Modules are also call ‘inserts’. The most common, popular and practical type of modules is Keystone Jack developed by AMP.
A). Modules are also call ‘inserts’. The most common, popular and practical type of modules is Keystone Jack developed by AMP.
B).The insert can be an essential element of the surface mount box, as well as a part of the modular patch- panel.
C). One side of the module has a female connector for patch-cord connection; the other side of the module has an IDC-type (insulation displacement contact)connector or a screw connection for the backbone cable. A special tool is needed for backbone cable termination to the IDC-type connector. With the help of this tool each cable conductor is fitted between the convergent IDC contact blades. The contact blades cut the conductor's PE jacket and come into direct contact with the copper wire. There are different types of the IDC-type connectors: 110, Krone, universal Dual IDC. Different types of IDC require different tools for termination.
D). Toolless Keystone Jack is a special type of module. It doesn't need any additional tools for termination. The module's hinged cover snaps down to crimp wires.
C). One side of the module has a female connector for patch-cord connection; the other side of the module has an IDC-type (insulation displacement contact)connector or a screw connection for the backbone cable. A special tool is needed for backbone cable termination to the IDC-type connector. With the help of this tool each cable conductor is fitted between the convergent IDC contact blades. The contact blades cut the conductor's PE jacket and come into direct contact with the copper wire. There are different types of the IDC-type connectors: 110, Krone, universal Dual IDC. Different types of IDC require different tools for termination.
D). Toolless Keystone Jack is a special type of module. It doesn't need any additional tools for termination. The module's hinged cover snaps down to crimp wires.
item | value |
Type | Keystone Jack |
Model Number | BLK-1012-C5 |
Place of Origin | China |
Sichuan | |
Brand Name | BOLEIN / OEM |
Product Name | RJ45 Cat5E UTP Keystone Jack |
Description | 90 Degree RJ45 AMP Cat5E Keystone Jack |
Application | Krone 110 Universal Module Female Keystone Jack for Patch Panel |
Connector Type | RJ45 Cat5E UTP |
Material | PC/ABS(UL94V-0) |
Installation | 90° |
Spring | Phosphor Bronze & Gold-painted |
RJ45 Insert pin | 8P8C 8" Gold Plated |
IDC Terminal | 22-26 AWG Cable |
Wiring Mode | T568A/B |

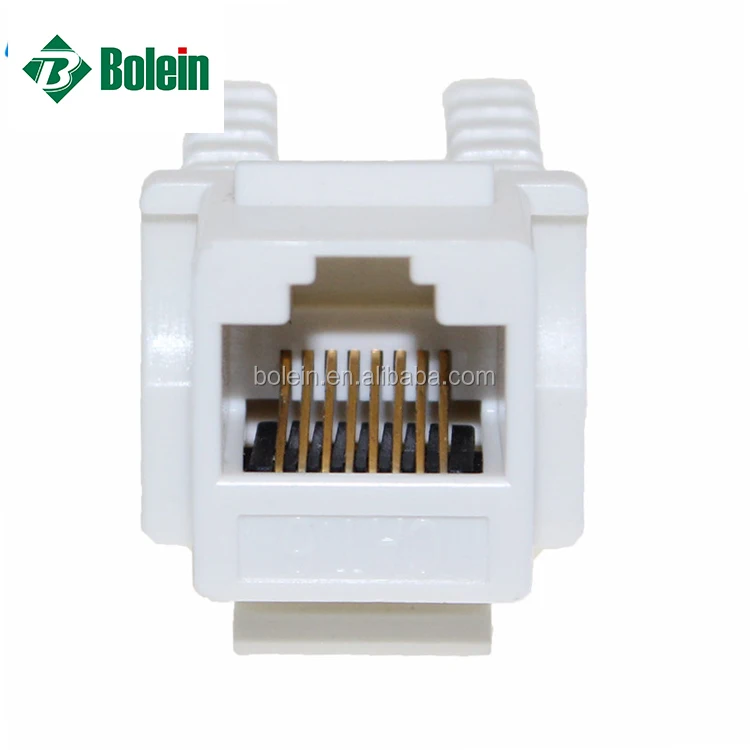

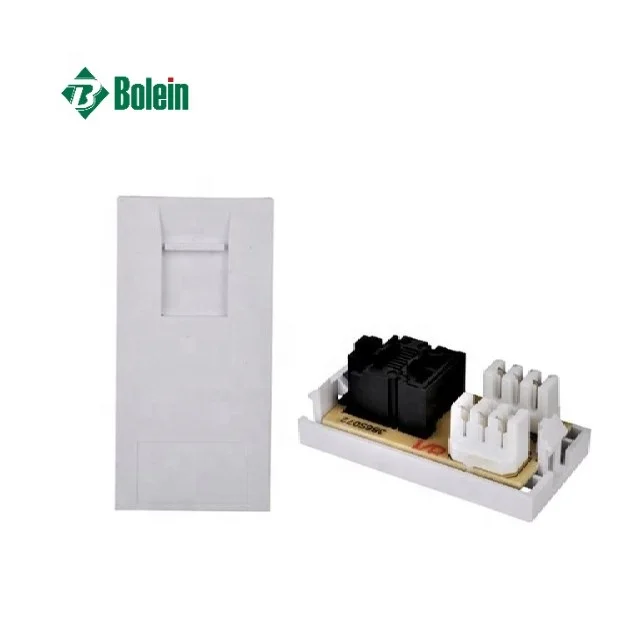

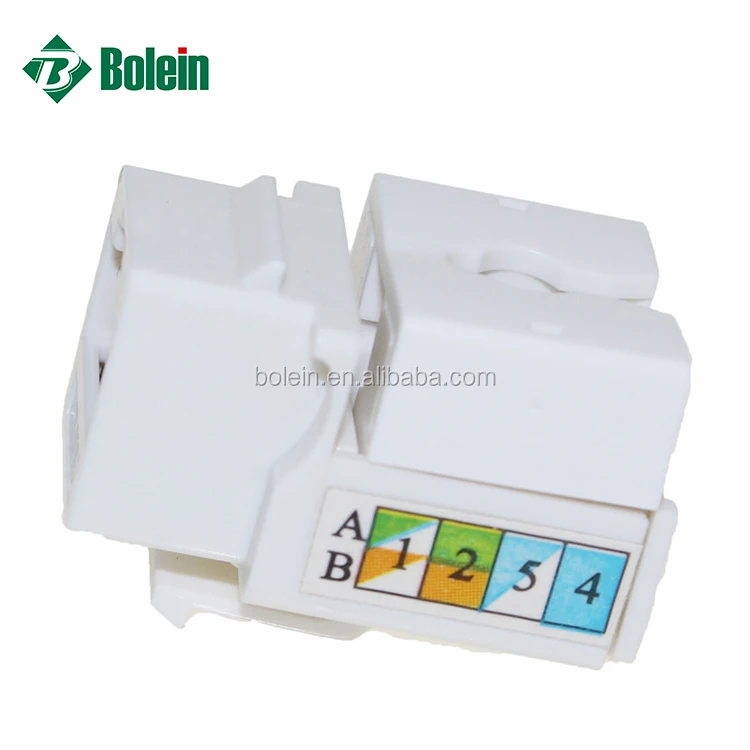

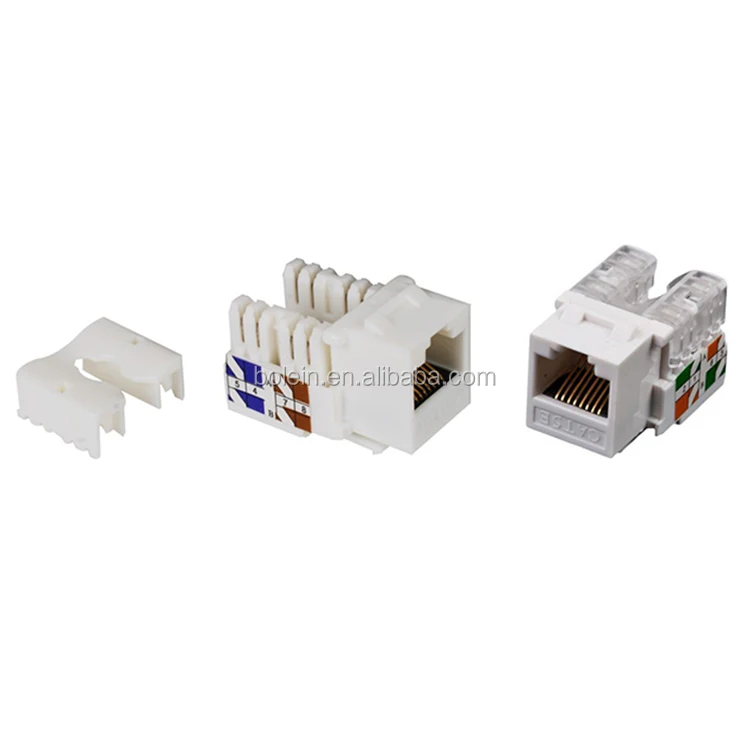

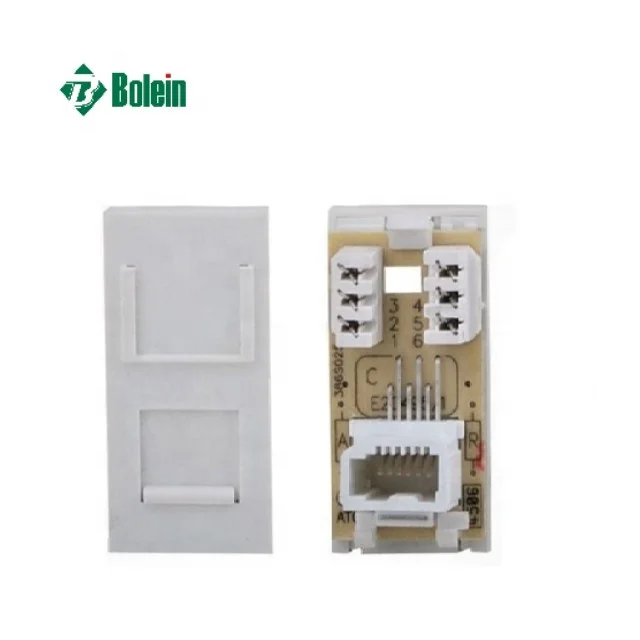

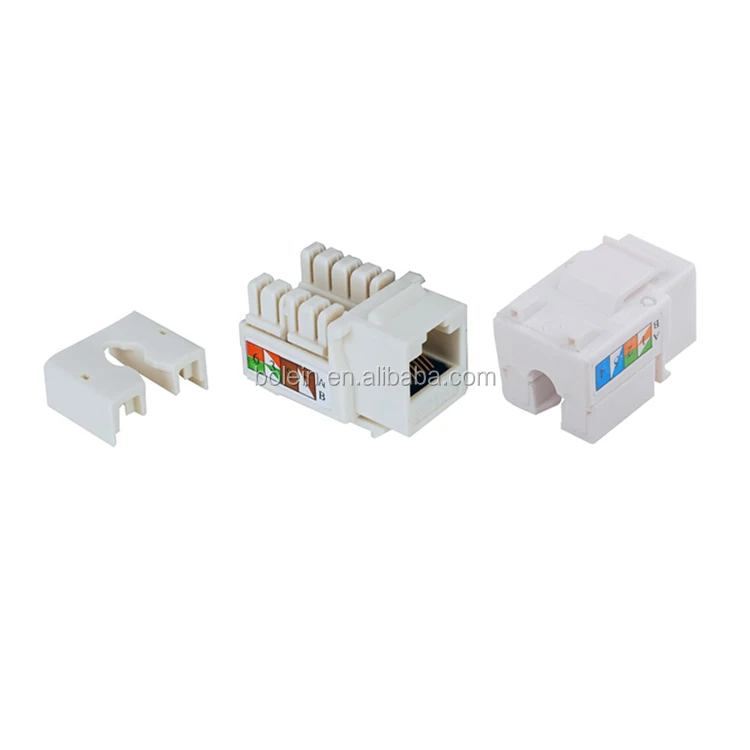

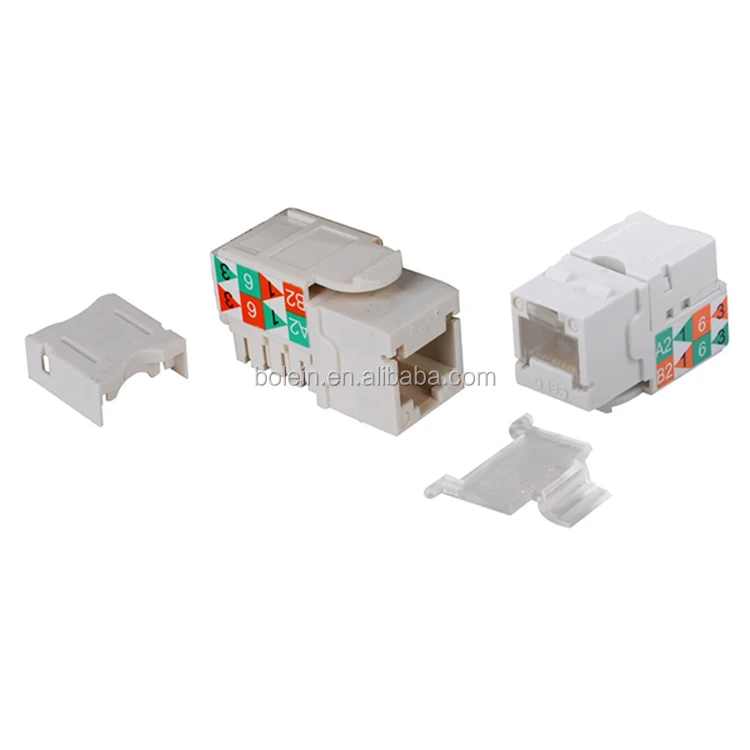

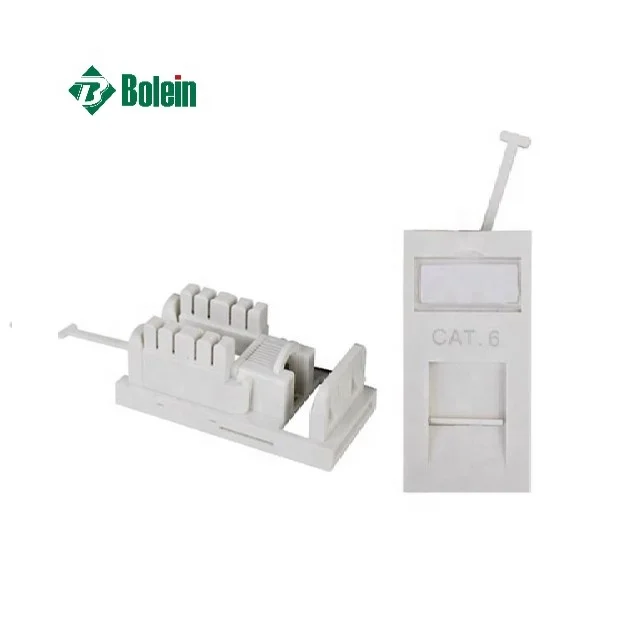

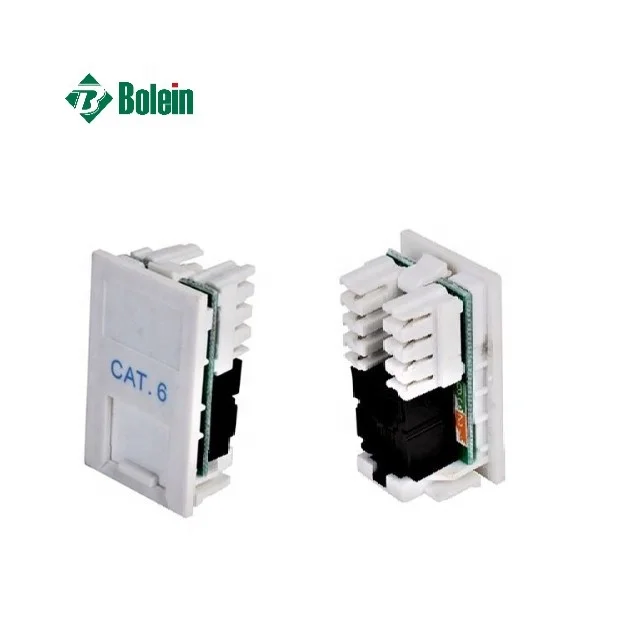

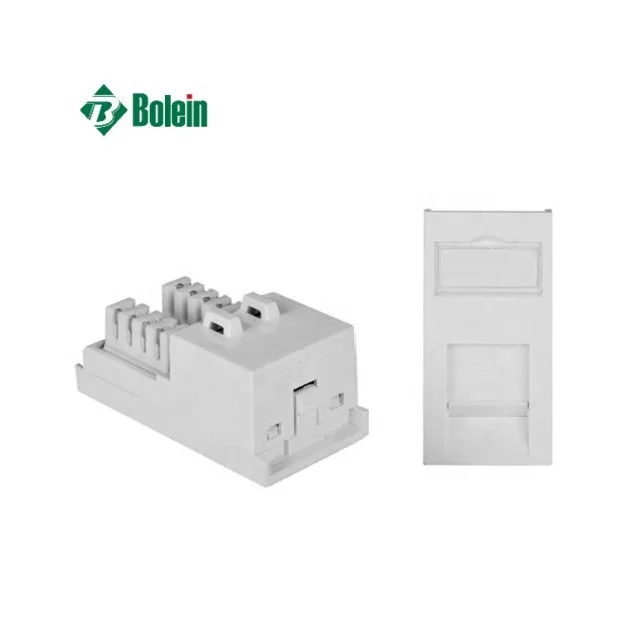

Real Product Photo
Our Services
We have stock & warehouse in UAE (Dubai), Pakistan (Lahore, Karachi) & China,its easy for customer to take products directly from one of the warehouses according to their own situation. We have partnership with local logistics company, so we can provide the best delivery service. Even for UAE and Pakistan customers, there are door-to-door transportation services.
We also offer customers OEM, lifetime warranty and return policy.
Good quality, good price, good service and good gurantee to our clients. Clients satisfaction is the AIMS of Bolein.
We also offer customers OEM, lifetime warranty and return policy.
Good quality, good price, good service and good gurantee to our clients. Clients satisfaction is the AIMS of Bolein.
