High performance G150XNE L01 INNOLUX 15 inch tft lcd module customized with touch screen
- Category: >>>
- Supplier: GUANGZHOU XIANHENG TECHNOLOGY CO. LTD
Share on (1600798158508):
Product Overview
Description
Products Description
China Top LCD module kits supply
High performance G150XNE-L01 INNOLUX 15 inch tft lcd module customized with touch screen

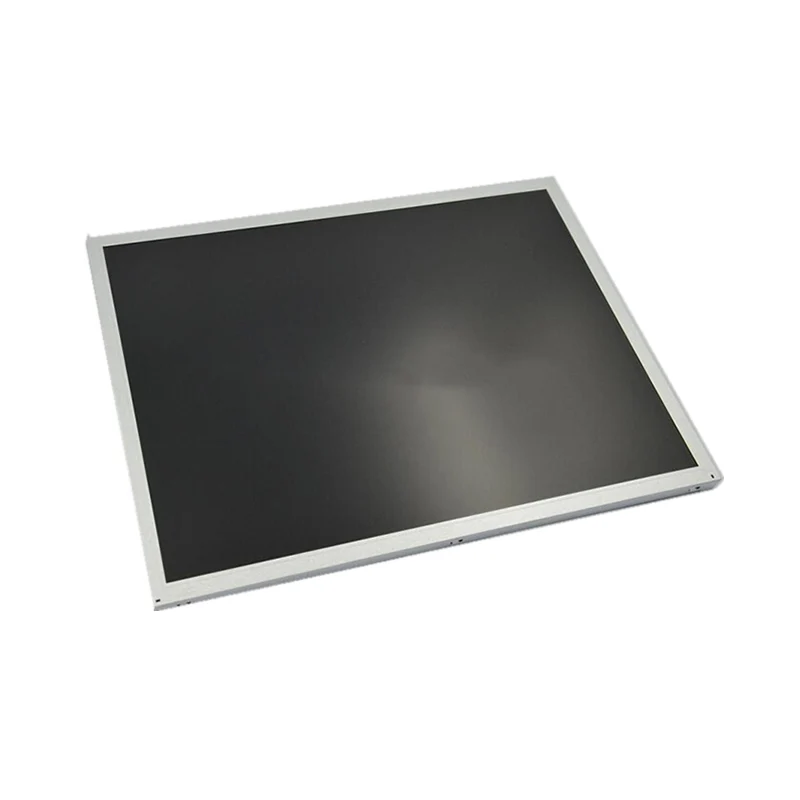

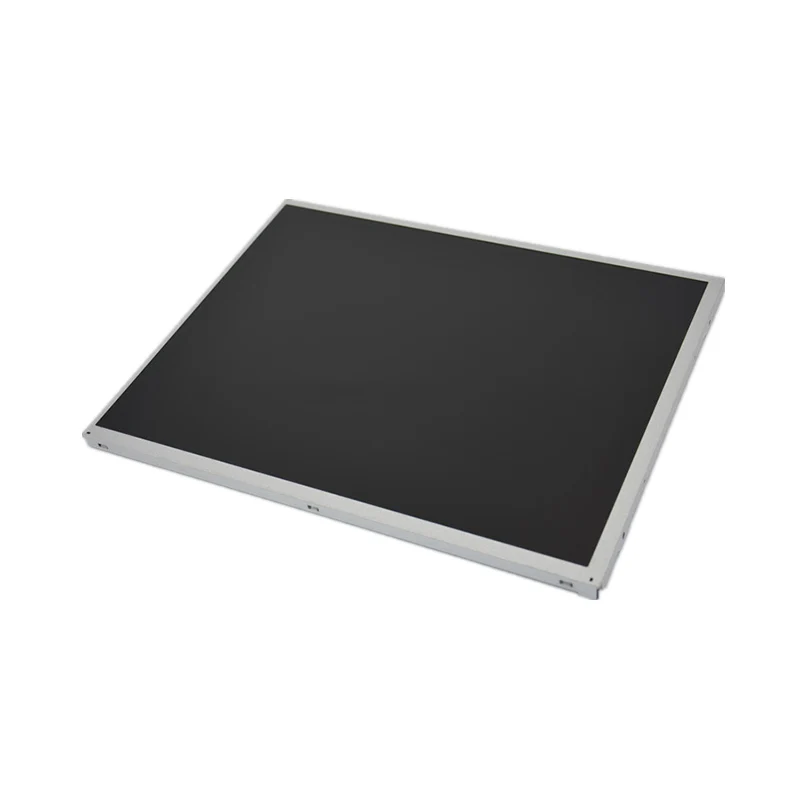

Front View
INNOLUX G150XNE-L01

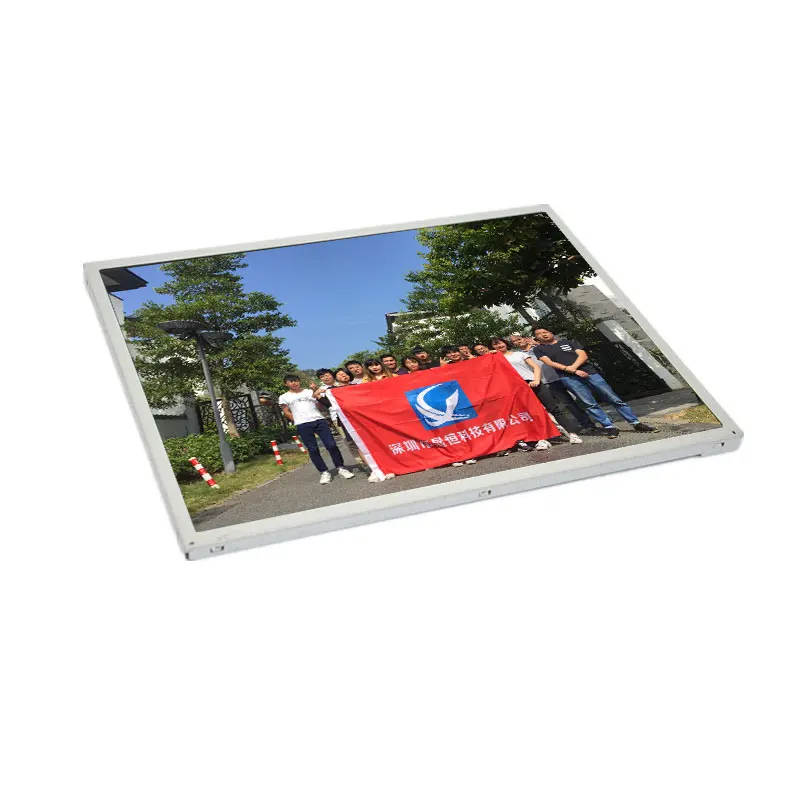

Lighting Up
INNOLUX G150XNE-L01
CTP Customization
INNOLUX G150XNE-L03
FEATURE:
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
- LVDS Interface with 1pixel/clock
- PSWG (Panel Standardization Working Group)
- Wide operating temperature.
- RoHS compliance
APPLICATION:
-TFT LCD Monitor
- Factory Application
- Amusement
- Vehicle
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
- LVDS Interface with 1pixel/clock
- PSWG (Panel Standardization Working Group)
- Wide operating temperature.
- RoHS compliance
APPLICATION:
-TFT LCD Monitor
- Factory Application
- Amusement
- Vehicle
It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte , PSWG. Based on its features, we recommend that this model be applied to Industrial, Automotive Display etc.
If you want to embed G150XNE-L01 LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.
item | value |
Panel Brand | INNOLUX |
Panel Model | G150XNE-L01 |
Panel Size | 15.0 inch |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 1024(RGB)×768 , XGA |
Pixel Format | RGB Vertical Stripe |
Display Area | 304.128(W)×228.096(H) mm |
Bezel Opening | 307.4(W)×231.3(H) mm |
Outline Size | 326.5(W)×253.5(H) ×9.6(D) mm |
Surface | Antiglare, Hard coating (3H) |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 2500:1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down |
Display Mode | NPVA, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 13/5 (Typ.)(Tr/Td) |
Display Colors | 262K/16.7M 72% (CIE1931) |
Lamp Type | WLED , 70K hours , Embedded (LED Driver) |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 0.97/1.00Kgs (Typ./Max.) |
Application | Industrial Application |
Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins , Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
Hot Models
Product packaging
PACKAGE
Standard export carton packing.
DELIVERY TIME
3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
