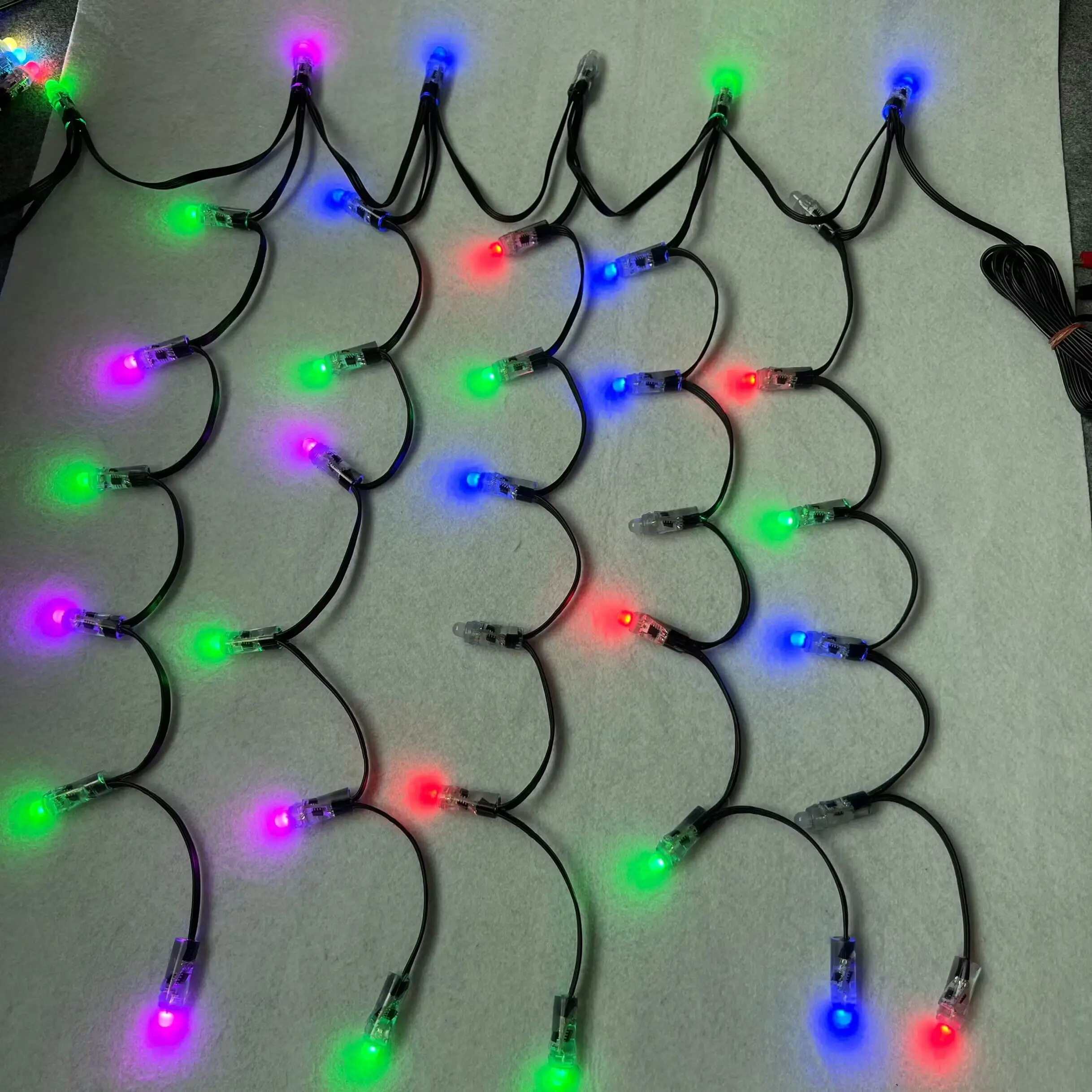

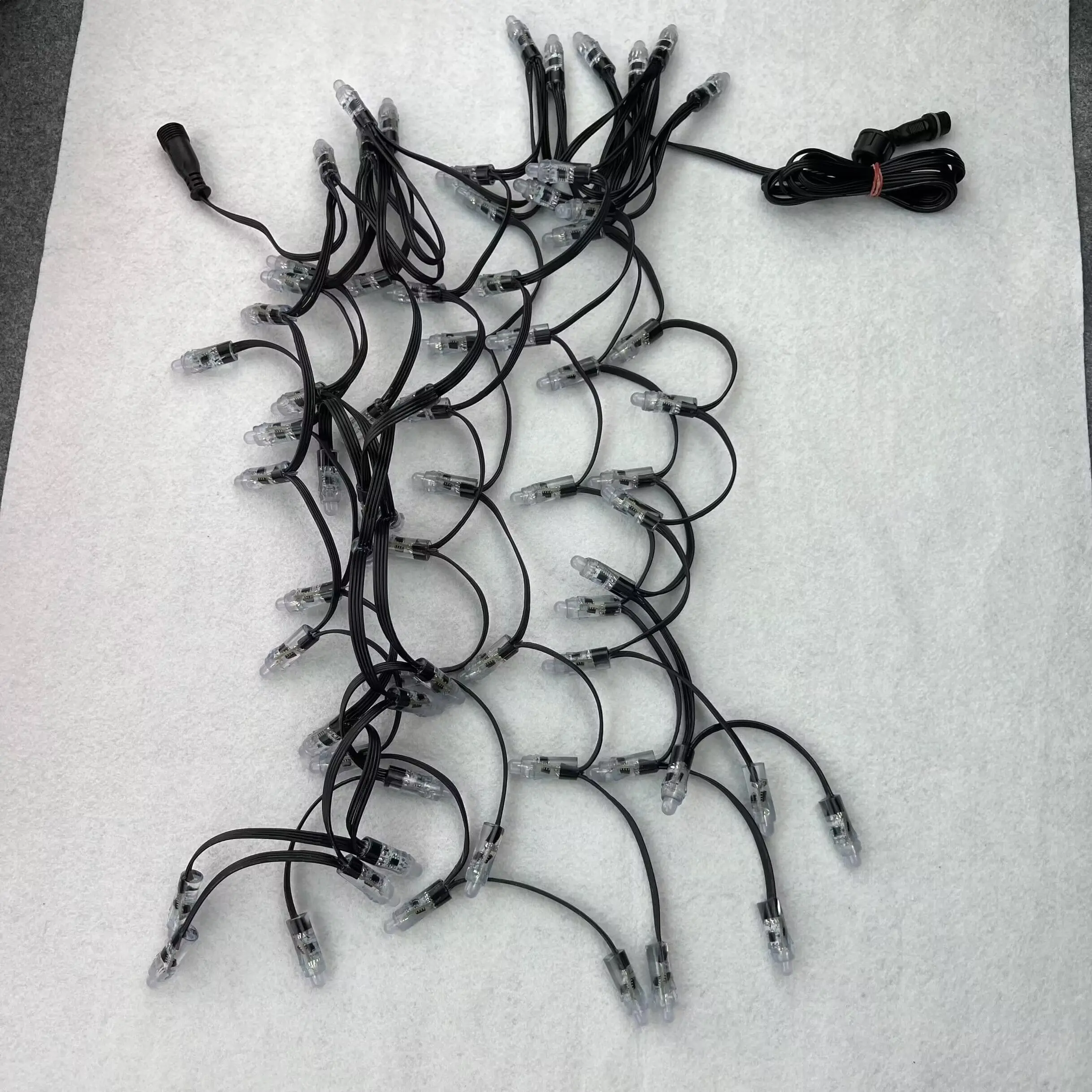

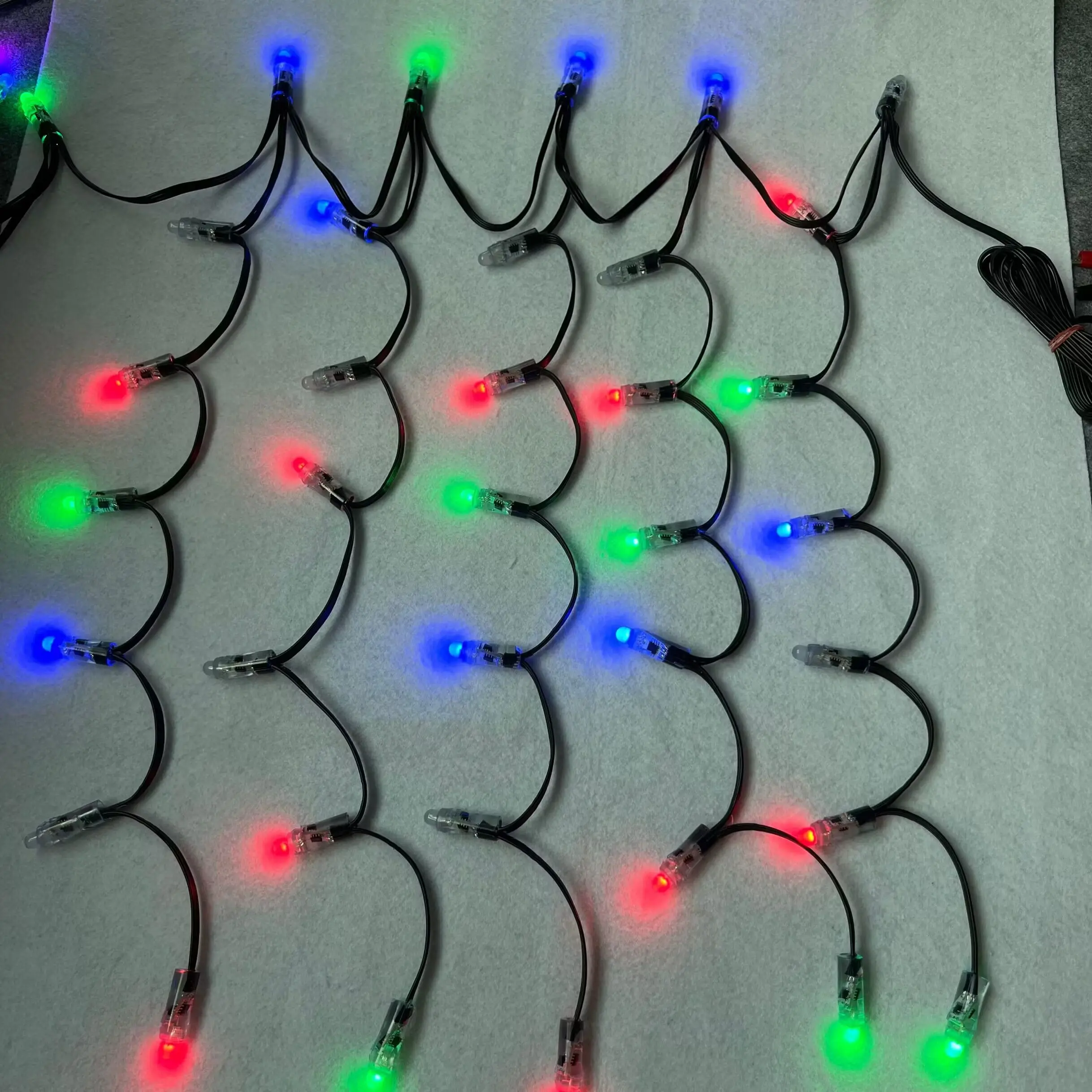

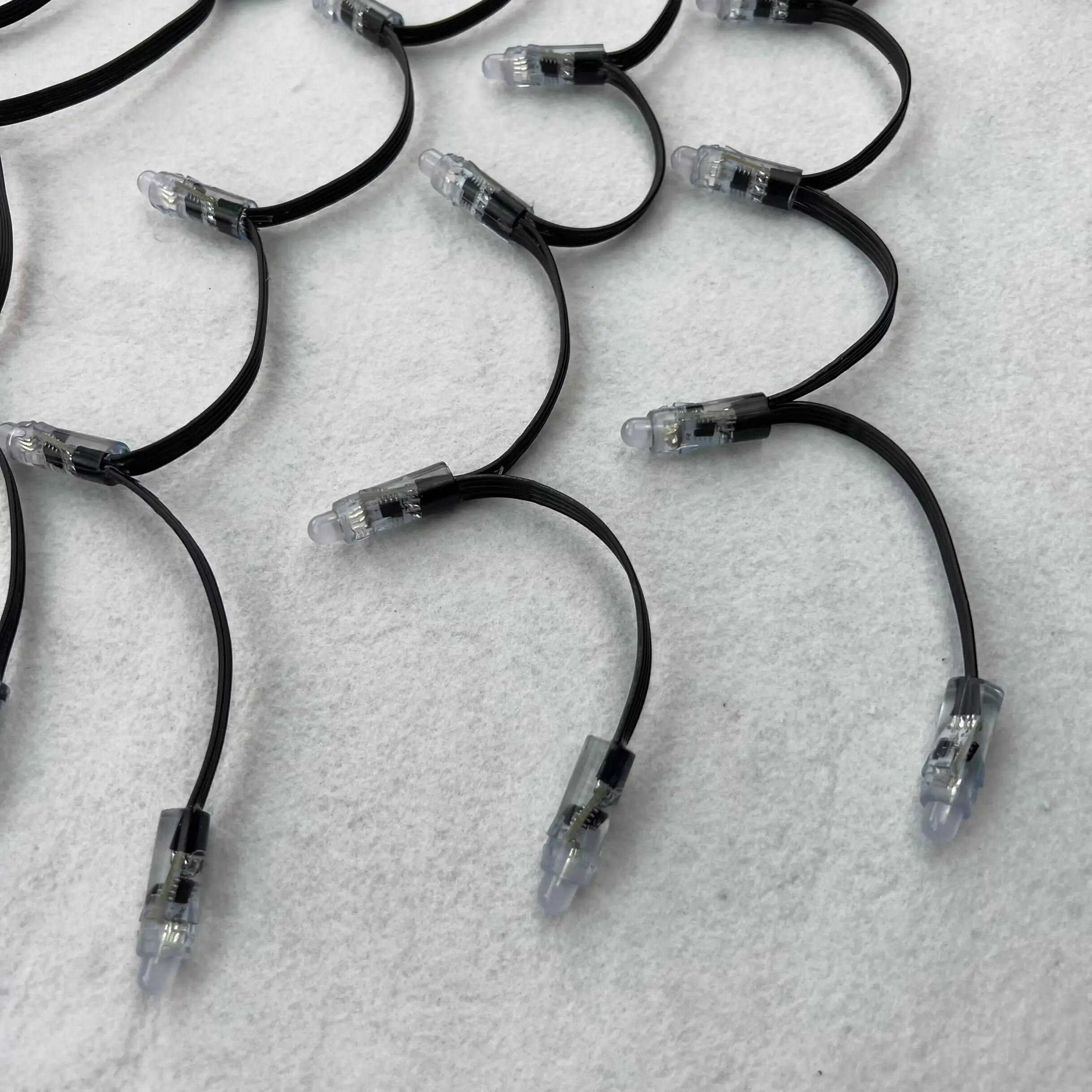

50/60/70/80/100 pixel stake nodes (Peace family),DC12V 12mm WS2811,5/6/7/8/10 pixel nodes*10 clusters,3 foot spacing

Product Overview

Description

this design is from David Peace family:



50/60/70/80/100 pixel stake nodes (Peace family),DC12V 12mm WS2811,5/6/7/8/10 pixel node per cluster,10 clusters,3 foot spacing



Main Spec:

input voltage:                 DC12V input

IC type:                          WS2811,256gray scale;24bit for RGB color

LED type:                      8mm round hat fosted led,each led is 0.7W when at full white color

wire:                              all black color wire;20AWG

color:                              addressable RGB full color

total nodes:                   5nodes*10 clusters =50 nodes: 5-5-5-5-5-5-5-5-5-5(the number of pixels for each cluster)

                                       6nodes*10 clusters =60 nodes: 6-6-6-6-6-6-6-6-6-6(the number of pixels for each cluster)

                                       7nodes*10 clusters =70 nodes: 7-7-7-7-7-7-7-7-7-7(the number of pixels for each cluster)

                                       8nodes*10 clusters =80 nodes: 8-8-8-8-8-8-8-8-8-8(the number of pixels for each cluster)

                                       10nodes*10 clusters =10 nodes: 10-10-10-10-10-10-10-10-10-10

max power:                   each led is 0.7W when at full white color

Protection Level:            IP68;epoxy resin filled

strandard spacing:         4inch(10cm) spacing between nodes of each drop/clauster; 3 foot (92cm) spacing between each drop/clauster

control methord:            SPI signal input;each led works as one pixel,all pixels are connected in series, there is a signal coming back from each drop's end to the start of next drop.

input end:                      3 foot (92cm) long 3pin black wire 13.5mm male connector

output end:                    0.2m long 3pin black wire 13.5mm female connector

3 core 13.5mm Raywu connector 20cm long:

https://www.aliexpress.us/item/2251832609894926.html



Note: we can also make custom wire spacing,and custom nodes for you,please free to contact us,thanks.
