8' glue spreader machine for making plywood
- Category: Wood Based Panels Machinery >>>
- Supplier: Linyi,Haoxing,Economic,And,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
8ft glue speader is widely used in Plywood production line,which is used for painting glue to the veneer &core，according to glue painting pattern， there are single side and double side pattern。
Product name | 8ft glue spreader machine/2700mm glue spreader machine | ||
Model | HXSG-1400 | HXDG-1400 | |
Glue method | Single-side | Double-side | |
Rubber roller length | 2700mm | 2700mm | |
Rubber roller diameter | 410mm | 410mm | |
Rubber roller material | Green rubber | Black natural rubber | |
Iron roller diameter | 219mm | 219mm | |
Iron roller length | 2700mm | 2700mm | |
Motor Power | 7kw | 7kw | |
Overall Dimension | 3500*1400*1700mm | 3500*1400*1700mm | |
Weight | 3000 kg | 3000 kg | |

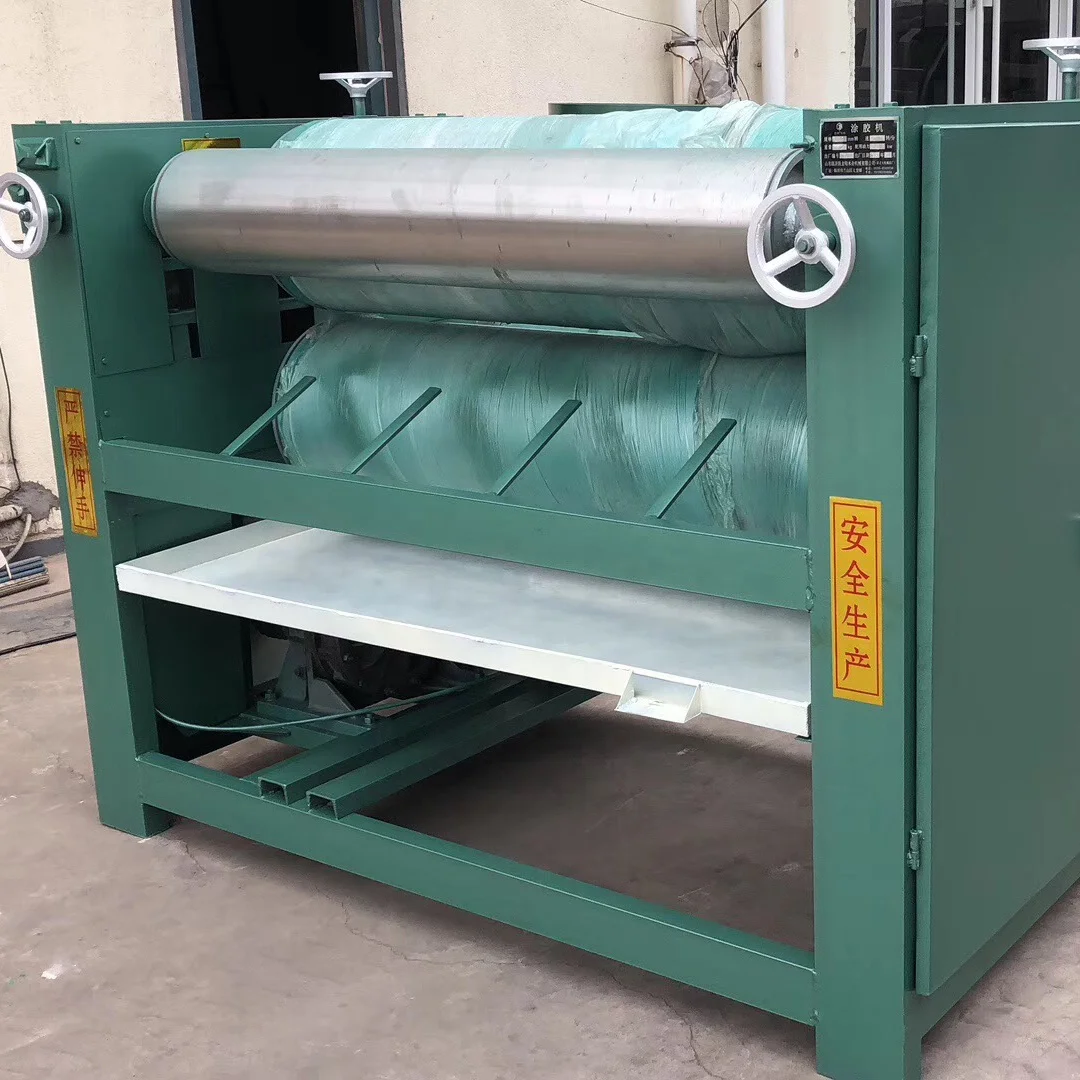

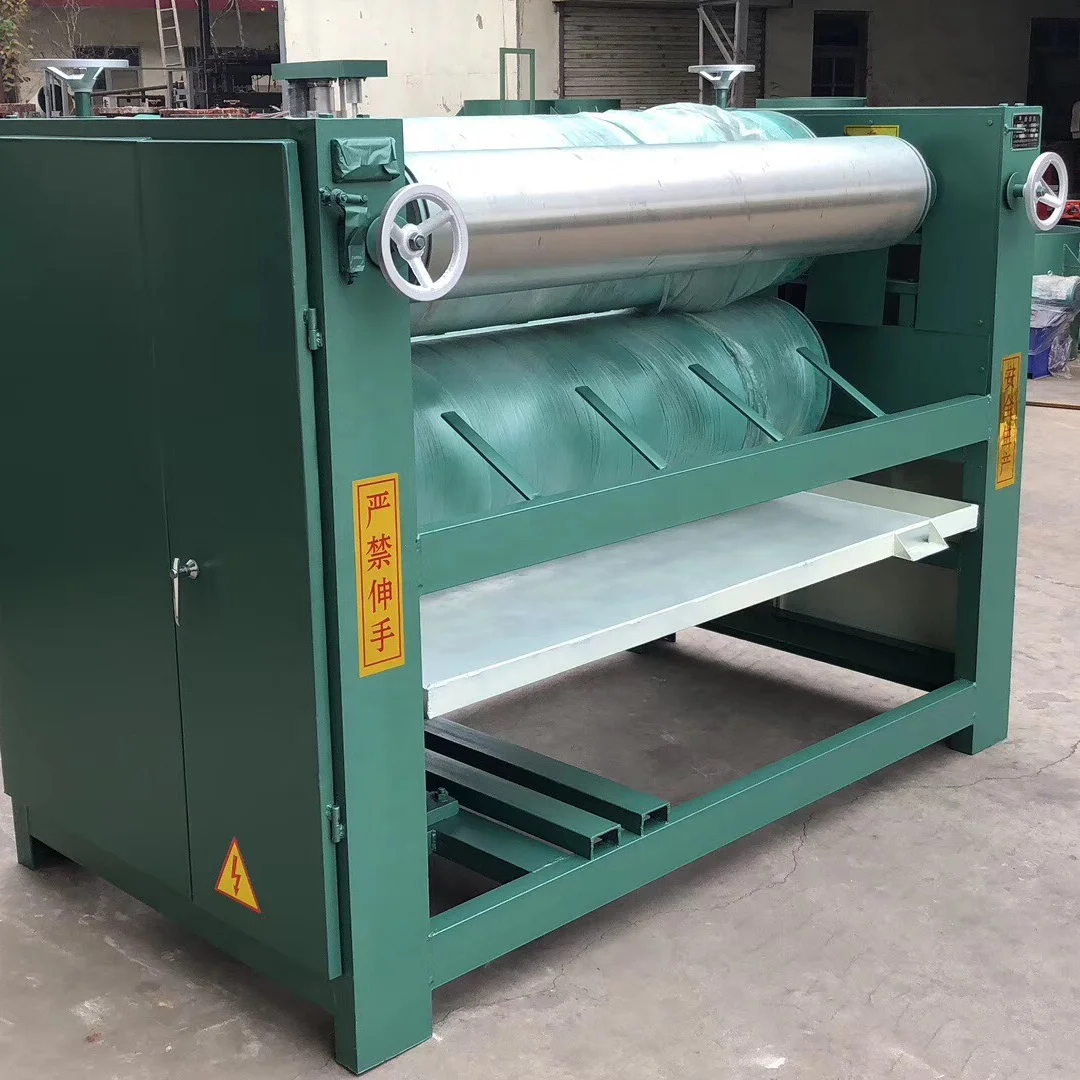

Detailed Images
Related Products
Packing&Shipping
After Sales Service
1.We will send our engineer under your indications to your factory for installing, debugging and maintaining, you only need to
afford the cost of the flights, and the engineer's accommodation .
2.If you are experienced installing jobs,we will provide ongoing technical support for you.
3.Guarantee time for the main parts of the machine will be 12 months,in this period,if the machines itself have problem,we will
maintain it freely.
4.After the warranty, we can also supply the engineer service and the technical service, but you need to pay the salary for the
engineer! and afford the cost of the replaced aparts yourself.
afford the cost of the flights, and the engineer's accommodation .
2.If you are experienced installing jobs,we will provide ongoing technical support for you.
3.Guarantee time for the main parts of the machine will be 12 months,in this period,if the machines itself have problem,we will
maintain it freely.
4.After the warranty, we can also supply the engineer service and the technical service, but you need to pay the salary for the
engineer! and afford the cost of the replaced aparts yourself.
Company Introduction
Linyi Haoxing machinery is located in Linyi City,Shandong,China.Have majored in woodworking machinery trading and manufacturing for more than 15 years.Our main products are veneer and plywood line, particle board line and also MDF production line.
Customers cover most of the world, from Vietnam, Indonesia, India, Dubai, Nigeria, Algeria, South Africa, Garner, Brazil, American and Russia.
Customers cover most of the world, from Vietnam, Indonesia, India, Dubai, Nigeria, Algeria, South Africa, Garner, Brazil, American and Russia.
