Product Overview

Description







Model
JCW-CS19 Belt-driven 120mm² Cable Cutting and Stripping Machine
Function
Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed
speed, Run-out sensor, Length correction, Safety door sensor
Raw material
PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections
10 - 120 mm²
Cable diameter
Max 25 mm
Cutting length ( L )
1 - 99999.9 mm
Cutting length accuracy
0.002 x L
Stripping length
Front ( right ) side: 1 - 800 mm
Rear ( left ) side: 1 - 260 mm
Feeding system
32 rollers, belt-driven
Production rate
1800 pcs/h [ depends on cutting length ]
Data library
100 programs
OEM
Yes
Display
7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals
Cable splitter, wire pre feeder, robot arm, conveyor belt
Power supply
AC 220 V ± 10%, 50 / 60 Hz [ 110V on request ]
Dimensions
Machine: L 1360 x W 650 x H 1450 mm
Weight
155 KG
CE-Conformity
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

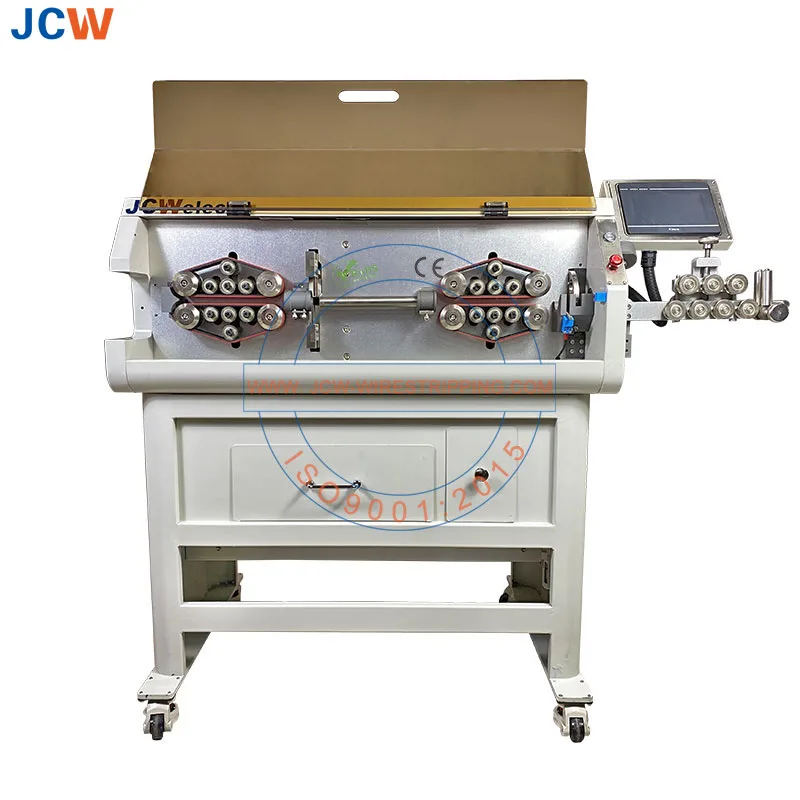

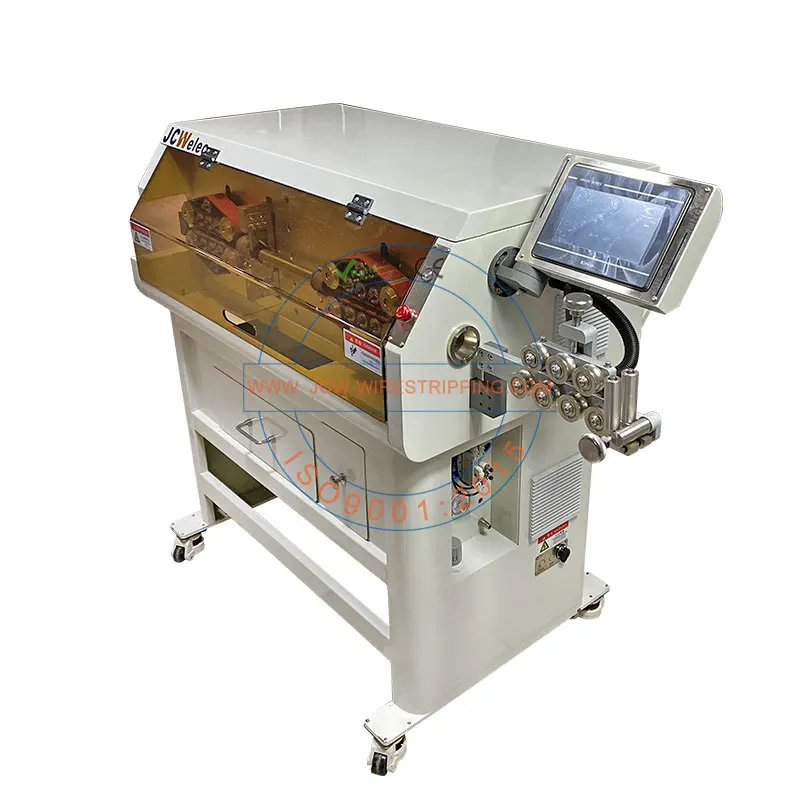

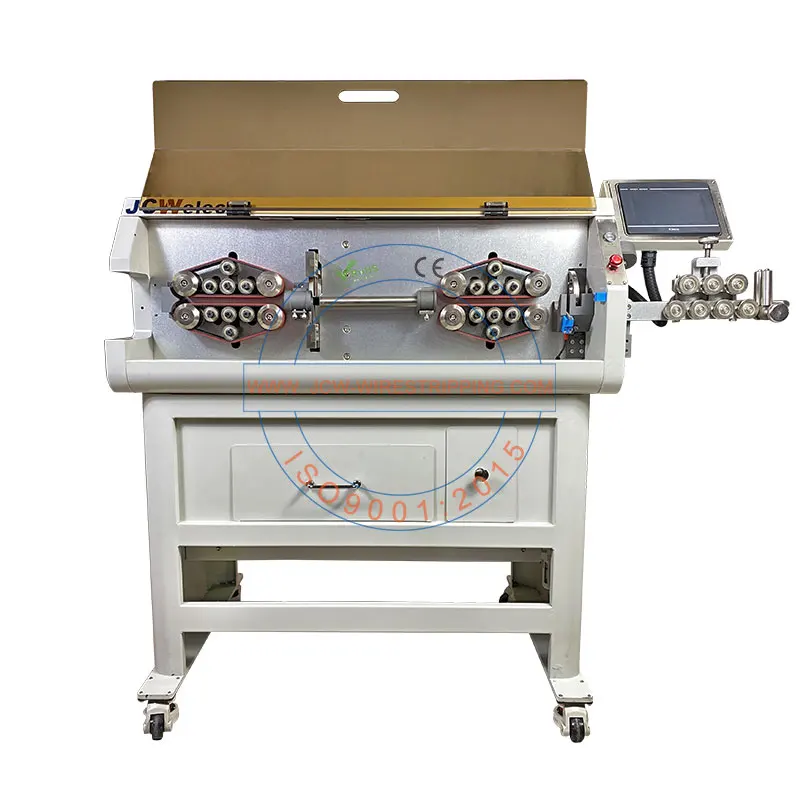

Free Standing Belt-driven 120 mm² Cable Cutting and Stripping Machine

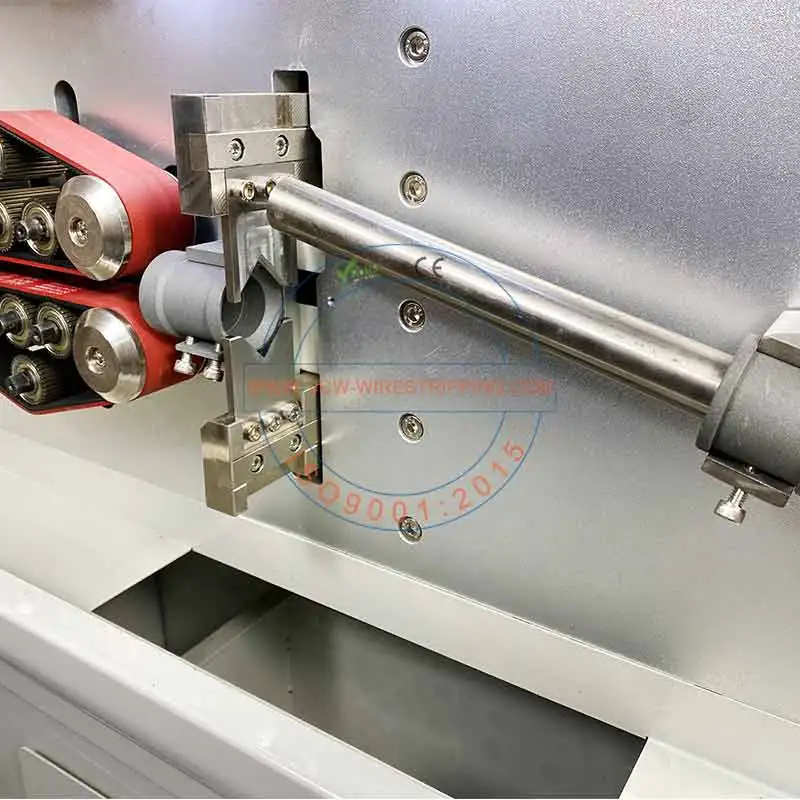

Servo motorized cutter head, neat cutting

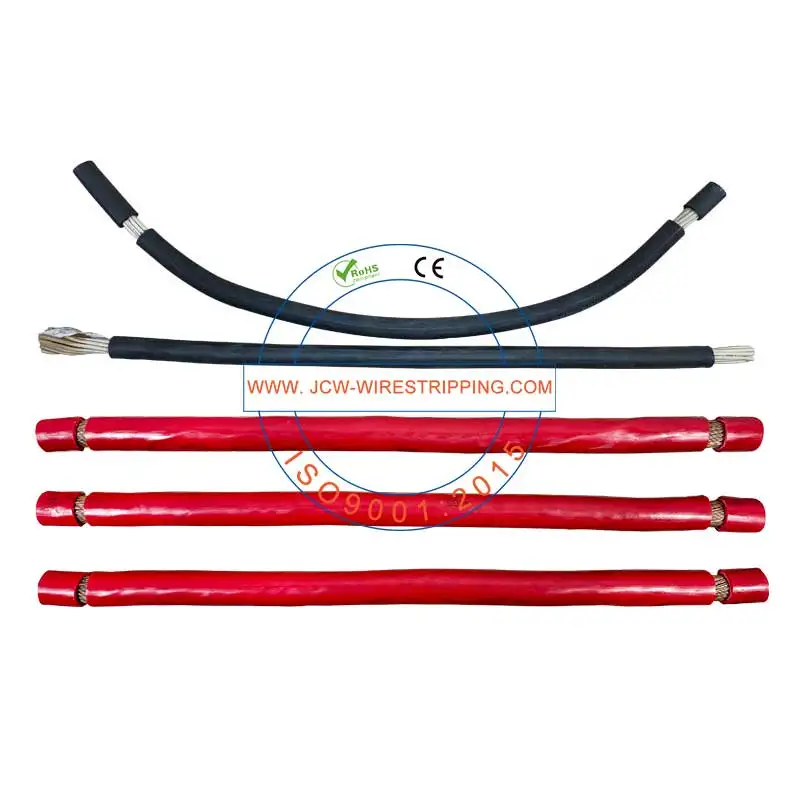

Cut and strip max 25 mm O.D. and 120 mm² battery cables
High-quality belt feed system, zero damage to the cable
Powerful clamp force, precise feeding length
7" color touch screen, multi-language interface
Transparent and robust safety cover, safety sensor
Automatic cutting length calibration ensures precision
Cable run-out sensor gives machine stop signal
