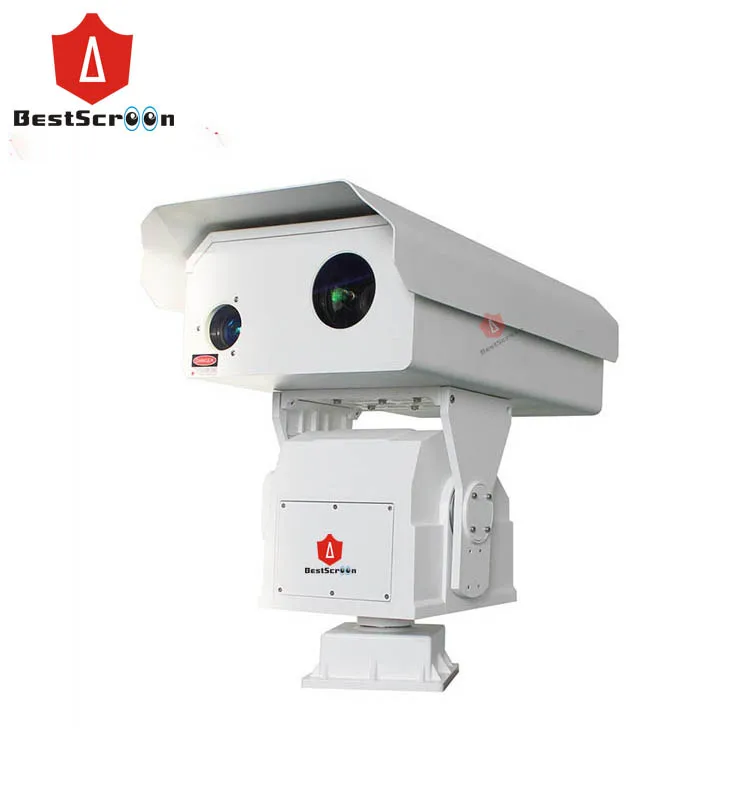

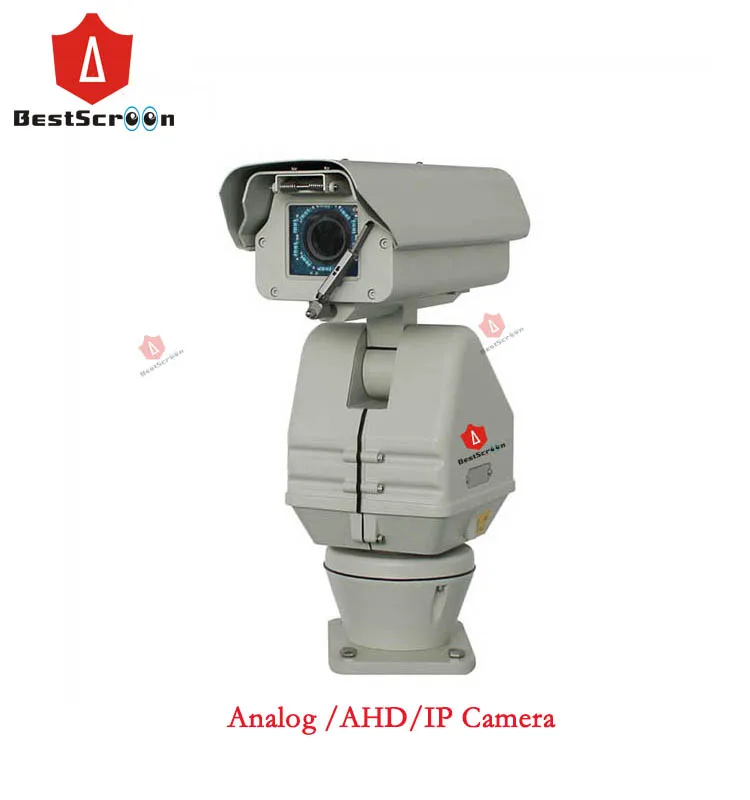

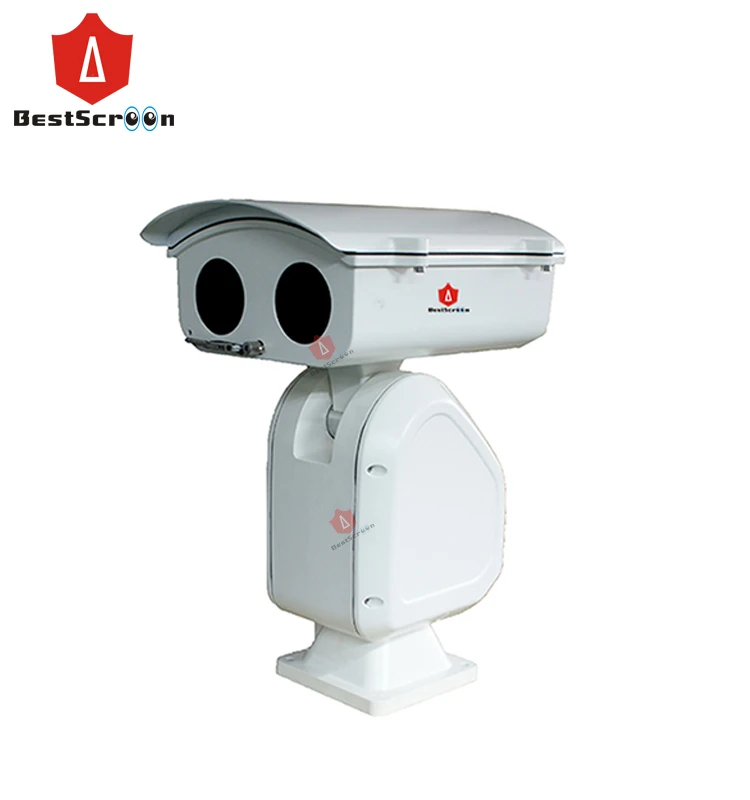

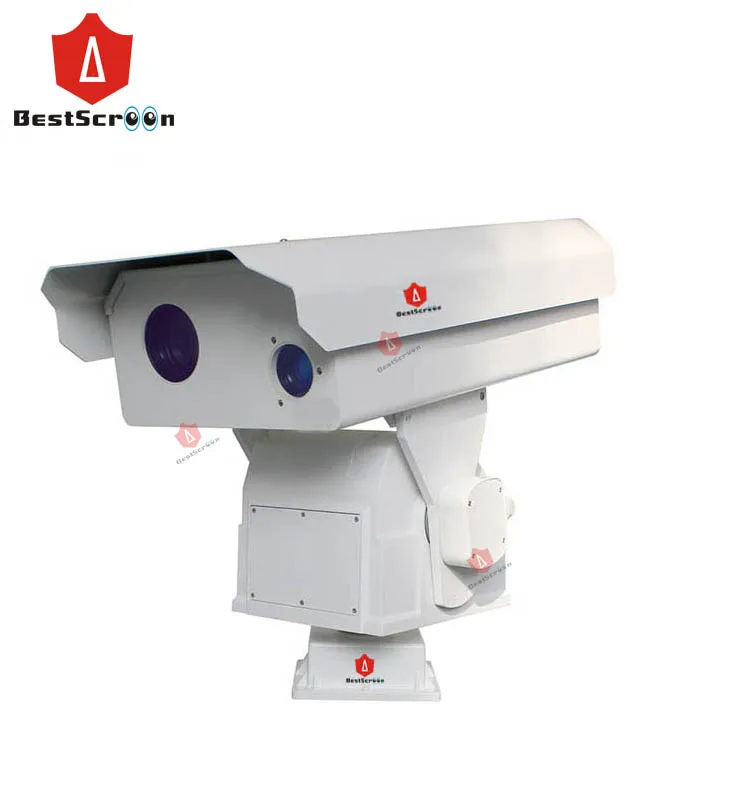

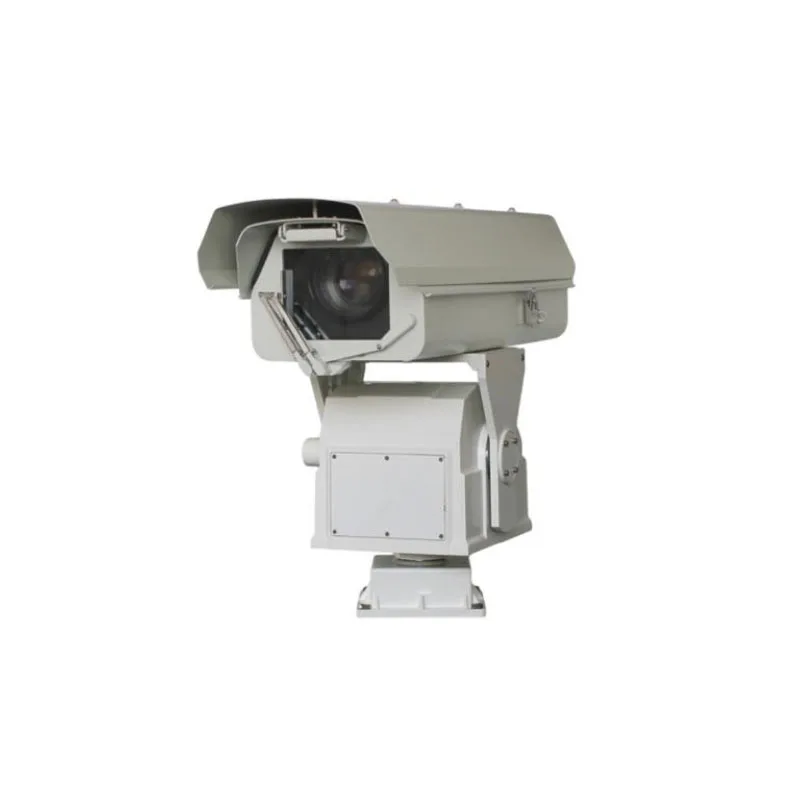

outdoor city road highway HD 2.0 MP IP PTZ Camera long range 10km HD cctv PTZ camera

Product Overview

Description

Product Introduction:

 -Integrated with weather-proof high speed PTZ.

-It combines with cameras ,intelligent PTZ and decoder ,cover housing, wipers,automatic heater, windows defroster and defogger, sun-shield housing.

-It integrates with high-end motor, good stability and low noise.

-Heavy wind resistance ,smoothly running ,ensure accurate positioning.

-Weather-proof design, with sun-shield housing, wiper

-High die-cast aluminum casing, anti-shock, anti-corrosion ,IP 66

-different camera just like Anlog ,AHD,CVI,TVI,AHD ,IP and SDI camera for your optional ,we can give your better proposal according to your actual demand

-86x(10-860mm lens) optical zoom  4.0mp camera module are for your choice based on your actaul demand .



Techical Data :

Model	BSD10T-TES
IP Chipset Parameters
Model	20IP	30IP
Imaging sensor	1/2.8" Progressive Scan CMOS	1/2.8" Progressive Scan CMOS
Effective pixels	2.1 mega pixels	2.3 mega pixels
Lens	20X optical zoom f=4.7 -94.0mm	f=4.5-135mm 30X optical zoom
Min.illumination	0.095 lUx (F1.6,ICR open)
Frame rate	25FPS & 30FPS
Double stream	H.265/H.264
SDK Docking	standard ONVIF protocols,Support SDK two development
SDI/AHD Chipset
Model	IPC	IPC
Imaging sensor	1/2.8 COMS ,1/3 CMOS	1/1.9" CMOS
Effective pixels	30X 3 mega pixels/20X 2 Mega pixels	86x optical zoom IPC module
Lens	37X optical zoom f=5.5-110mm	52X optical zoom f=6.5 -350mm /30x2.0mega 4.5-135mm
Frame rate	60FPS & 30FPS	30FPS
PTZ Function
Pan preset speed	100°/S
Tilt preset speed	30°/S
Pan control speed	0°—40°/S
Tilt control speed	0°—20°/S
Pan range	360°endless rotation
Tilt range	—70° —  +35°
Preset positions,Tracking	256 positions  6 tracking
Control Way	RS485, built-in 16 protocols, baud rate from 2400Bps to 19200Bps
Relative Humidity	Less than 90%
IP Grade	IP66
Working Temperature	-35°C—+55°C
Power Consumption	DC24V/AC24V/AC110V/AC220V optional
Impact resistance requirements	≥4G
Wiper	Support
Weight	10KG
Network parameters:
Video Compression	H.265/H.264
Compression output rate	32kbps-12Mbps
Audio Compression	G.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCM
Storage Function	Support micro SD
Intelligent Arlarm	Motion detection, occlusion alarm, memory full, memory error, audio anomaly detection, cross-border detection, area intrusion detection
Support Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,OPTIONAL)
General function	Dual stream, heartbeat, password protection
