Product Overview

Description



Product Description


Product Name

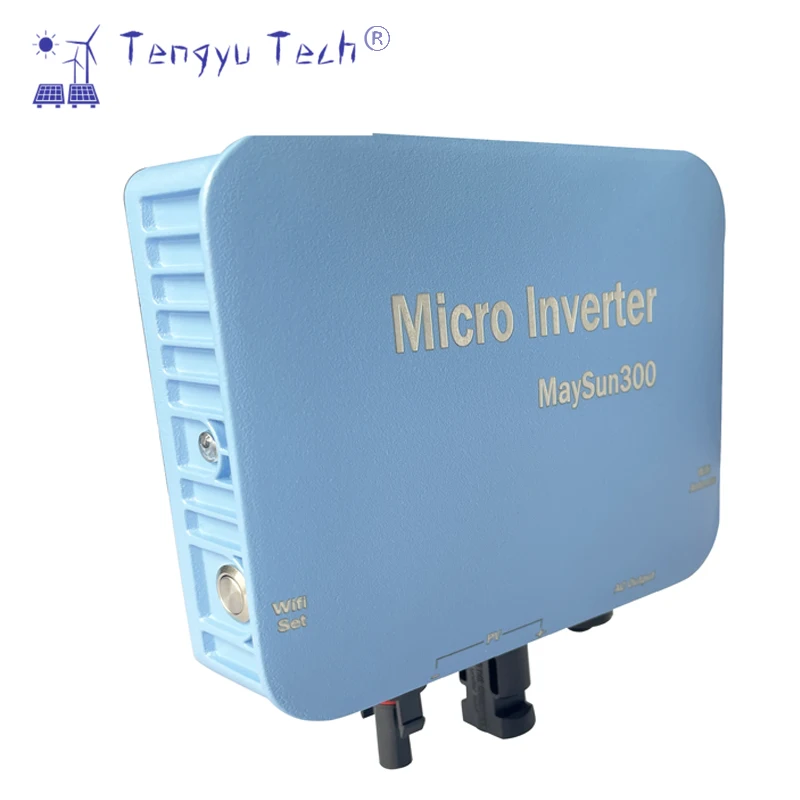

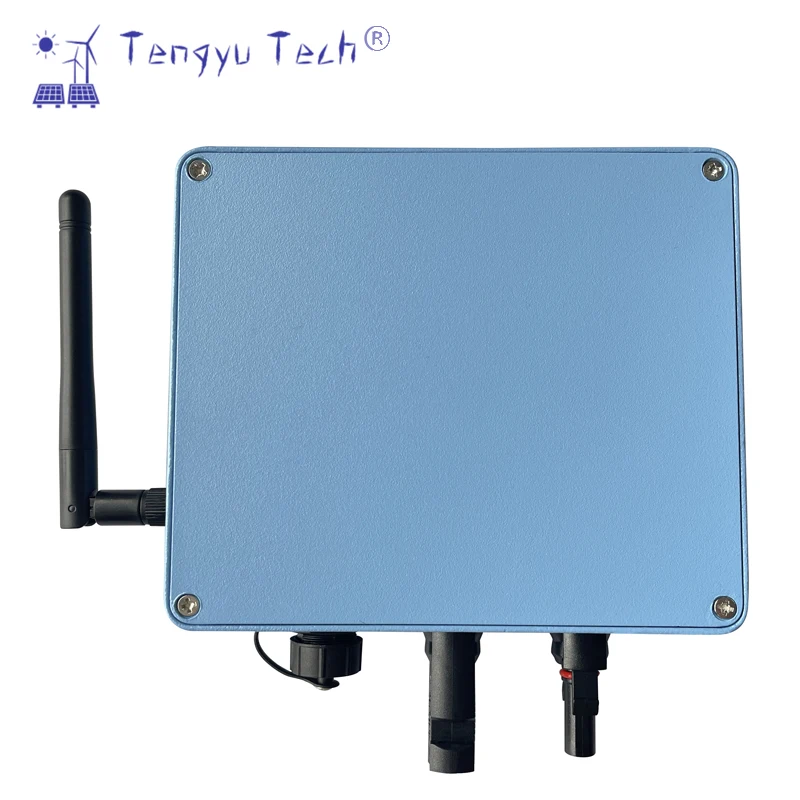

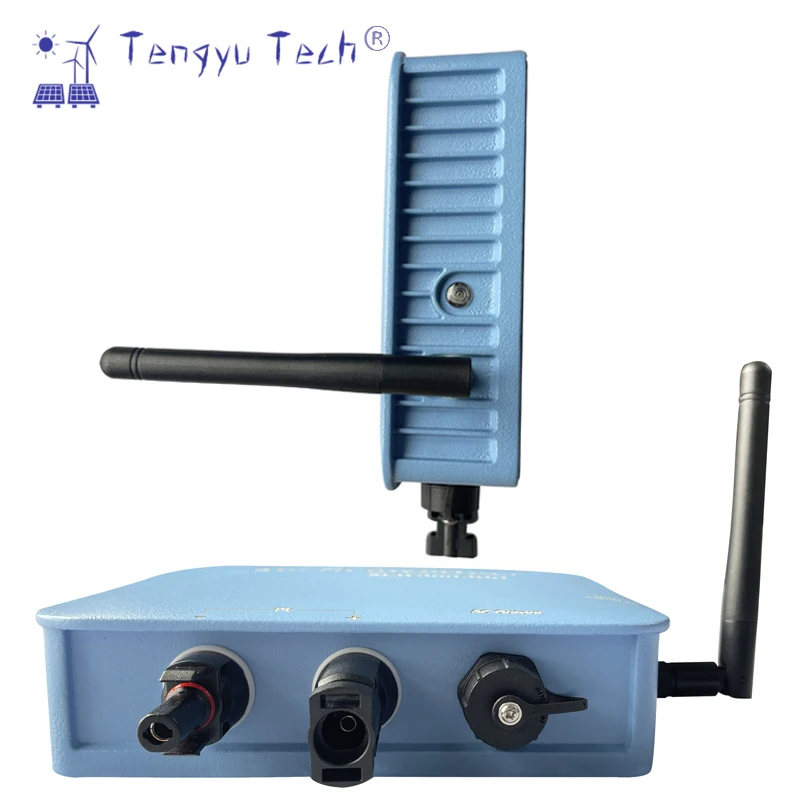

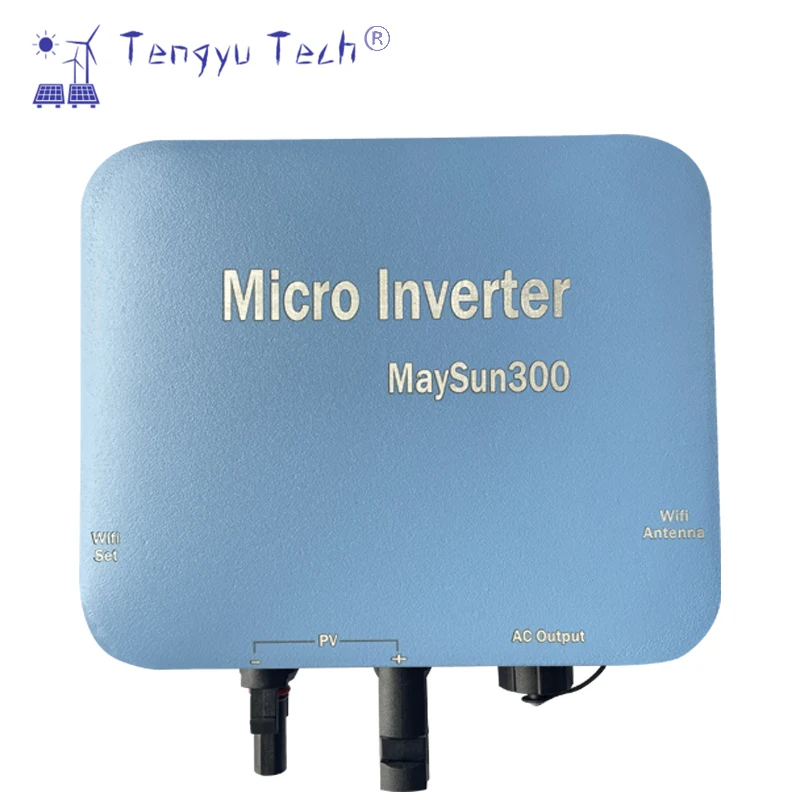

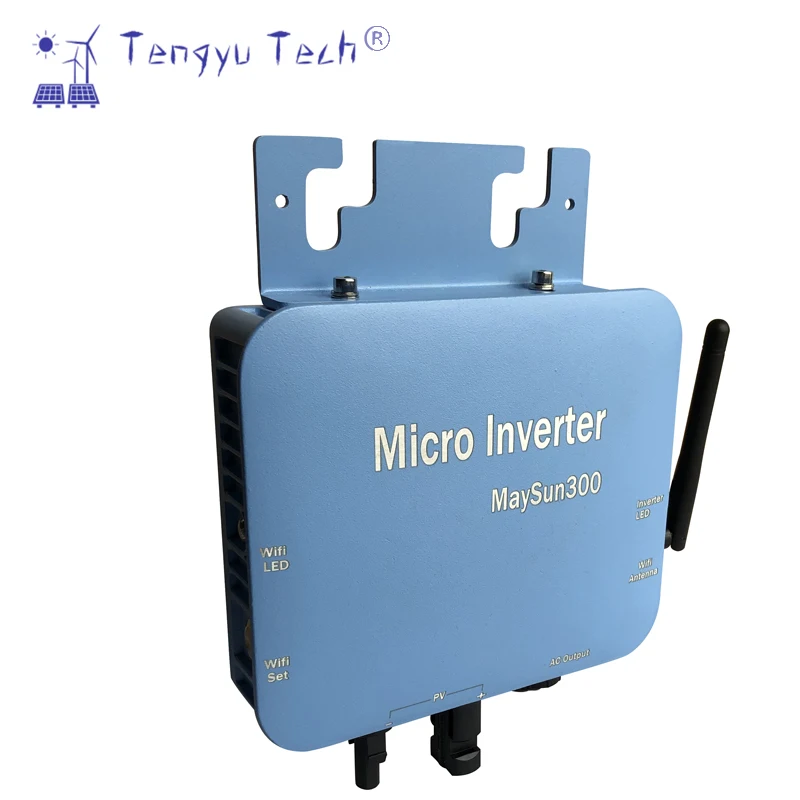

Tengyu Tech On Grid tie Solar Inverter App Monitoring 300W 350W 400W 500W Grid-connected Micro Inverter 120V/230V 50/60 Hz
Material
AL
Function
Solar micro inverter for on grid
Package




Product Paramenters


Input Data (DC)
Maximum Input Power
300 Watt
Recommended Using Solar Panel
Power 2x300W. Open Circuit Voltage 36-50 VOC
Solar Power Open Circuit Voltage Range
36-50 VOC
Peak Power Tracking Voltage
22-45V
Min/Max Starting Voltage
22-50V
Max DC Short-Circuit Current
40 A
Max Input Operating Current
27.2


Output Data (AC)
120V
230V
Peak Output Power
600W
600W
Rated output power
550W
550W
Rated output current
4.58A
2.39A
Rated voltage range
80-160VAC
108-260VAC
Rated frequency range
47-52.5Hz/57-62.5Hz
47-52.5Hz/57-62.5Hz
Power Factor
>99%
>99%
Max  circuits per string
5 PCS (Single Phase)
10 PCS (Single Phase)


Output Efficiency
120V
230V
Static MPPT Efficiency
99.5%
99.5%
Max Output Efficiency
91.2%
92.5%
Night Consumption Power
<1W
<1W
Total harmonic offset
<5%
<5%


Technical Parameter.
Range of working temperatur
-40℃-60℃
Size (LxWxH)
283mmx200mmx41.6mm
Weight
1.63Kg
Waterproof Rate
IP 65
Cooling Method
Self-Cooling
Communication Mode
Wireless Communication 433/462MHz
Power Transmission Mode
Reverse transmission, load priority
Monitoring System
Free for long.
Electromagnetic Compatibility
EN50081.part1 EN50082.Part 1
Grid Disturbance
EN61000-3-2  Safety EN62109
Grid Detection
DIN VDE 1026 UL 1741


Product Usage






Related Products




Packing&Shipping






Company Introduction


Dongguan Tengyu New Tech Co., Ltd is a professional manufacturer and exporter concerned with the design, development and production of Solar Panels and Batteries products.

We specialized in manufacturing Solar Panels and such Batteries as Solar panels, Solar Chargers, lithium batteries and other components.

Currently, we are equipped with a complete production line of Solar Panels. we are committed to providing the comfortable and safe Solar Panels for every consumers. Besides, Our company has an experienced and professional team, our products have exported to many countries and regions especially the Southeast Asia and Africa. After years of unremitting efforts, we have became a stable exporter due to our excellent products and services.


In the future, Dongguan Tengyu New Tech Co., Ltd will continue to provide high-quality products and efficient services for tens of millions of users around the world. We welcome customers and business partners at home and abroad to establish cooperation and crate a bright future together.




Our Services & Strength


FAQ



1. Why the shipping cost changes so differently?


Actually, the shipping cost according to the quantity, if you need 10 pcs, the package is totally different with the package of 100 pcs. that is why the shipping cost is different.



2. May I start to test the sample at a very small quantity? Such as one pc ?


Sure, you can. We fully understand that at the very beginning, you need to test the quality, also the market, so one pc of sample is acceptable. but please be noted that: if the quantity is very small, the shipping cost may very expensive. because it is not suitable for the shipping by Sea, and by Express, the shipping cost may expensive.



3. How long about the lead time after I paid ?


If you paid online, after we received your payment, we would arrange the package and delivery according to our production line.
Normally if the quantity less than 200 pcs, the lead time would within 5 days, if there is the holiday or the hot selling season, such as the Black Friday and Double 11, the lead time may be delay. and we would notify you before the delivery.



4. If I did not receive the parcel, what should I do ?


Sometimes, if the parcel is really lost during the delivery, we would arrange the re-send service. to make all the customers have a good buying experience.
