Fluorocarbon Rubber
Precompounds raw material FKM B 202 B 600 B 435C B 601C B 651C VTR 9209 VTR 9217 F 605C B Type and F Type Fluoroelastomers

Precompounds raw material FKM B 202 B 600 B 435C B 601C B 651C VTR 9209 VTR 9217 F 605C B Type and F Type Fluoroelastomers

Category: Fluorocarbon Rubber >>>
Supplier: Shanghai,Nebula,International,Trade,Co.,Ltd.

Price:$15.00 - $35.00

Price in USD:Details

Quantity:

Product Overview

Description

Buying Guides

Notes before buying

Because of material price fluctuations and changes in the number of inventory, please contact customer service before placing an order, thank you for your understanding and support !

Products Description

Key Performance Differences of Viton Products

There are four major families of Viton fluoroelastomers: A, B, F, and ETP, each with its own unique performance characteristics.
A major differentiator between the Viton™ product families is fluid resistance, which is based on the polymer's fluorine level.
This property is determined by the type and the relative amounts of the specific monomers that make up the polymer.
Fluid resistance generally improves with increasing levels of fluorine (see the table below). As the fluorine level increases,
however, low-temperature flexibility decreases. This helps designers and engineers to balance the fluid resistance and
low-temperature flexibility of the final vulcanization.
Choosing which Viton product to use for any given application will be determined by the end-use service. Selecting the
appropriate fluoroelastomer ultimately will be determined on the desired:
* Resistance to amines or caustics
* Resistance to hydrocarbon fluids
* Flexibility at low temperature (ability to maintain a seal at low temperature)

See the chart below for general performances differences. For more details, see the full Product Selection Guide, the Chemical Resistance Guide, or Contact us.

TDS(Chemicals Technical Data Sheet)

Fluid Resistance: % Volume Increase After 168 Hours									Base Resistance: % Loss of Elongation @ Break.
	Low Temp. Flexibility TR-10, ⁰C (°F)	Comp. Set: O-Rings, 70 Hrs @ 200 ⁰C (392 °F)	Toluene @ 40 ⁰C (104 °F)	Fuel C/MeOH (85/15) @ 23 ⁰C (73 °F)	Methanol @ 23 ⁰C (73 °F)	Concentrated H2SO4 @ 70 ⁰C (158 °F)	33% Solution of KOH: 336 Hr @ 40 ⁰C (104 °F)	ASTM Ref. Oil 105: 500 Hr @ 150 ⁰C (302 °F)
GLT-S	-30 (-22)	30 - 35	20 - 25 -	35 - 40	90 - 100	3 - 5	-35	-65
AL	-19 (-2)	20 - 25	20 - 25	35 - 40	85 - 95	12 - 15	-50	-80
A	-17 (-1.4)	12 - 17	20 - 25	35 - 40	85 - 95	10 - 12	-45	-80
GBL-S	-16 (3.2)	25 - 40	12 - 15	20 - 25	25 - 35	3 - 5	-25	-65
B	-14 (6)	25 - 30	12 - 15	18 - 23	25 - 35	8 - 10	-25	-70
GFLT-S	-24 (-11)	35 - 40	8 - 12	10 - 15	3 -5	3 - 5	-30	-40
F	-8 (17.6)	30 - 35	8 - 12	5 - 10	3 - 5	7 - 9	-50	-55
GF-S	-8 (17.6)	30 - 45	8 - 12	5 - 10	3 - 5	7 - 9	-45	-50
ETP-S	-11 (12)	45 - 50	6 - 8	8 - 10	1 - 2	4 - 6	0	-10

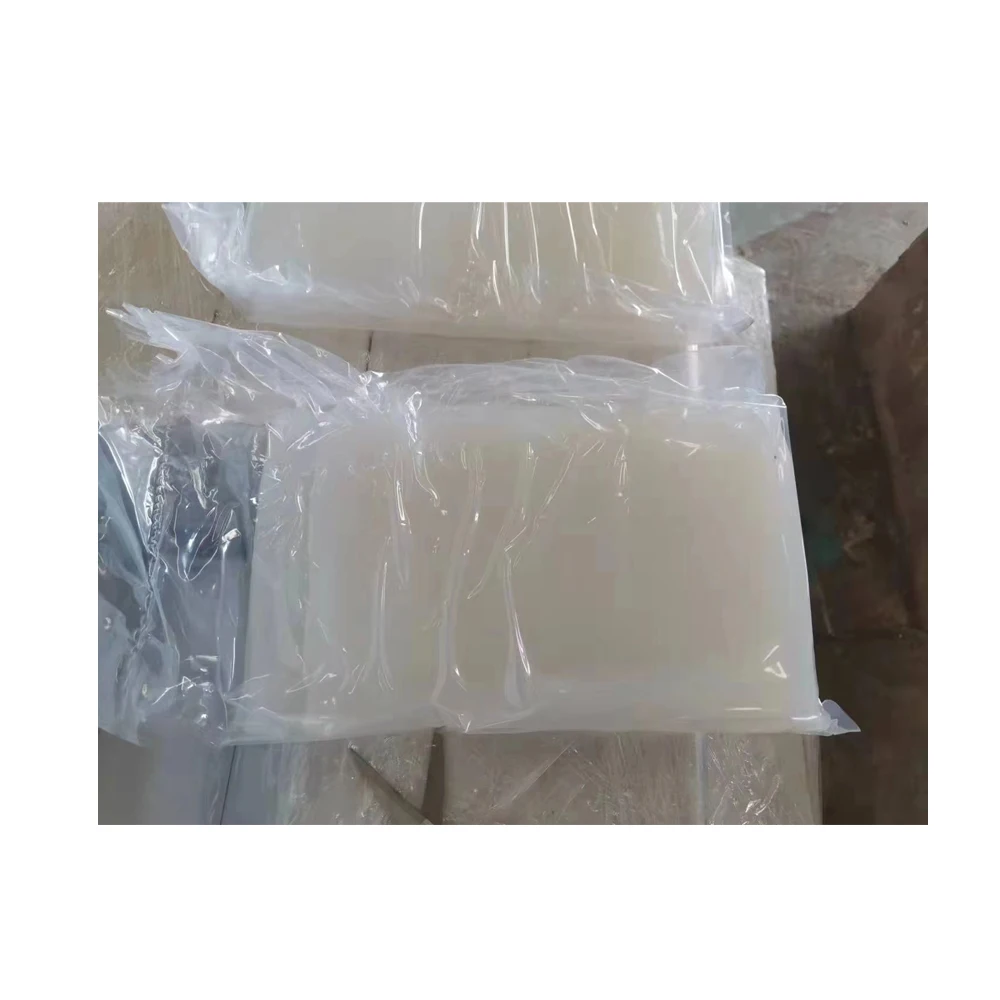

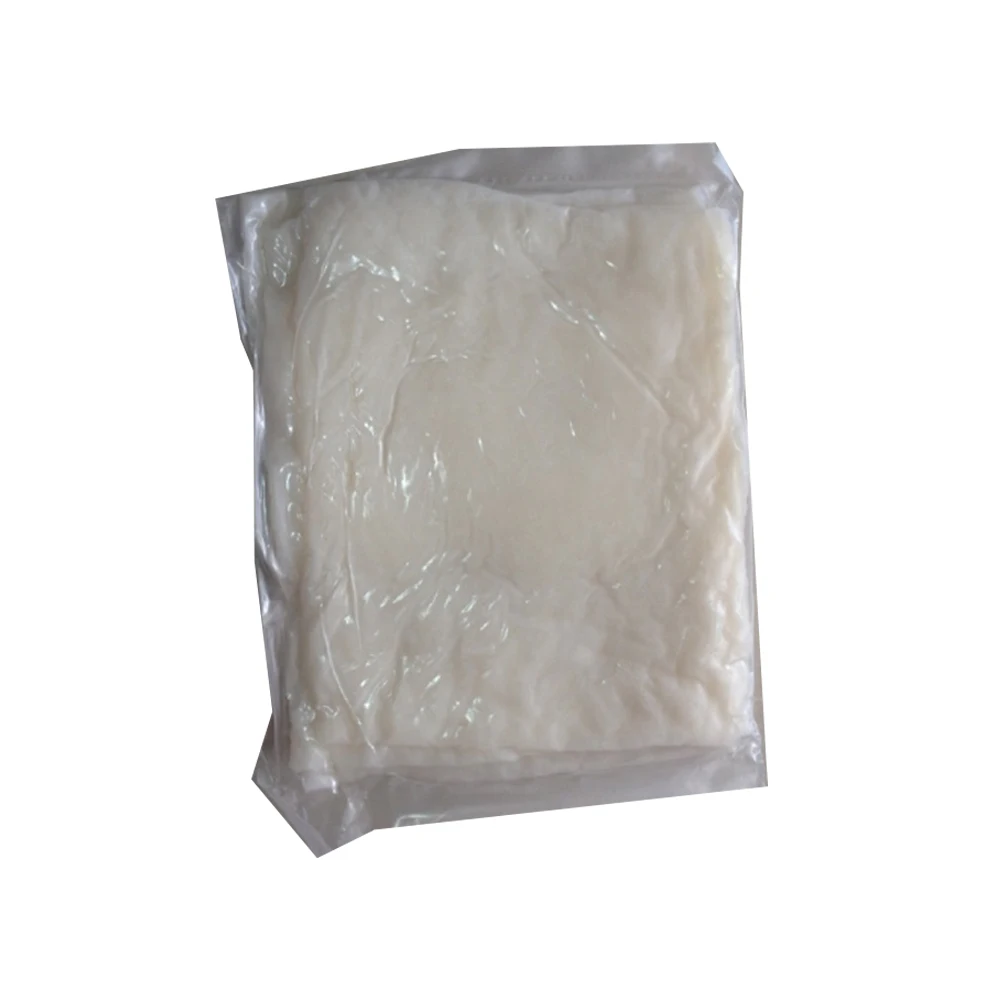

Details Images

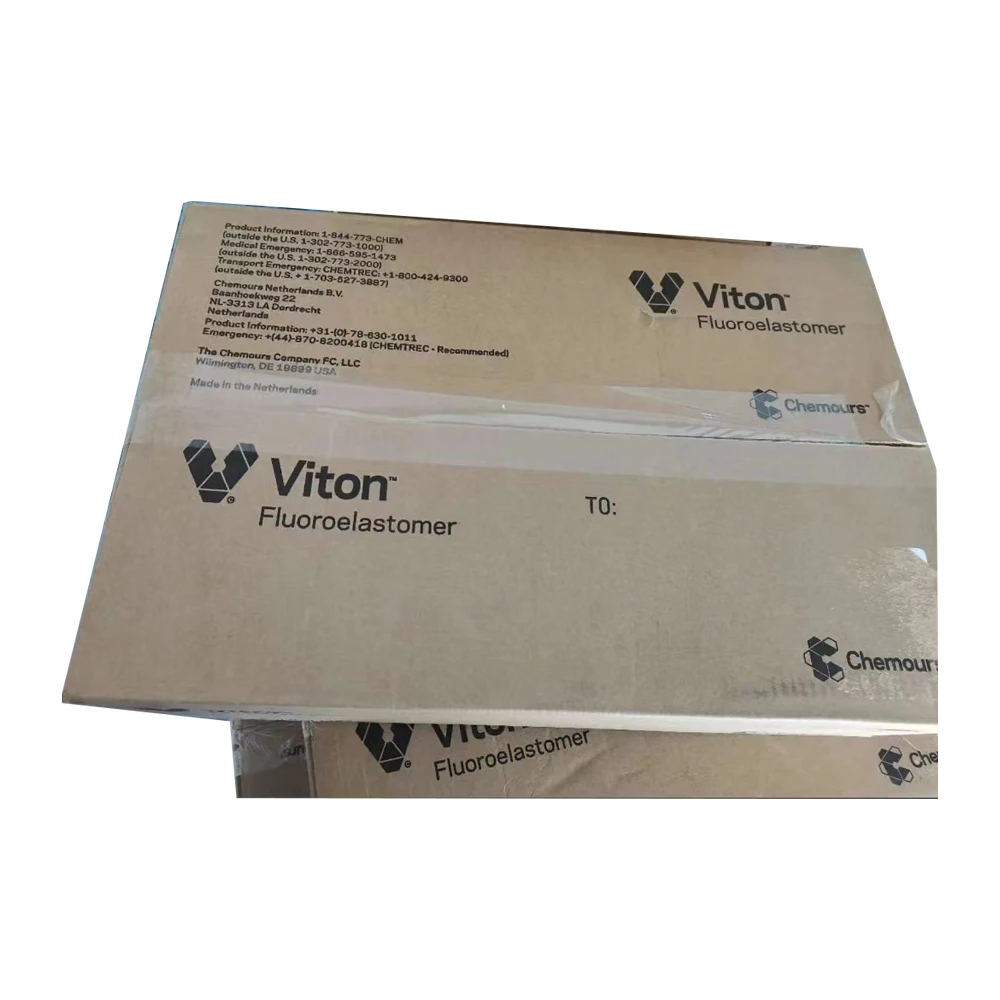

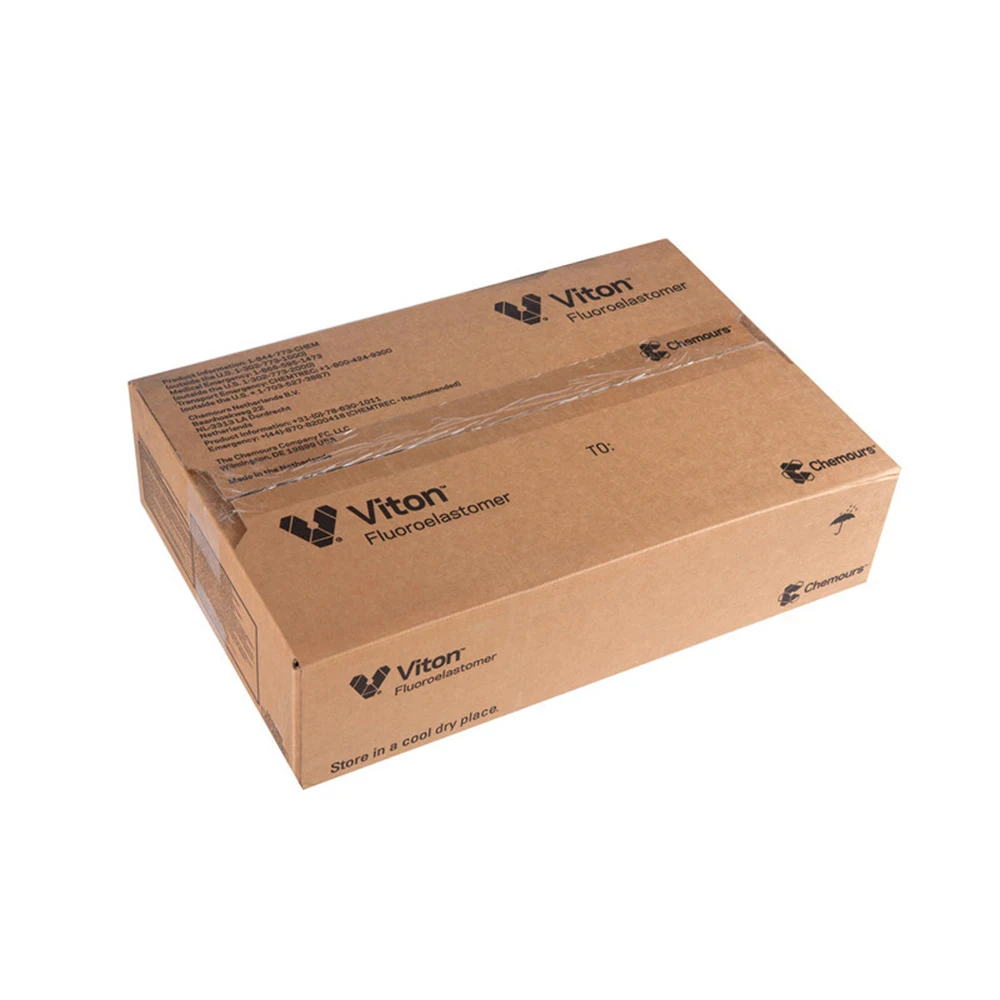

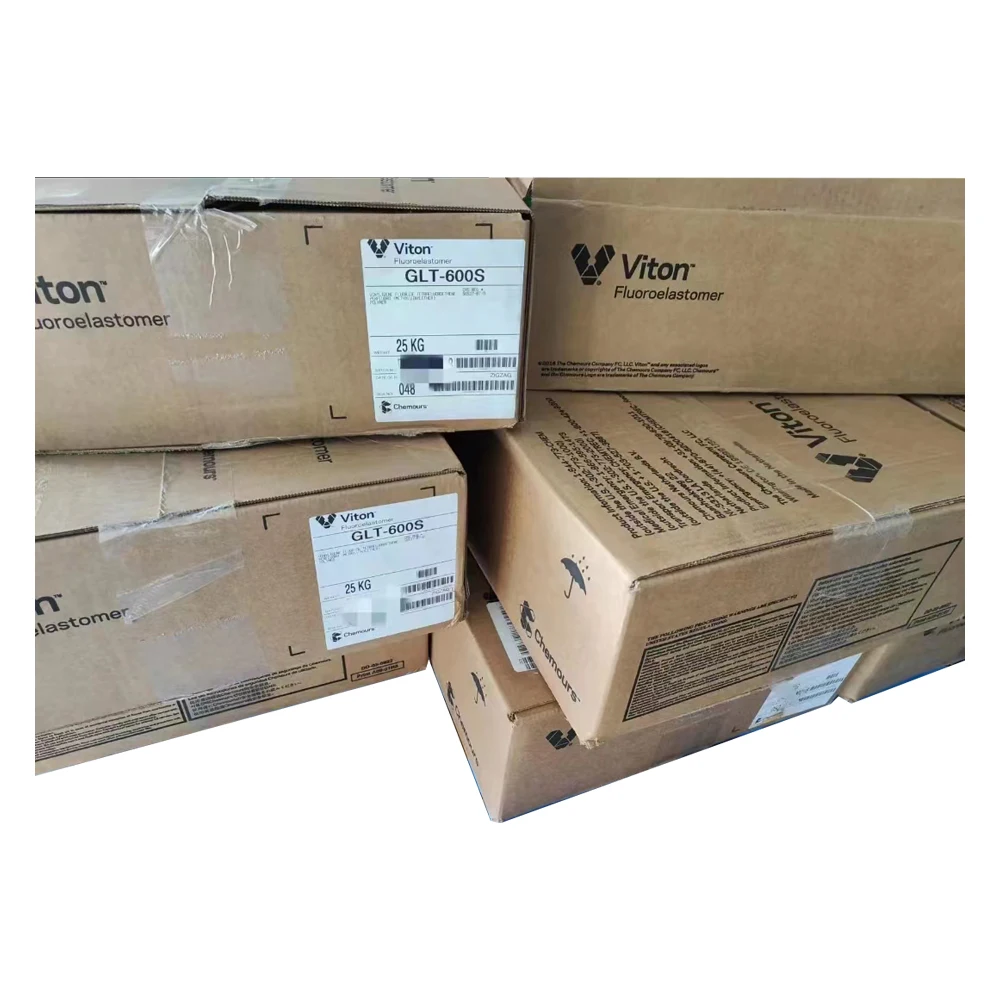

Conventional packaging: 25kg/bag

The specific quantity depends on the materials.

FAQ

1. How long does the delievery time take?

In General, the delivery date will be 5-7 working days for normal quantity. Pleaseleave us a message further if a large order.

2.About free sample

We can provide Free Sample within 5KGFreight is on your own account

3.When can I get the quote price?

After received your request, we will response ASAP (usually with in 12 hours)

4.What is your shipping method?

DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workableWe could do any shipment you wanted which depends on your purchase quantity

5.How about your delivery time?

Generally it is 7-14days, if we have stock. If not, maybe need 15-20 days to arrange the shipping.

6.Do you test all your goods before delivery?

Yes, we have 100% test before delivery.
