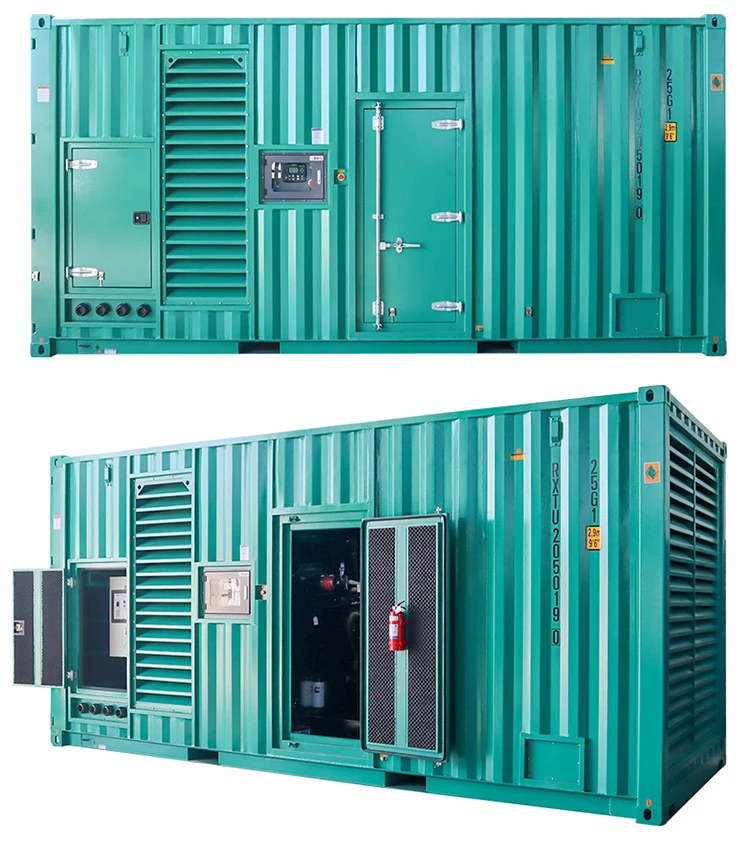

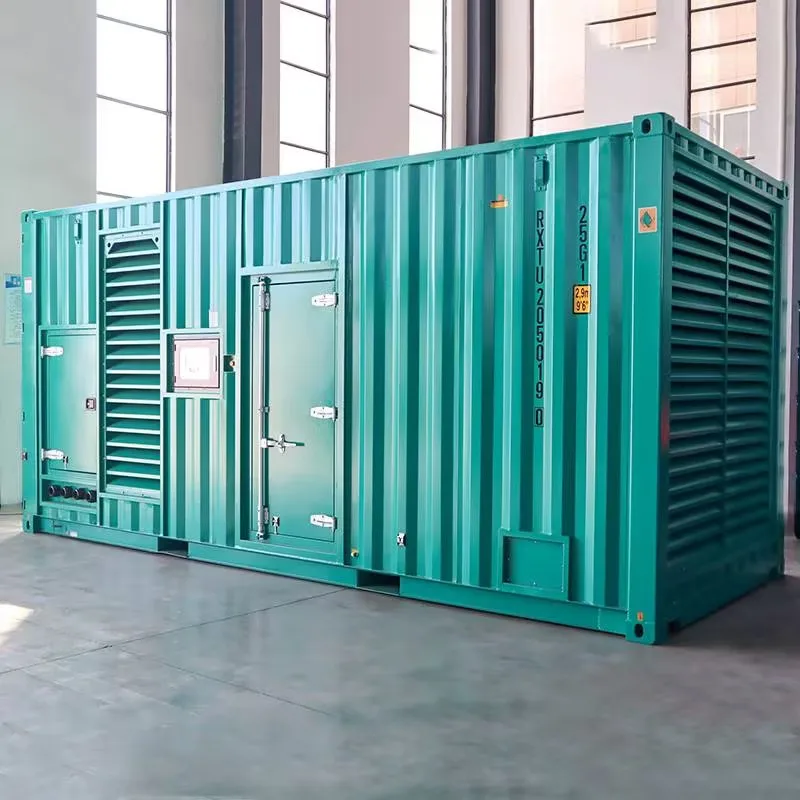

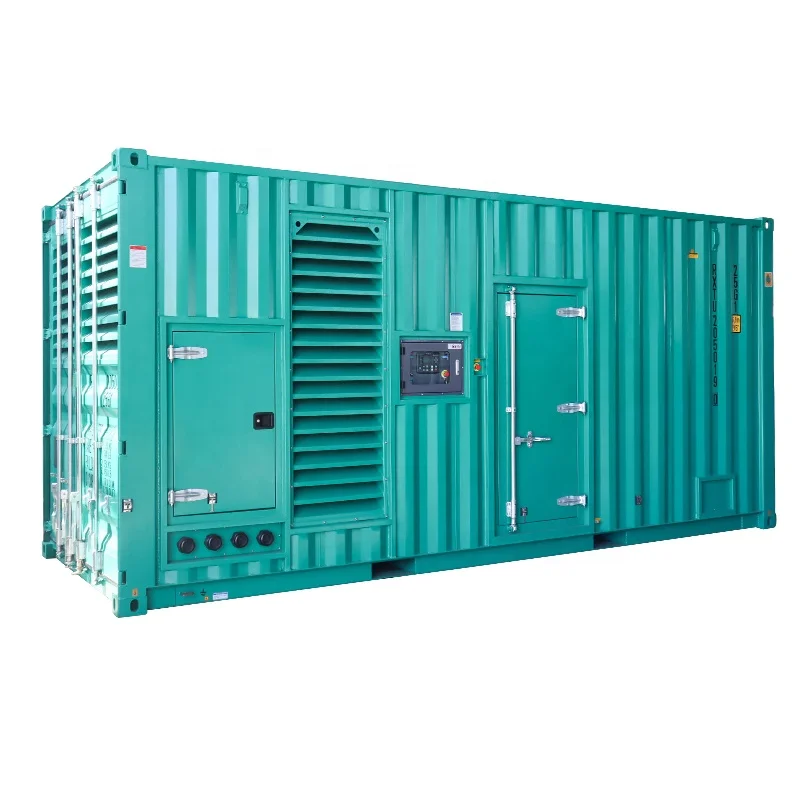

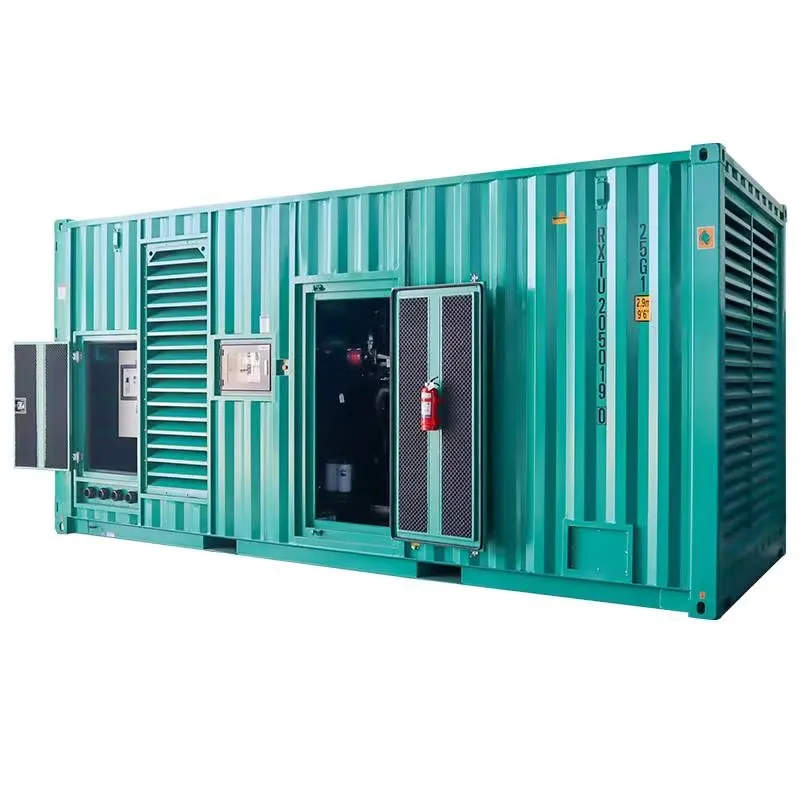

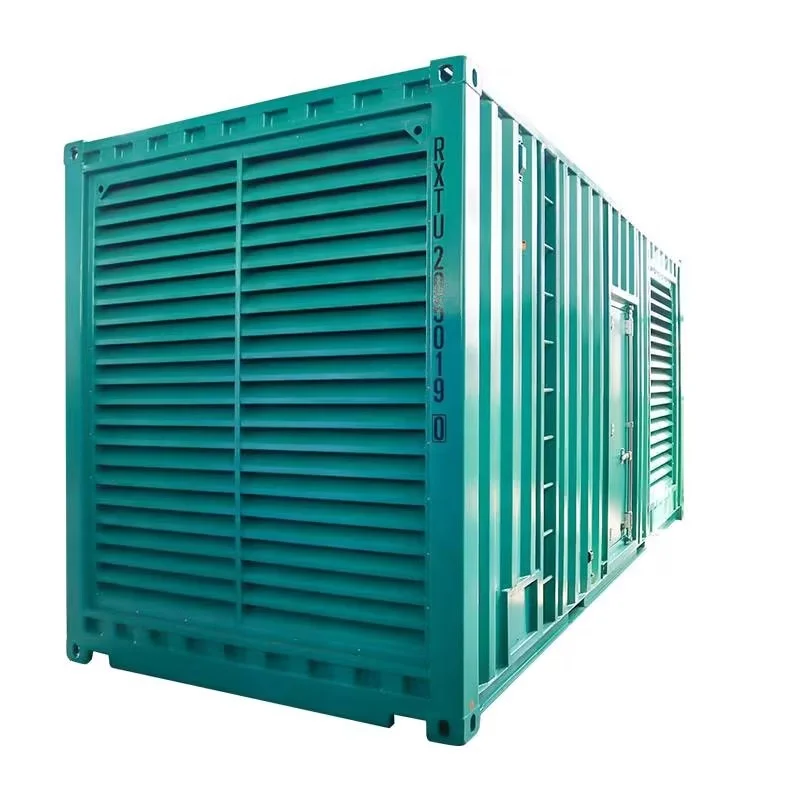

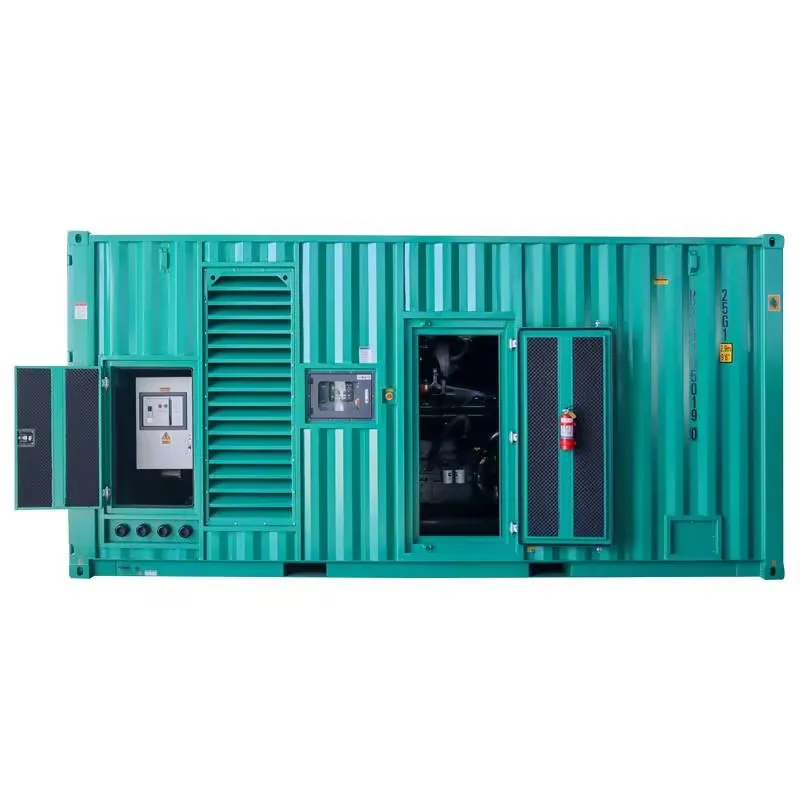

1100kw 1200kw 1600kva Containerized silent type diesel genset power with Cummins engine KTA50 G8
- Category: >>>
- Supplier: Taizhou Jinte Electromechanical Technology Co. Ltd.
Share on (1600798693585):
Product Overview
Description
Jinte Power Cummins diesel-engine-generator-set are ranging from 20kw up to 1500kw, which
are driven by engines series of 4B3.9, 6B5.9, 6C8.3, 6L8.9, QSZ13, NT855, MT11, KT19, QSK19,
KT38, QSK38, and KT50, etc.
Products Specification
Genset Model | Diesel Engine | Alternator | Controller | Prime Power |
JTC-1875GF | Cummins KTA38-G9 | Jinte | Smartgen | 1000kw/1250kva |
Engine Data | Engine model | KTA38-G9 | |
Air intake system | Turbo, Air/Water cooling | ||
Fuel system | PT type fuel pump, EFC | ||
Cylinders | 12 in V | ||
Bore and stroke | 159*159（mm） | ||
Compression ratio | 13.9:1 | ||
Displacement | 37.8L | ||
Rotation speeed | 1500rpm | ||
Standby power | 1089KW | ||
Governor | Electronic | ||
Alternator data | Alternator model | Stamford/Leroy Somer/Marathon | |
Number of phase | 3 | ||
Connecting type | 3 Phase and 4 Wires, Y type connecting | ||
Number of bearing | 1 | ||
Power factor | 0.8 | ||
Protection grade | IP23 | ||
Excitor type | Brushless exciting | ||
Power capacity | 1150kva | ||
Controller data | Controller brands: Deepsea, Smartgen, ComAp, PCC, Datacom, etc. | ||
4-line back-lit LCD text display | |||
Multiple display languages | |||
Data logging facility, Internal PLC editor | |||
Fully configurable via PC using USB communications | |||
3-phase generator sensing and protection, overload alarm | |||
Protection: over-speed, low-speed, over-current, low-oil, low-fuel, high-temp, etc. | |||
Diesel engines
Diesel engines we can supply are
including Cummins, Perkins, Volvo,
MTU, Mitsubishi, Doosan, Baudouin,
Deutz and China Yuchai,
Weichai, SDEC, Yangdong, etc.
Weichai, SDEC, Yangdong, etc.
Alternators
Alternators we can supply are
including Stamford, Marathon, Leroy
Somer, ABB, Mecc Alte, Engga, Jinte, etc. We also can provide
OEM and ODM for alternators.
OEM and ODM for alternators.
Controllers
Controllers we can supply are including Deepsea, PCC, ComAp, Smartgen, Datakom, etc. Automatical or manual control, ATS, AMF,Synchronizing, Remote monitor system are optional.
Optional Forms
Company Profile
Taizhou Jinte, a professional Diesel Generators and Gas Generators manufacturer and exporter in China mainland. Jinte Company was established in 2002 and now is at the top of the generator sets manufacturing field. We have a reputation for lower prices, higher quality, fast shipping, and excellent after-sales service. We use world-famous diesel engines like Cummins, Perkins, Deutz, Volvo Panta, Doosan, Jichai, SDEC, and Weichai series, coupled with top brand alternators like Stamford, Leroy Somer, Marathon, and Siemens, etc. Jinte Power ensures to supply high-quality power generators, and all of our products are strictly tested before EXW. We have customers from more than 60 countries and regions, and about 30000 sets of power generators were sold in China and abroad.
Packaging & Shipping
Normally, for open type diesel generators, we will pack with plastic film, and then fixed in a plywood case. We make sure the diesel genset will be firmly fixed in the plywood case. For soundproof silent type diesel generators, we usually pack with plastic film, and directly load into the container. If customer needs, we can pack the silent type diesel generator with plywood as well.However, for big power gensets, such as larger than 800kw genset, we usually directly load into container.
Packaging & Shipping
Normally, for open type diesel generators, we will pack with plastic film, and then fixed in a plywood case. We make sure the diesel genset will be firmly fixed in the plywood case. For soundproof silent type diesel generators, we usually pack with plastic film, and directly load into the container. If customer needs, we can pack the silent type diesel generator with plywood as well.However, for big power gensets, such as larger than 800kw genset, we usually directly load into container.
Customers visiting
Our products are shipped to more than 40 countries or regions such as Philippines, Thailand, Myanmar, Cambodia, Pakistan, UAE, Kuwait, Ukraine, Russia, South Africa, Kenya, United States, Australia,Venezuela, Panama, Ecuador, Dominica and South Korea etc.
Q1: Are you a trading company or manufacturer?
A: We are a factory and exporter.
Q2: What is the power range of your diesel generator?
A: We can provide power from 6KVA-5000KVA
Q3: How long is your delivery time?
A: 1-4 weeks
Q4: What are your terms of payment?
A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight.
Q5: What is your warranty period?
A:Our payment terms are 1 year or 1000 running hours whichever comes first. But based on some special projects, we can extend our warranty period.
Q6: Do you offer OEM service?
A: Yes
Q7: How could I trust you?
A: Diesel Generators Service & Supply comply with all the standards about Diesel Power Supply Equipments requirements. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have to go on here.
Q8: What's the frequency of diesel generators?
A: 50/60HZ
Q9: What's the voltage of your diesel generator?
A:220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage or high voltage.
Q10: What's your MOQ?
A: 1 set.
Q11: What kind of Diesel Generators you can supply?
A: We can supply: Open type diesel generators, soundproof type (silent type) diesel generators, trailer mounted diesel
generators,containerised diesel generators, high voltage diesel generators, synchronized diesel generators.
Q2: What is the power range of your diesel generator?
A: We can provide power from 6KVA-5000KVA
Q3: How long is your delivery time?
A: 1-4 weeks
Q4: What are your terms of payment?
A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight.
Q5: What is your warranty period?
A:Our payment terms are 1 year or 1000 running hours whichever comes first. But based on some special projects, we can extend our warranty period.
Q6: Do you offer OEM service?
A: Yes
Q7: How could I trust you?
A: Diesel Generators Service & Supply comply with all the standards about Diesel Power Supply Equipments requirements. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have to go on here.
Q8: What's the frequency of diesel generators?
A: 50/60HZ
Q9: What's the voltage of your diesel generator?
A:220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage or high voltage.
Q10: What's your MOQ?
A: 1 set.
Q11: What kind of Diesel Generators you can supply?
A: We can supply: Open type diesel generators, soundproof type (silent type) diesel generators, trailer mounted diesel
generators,containerised diesel generators, high voltage diesel generators, synchronized diesel generators.
