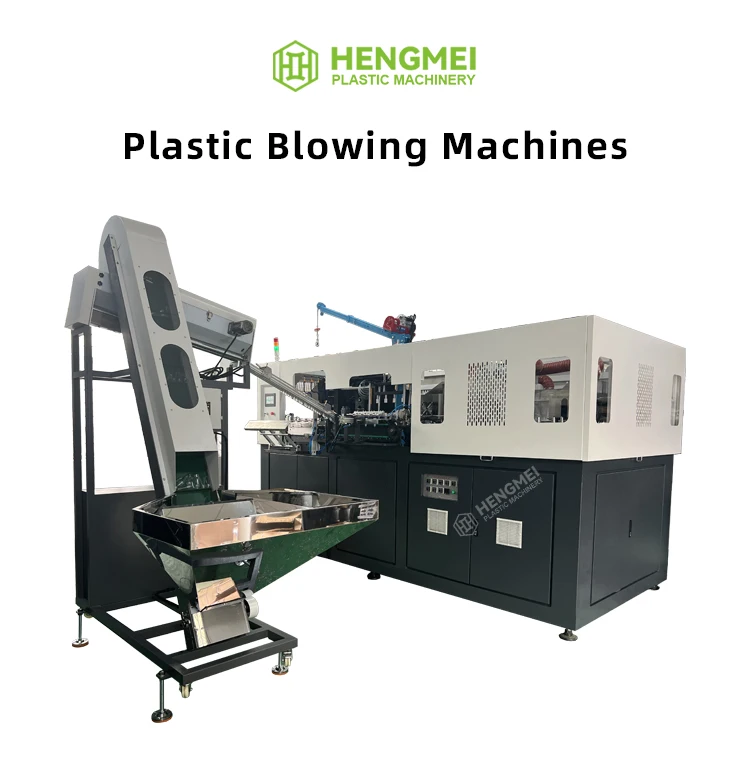

Plastic Bottle for Essential Oils Plants Cleaning Solutions Hair Mister Plastic Machine Preform Bottle Blowing Machine
- Category: >>>
- Supplier: Taizhou Huangyan Hengmei Plastic Machinery Co. Ltd.
Share on (1600798709689):
Product Overview
Description

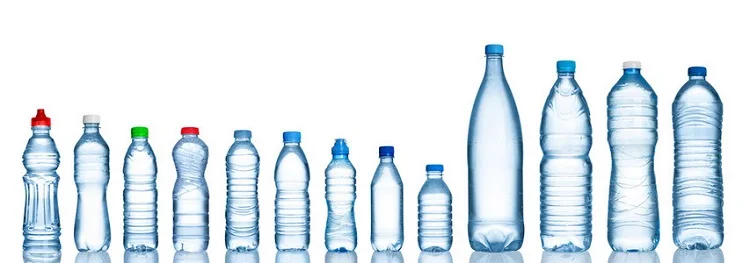

Final Products
Products Description

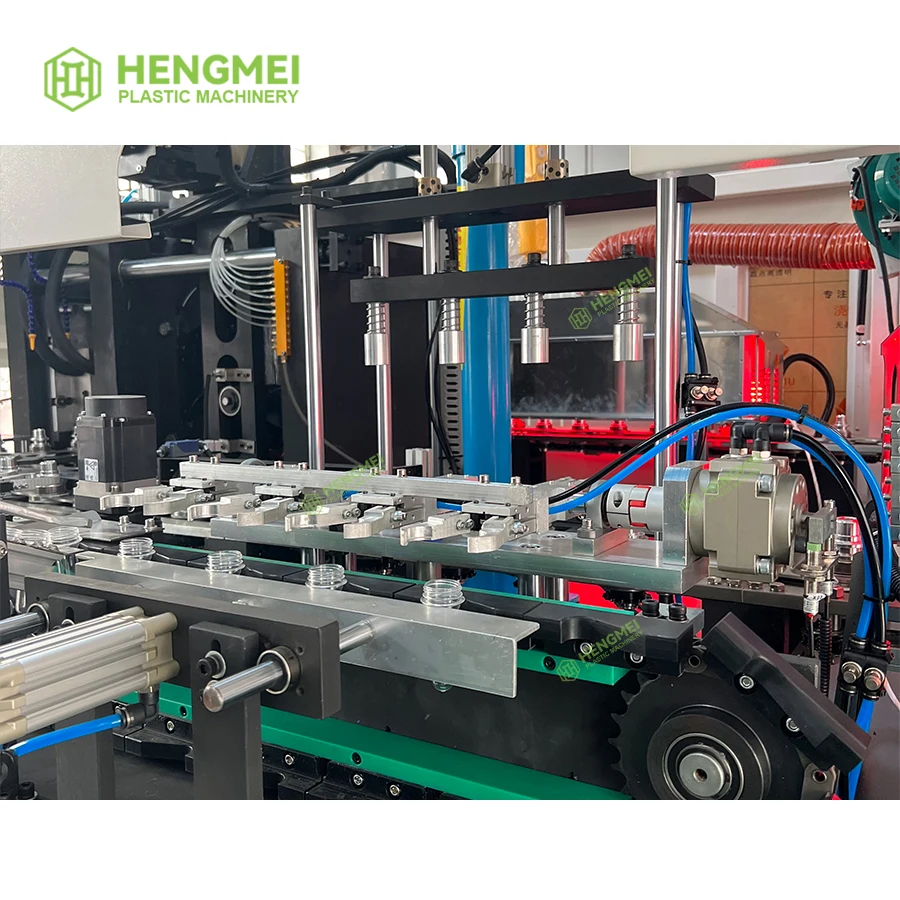

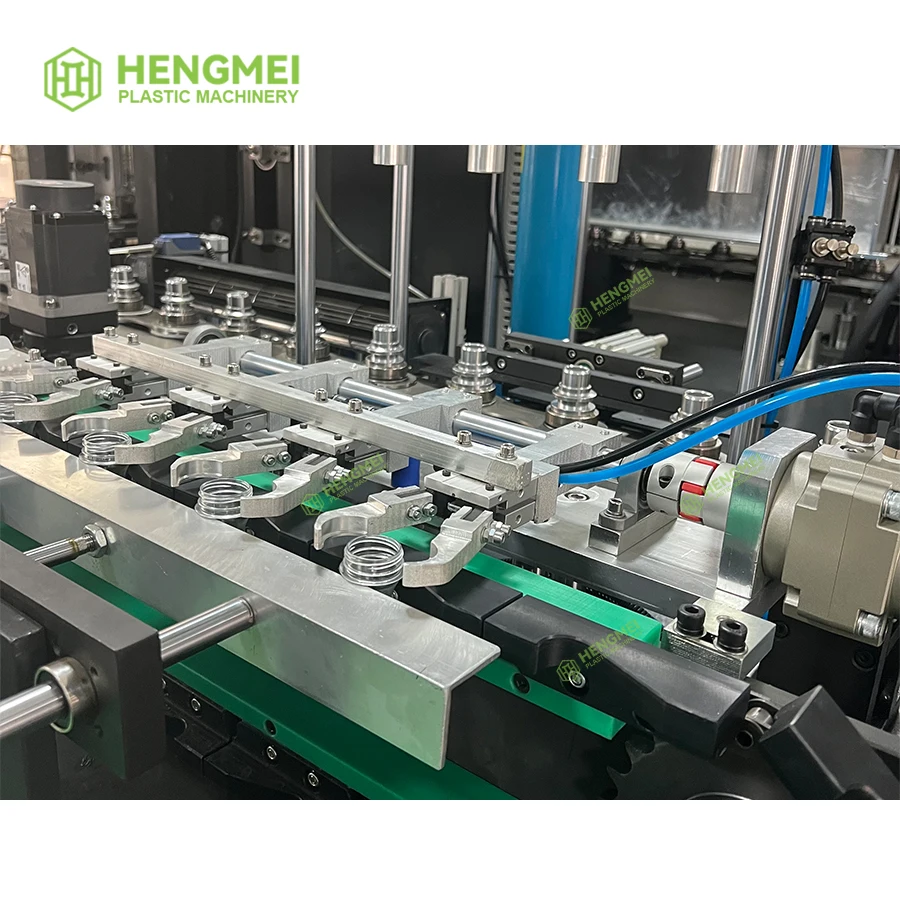

1-Automatic preform loading machine.
While performs are aligned in the unscrambler, there is a photocell on each rail that controls the perform loading motor and aligning cylinder. All these ensure a very precise, high-speed, and compact mechanical system. And the whole system is very stable and energy-saving.
2-Heating System.
It automatic stretch blow molding machine adopts infrared type heating mode, whose superior thermal-radiation and thermal penetrability provide machine with powerful heating to meet strict preform heating requirement under speedy moving. Infrared heating lamps placed onto three heating zone with 10 sets of independent voltage adjusting module and advanced microcomputer controller, can offer ideal heating for preform in different size. Each lamp's horizontal position is adjustable to keep the machine flexible.

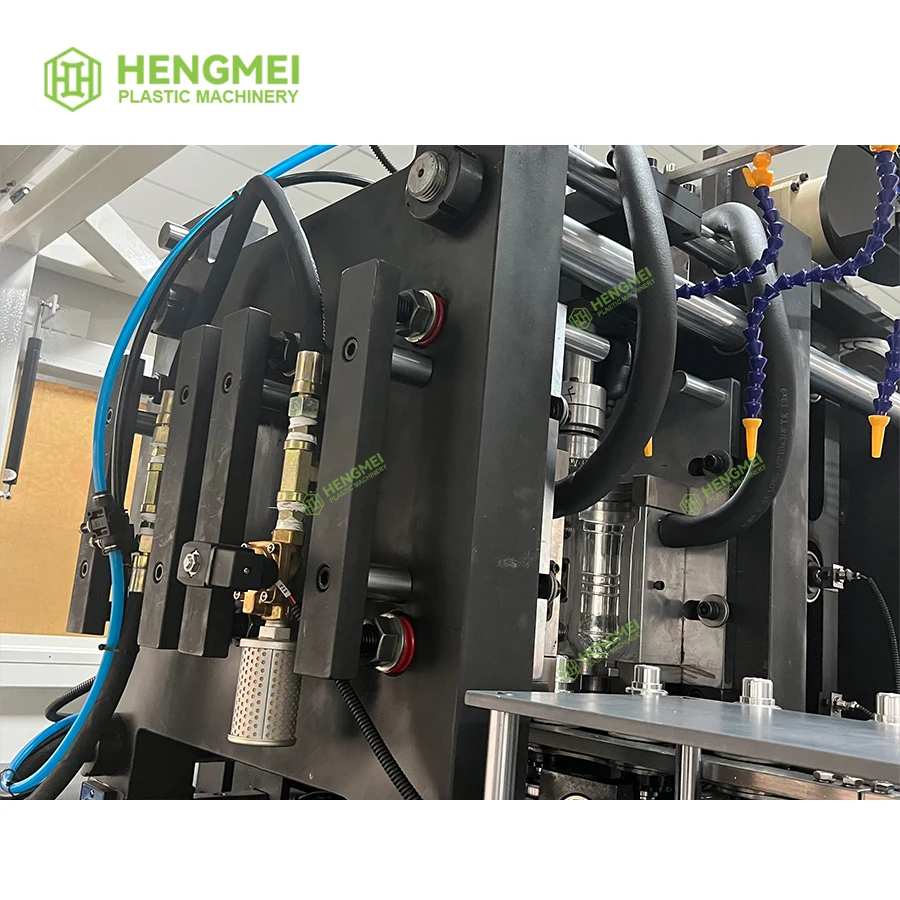

3-Clamping System.
Type： Hydraulic Straight Moving Mode Locking, Bidirectional synchronous mechanism, Linear Guide
Drive Type： Differential Fast Locking Die Head, Double Pull Rod Structure, Molar Space
Drive Type： Differential Fast Locking Die Head, Double Pull Rod Structure, Molar Space
4-Clamping system.
It adopts four-plate type toggle clamping unit to provide powerful clamping force and increase the clamping speed. Apart from the four-plate type toggle clamping unit, there is a high pressure assistant clamping device that is special designed to get a firm clamping.
5-Control System.
High response, image high-quality control system, specially support simple USB program upgrade, providing strong guarantee for equipment upgrade, troubleshooting.
Mitsubishi PLC, generalized programming language, program update, convenient update, free maintenance, high precision, fast response.
6-Changing Molds.
The whole mould changing takes only one hour, it will be more easily.
If you want to know more machine details, please contact our online customer service！
Machine Specifications
General Information | HM-5000 4 cavity |
Clamping Force | 40T |
Clamping Stroke | 125mm |
Max.Stretching Stroke | 400mm |
Bottle Moving Stroke | 0-50mm |
Cavity No. | 4cavity |
Output | 4000-5000BPH |
Max.Mould Thickness | 300mm |
Space Between Tie Bars | 100mm |
Mould Plate Size | 670x650mm |
High pressure Air compressor | 4.8m³/min 3.0Mpa |
Low pressure Air compressor | 1.6m³/min 1.0Mpa |
Voltage Standard | 380V/3PH/50Hz |
Heating Zone No. | 4 Sections |
Total Power | 50KW |
Bottle Volume | 0.1-2.0L |
Neck Diameter Range | 16-38mm |
Max.Bottle Diameter | 115mm |
Bottle Height | 360mm |
High-pressure System | 3.0-4.0Mpa |
Low-pressure System | 0.8-1.0Mpa |

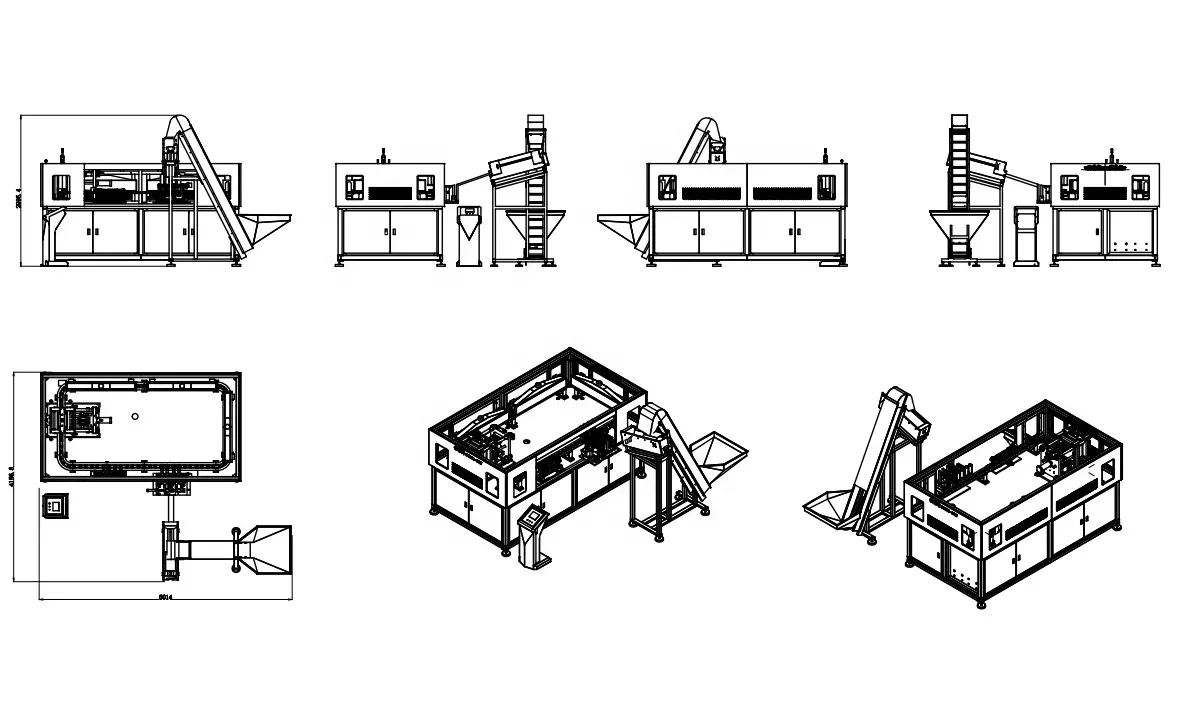

Machine Size | 355x160x200cm |
Auto-loader | 110x120x220cm |
Net Weight | 3.8T |
Main Configuration List
Electric Components | PLC | Japan Mitsubishi |
Touch Screen | Japan Mitsubishi45-120mm | |
Relay | Germany Schneider | |
Circult Breaker | Germany Schneider | |
Air Switch | Germany Schneider | |
Start Button | Germany Schneider | |
Two-position Switch | Germany Schneider | |
Scram Button | Germany Schneider | |
Power Supply | Germany Schneider | |
Praximity Switch | Japan Omron | |
Photoclectric Switch | Japan Omron | |
Air Filtration | Low Pressure Oil-water Separator | Germany Festo |
Low Pressure Press-regulating Valve | Germany Festo | |
Low Pressure Lubricator | Germany Festo | |
Servo Motor | Displacement Servo | Taiwan Xinjie |
Clamping Servo Motor | Taiwan Xinjie | |
Stretch Servo | Taiwan Xinjie | |
Preform Up-loader Servo | Taiwan Xinjie | |
Cylinders | Bottle-takeout Flipping Cylinder | Germany Festo |
Preform-saparating Cylinder | Germany Festo | |
Manipulator | Germany Festo | |
High Pressure Blowing Valve | Germany Festo | |
High Pressure Exhaust Valve | Germany Festo | |
Valves | High Pressure One-way Valve | Germany Festo |
Low Pressure Mufer | Japan SMC | |
High Pressure Mufer | Japan SMC | |
Low Pressure Operating Valve | Germany Festo |
Why Choose Us
Taizhou Huangyan Hengmei Plastic Machinery Co., Ltd.
Taizhou Huangyan Hengmei Plastic Machinery Co., Ltd. is a new environmental protection and energy-saving machinery technology enterprise specialized in the design, development, production, sales and service of plastic packaging machinery. The main components of our bottle blowing machine are Mitsubishi PLC and touch screen, Schneider Electric, Xinbao reducer, Taiwan Xinjie servo motor, Taiwan Yade pneumatic accessories and other internationally famous products, which have the advantages of convenient operation, wide application range and low cost, and are suitable for blowing various forms of carbonated beverage bottles, mineral water bottles, pesticide bottles, cosmetics bottles, large-diameter bottles, medicine bottles, hot filling bottles, etc., which are drinks, candy, medicine, chemical packaging solutions for petroleum and other industries.

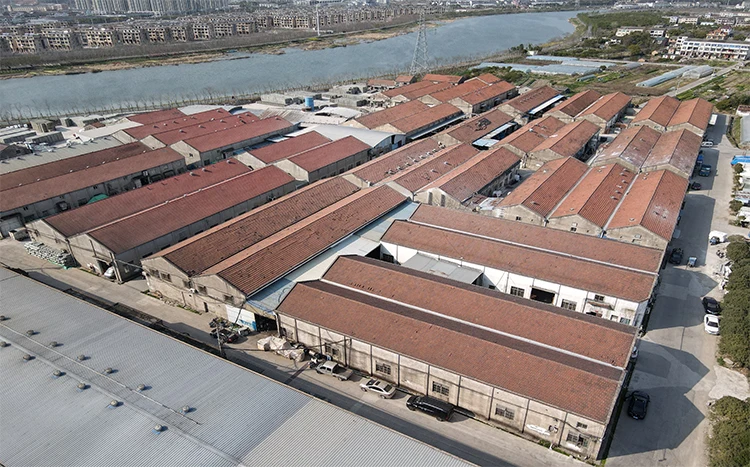

Hengmei Machinery Factory.
