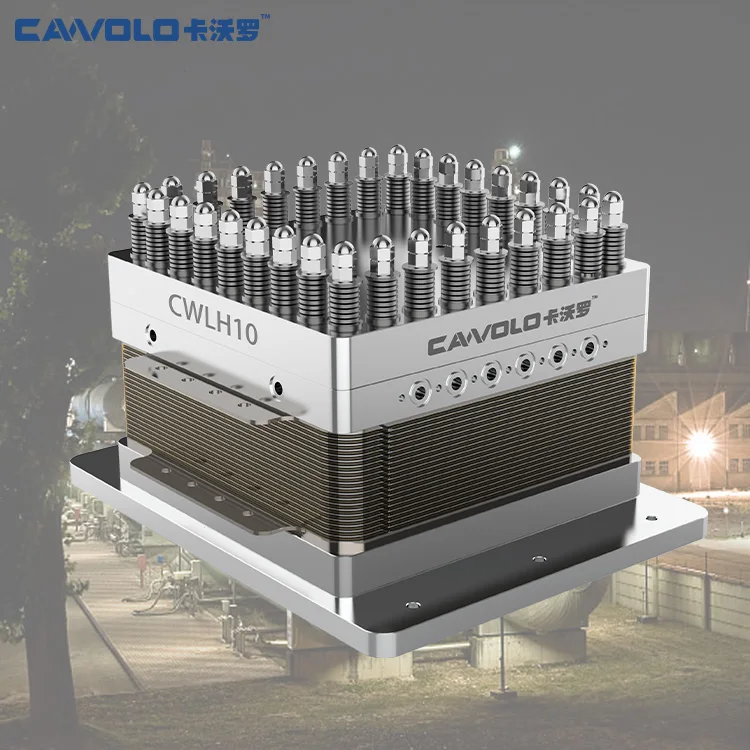

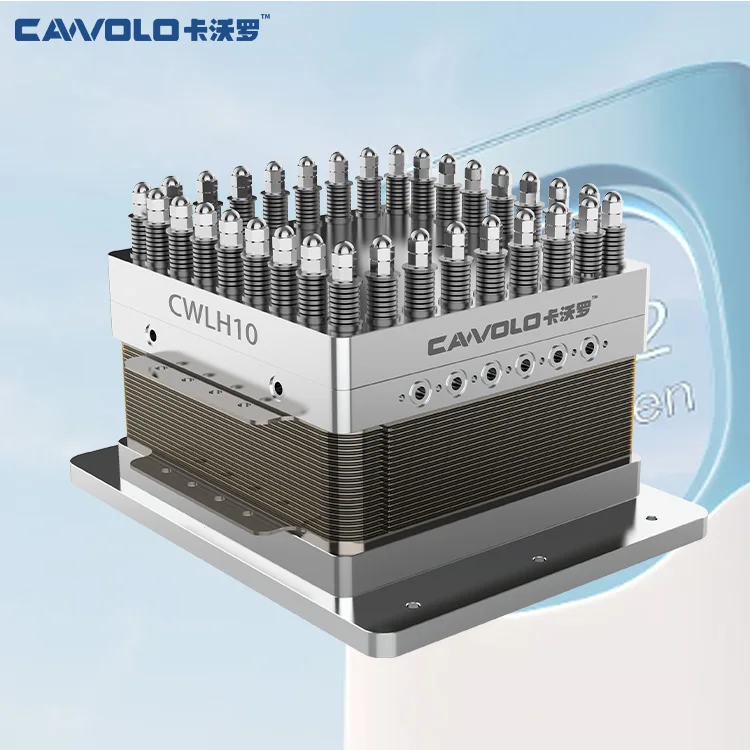

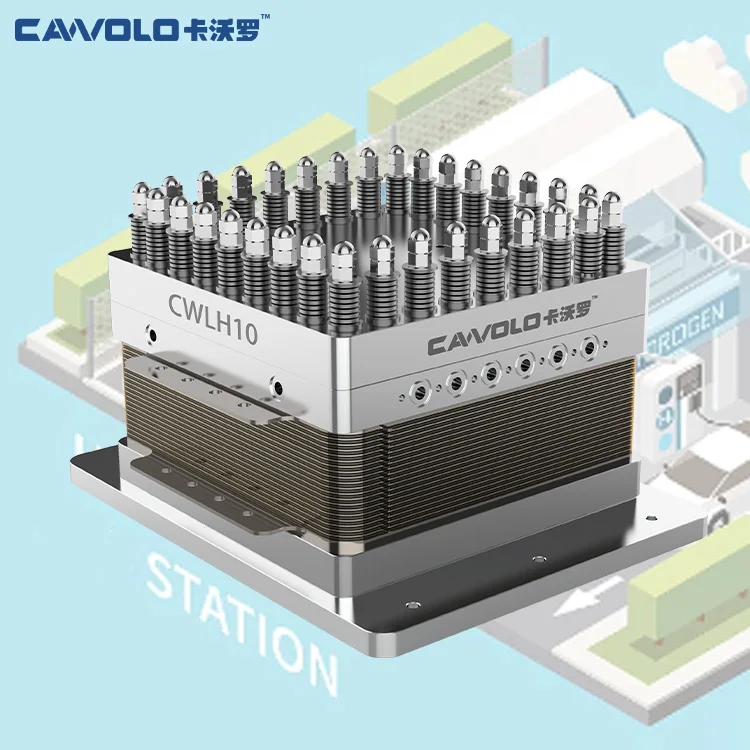

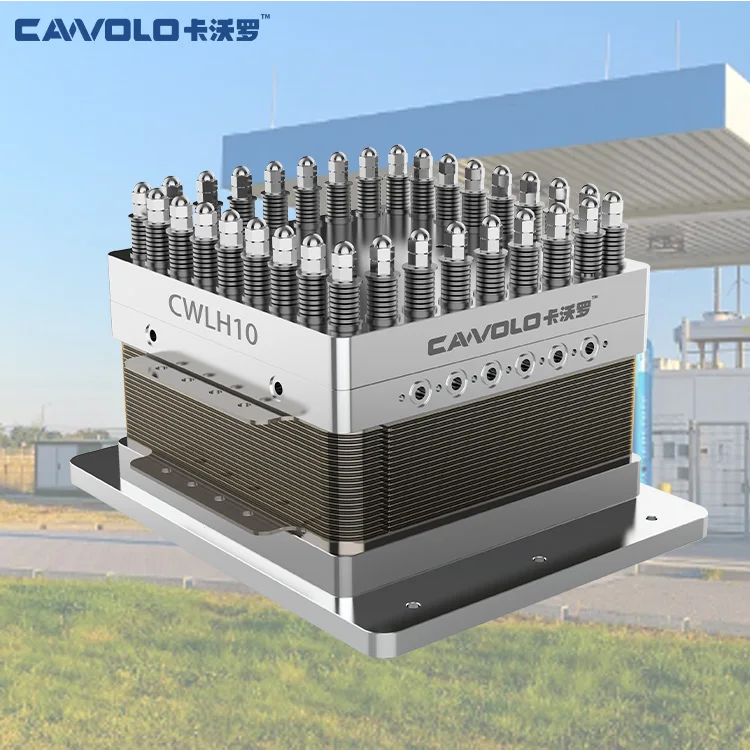

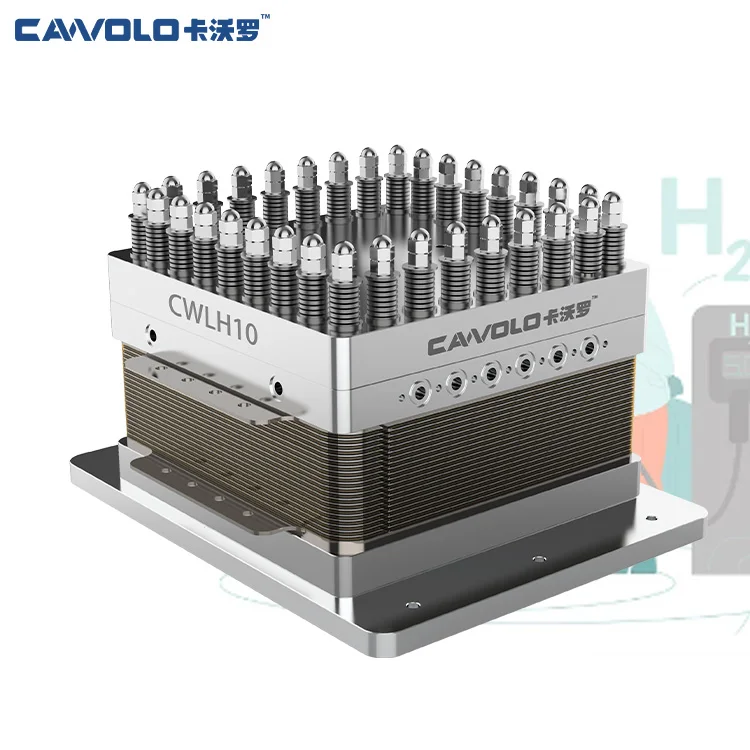

Large hydrogen energy power station 10Nm3/h PEM hydrogen fuel generator
- Category: >>>
- Supplier: Guangdong Cawolo Hydrogen Technology Co. Ltd.
Share on (1600798777422):
Product Overview
Description
Products Description
Output Flow | 10 Nm³/h | ||||||
Oxygen Output Flow | 5 Nm³/h | ||||||
Output Pressure | 3 MPa | ||||||
Electrolyzer Power Rating | 55 KW | ||||||
Rated Voltage | 38 VDC | ||||||
Rated Current | 1450 ADC | ||||||
Operation Current | 0-1500 ADC | ||||||
Electrolyzer Workroom | 19 | ||||||
Active Area of Membrane Electrode | 1444(38*38)c㎡ | ||||||
Membrane Electrode Current Dense | 1.0 A/c㎡ | ||||||
Electrolyzer Dimension Frame | 480*480 mm | ||||||

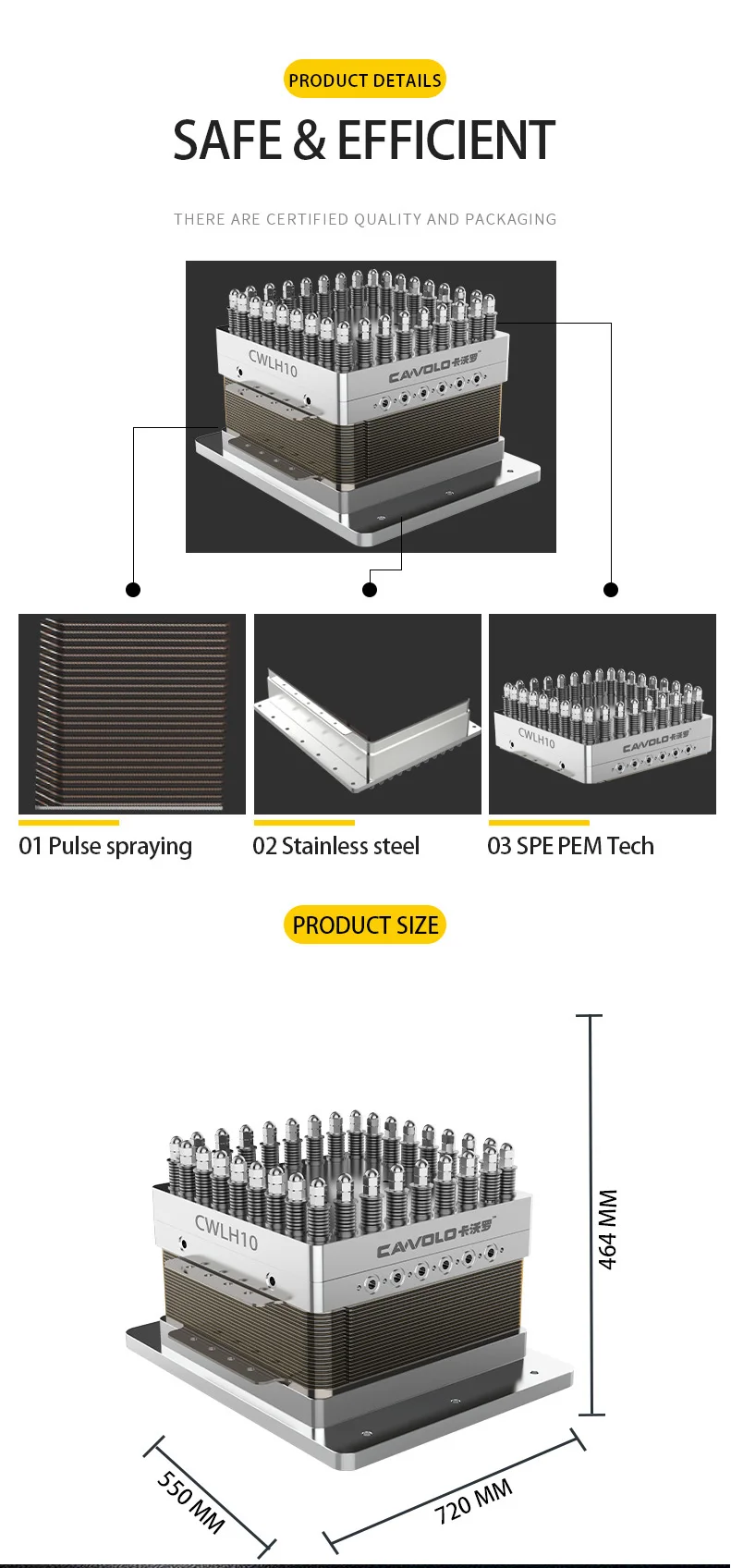

Electrolyzer Exterior Dimensions | 720*550*464 mm | ||||||
Hydrogen Outlet Pressure | 30 bar | ||||||
Oxygen Outlet Pressure | Normal | ||||||
Inlet Pressure | Max 2 bar | ||||||
Water intake quality requirements | ASTMD1193 Type (<0.1uS/cm, >10MΩ-cm) | ||||||
Water Consumption | 9L/h | ||||||
Working Temperature | 45°C~65°C | ||||||
Energy Consumption | 4.78 | ||||||
Energy Efficiency Values | 74% | ||||||
Company Profile
Guangdong Cawolo Hydrogen Technology Co., Ltd. is located in Guangdong New Light Source Industrial Base, an emerging industry demonstration zone in Guangdong Province. It is a comprehensive high-tech enterprise integrating hydrogen product research and development, design, manufacturing and sales. The company aims to spread a healthy "hydrogen" life and a healthy "hydrogen" ecology, and is committed to becoming a high-end enterprise in the global hydrogen industry that creates value for customers.
Cawolo independently masters the key and core technologies of PEM proton exchange membrane electrolysis of water for hydrogen production. It is a professional manufacturer of large-scale hydrogen production equipment and related products for pure water hydrogen generators. One of the companies, has been committed to the technical development and product development of electrolysis equipment in the field of water treatment, and has cooperated with many domestic colleges and research institutes to develop a variety of industry-leading industrial & household electrolysis hydrogen production products. There are three series of industrial large-scale PEM hydrogen generators, agricultural hydrogen water generators and small household PEM hydrogen generators. The products include: large-scale PEM hydrogen generators, agricultural hydrogen-rich water machine, hydrogen inhalation machine, hydrogen-rich water bottle, and hydrogen-rich water machine. , fruit and vegetable machine, etc.
Cawolo independently masters the key and core technologies of PEM proton exchange membrane electrolysis of water for hydrogen production. It is a professional manufacturer of large-scale hydrogen production equipment and related products for pure water hydrogen generators. One of the companies, has been committed to the technical development and product development of electrolysis equipment in the field of water treatment, and has cooperated with many domestic colleges and research institutes to develop a variety of industry-leading industrial & household electrolysis hydrogen production products. There are three series of industrial large-scale PEM hydrogen generators, agricultural hydrogen water generators and small household PEM hydrogen generators. The products include: large-scale PEM hydrogen generators, agricultural hydrogen-rich water machine, hydrogen inhalation machine, hydrogen-rich water bottle, and hydrogen-rich water machine. , fruit and vegetable machine, etc.
