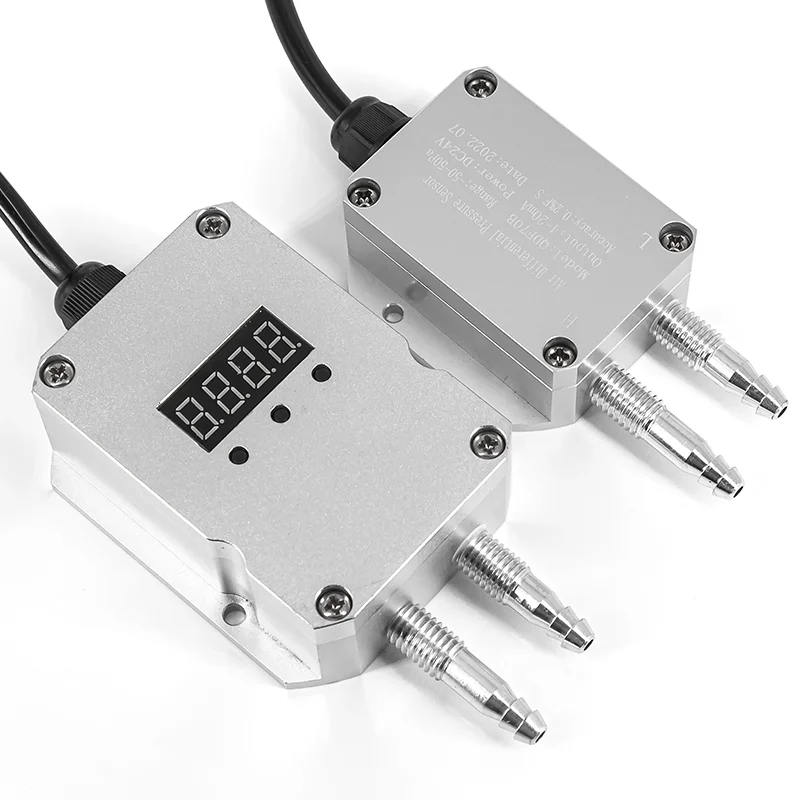

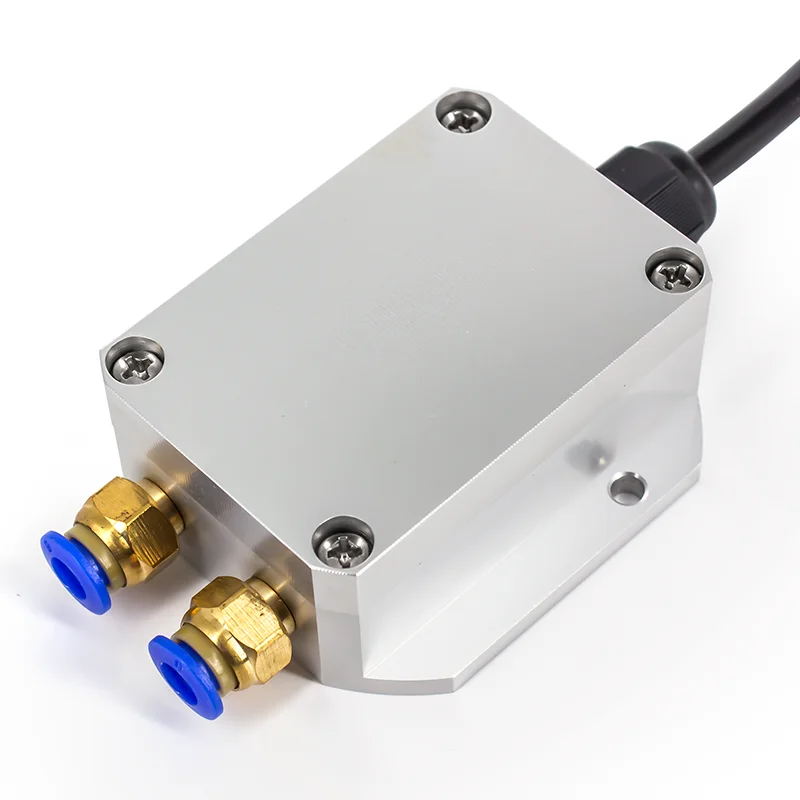

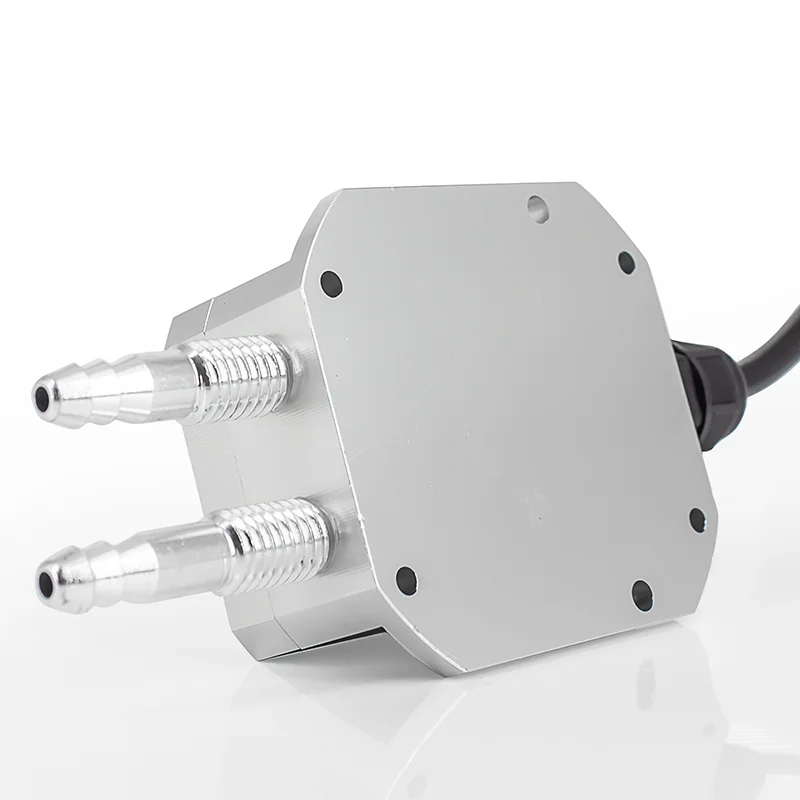

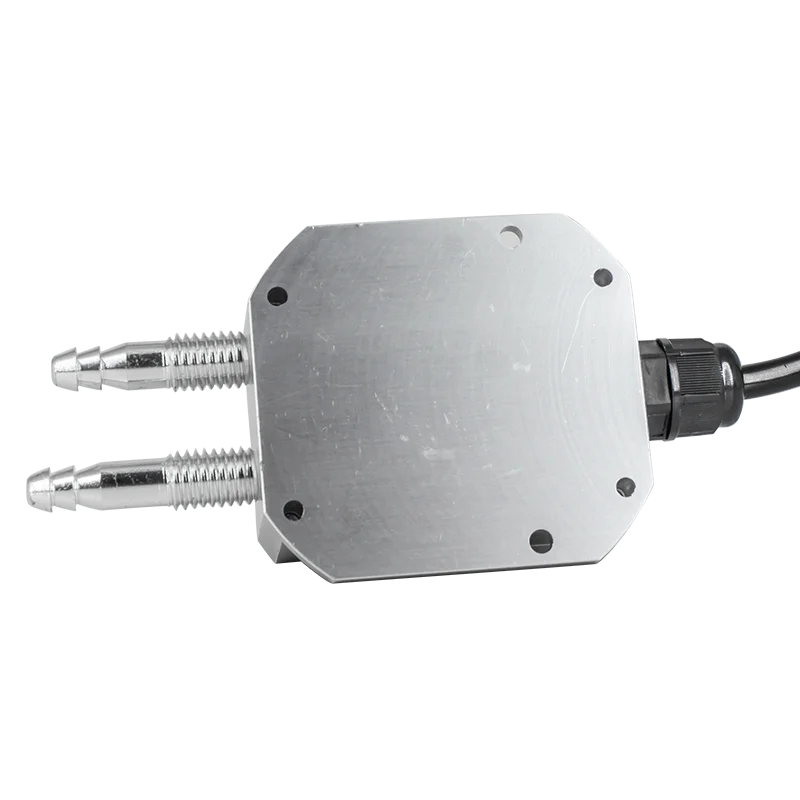

Range 10 0 10Kpa 4 20mA RS485 Output Pressure transducer Air Differential Pressure Transmitter
- Category: >>>
- Supplier: Anhui Qidian Automation Technology Co. Ltd.
Share on (1600798779711):

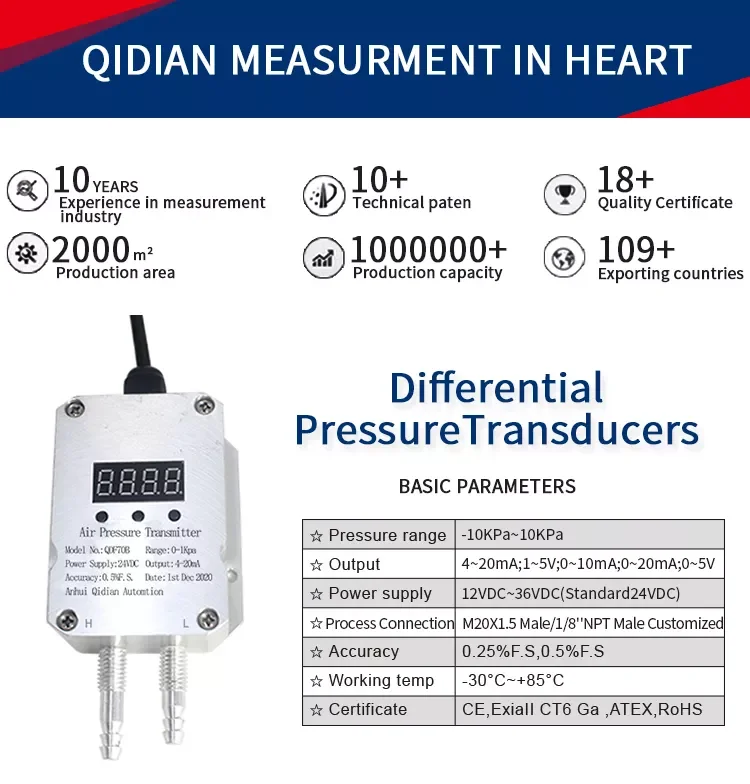

Product Overview
Description
Measure Medium | Dry gas(low corrosion) |
Pressure Type | Differential Pressure |
Measuring Range | -10KPa~10KPa |
Power Supply | 12VDC~36VDC(Standard24VDC |
Output Signal | 4~20mA，1~5V，0~5V0~10V，RS485 |
Accuracy | 0.2%FS;0.5%FS |
Medium Temperature | -40℃~85℃ |
Compensation Temperature | 0~50℃ |
Ambient Temperature | -20℃~85℃ |
Temperature Effect on Zero | ±0.03%FS/℃ |
Sensitivity Temperature Drift | ±0.03%FS/℃ |
Overload Pressure | 300%FS |
Response Time | ≤10ms |
Waterproof | IP65 |
Material | Aluminium Alloy |
Process Connection | M20X1.5/1/8NPT(Customized) |
Explosion-proof Grade | Exia II CT5(safe explosion proof type) |
1. Are you manufacture ?
Yes,We are factory and exporter in china over 10 years experience,
with CE,ROHS,FCC ISO and 4 patents.
2. What is your delivery time?
It is in 3-5 working days since the payment confirmed.
If your order is over 2000pcs, we need 10 days
3. How is your quality assurance service?
All our products have 3 years warranty.
4. Could we make a visit to your factory?
We warmly welcome you to visit our factory and make good cooperation with you.
Yes,We are factory and exporter in china over 10 years experience,
with CE,ROHS,FCC ISO and 4 patents.
2. What is your delivery time?
It is in 3-5 working days since the payment confirmed.
If your order is over 2000pcs, we need 10 days
3. How is your quality assurance service?
All our products have 3 years warranty.
4. Could we make a visit to your factory?
We warmly welcome you to visit our factory and make good cooperation with you.
