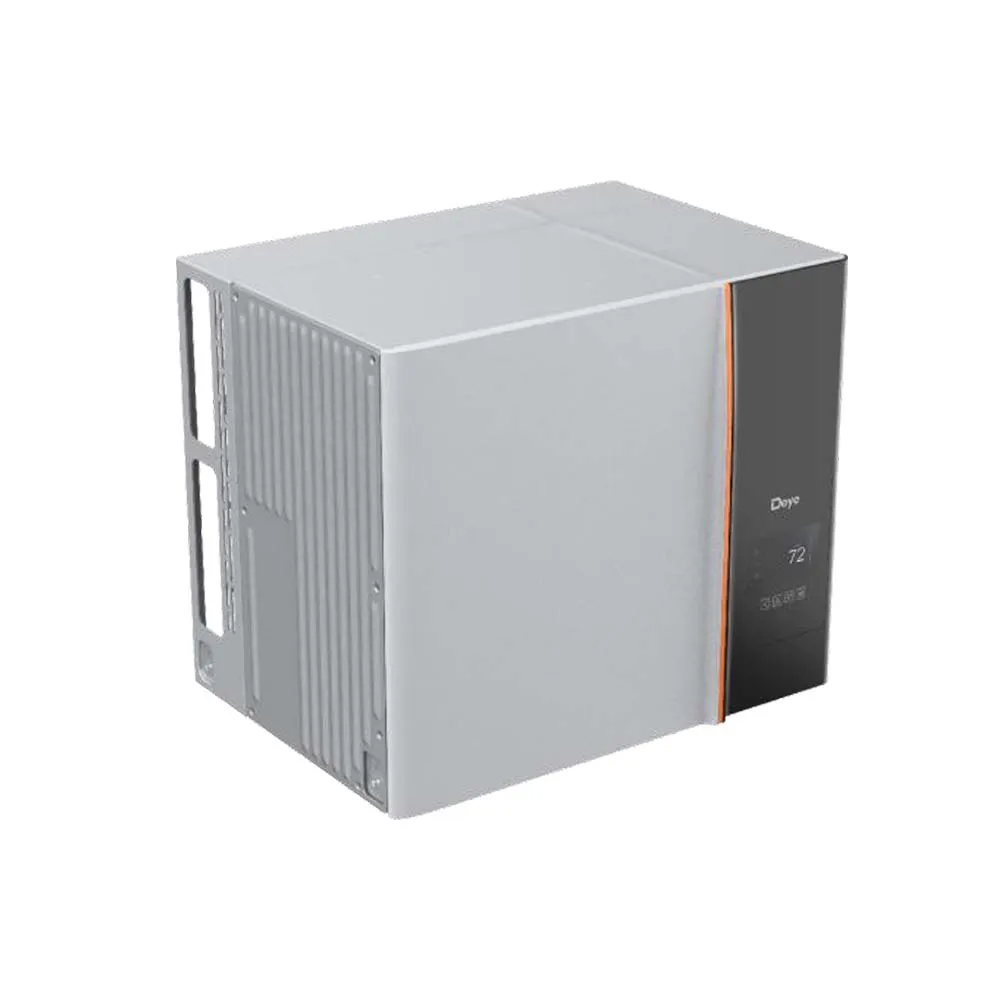

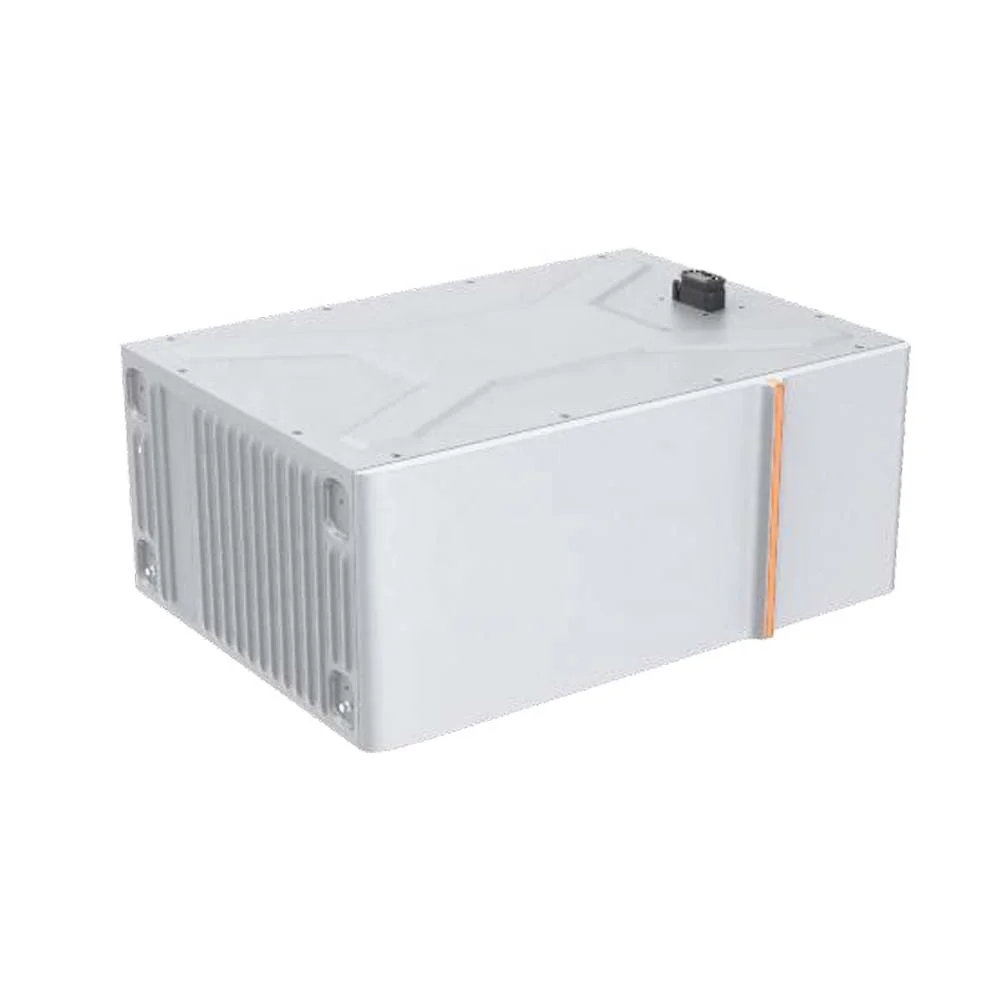

Deye battery GB SCL EU LiFePO4 150~700V Li ion BMS Protection All in One Solar Energy Storage Deye lithium batteries
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.
Share on (1600798804387):
Product Overview
Description
Product Description
Title goes here.
• Flexible capacity options, 2.56kWh to 25.6kWh
• Excellent safety of cobalt free LiFePO4 battery
• Easy installation with modular and stacked design
• Remote firmware upgrade
• Long lifespan, 10 years warranty
• Excellent safety of cobalt free LiFePO4 battery
• Easy installation with modular and stacked design
• Remote firmware upgrade
• Long lifespan, 10 years warranty
Specification
Model | ARK 2.5L | ARK5.1L | ARK7.6L | ARK10.2L | ARK12.8L | ||||

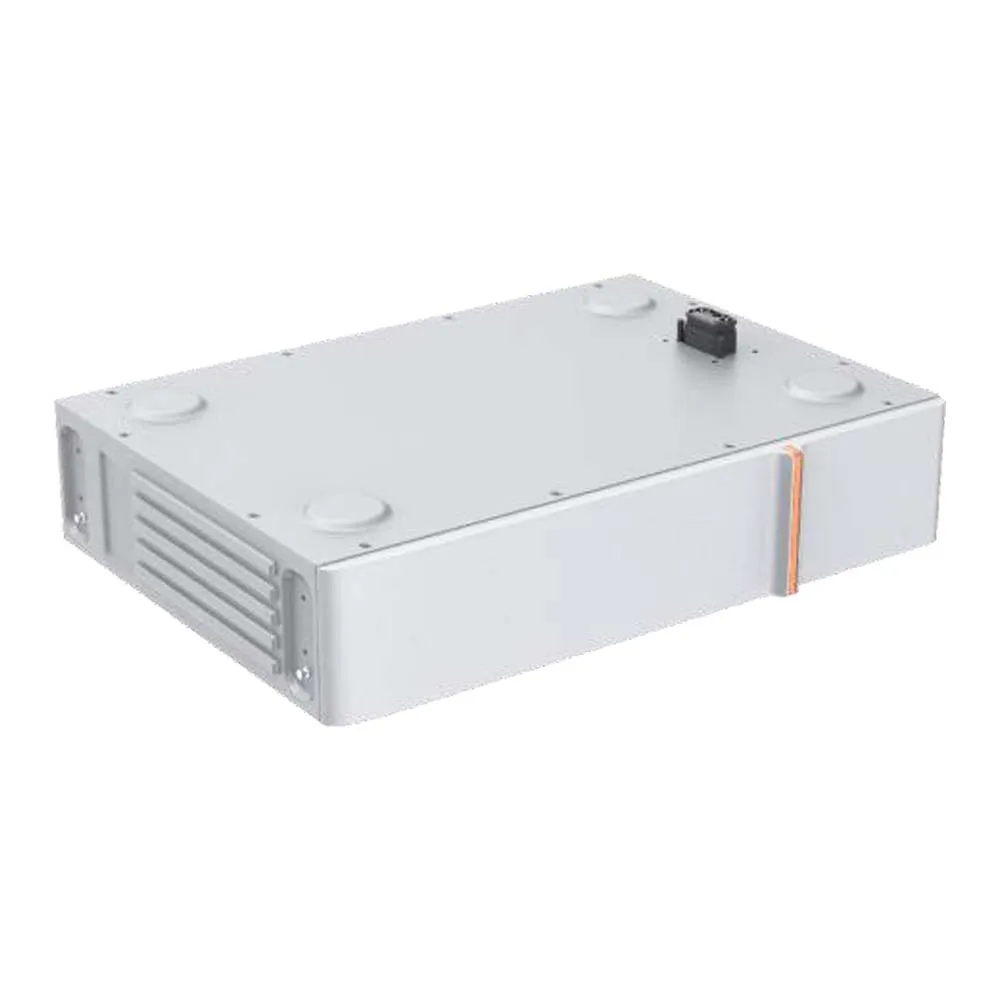

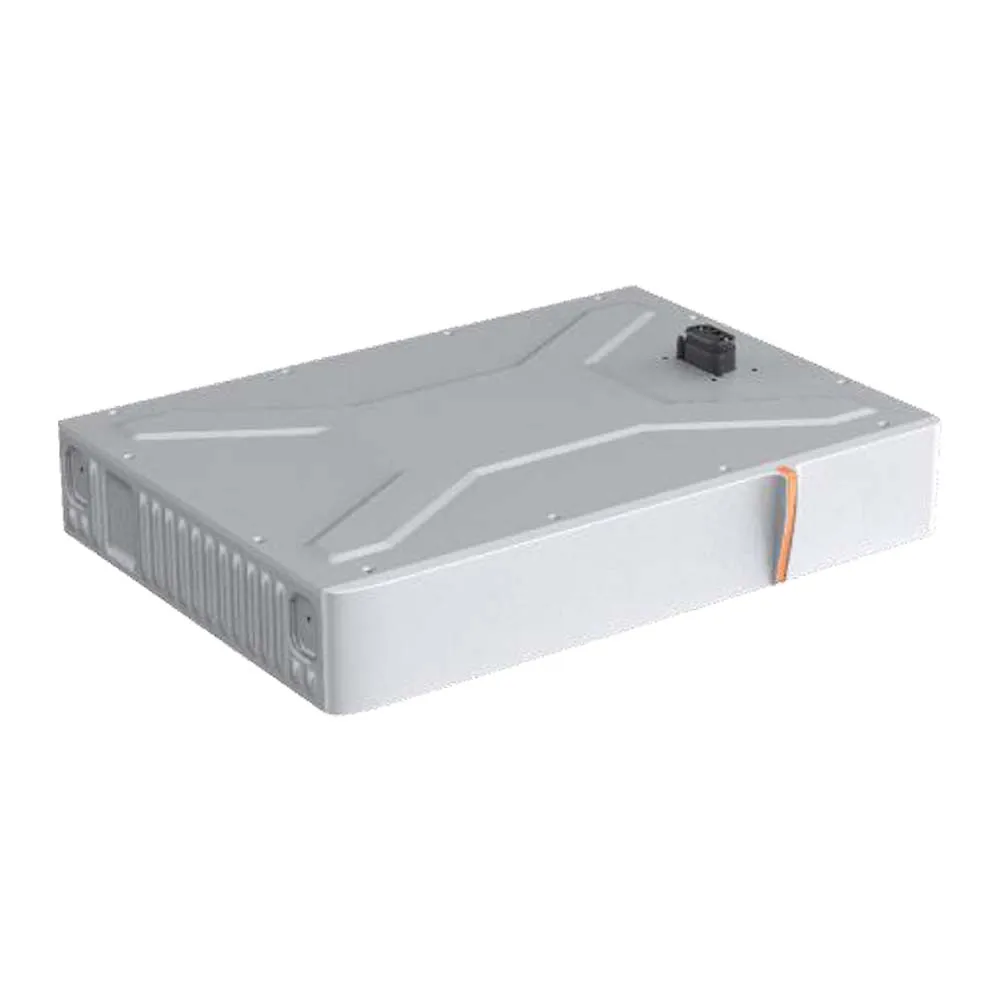

Battery module | ARK 2.5L-A1 (2.56kWh, 51.2V, 30kg) | ||||||||
Energy Capacity | 2.56kWh | 5.12kWh | 7.68kWh | 10.24kWh | 12.8KWH | ||||
Dimension (mm) (W/D/H) | 650/260/170 | 650/260/340 | 650/260/510 | 650/260/680 | 650/260/850 | ||||
Weight | 30kg | 60kg | 90kg | 120kg | 150kg | ||||
Max Charge/ Discharge Current | 25A | 50A | 75A | 100A | 100A | ||||
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | ||||||||
Nominal Voltage | 51.2V | ||||||||
Operating voltage Range | 47.2 - 56.8V | ||||||||
IP Protection | IP65 | ||||||||
Installation | Wall-mounted or Floor installation | ||||||||
Operation Temperature | -10~45°C | ||||||||
DoD | 90% | ||||||||
Communication Port | CAN | ||||||||
Certification | IEC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||||||||
Model | ARK 15.3L | ARK17.9L | ARK20.4L | ARK23.0L | ARK25.6L | ||||
Battery module | ARK 2.5L-A1 (2.56kWh, 51.2V, 30kg) | ||||||||
Energy Capacity | 15.35kwh | 17.92kWh | 20.48kWh | 23.04kWh | 25.64KWH | ||||
Dimension (mm) (W/D/H) | 650/260/1020 | 650/260/1190 | 650/260/1360 | 650/260/1530 | 650/260/1700 | ||||
Weight | 180kg | 210kg | 240kg | 270kg | 310kg | ||||
Max Charge/ Discharge Current | 100A | ||||||||
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | ||||||||
Nominal Voltage | 51.2V | ||||||||
Operating voltage Range | 47.2 - 56.8V | ||||||||
IP Protection | IP65 | ||||||||
Installation | Wall-mounted or Floor installation | ||||||||
Operation Temperature | -10~45°C | ||||||||
DoD | 90% | ||||||||
Communication Port | CAN | ||||||||
Certification | IEC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||||||||
*1 Floor installation requires extra base (W/D/H =650/260/80 mm)
*2 The performance will be limited when the temperature is below 10°C or above 45°C
* ARK series battery has an EU model and a General model, the storage inverters sold in European countries only work with EU model ARK battery.
* ARK series battery has an EU model and a General model, the storage inverters sold in European countries only work with EU model ARK battery.
Related products
MIC 750-3300TL-X
SPH3000/3600/4000/4600/5000/6000
MAC 50~70KTL3-X LV/MV
MAC 30-60KTL3 LV
Company Profile
Growatt was founded in 2010 and is a worldwide leader of smart energy solutions.
Growatt is the No.1 residential solar inverter supplier and is also one of the top 3 PV inverter suppliers for distributed
generation solar energy since 2018 and ranks among global top 10 PV inverter suppliers. The World's Manufacturer provides of residential, commercial and utility photovoltaic inverters, energy storage, microgrid systems and smart energy management solutions.
generation solar energy since 2018 and ranks among global top 10 PV inverter suppliers. The World's Manufacturer provides of residential, commercial and utility photovoltaic inverters, energy storage, microgrid systems and smart energy management solutions.

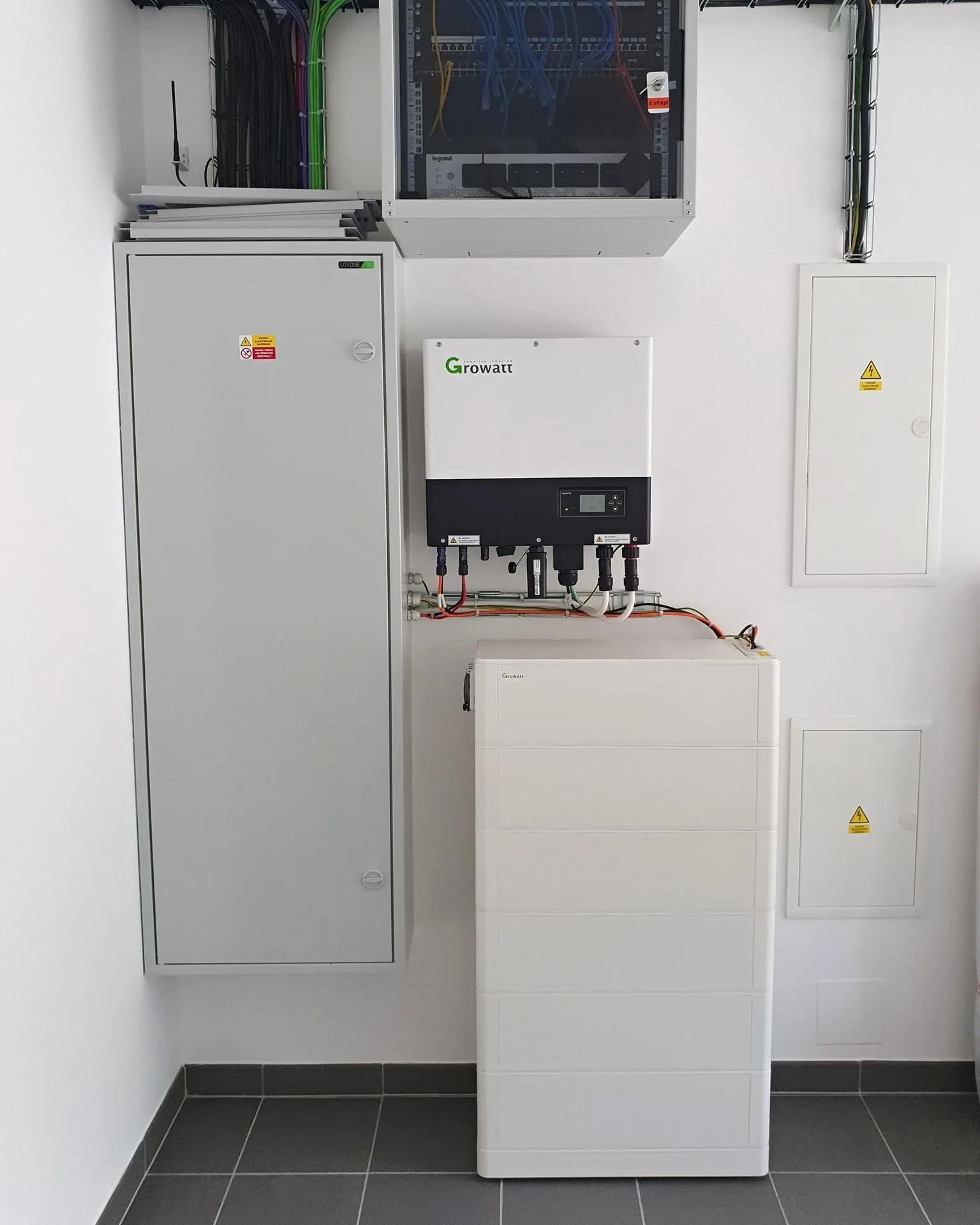

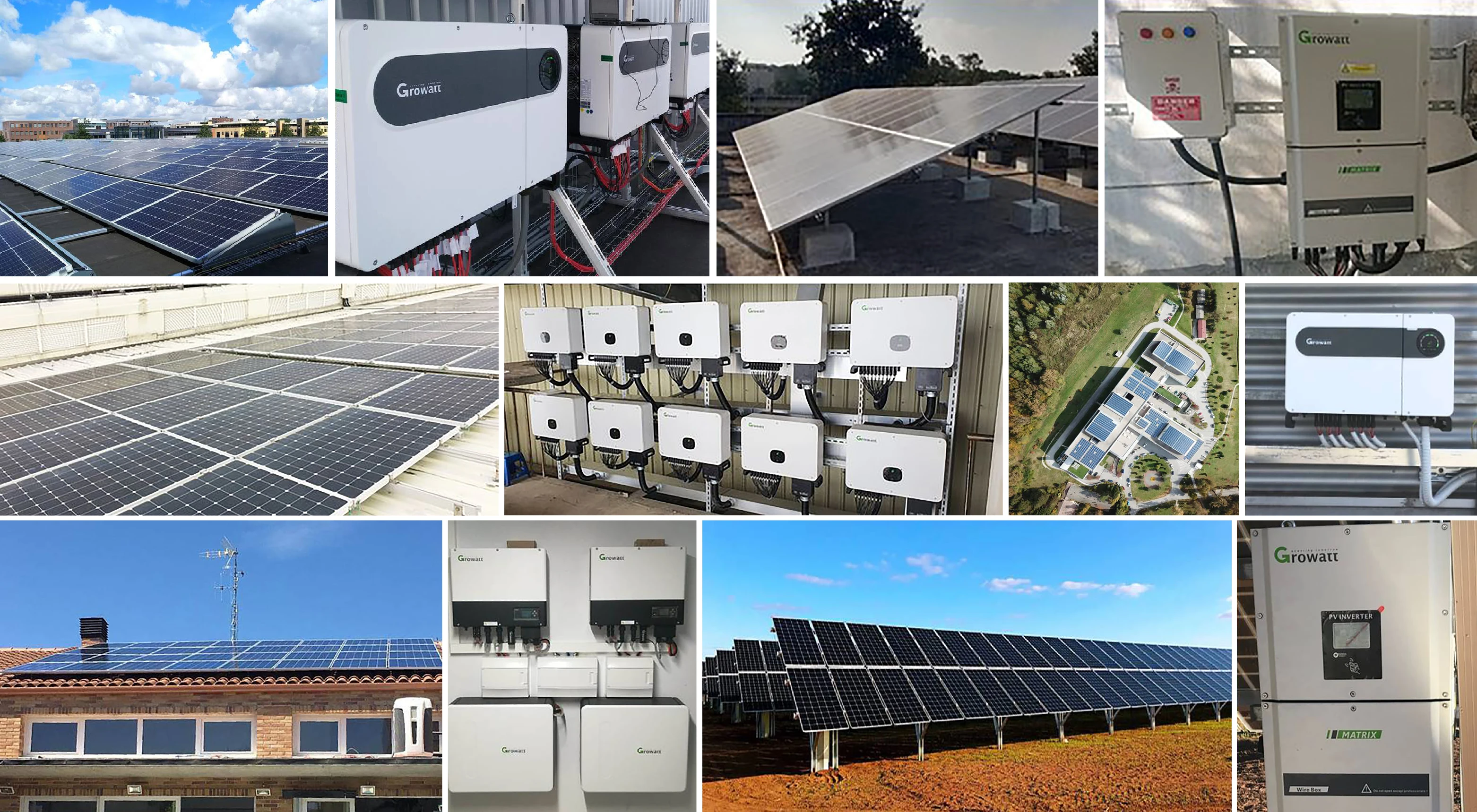

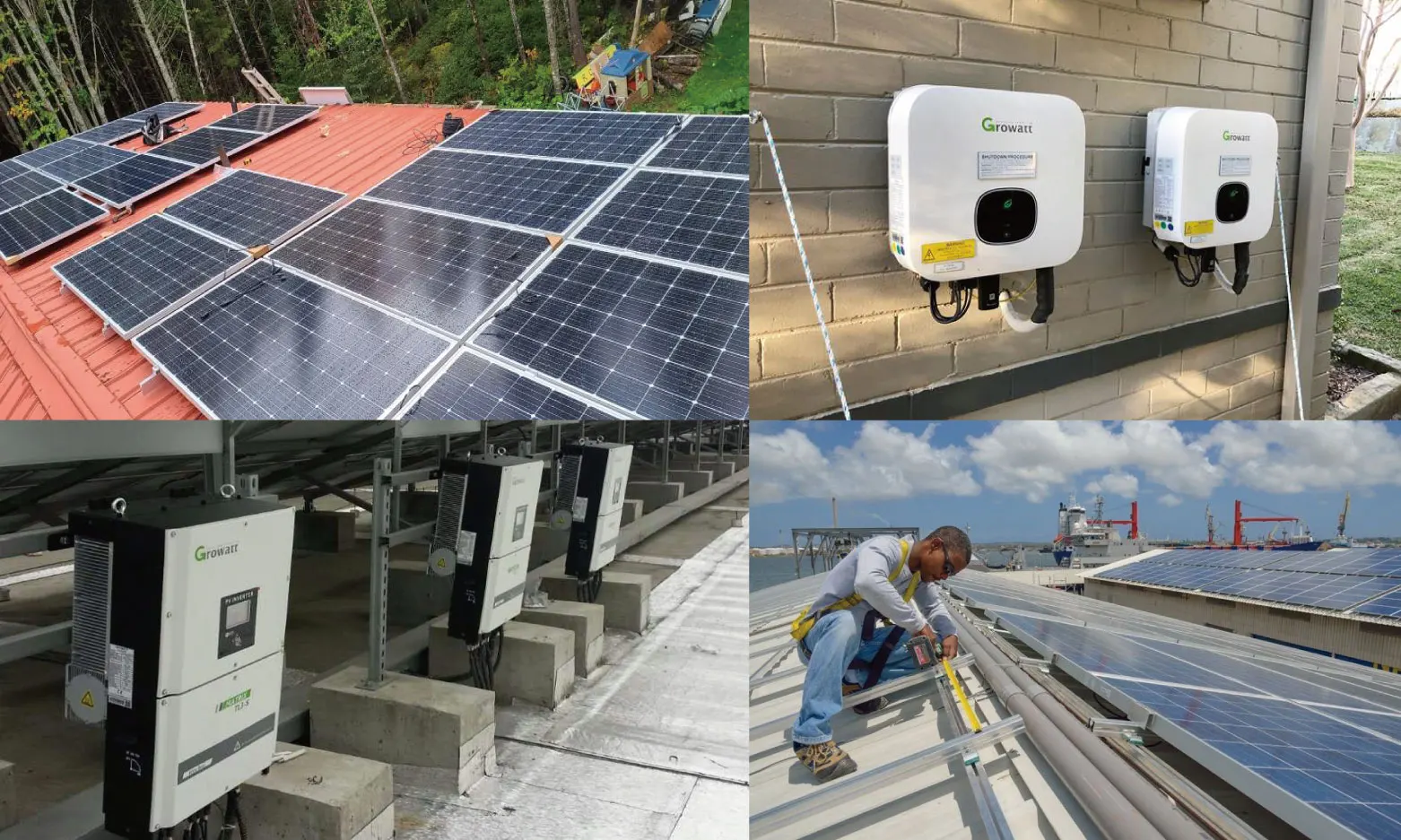

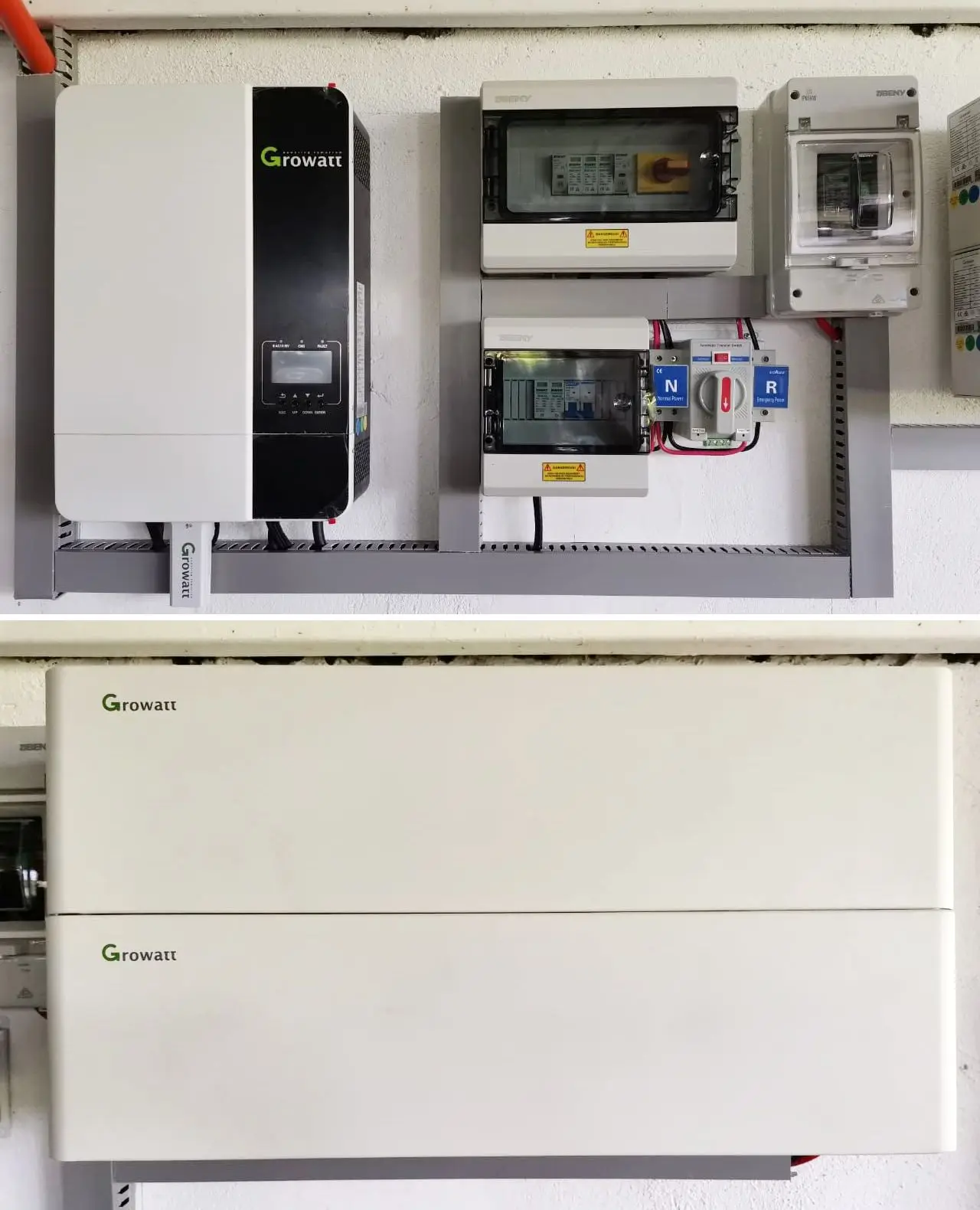

Construction case
