Forced Circulation MVR Evaporator System for thermal and vacuum evaporation and crystallization chemical wastewater desalination
- Category: Heat Transfer Equipment >>>
- Supplier: Vanoo(Shanghai),Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
Multiple effect forced circulation evaporator
The forced circulation evaporator is a large-scale low energy consumption and energy-saving crystallization equipment developed by our company. It has the advantages of fast flow rate, high evaporation rate, high heat transfer coefficient, anti salting out and anti scaling, and is not easy to scale. It is widely used for materials with scaling, crystallinity, heat sensitivity (low temperature), high concentration, high viscosity and insoluble solids. The forced circulation evaporator can be divided into single effect evaporator, double effect evaporator and multi effect evaporator. The forced circulation evaporator can be used for zero discharge of various miscellaneous salt wastewater, evaporation and crystallization of high COD wastewater, evaporation and crystallization of inorganic salts, evaporation and concentration of landfill leachate, etc.
FEATURES AT A GLANCE
The system consists of forced circulation evaporator, separator (crystallizer), condenser, forced circulation pump, feed regulating valve, vacuum and drainage system, sub cylinder, operation platform, electrical instrument control cabinet, valves and pipelines.
1.Through forced circulation, the feed liquid in the tube is evenly heated, which can prevent the phenomenon of "dry wall";
High evaporation rate, high concentration ratio, forced circulation makes the material liquid with high viscosity easy to evaporate and concentrate;
2.The circulating liquid flow rate in the heating pipe is very high, which can avoid scaling or crystallization caused by product boiling on the heating surface;
3.Due to the continuous maintenance of liquid circulation, the flow rate and temperature in the circulating pipe can be controlled to meet the requirements of different products without being affected by the set temperature difference;
4.The heating pipe can be vertical one-way, vertical two-way, horizontal one-way and horizontal two-way. The total height of the latter two equipment is small, but the pipe is not easy to clean and easy to wear the pipe wall;
5.In concentrated crystallization, the crystal can be separated from the circulating crystal liquid by adjusting the circulating flow rate and adopting special separator design;
6.The power consumption and power consumption of forced circulation evaporator are relatively high, and the heating temperature of raw steam (primary steam) is relatively high, so the heating area design of this evaporator should not be too large;
High evaporation rate, high concentration ratio, forced circulation makes the material liquid with high viscosity easy to evaporate and concentrate;
2.The circulating liquid flow rate in the heating pipe is very high, which can avoid scaling or crystallization caused by product boiling on the heating surface;
3.Due to the continuous maintenance of liquid circulation, the flow rate and temperature in the circulating pipe can be controlled to meet the requirements of different products without being affected by the set temperature difference;
4.The heating pipe can be vertical one-way, vertical two-way, horizontal one-way and horizontal two-way. The total height of the latter two equipment is small, but the pipe is not easy to clean and easy to wear the pipe wall;
5.In concentrated crystallization, the crystal can be separated from the circulating crystal liquid by adjusting the circulating flow rate and adopting special separator design;
6.The power consumption and power consumption of forced circulation evaporator are relatively high, and the heating temperature of raw steam (primary steam) is relatively high, so the heating area design of this evaporator should not be too large;
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Single -effect | Double- effect | Triple -effect | Four-effect | |||
Feeding capacity (kg/hr ) | 500-2000 | 2500-4000 | 3600-15000 | 8000-50000 | |||
Feeding concentration % | depends on clients | ||||||
Discharge concentration | depends on clients | ||||||
Pressure Mpa | around0.5 | ||||||
Kg/ Kg | 0.67 | 0.40 | 0.30 | 0.25 | |||
T/T | 29 | 12 | 9 | 8 | |||
Degree | 45-90 | ||||||
PRODUCT CONFIGURATION
Glass-mirror
Separator
Heater
Mechanical seal
Heating-exchanger
Spare parts
SALES AND SERVICE NETWORK

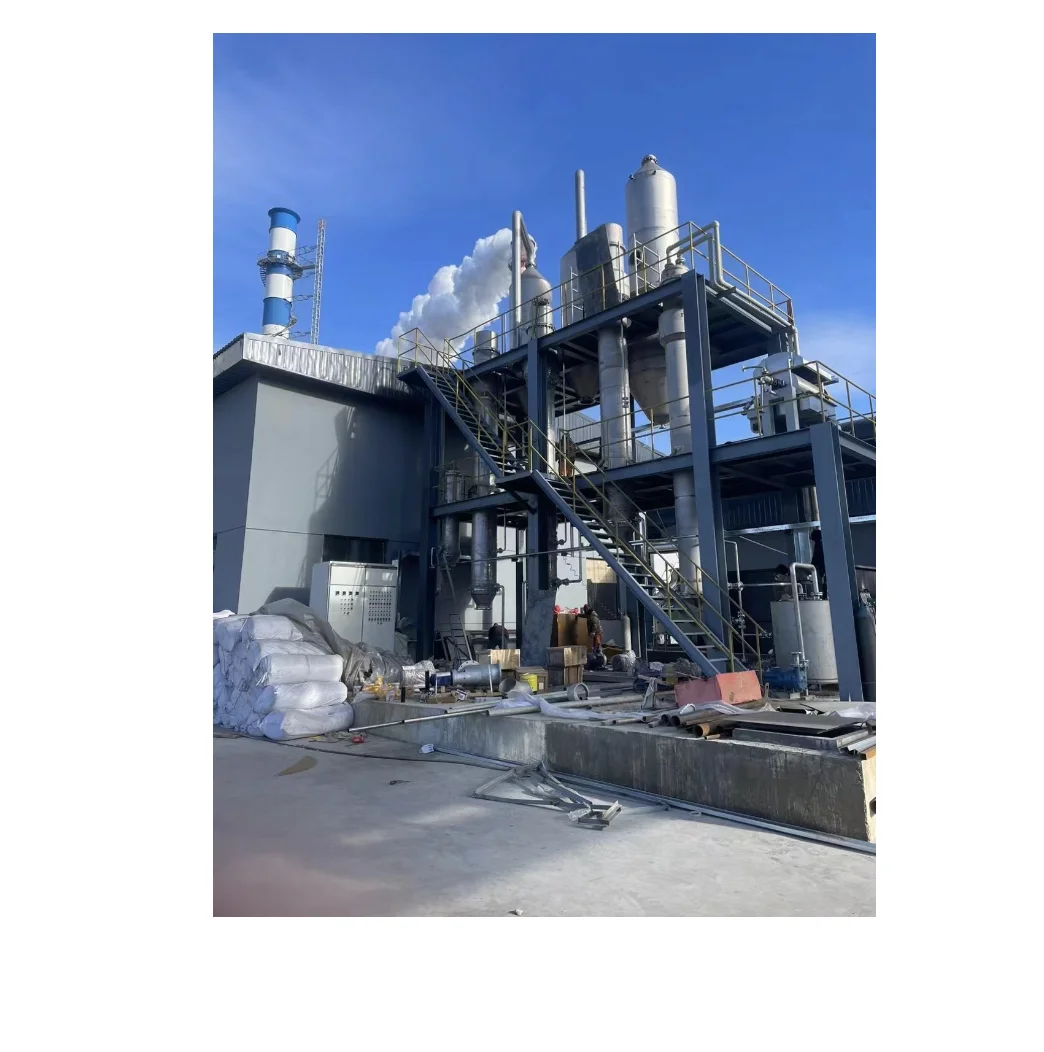

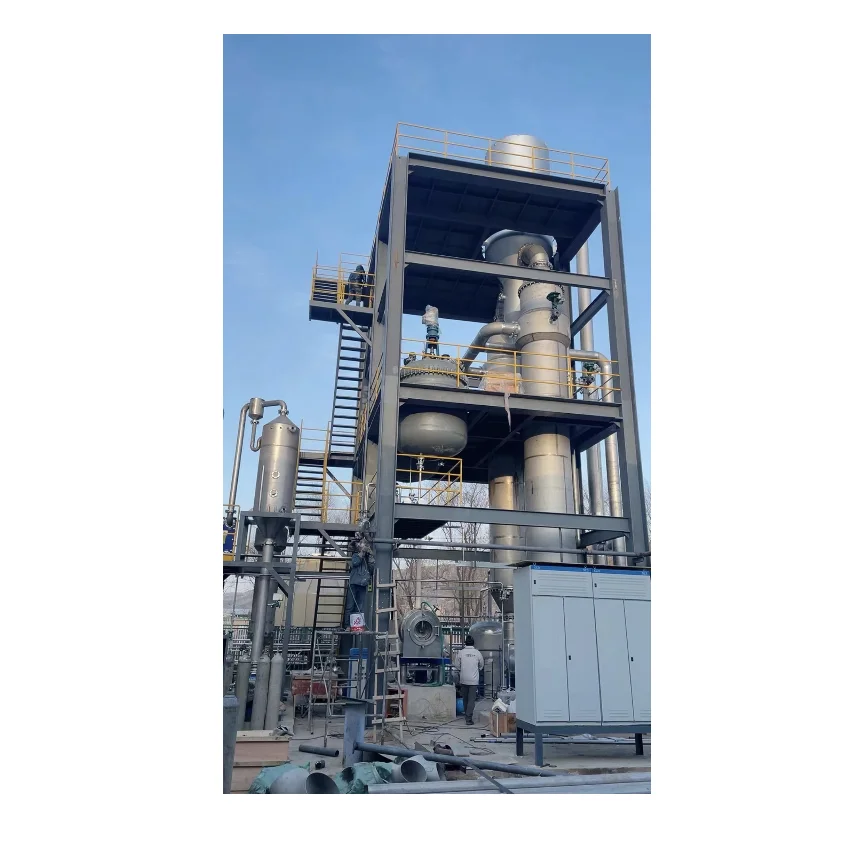

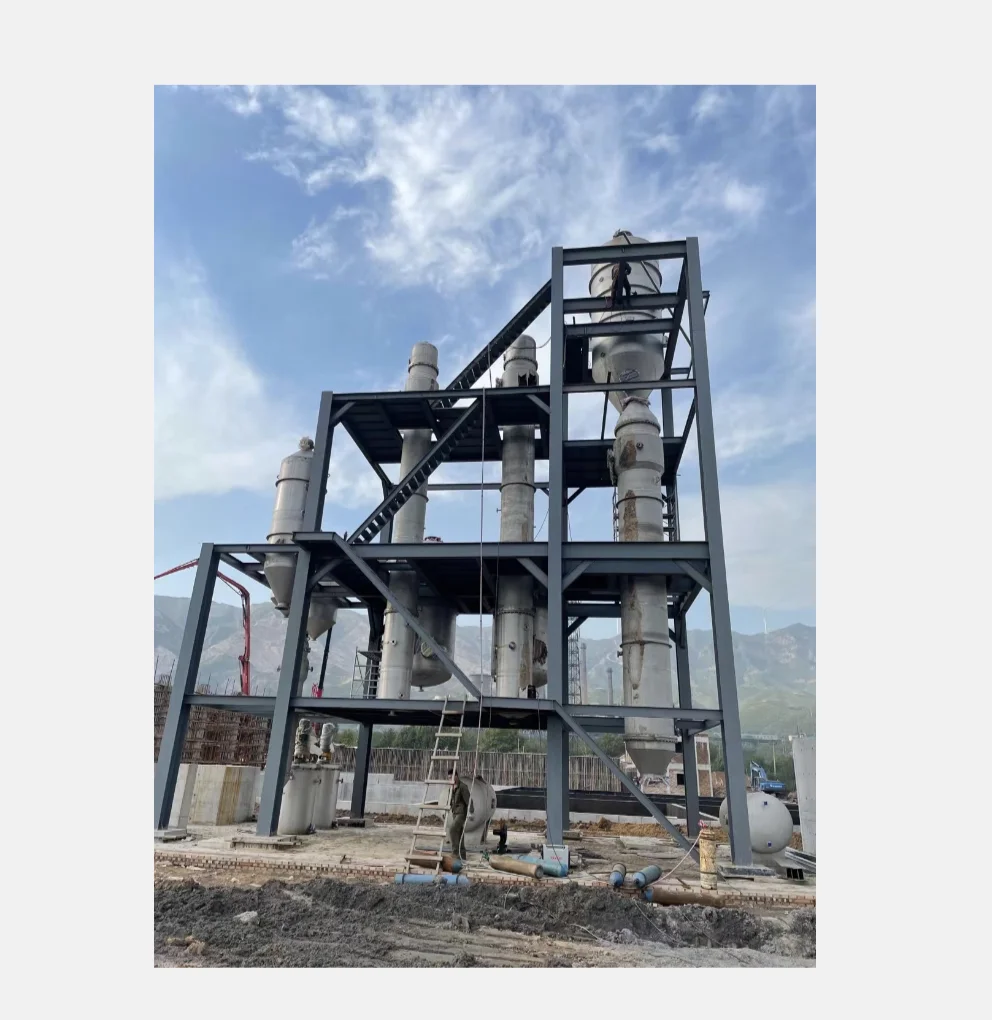

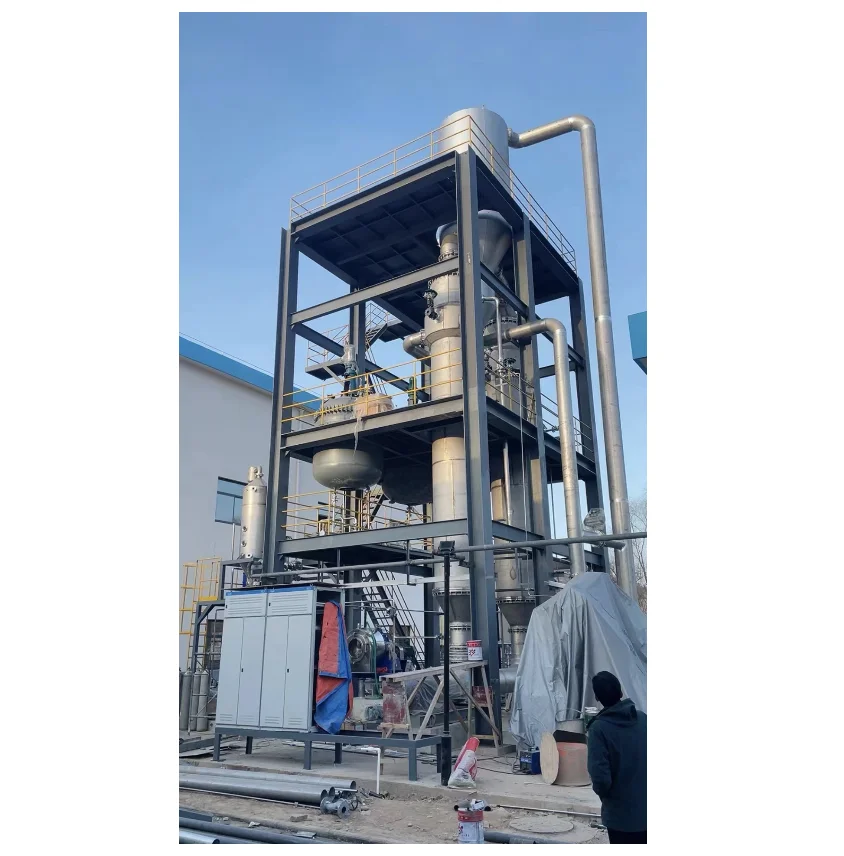

Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
VANOO Machine package
small machine
If the whole machine can be directly loaded into the container, we will put the whole machine into a wooden box. We will remove the important instrument valves in advance and put them into small boxes to ensure that they will not be damaged during long-distance sea transportation
big capacity machine
If it is a large production equipment, we will try our best to protect the equipment, wrap it with cloth and put it into the container
Reasonable use of container space to help customers save freight
Forklift to transport goods into containers
