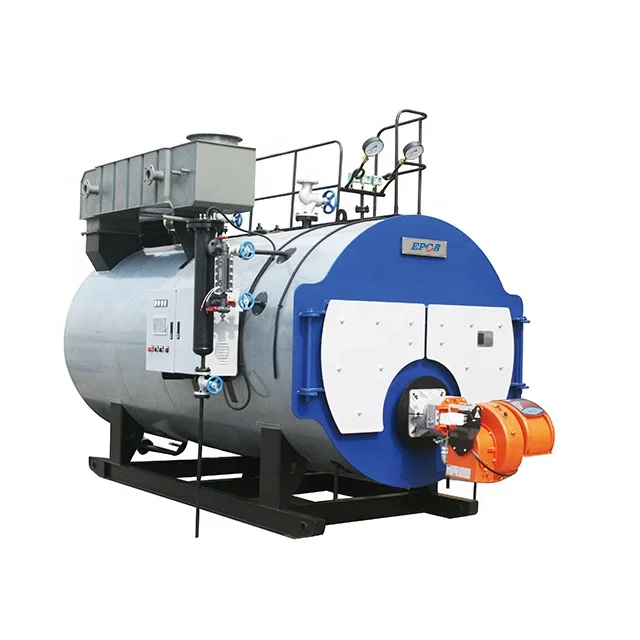

EPCB Three Pass Horizontal 1 to 25 Ton Oil Gas LNG Fired Industrial Steam Boiler for Beer Industry
- Category: >>>
- Supplier: Qingdao East Power Industry Equipment Co. Ltd
Share on (1600798917084):
Product Overview
Description
EPCB Three Pass Horizontal 1 to 25 Ton Oil Gas LNG Fired Industrial Steam Boiler for Beer Industry
Product Features
Item/Type | Horizontal Fire Tube Automatic Oil/Gas Fired Steam Boiler | ||||||||||||||||
Rated capacity t/h | 3 | 4 | 5 | 6 | 8 | 10 | 15 | 20 | |||||||||
Rated steam pressure MPa | 0.7/1.0/1.25/1.6 | ||||||||||||||||
Rated steam temperature ℃ | 170/184/194/204 | ||||||||||||||||
Boiler thermal efficiency % | 92.55 | 92.6 | 92.5 | 92.9 | 93.1 | 93.4 | 93.5 | 93.7 | |||||||||
Body heating area m2 | Boiler body | 67.87 | 80.37 | 110.5 | 140.13 | 194.27 | 142.3 | 218.5 | 275.3 | ||||||||
Economizer | 30.4 | 43.41 | 46.5 | 57.1 | 74.4 | 112.6 | 155 | 225.5 | |||||||||
Boiler water volume m3 | 6.25 | 7.54 | 8.9 | 8.5 | 13.9 | 19.5 | 24.5 | 31.5 | |||||||||
Flue diameter mm | φ450 | φ520 | 750x410 | 800x410 | 940x520 | 850x500 | 1200x600 | 1500x600 | |||||||||
Water inlet diameter DN | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 80 | |||||||||
Main steam valve diameter DN | 100/40 | 100/40 | 125/40 | 125/40 | 150/40 | 150/40 | 200/50 | 200/65 | |||||||||
Safety valve diameter DN | 2x40 | 50+40 | 2x50 | 2x65 | 2x65 | 2x80 | 2x100 | 2x100 | |||||||||
Blowdown diameter DN | 40 | 40 | 40 | 40 | 40 | 2x50 | 2x50 | 2x50 | |||||||||
Fuel consumption | Diesel kg/h | 177.65 | 236.74 | 296.25 | 353.97 | 470.95 | 586.79 | 879.25 | 1169.83 | ||||||||
Natural gas Nm³/h | 217.25 | 289.51 | 362.28 | 432.40 | 573.44 | 717.57 | 1075.21 | 1430.55 | |||||||||
Largest transportation size | Length mm | 4600 | 4900 | 5250 | 5850 | 6500 | 6240 | 8500 | 9200 | ||||||||
Width mm | 2200 | 2300 | 2350 | 2400 | 2600 | 2850 | 3500 | 3950 | |||||||||
Height mm | 2500 | 2650 | 2680 | 2700 | 2850 | 3100 | 4000 | 4350 | |||||||||
Largest transportation weight kg | 8000 | 8700 | 11200 | 12500 | 17800 | 22000 | 32500 | 40500 | |||||||||
Related Products

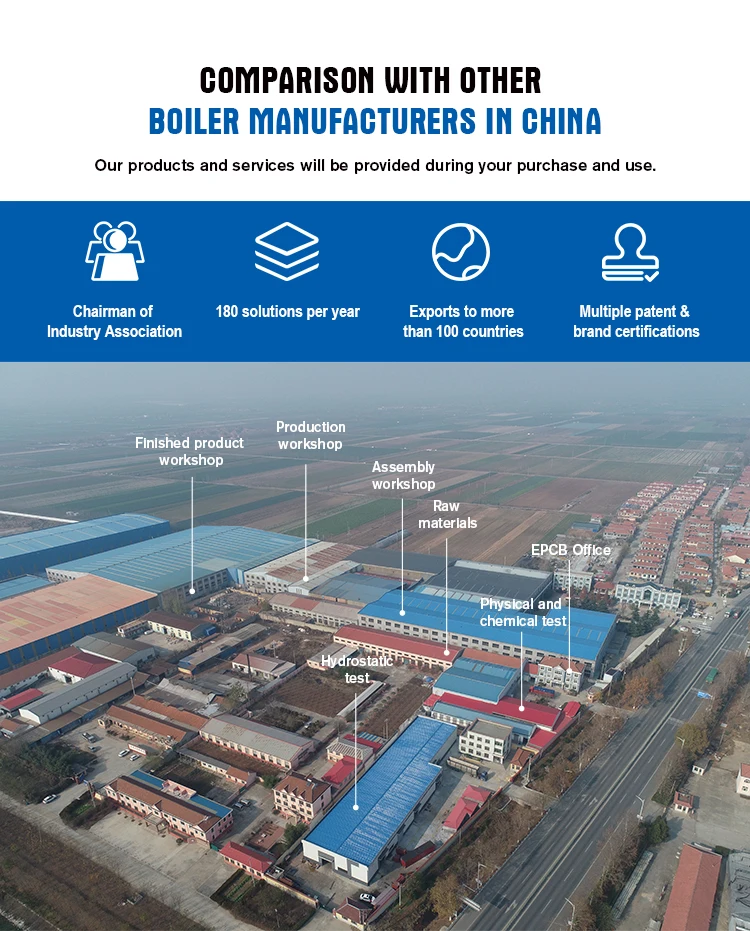

About EPCB
