DALI Convert to DC 0/1 10V Dimmer (Relay) L6293 04DP
DALI Convert to DC 0/1-10V Dimmer (Relay) L6293-04DP

DALI Convert to DC 0/1 10V Dimmer (Relay) L6293 04DP

Share on (1600798924717):


Price:

Quantity:


Product Overview

Description



Product Description

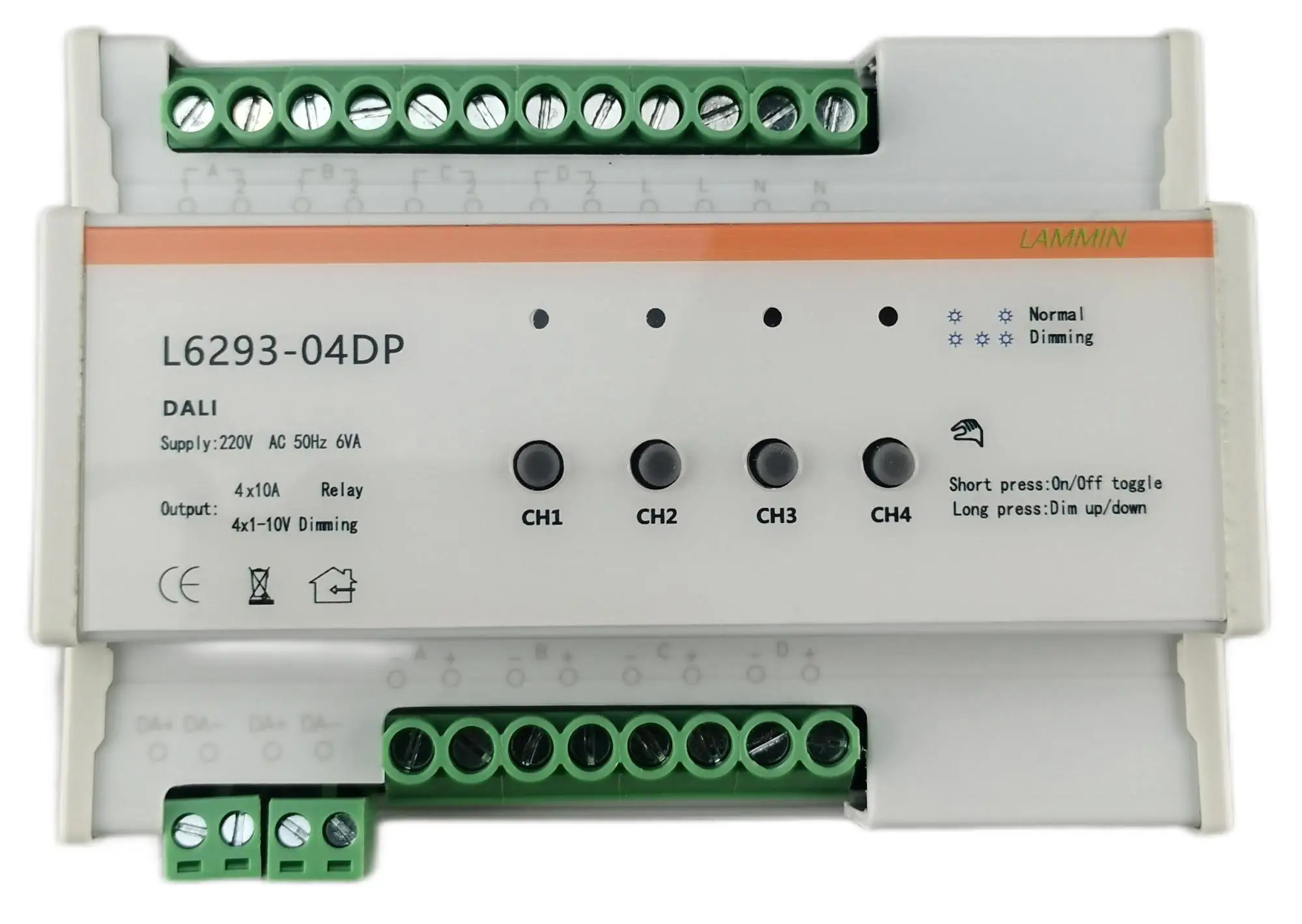

DALI Convert to DC 0/1-10V Dimmer (Relay)


●DALI convert to 0/1-10V output with 10A relay inside.
●It can be controlled independently as a relay switch with 220V power supply




Features
●DALI signals comply with IEC 62386.
●Build in 10A relay switch
●4 channel *DC 1-10V/10A output
●AC voltage input, safe and reliable



Product Paramenters


Model No
L6293-04DP
L6293-01DP
Brand
LAMMIN
Input Signal
DALI signal
Input Voltage
AC220V
Output Voltage
AC 0-220V
Frequency Range
50Hz/60Hz
Max Load Current
10A/CH*4
10A/CH*1
Max Output Power
DC 1-10V/CH*4
DC 1-10V/CH*1
Certification
CE
Working Temp
-20℃~+50℃
Warranty
3 years
Size(L*W*H)MM
126*88*65
140*45*28
Installation
35mm DIN rail
86 bottom box Φ3 bolts
Customization
YES

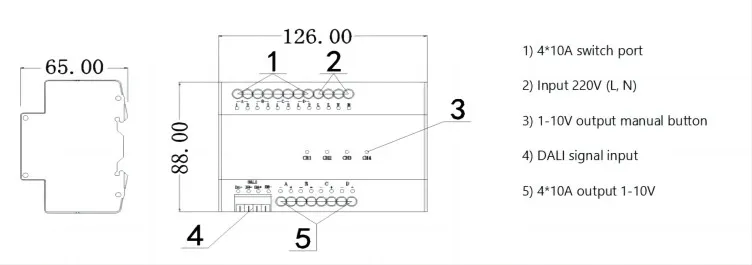

Mechanical Structures and Installations



●After the power supply is turned on, the indicator lights up, indicating that the power supply of the device works normally.
●When inputs DALI signal and addresses the device, or selects the device, the LED indicator blinks.
●The device follows the DALI protocol, with the function of BUS addressing, address setting, on, off, and so on.
●Can also be manually switched through the button.


Company Introduction


Guangzhou LAMMIN Electronics Co., Ltd. founded in 2008, is a high-tech enterprise dedicated to research and development, production, sales of professional intelligent control system and accessories.
We provide KNX/EIB, DALI, MODBUS, EnOcean,WIZ protocol intelligent lighting control system, (SCR, 0/1-10V, DALI) dimmable LED power supply, professional dimmers.
