Product Overview
Description
Product Information
Heat shrink systems usually use heat induction coils to rapidly heat the clamping part of the tool holder in a short period of time. The inner diameter of the shank also expands. At this point, the tool is immediately loaded into the tool holder, which will generate a high radial clamping force. This can holds the tool firmly.
The heat shrink system is a shrink-fit tool clamping method that does not involve the Jehol material between the tool and the tool holder. It can solve the extremely important balance, vibration accuracy and clamping strength problems in high-speed precision machining.
The heat shrink system is a shrink-fit tool clamping method that does not involve the Jehol material between the tool and the tool holder. It can solve the extremely important balance, vibration accuracy and clamping strength problems in high-speed precision machining.
For now, Bright-Tools' heat shrinkable fit chuck can be divided into two kinds.
4.5°:for standard, suitable for conventional cnc tool holder.
3°: for thin, suitable for deep cavity machining.
Size | d | D | D1 | L | L2 | L1 | N | G |
HSK50A-SFS03-90 | 3 | 9 | 13 | 90 | 64 | - | - | - |
HSK50A-SFS04-90 | 4 | 10 | 14 | 90 | 64 | - | - | - |
HSK50A-SFS06-90 | 6 | 12 | 18 | 90 | 64 | 36 | 5 | M5 |
HSK50A-SFS08-90 | 8 | 14 | 20 | 90 | 64 | 36 | 5 | M6 |
HSK50A-SFS10-90 | 10 | 16 | 22 | 90 | 64 | 42 | 5 | M8x1 |
HSK50A-SFS12-90 | 12 | 18 | 24 | 90 | 64 | 47 | 5 | M10x1 |
HSK50A-SFS16-90 | 16 | 22 | 28 | 90 | 64 | 50 | 5 | M12x1 |
HSK50A-SFS03-120 | 3 | 9 | 16 | 120 | 94 | - | - | - |
HSK50A-SFS04-120 | 4 | 10 | 17 | 120 | 94 | - | - | - |
HSK50A-SFS06-120 | 6 | 12 | 21 | 120 | 94 | 36 | 5 | M5 |
HSK50A-SFS08-120 | 8 | 14 | 23 | 120 | 94 | 36 | 5 | M6 |
HSK50A-SFS10-120 | 10 | 16 | 25 | 120 | 94 | 42 | 5 | M8x1 |
HSK50A-SFS12-120 | 12 | 18 | 27 | 120 | 94 | 47 | 5 | M10x1 |
HSK50A-SFS16-120 | 16 | 22 | 31 | 120 | 94 | 50 | 5 | M12x1 |
HSK50A-SFS03-160 | 3 | 9 | 19 | 160 | 134 | - | - | - |
HSK50A-SFS04-160 | 4 | 10 | 20 | 160 | 134 | - | - | - |
HSK50A-SFS06-160 | 6 | 12 | 24 | 160 | 134 | 36 | 5 | M5 |
HSK50A-SFS08-160 | 8 | 14 | 26 | 160 | 134 | 36 | 5 | M6 |
HSK50A-SFS10-160 | 10 | 16 | 28 | 160 | 134 | 42 | 5 | M8x1 |
HSK50A-SFS12-160 | 12 | 18 | 30 | 160 | 134 | 47 | 5 | M10x1 |
HSK50A-SFS16-160 | 16 | 22 | 34 | 160 | 134 | 50 | 5 | M12x1 |
HSK63A-SFS03-90 | 3 | 9 | 13 | 90 | 64 | - | - | - |
HSK63A-SFS04-90 | 4 | 10 | 14 | 90 | 64 | - | - | - |
HSK63A-SFS06-90 | 6 | 12 | 18 | 90 | 64 | 36 | 5 | M5 |
HSK63A-SFS08-90 | 8 | 14 | 20 | 90 | 64 | 36 | 5 | M6 |
HSK63A-SFS10-90 | 10 | 16 | 22 | 90 | 64 | 42 | 5 | M8x1 |
HSK63A-SFS12-90 | 12 | 18 | 24 | 90 | 64 | 47 | 5 | M10x1 |
HSK63A-SFS16-90 | 16 | 22 | 28 | 90 | 64 | 50 | 5 | M12x1 |
HSK63A-SFS03-120 | 3 | 9 | 16 | 120 | 94 | - | - | - |
HSK63A-SFS04-120 | 4 | 10 | 17 | 120 | 94 | - | - | - |
HSK63A-SFS06-120 | 6 | 12 | 21 | 120 | 94 | 36 | 5 | M5 |
HSK63A-SFS08-120 | 8 | 14 | 23 | 120 | 94 | 36 | 5 | M6 |
HSK63A-SFS10-120 | 10 | 16 | 25 | 120 | 94 | 42 | 5 | M8x1 |
HSK63A-SFS12-120 | 12 | 18 | 27 | 120 | 94 | 47 | 5 | M10x1 |
HSK63A-SFS16-120 | 16 | 22 | 31 | 120 | 94 | 50 | 5 | M12x1 |
HSK63A-SFS03-160 | 3 | 9 | 19 | 160 | 134 | - | - | - |
HSK63A-SFS04-160 | 4 | 10 | 20 | 160 | 134 | - | - | - |
HSK63A-SFS06-160 | 6 | 12 | 24 | 160 | 134 | 36 | 5 | M5 |
HSK63A-SFS08-160 | 8 | 14 | 26 | 160 | 134 | 36 | 5 | M6 |
HSK63A-SFS10-160 | 10 | 16 | 28 | 160 | 134 | 42 | 5 | M8x1 |
HSK63A-SFS12-160 | 12 | 18 | 30 | 160 | 134 | 47 | 5 | M10x1 |
HSK63A-SFS16-160 | 16 | 22 | 34 | 160 | 134 | 50 | 5 | M12x1 |
Product Details

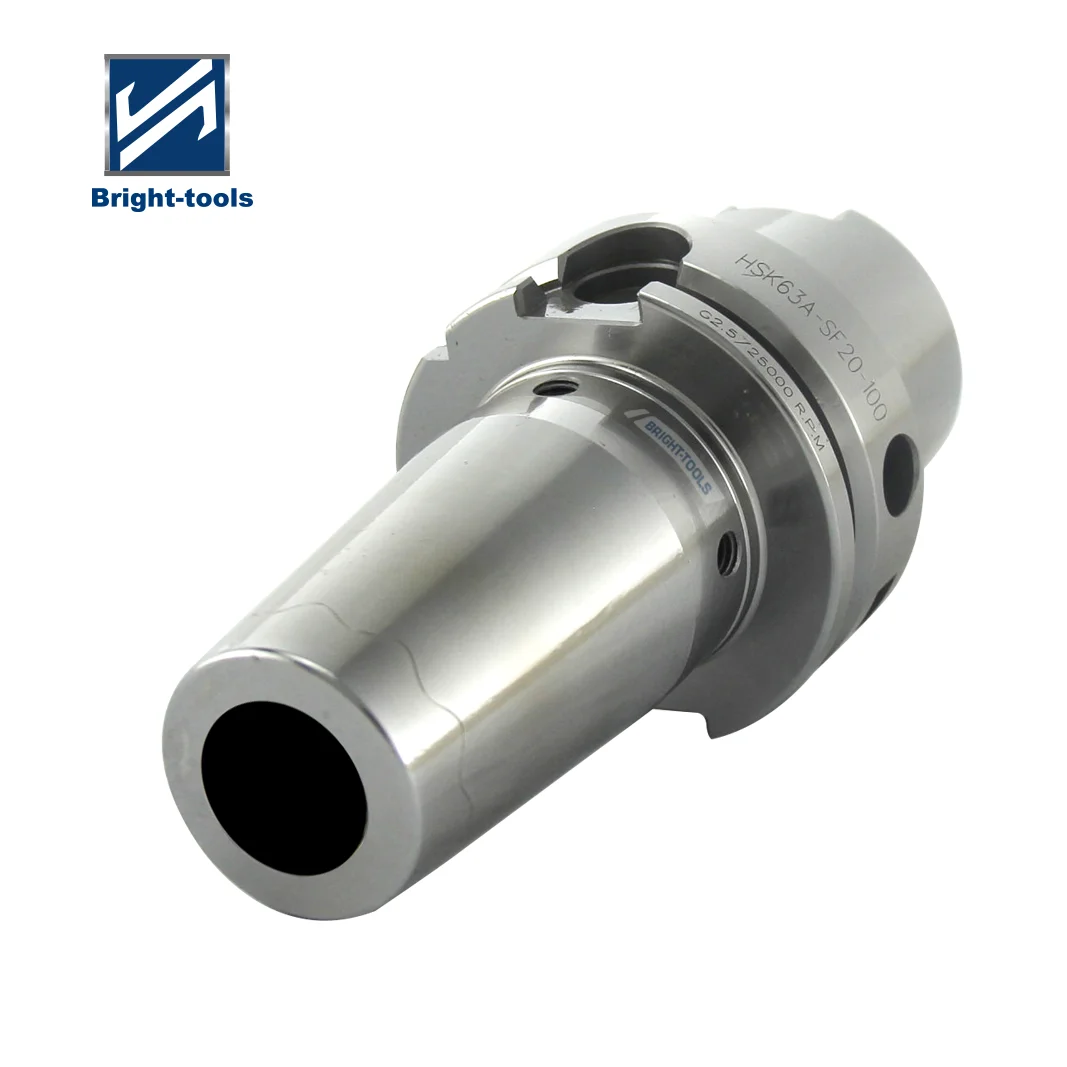

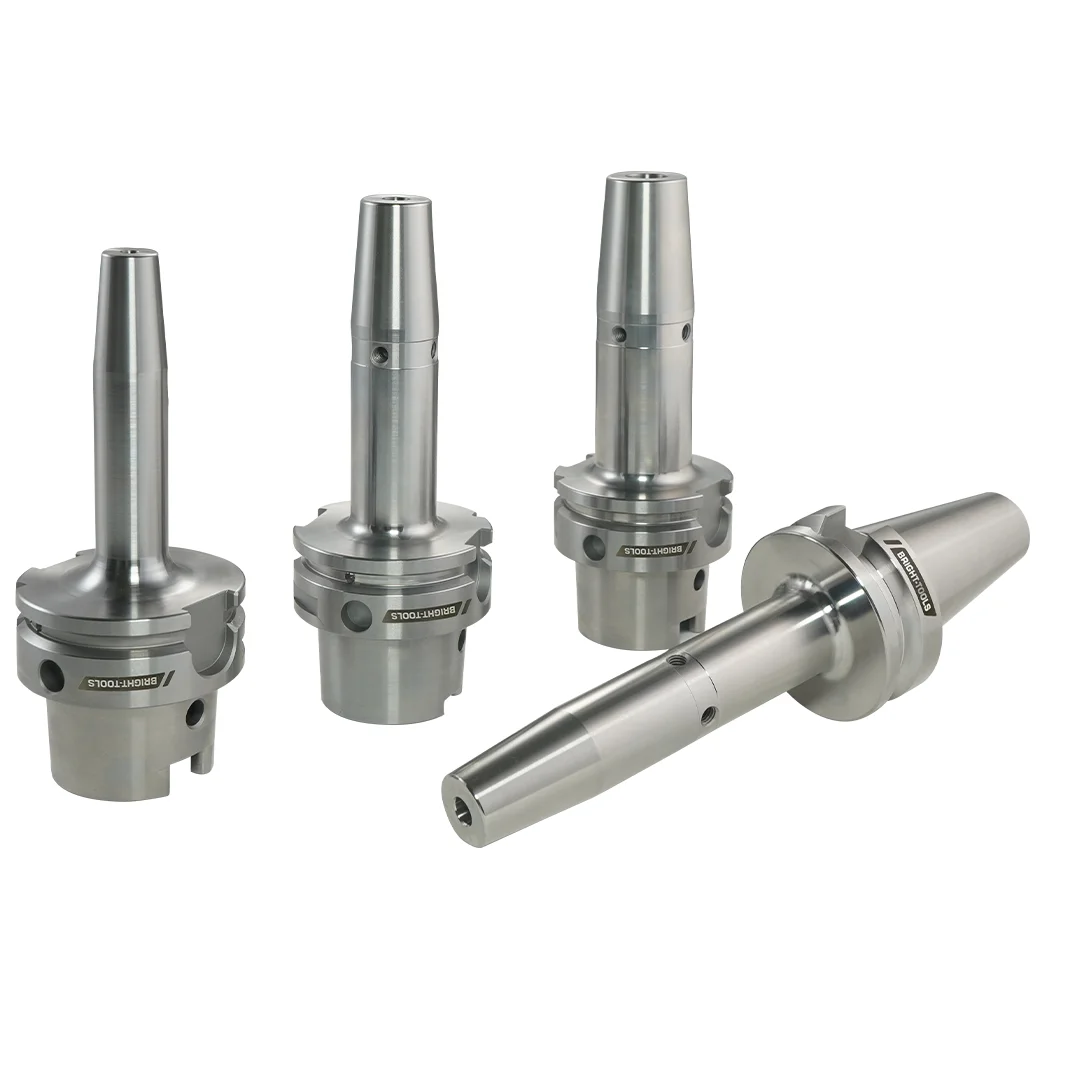

HSKA-SF Series Shrink Fit Chuck
Material:Heat shrinkable steel
Hardness:HRC56-60
Runout: 0.003 mm
Blancing: G2.5/25000 RPM
Usage: Working with induction shrink machine for mounting straight shank tools.
Hardness:HRC56-60
Runout: 0.003 mm
Blancing: G2.5/25000 RPM
Usage: Working with induction shrink machine for mounting straight shank tools.

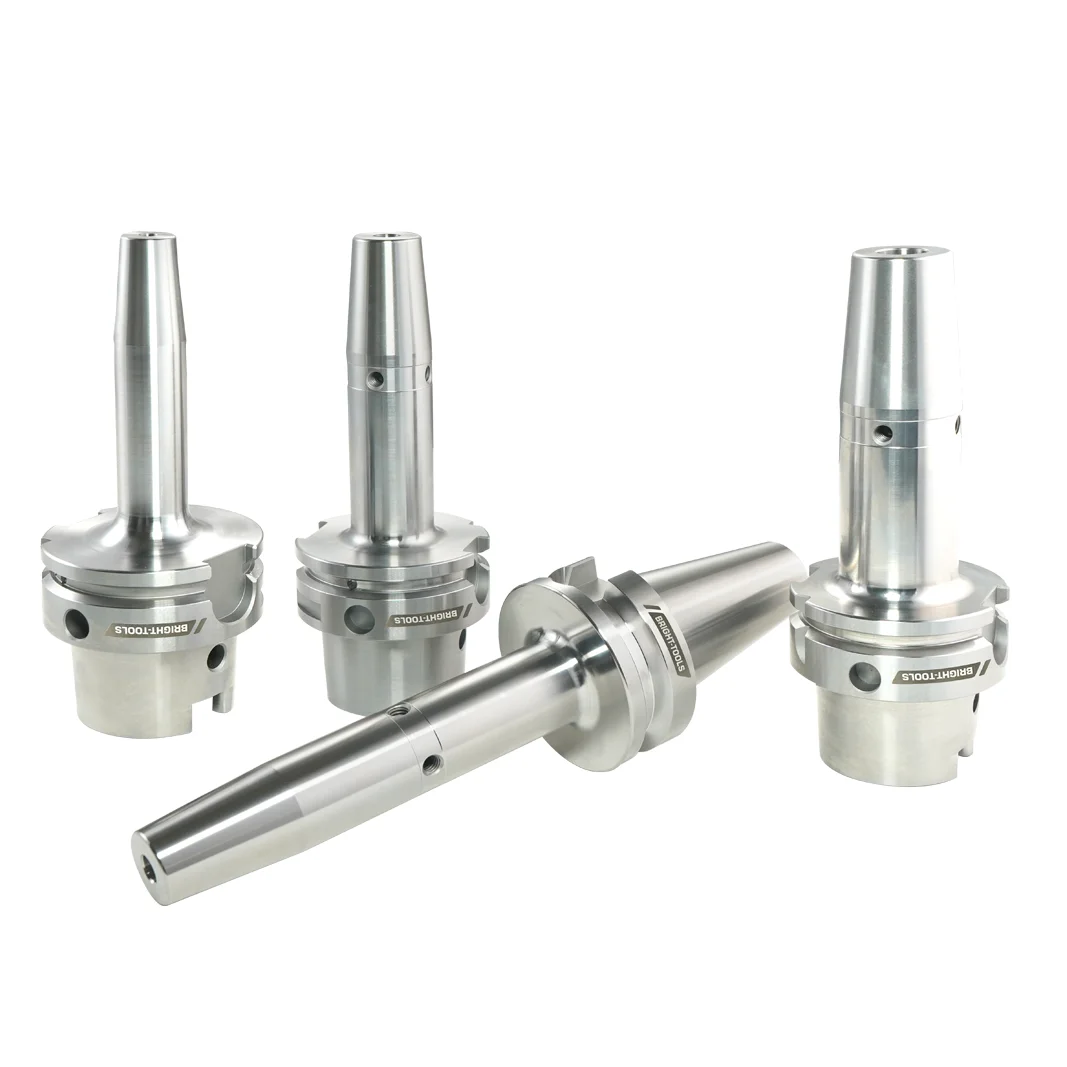

Advantages

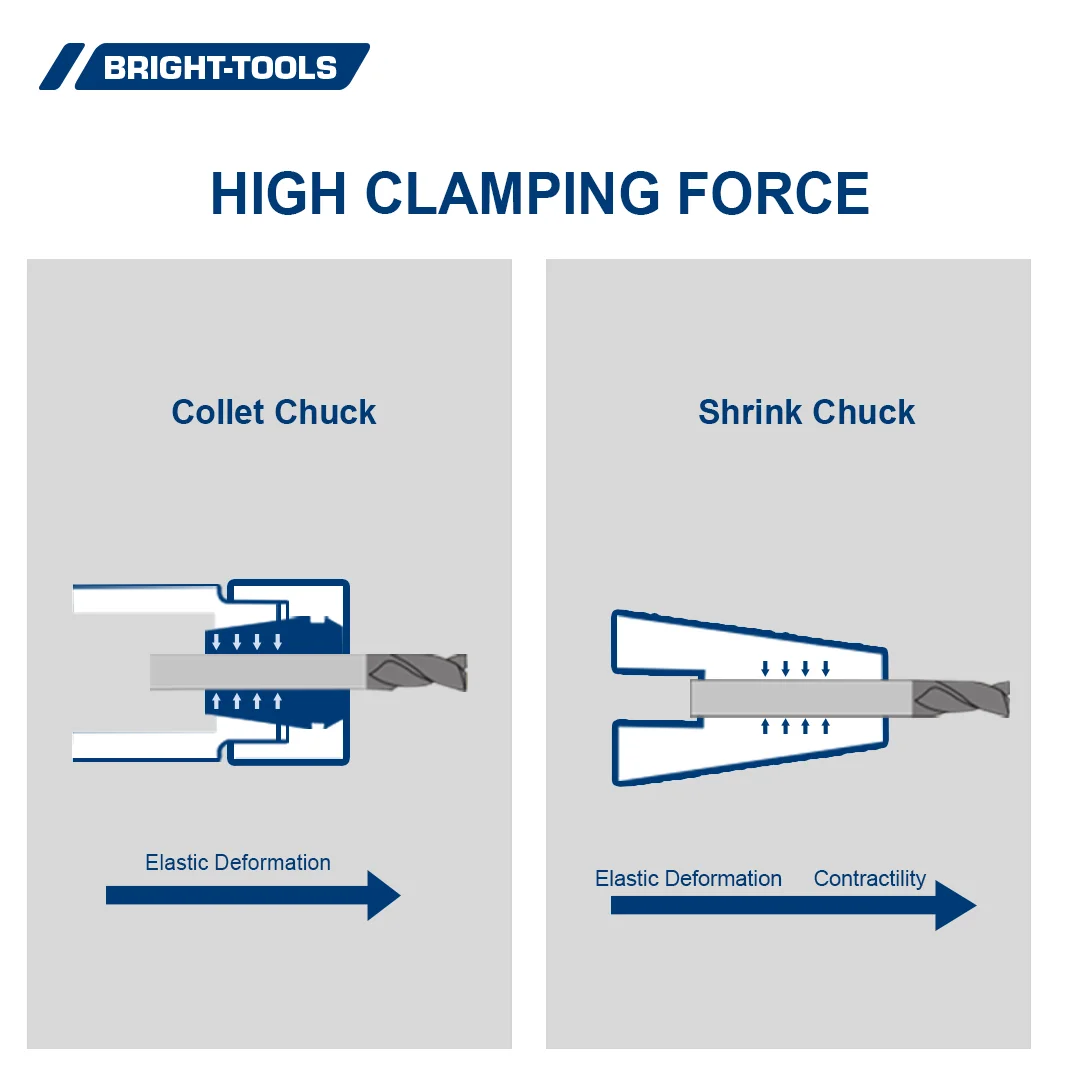

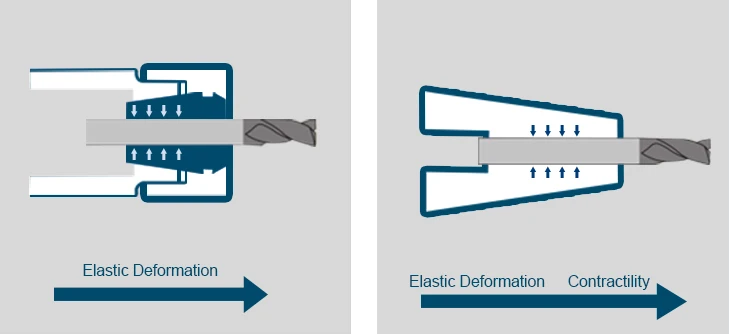

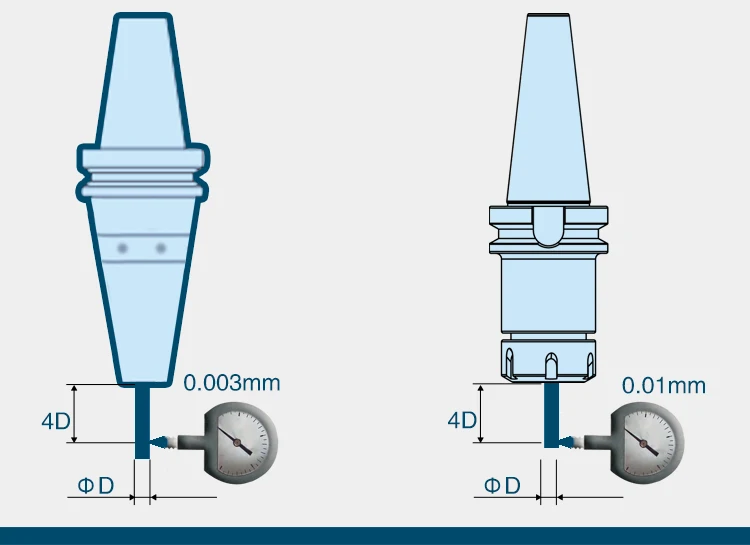

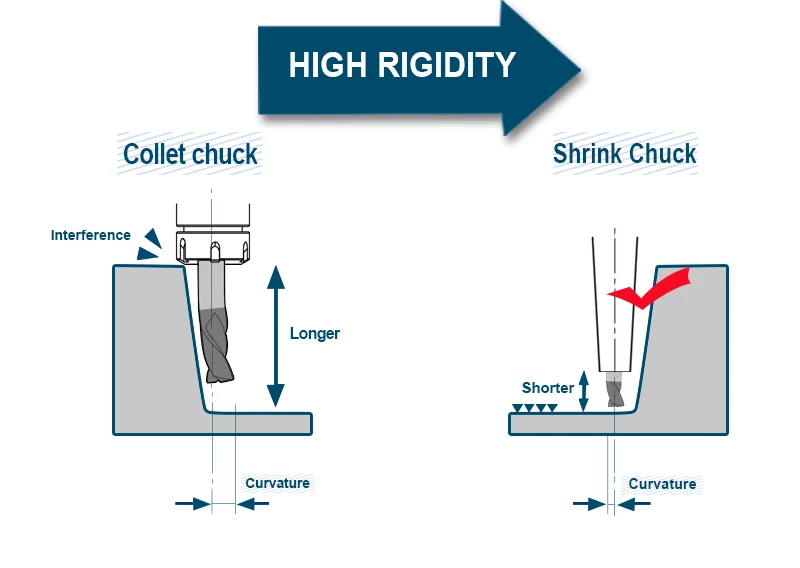

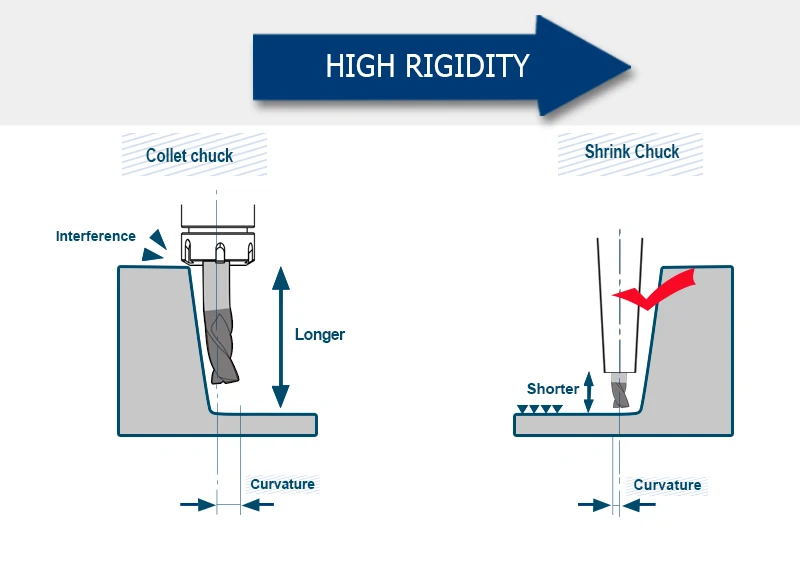

1)The clamping force is very uniform, which makes the tool holders' runout very small, resulting in a high precision. The precision of Bright-Tools shrink fit tool holder can up to ≤0.003mm, also can adapt to high speed rotation.
Meanwhile, there are positioning screw holes in the tool holder, which can effectively prevent the tool from shrinking.
Meanwhile, there are positioning screw holes in the tool holder, which can effectively prevent the tool from shrinking.
2) The clamping force is large and the support is good. Good anti-fouling ability.
3) The structure is compact and symmetrical, the external dimension is small, and the anti-interference ability is good.
4) Can adapt to high-speed rotation.
5) Suitable for finishing and roughing.
6) The central cooling effect is good.
7) The heat-shrinkable tool holder is suitable for high cutting speed and feed rate, which can improve the quality of the machined surface at the same time, and increase the life of the tool and the spindle. It has good dynamic balance and is suitable for high-speed machining.
3) The structure is compact and symmetrical, the external dimension is small, and the anti-interference ability is good.
4) Can adapt to high-speed rotation.
5) Suitable for finishing and roughing.
6) The central cooling effect is good.
7) The heat-shrinkable tool holder is suitable for high cutting speed and feed rate, which can improve the quality of the machined surface at the same time, and increase the life of the tool and the spindle. It has good dynamic balance and is suitable for high-speed machining.

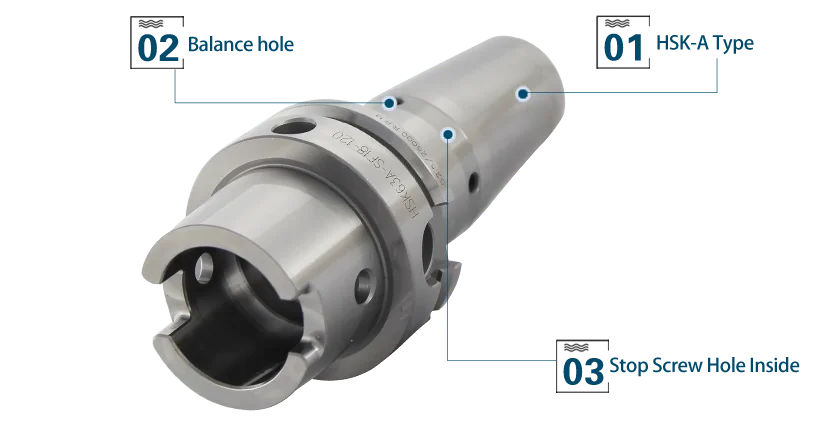

Advantages Of Tool Holder
Shrink chuck taper
Carburation and hardening
End face of the water
Deep Cavity Machining

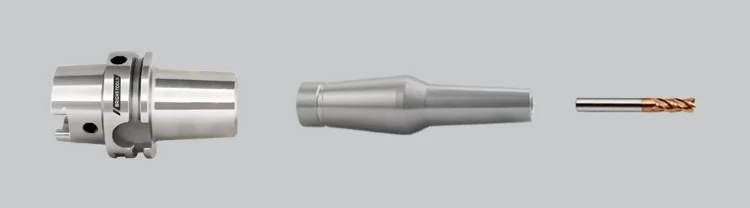

Related Parts
Shrink Chuck Extension and others accessories such as collet, pull stud ,pls click here contact us.

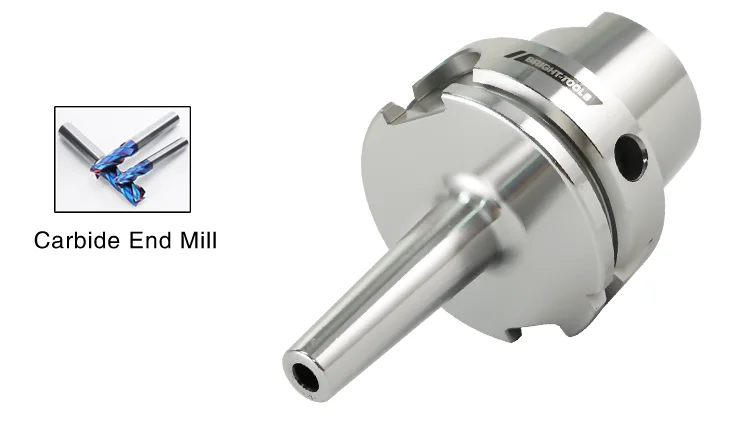

Note: Milling cutters need to be purchased separately!
