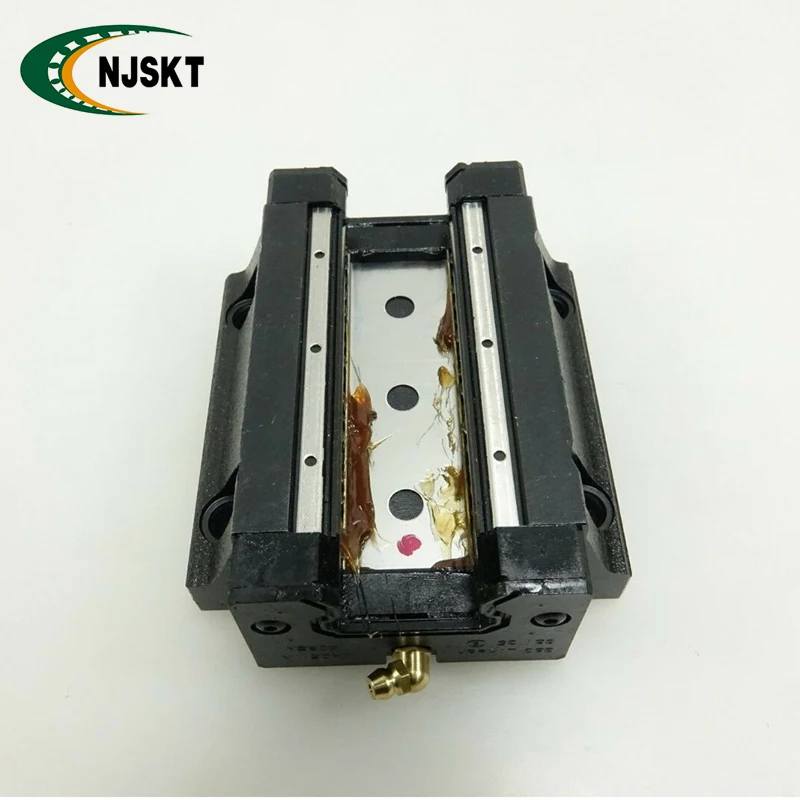

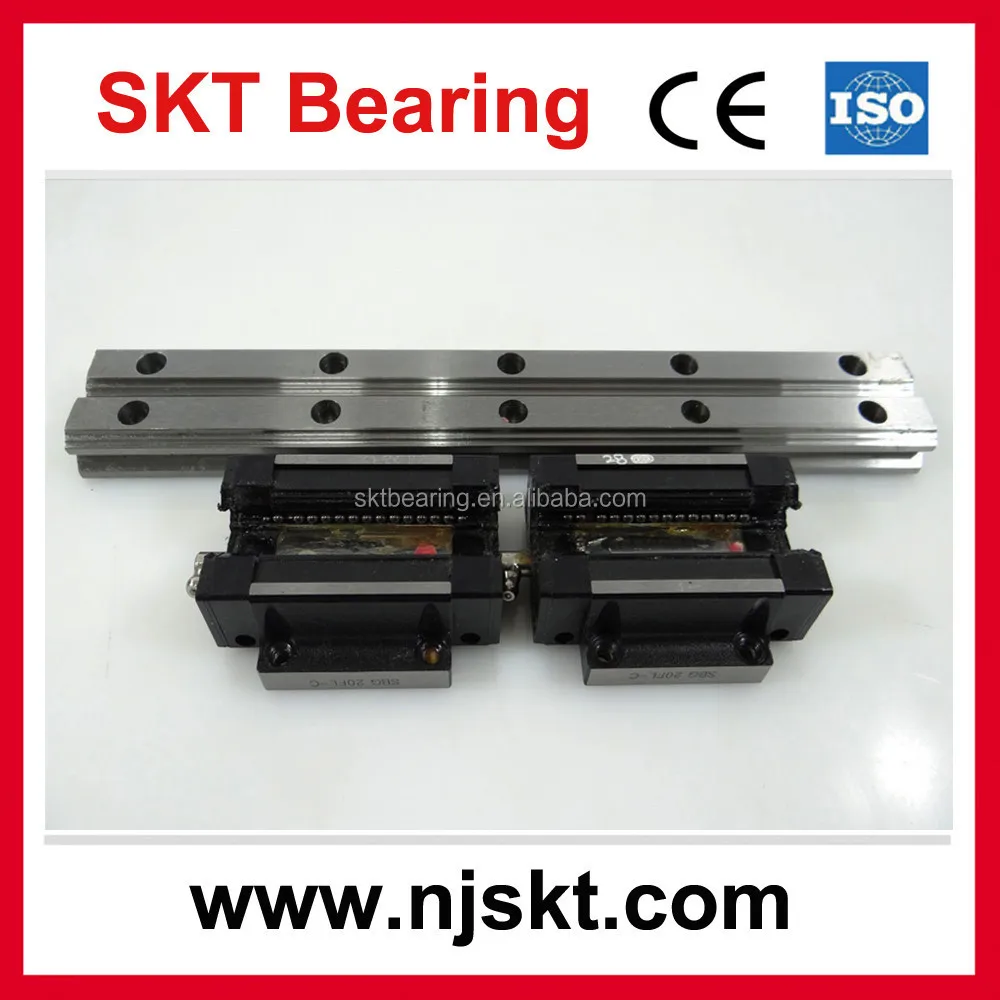

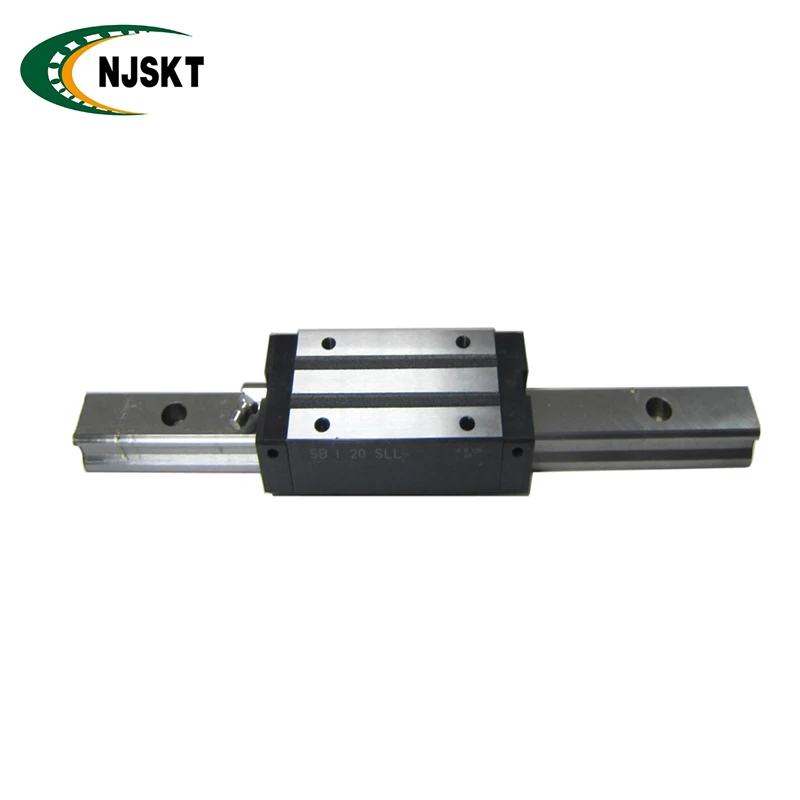

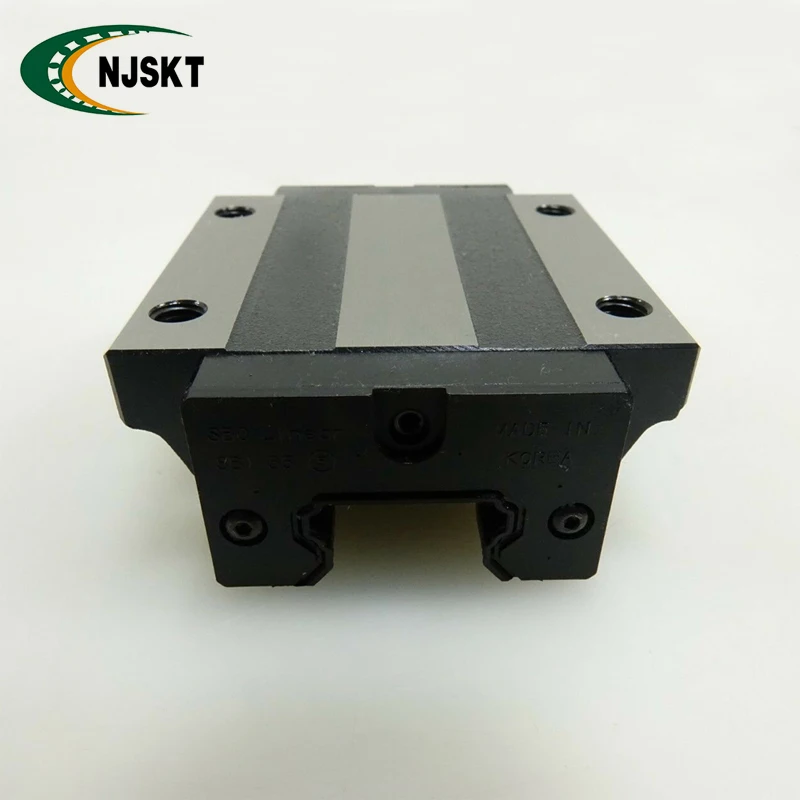

SBC Linear Guide way SBI55SL Linear Block for CNC
- Category: >>>
- Supplier: Nanjing Shengkaite Bearing Co. ltd
Share on (1600798944565):
Product Overview
Description
SBC Linear Guide way SBI55SL Block For Lathe
Product Description
SBC High duty Type with all advantages of our SBG type,SBI Linear guide improves load capacity,and incrases speed capabilities.
Circular arc groove
- Two point contacr structure of circular arc groove.It keeps the function of self-aligning and smooth rolling performance.
45 degrees angle of contact.
- Four rows of circular arc groove contact ballls at an angle of 45 degrees provides the same capacity in all directions.
DF structure and low noise and high rigidity
- Optimized ball recirculation structurer and design provides low noise and high rigidity.
Country of origin :Made In KOREA
Please be advised the SBC linear guide is the length of 4000mm each pieces,We can cut the length for your need.And the products we are selling are original part.
Preload:
The preload is an internal load exerted on rolling elements in the linear guide block ,for the purposes of increasing the block rigidity and reducing clearances.CNC
Application:
CNC,NC lathe,Machining center,Industrial robot, Z axis for general industrial equipment,Etc
| Linear guide rail Details: | |
| A Different Name | linear guide rail, slide block, linear motion, linear guide |
| linear guideway, linear module, linear actuator,linear guideway | |
| Brand | SBC |
| model | SBI55 SL |
| rail lenght | 90mm/-4000mm lenght can provide |
| size: | following list |
| Minimum quantity: | 1 piece slide block and 100mm linear rail |
| Precision: | N, H, P |
| Pre-pressing | K0,K1.K2.K3 |
| Lubrication: | grease |
| Seal Types | open or sealed |
| Material: | chrome molybdenum alloy steel |
| Packing | original color box packaging,OrWooden Carrying Case. |
| Block Type | Square type block |
Linear guide rail Mounting procedure
- Clear and dry the mounting surface.
- Coat each surface with low viscosity spindle oil,Then place the rail on the surface and then lightly tighten the mounting bolts temporarily.
- Place the carriage plate on the blocks carefuly and tighten the mounting bolts temporarily.
- Position the carriage plate by tightening the master block against the reference surface using the selected securing method and tighten the mounting bolts with a torque wrench.
Linear Block Mounting Procedure
- Clamp the reference rail in place and tighten the mounting bolts with a torque wrench,Making several passes to reach the desired torque.
- Please acrefully position the table with bearings onto the rails and tighten the non refernence blocks with torque rrench.
- Starting at one end,move the table along the rail and tighten the non reference rail slowly during swveral passes with a final pass using the torque wrench.Please don't over tiighten.

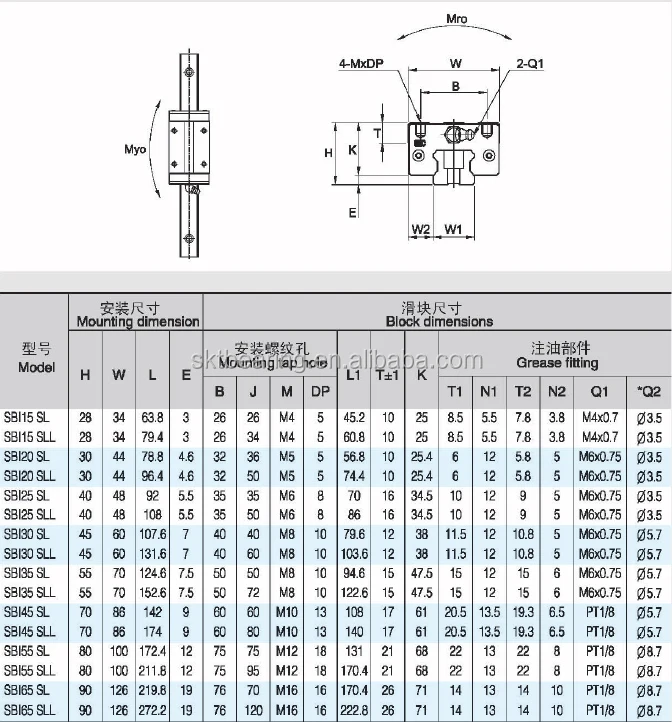

Drawing of Linear guide rail
TBI linear guideway picture show
