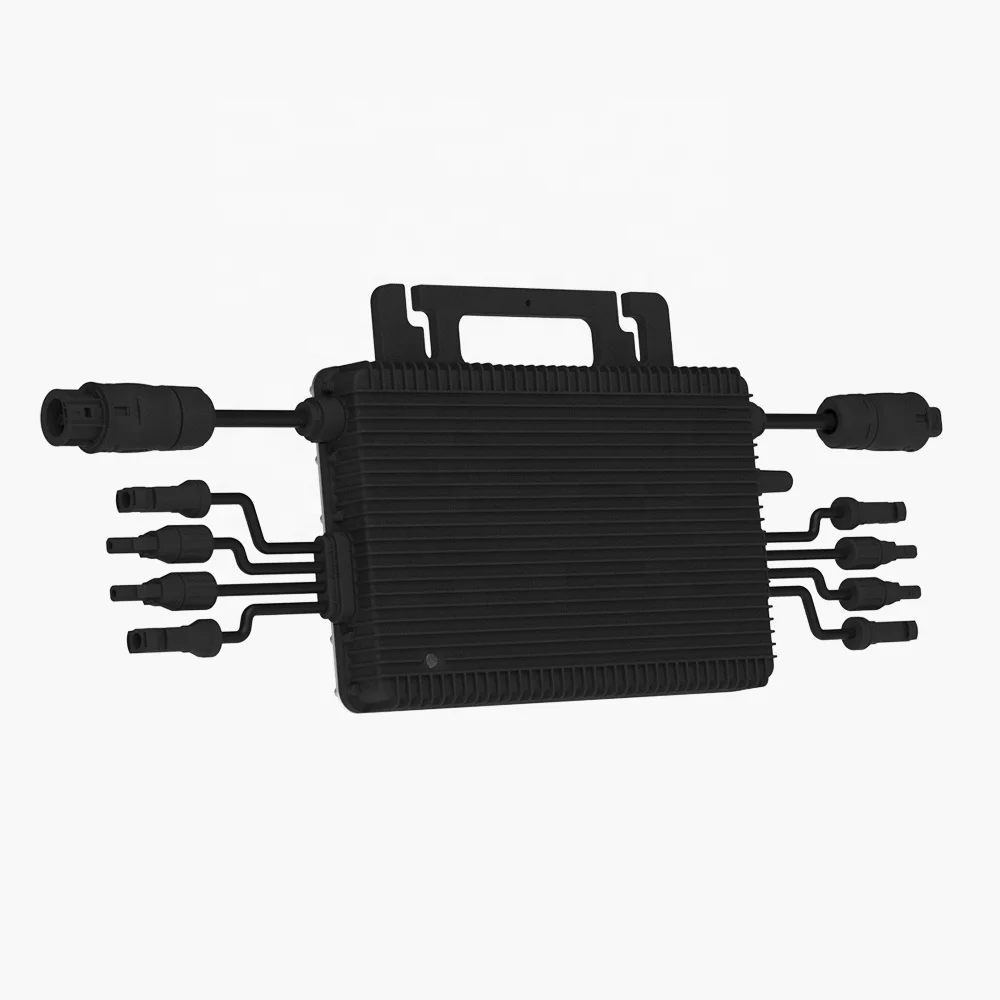

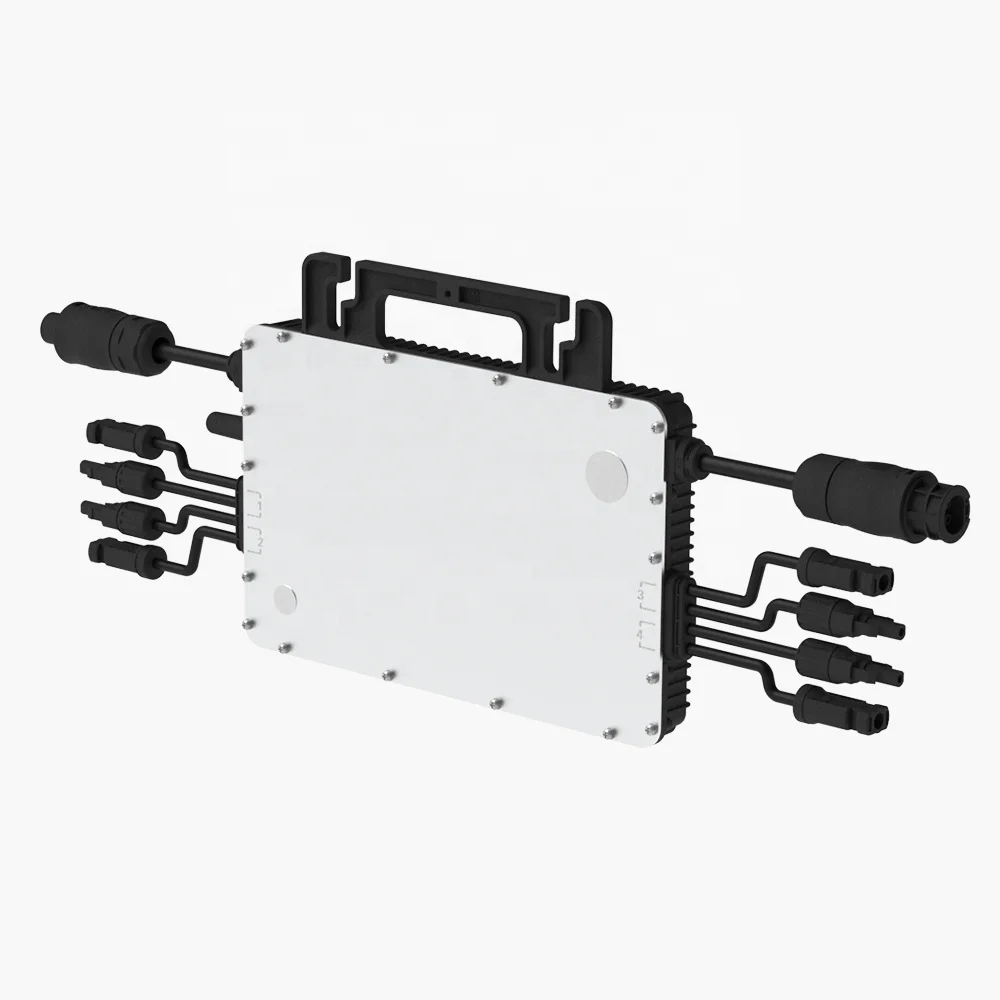

Sunpal Micro Inverters Solar Hoymiles Hms 1200W 1500W Dc To Ac On Off Grid Tie Low Voltage Inverter
- Category: >>>
- Supplier: Sunpal Energy Co. Ltd.
Share on (1600799162306):
Product Overview
Description
Product Description
Advantages
Technical Specifications
Model | HM-1200 | HM-1500 | ||||
Input Data (DC) | ||||||
Commonly used module power (W) | 240 to 405+ | 300–505+ | ||||
Maximum input voltage (V) | 60 | |||||
MPPT voltage range (V) | 16–60 | |||||
Start-up voltage (V) | 22 | |||||
Maximum input current (A) | 4 × 11.5 | |||||
Maximum input short circuit current (A) | 4 × 15 | |||||
Number of MPPTs | 2 | |||||
Number of inputs per MPPT | 2 | |||||
Output Data (AC) | ||||||
Rated output power (VA) | 1200 | 1500 | ||||
Rated output current (A) | 5.22 | 6.52 | ||||
Nominal output voltage/range (V) | 230/180-275 | |||||
Nominal frequency/range (Hz) | 50/45–55 | |||||
Power factor (adjustable) | > 0.99 default 0.8 leading…0.8 lagging | |||||
Total harmonic distortion | < 3% | |||||
Maximum units per branch | 4 | 3 | ||||
Efficiency | ||||||
CEC peak efficiency | 96.70% | |||||
CEC weighted efficiency | 96.50% | |||||
Nominal MPPT efficiency | 99.80% | |||||
Nighttime power consumption(mW) | < 50 | |||||
Mechanical Data | ||||||
Ambient temperature range (°C) | -40 to +65 | |||||
Dimensions (W × H × D mm) | 280 × 176 × 33 | |||||
Weight (kg) | 3.75 | |||||
Enclosure rating | Outdoor IP67 (NEMA 6) | |||||
Cooling | Natural convection (no fans) | |||||
Features | ||||||
Communication | 2.4 GHz Proprietary RF (Nordic) | |||||
Type of isolation | Galvanically Isolated HF Transformer | |||||
Monitoring | S-Miles Cloud | |||||
Compliance | VDE-AR-N 4105: 2018, EN 50549-1: 2019, VFR 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 | |||||

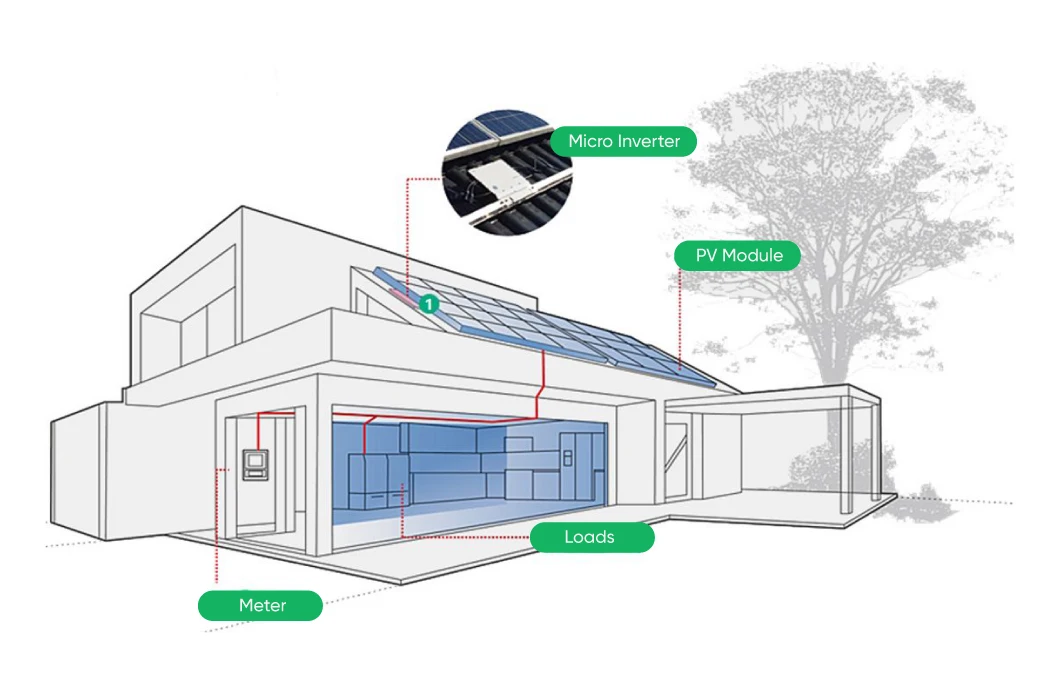

How it works

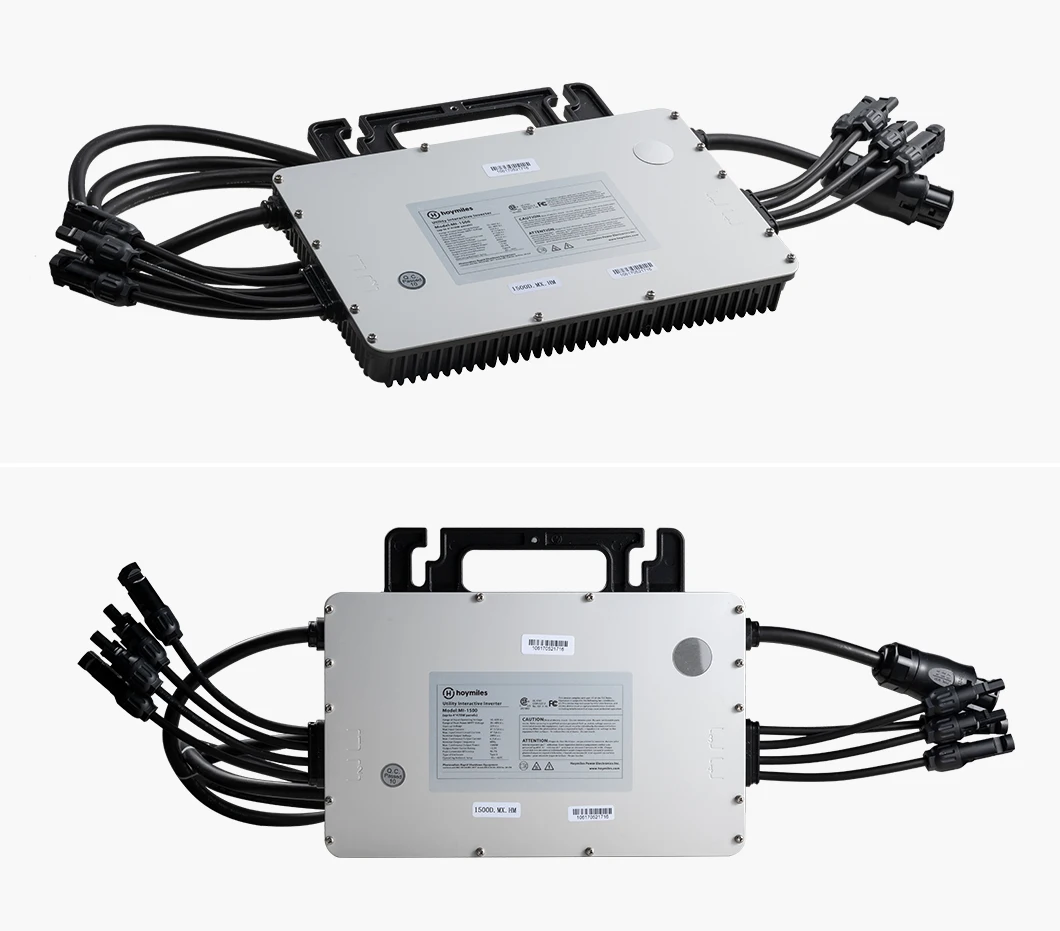

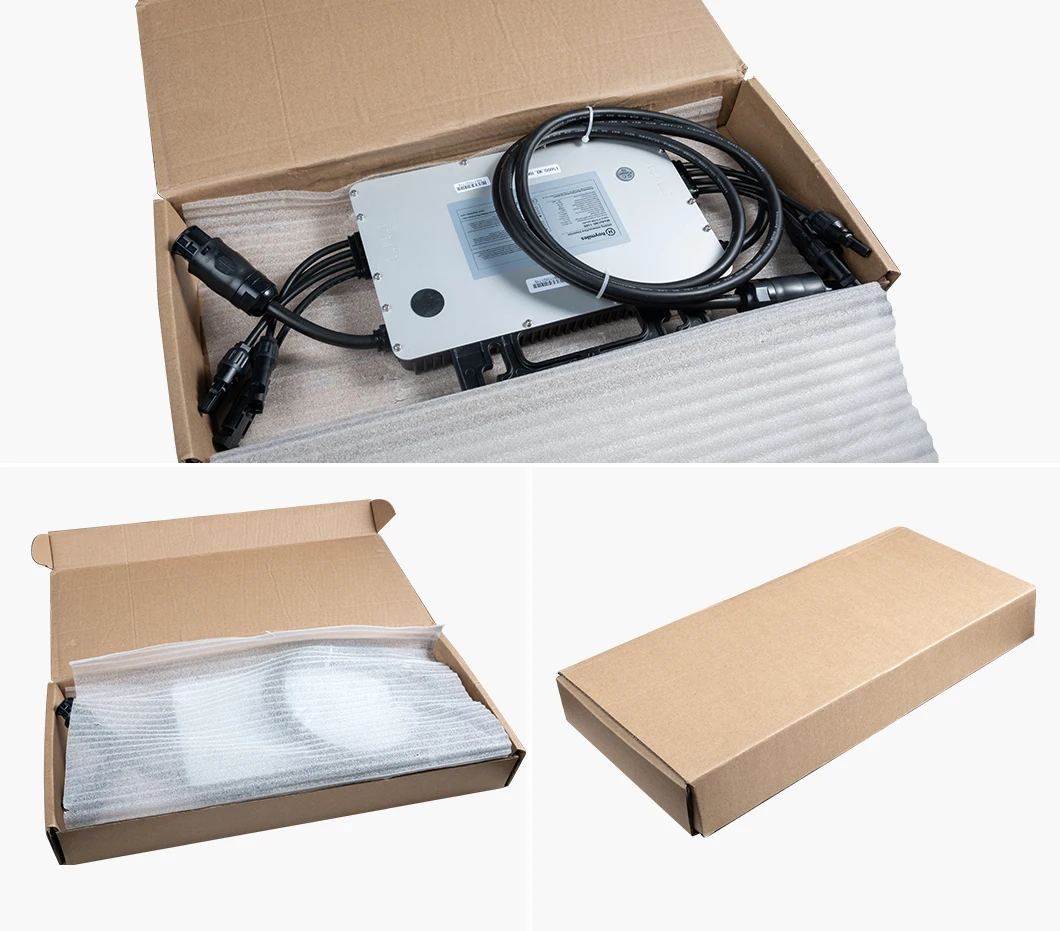

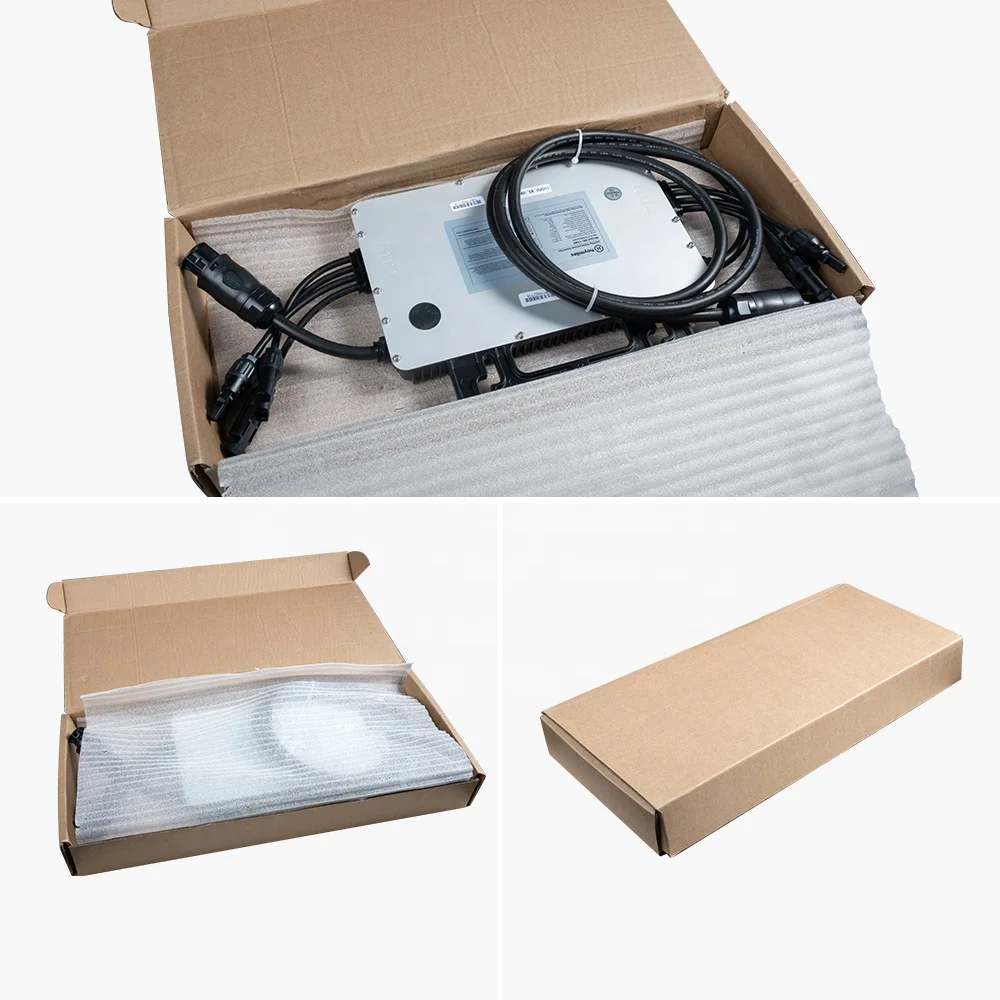

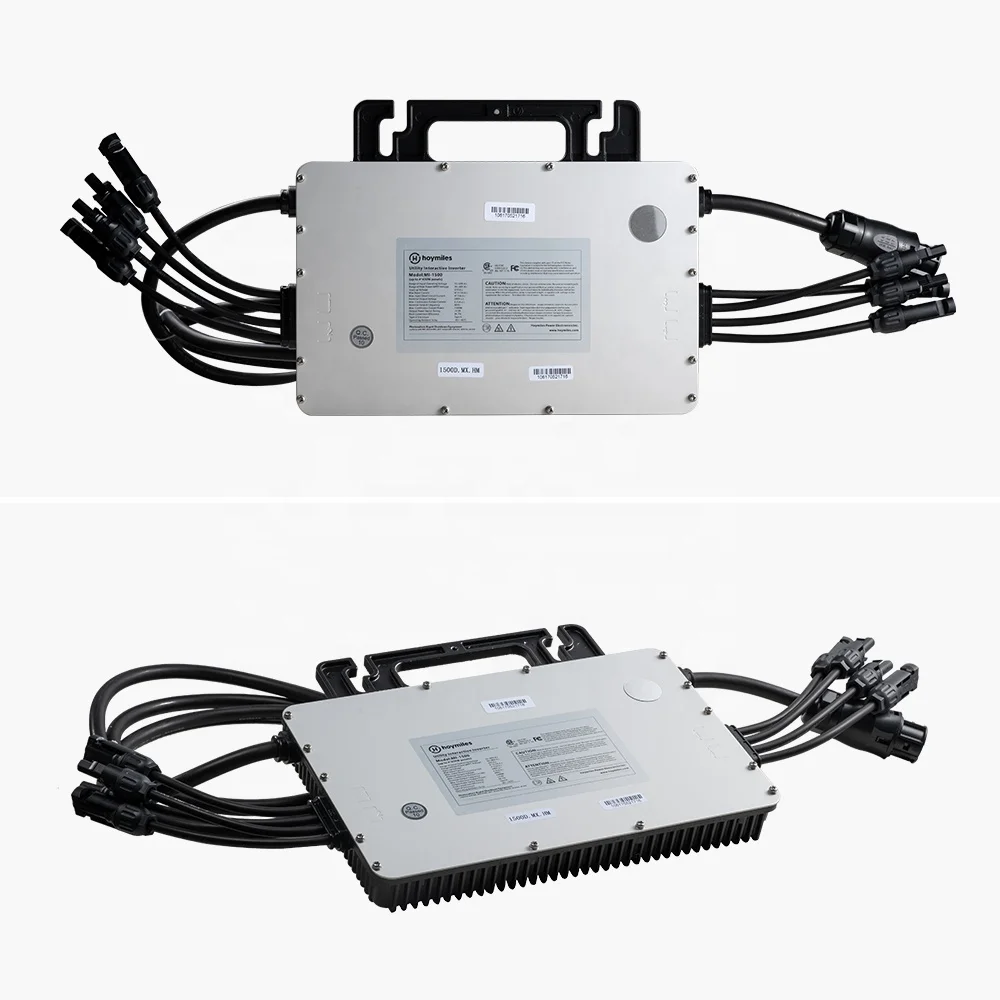

Pictures and Package

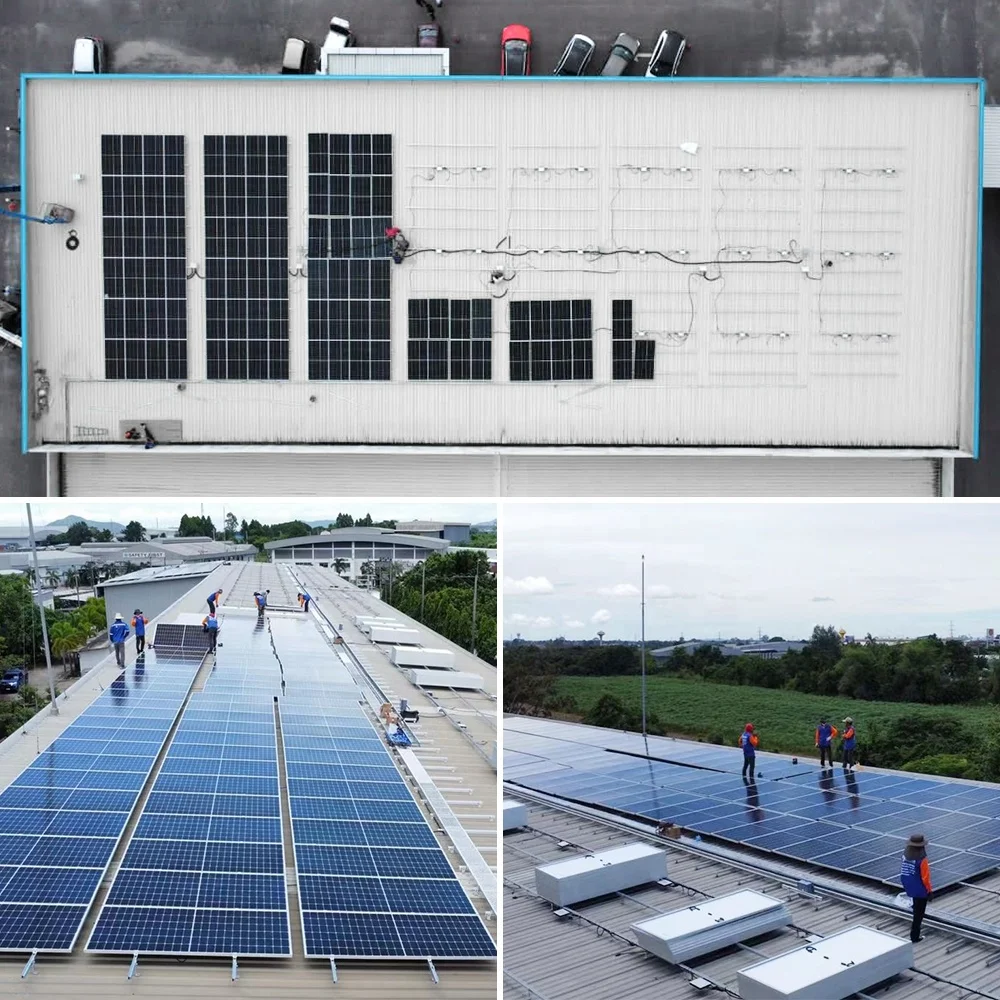

Applications
