Dingli high efficient demolishing or breaking concrete block machine,hydraulic piston rock splitter
- Category: >>>
- Supplier: Shanxi Zhongde Dingli Group Co. Ltd.Shanxi Ltd.
Share on (1600799377989):
Product Overview
Description
Product Overview
DL Piston Rock Splitter
The emergence of the Dingli piston rock splitter has solved the problem that has plagued us for a long time (rock-crushing engineering and mining are prohibited from blasting). Our long-term scientific research in the field of engineering in China has shown that our piston rock splitter can still achieve the desired effect in the most complex and difficult construction environments such as the low efficiency of rock excavation in deep foundation pits where blasting is prohibited. The Dinli piston splitter has a larger diameter, greater splitting force, and faster speed. It is a hydraulic rock-splitting equipment with high construction output and low construction cost. It is more powerful than any rock splitter on the market! Welcome to verify and compare!
Components

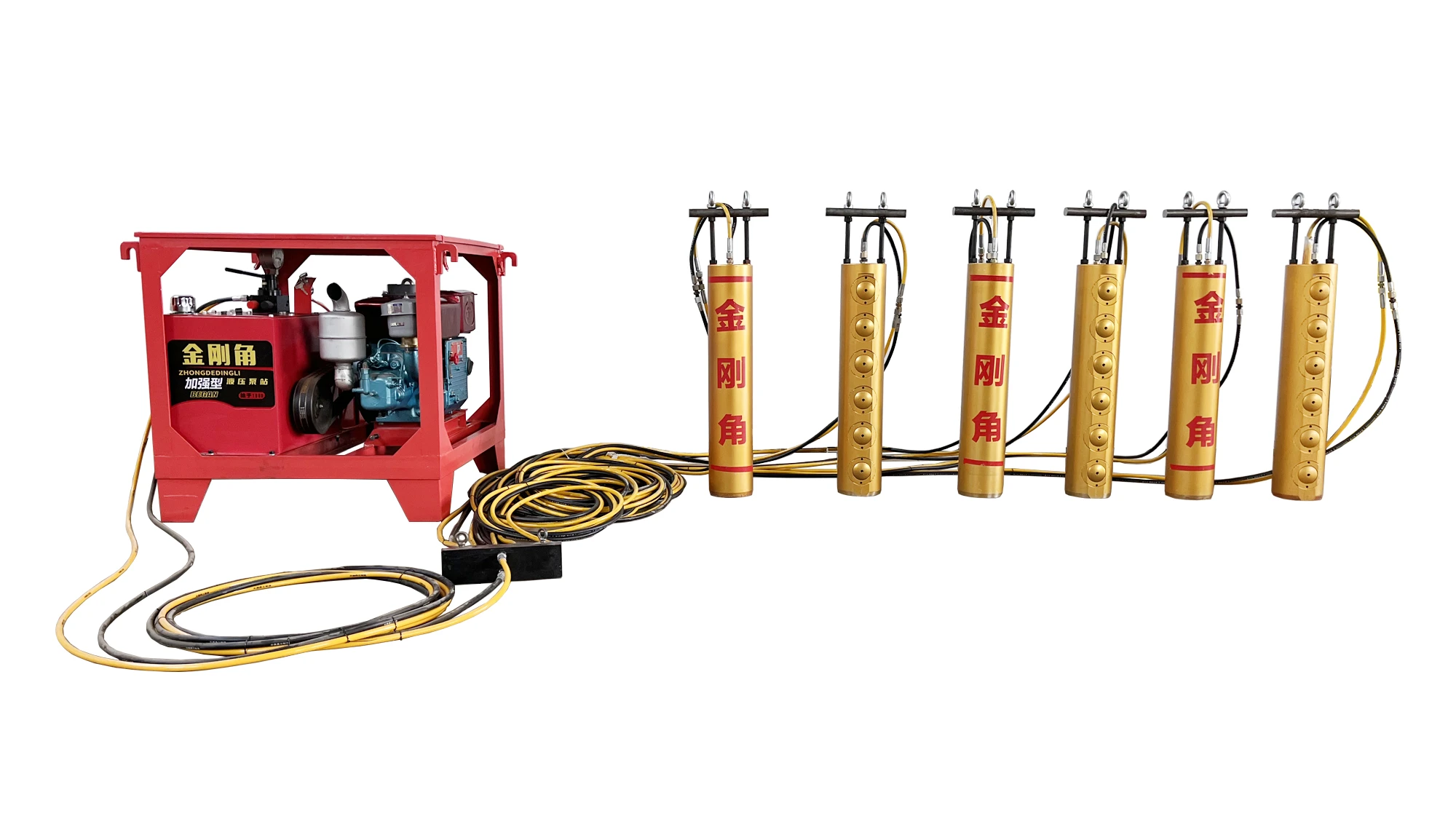

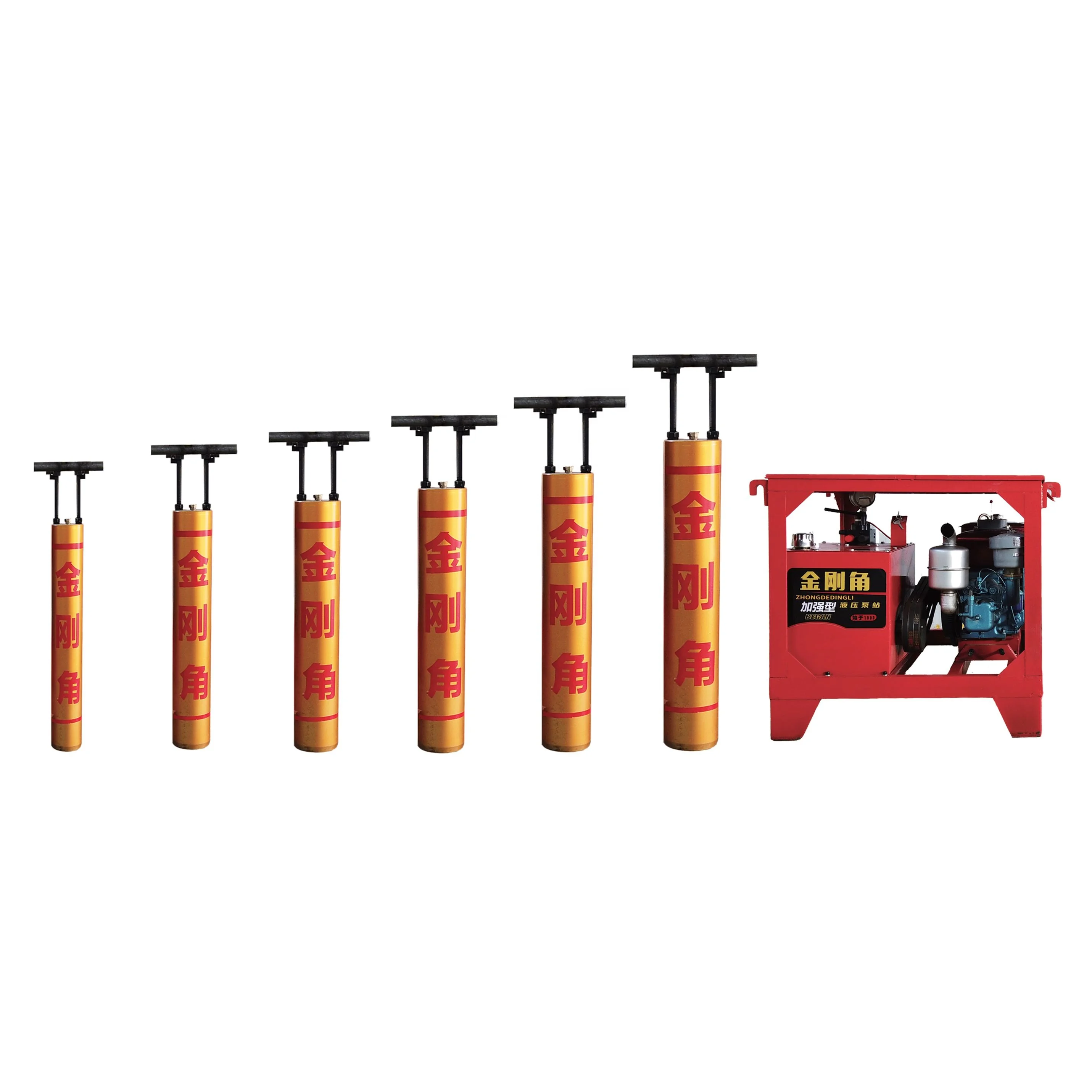

Dingli piston rock splitter is mainly composed of a hydraulic power unit, 1-6 splitters and a set of high pressure and low pressure hydraulic tubing.
Specifications

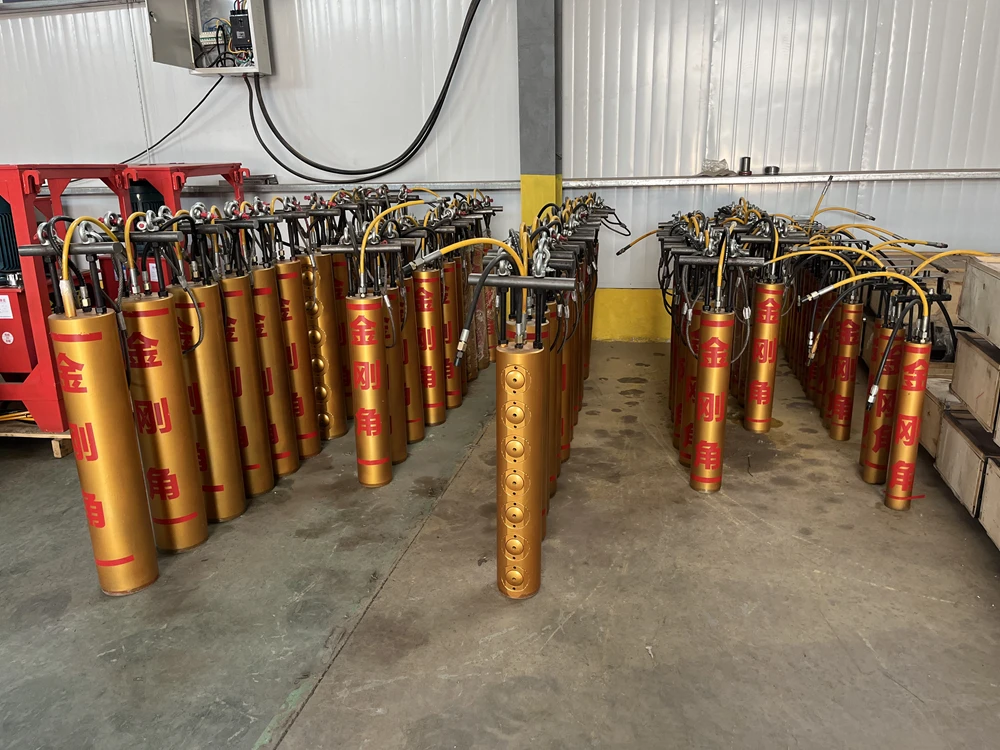

Piston Splitter | ||||||||||||||
Model | Unit | DL-90 | DL-110 | DL-130 | DL-150 | DL-180 | DL-220 | |||||||
Diameter | mm | 85 | 105 | 125 | 145 | 175 | 215 | |||||||
Length | mm | 640 | 720 | 750 | 780 | 1020 | 1120 | |||||||
Piston diameter | mm | 50 | 60 | 70 | 80 | 100 | 110 | |||||||
Piston max stroke | mm | 25 | 34 | 38 | 48 | 56 | 70 | |||||||
Drill hole diameter | mm | 90 | 110 | 130 | 150 | 180 | 220 | |||||||
Drill hole depth | mm | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | |||||||
Splitting force theoretical | ton | 1580 | 2160 | 2550 | 3070 | 3680 | 4210 | |||||||
Splitting force effective | ton | 1500 | 2000 | 2400 | 2900 | 3500 | 4100 | |||||||
Weight | kg | 31 | 46 | 55 | 76 | 127 | 213 | |||||||

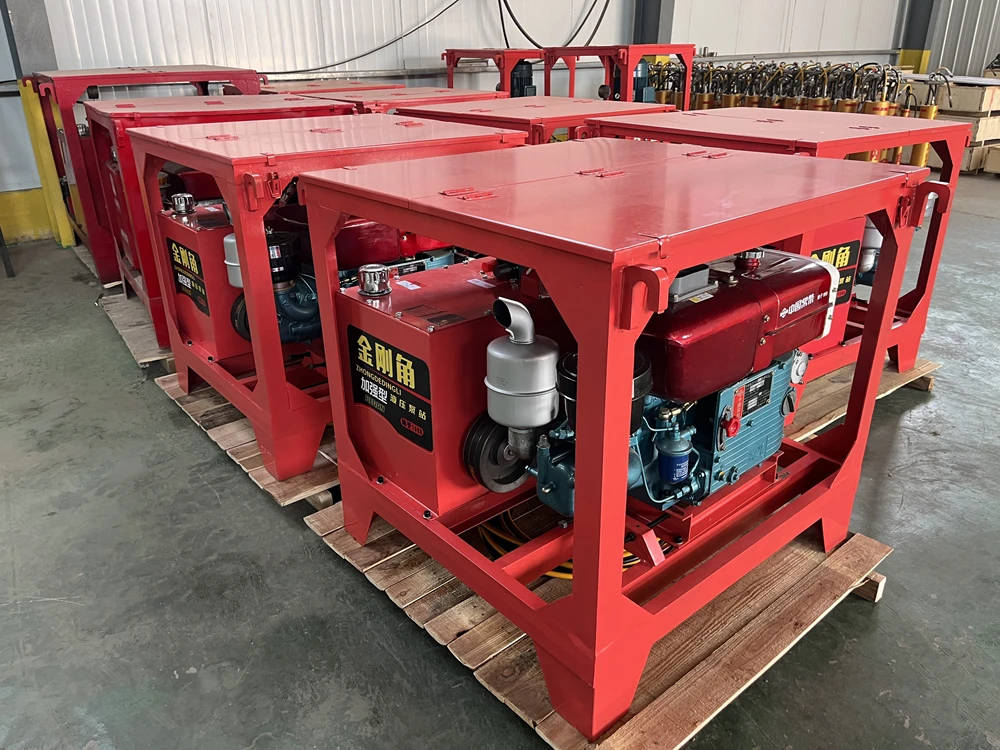

Hydraulic power unit | ||||||||
Diesel hydraulic power unit | Electric hydraulic power unit | |||||||
Power | 15HP/11KW | 7.5KW | ||||||
Rated Pressure | 100Mpa | 100Mpa | ||||||
Peak Pressure | 150Mpa | 150Mpa | ||||||
Low-pressure flow | 10L/min | 8L/min | ||||||
High-pressure flow | 4.5L/min | 3.8L/min | ||||||
Operation Temp | -20℃~85℃ | -20℃~85℃ | ||||||
Oil Tank Volume | 100L | 100L | ||||||
Diesel Tank Volume | 10L | - | ||||||
Weight | 315Kg | 185Kg | ||||||
Dimensions | 1100*1015*980mm | 950*830*1250mm | ||||||

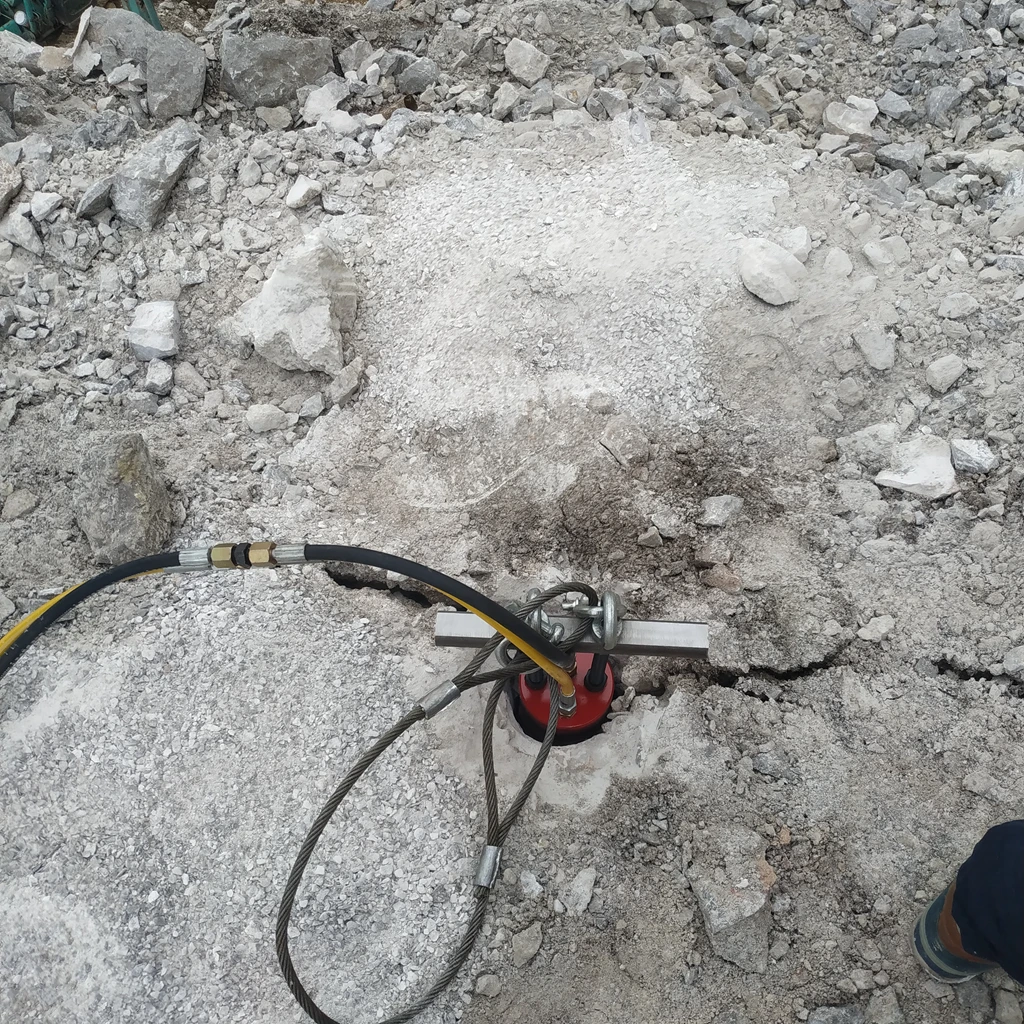

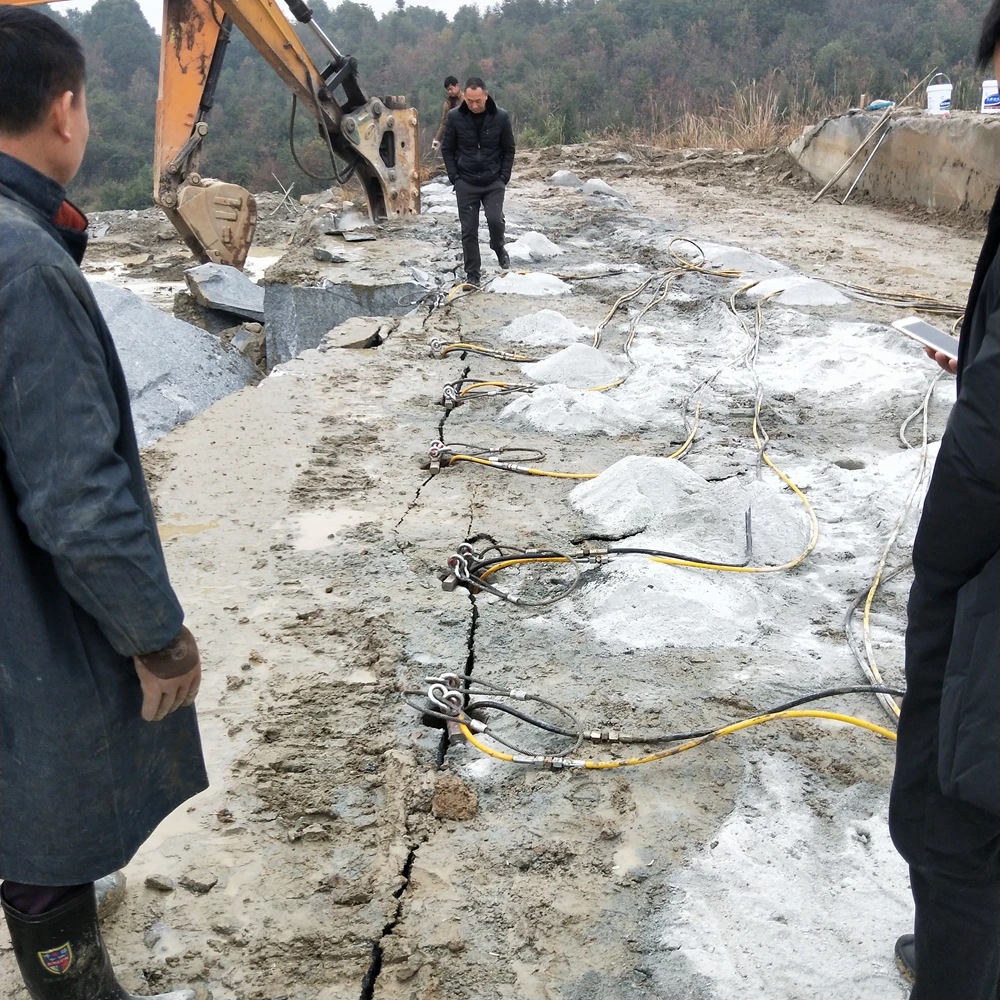

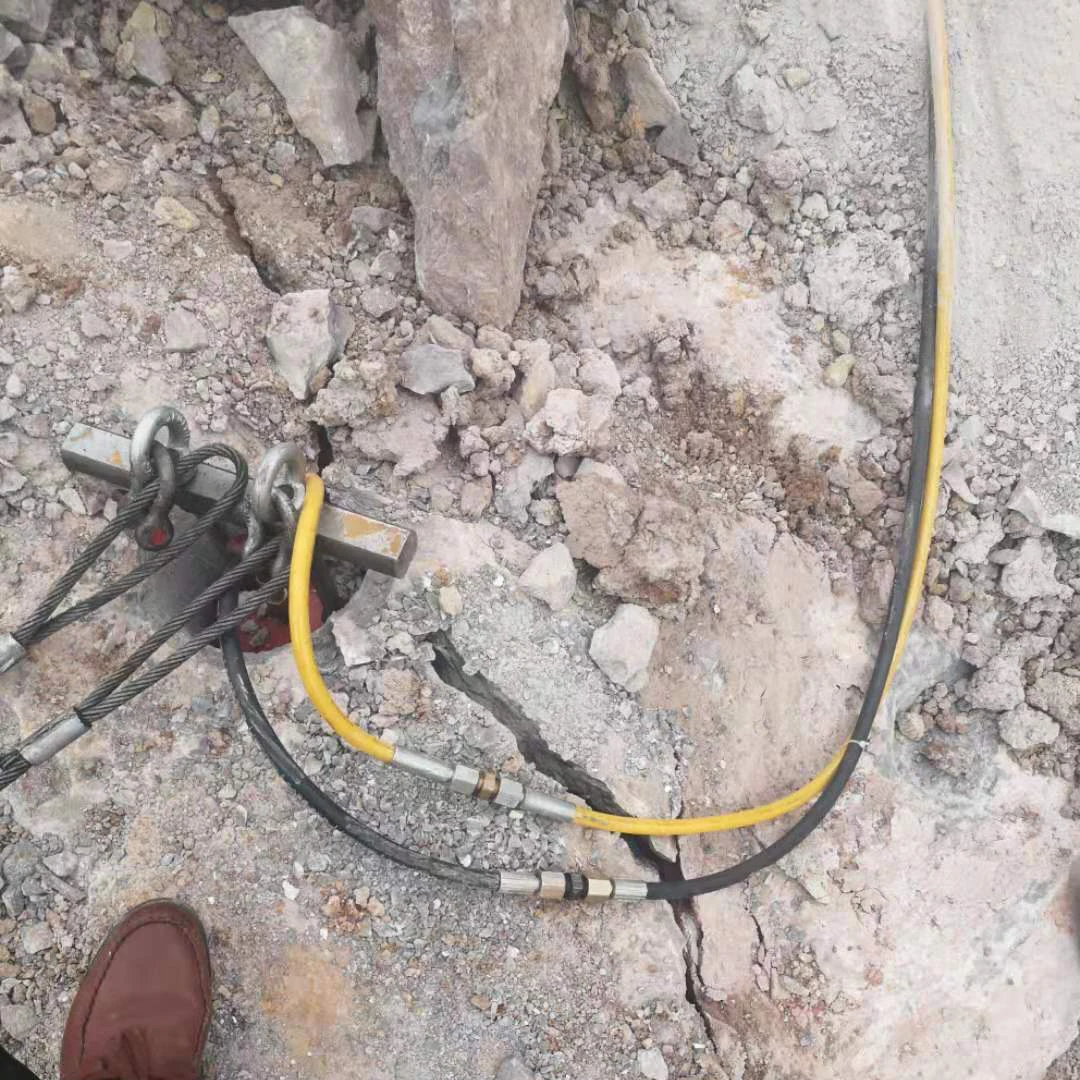

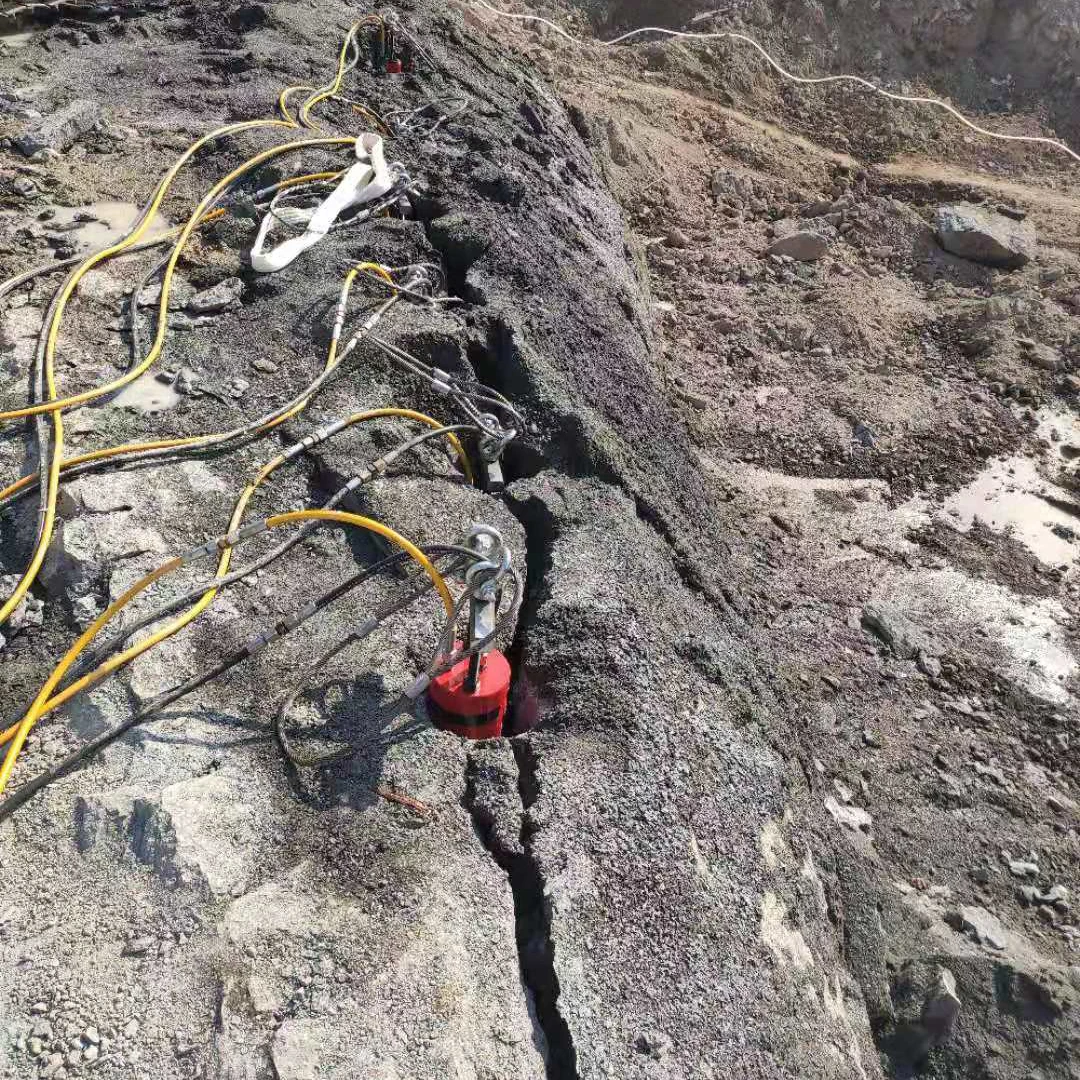

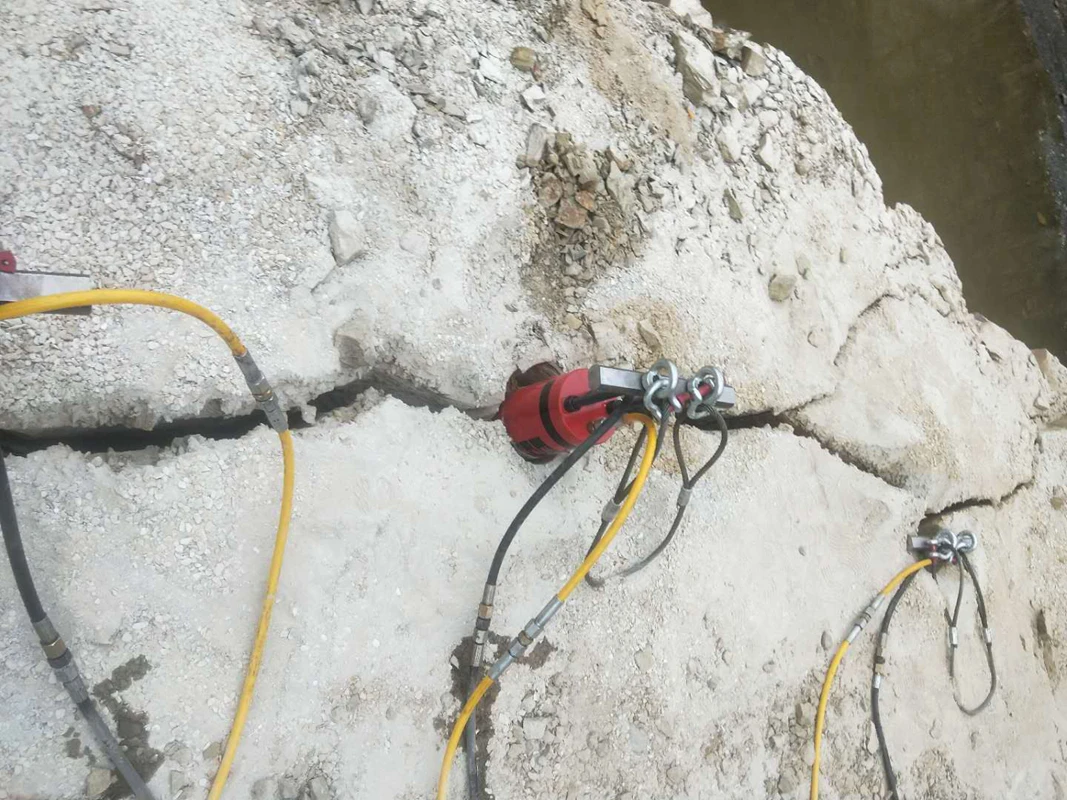

Product Images
Working Principle

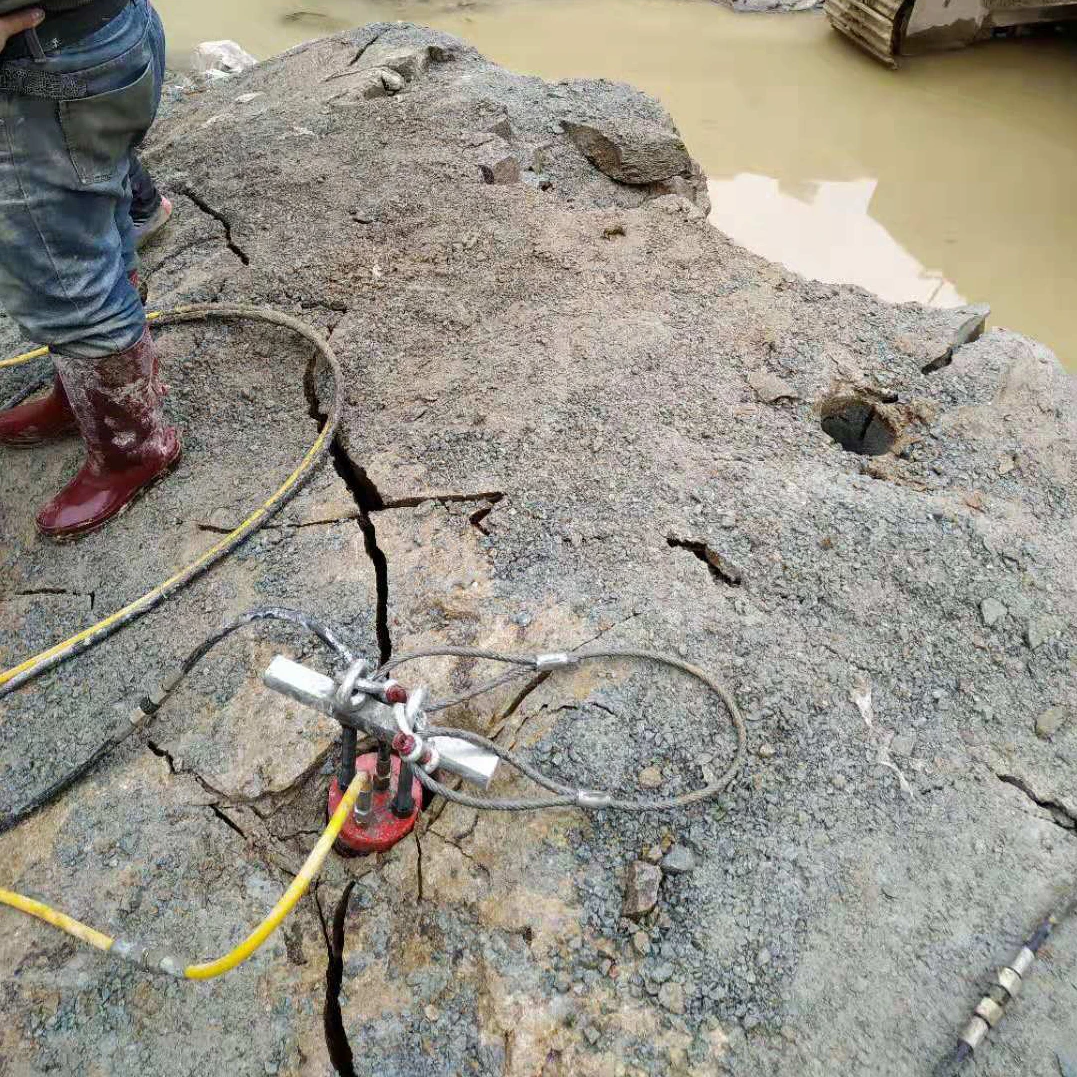

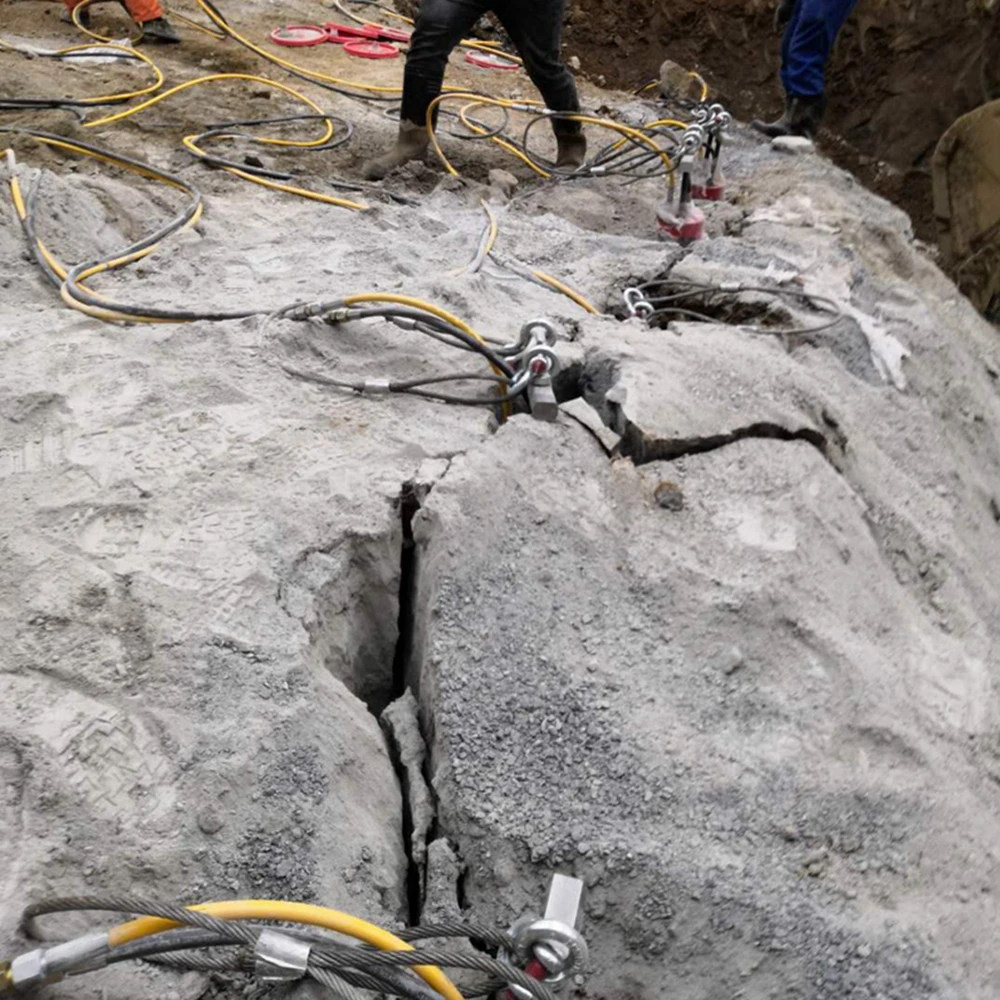

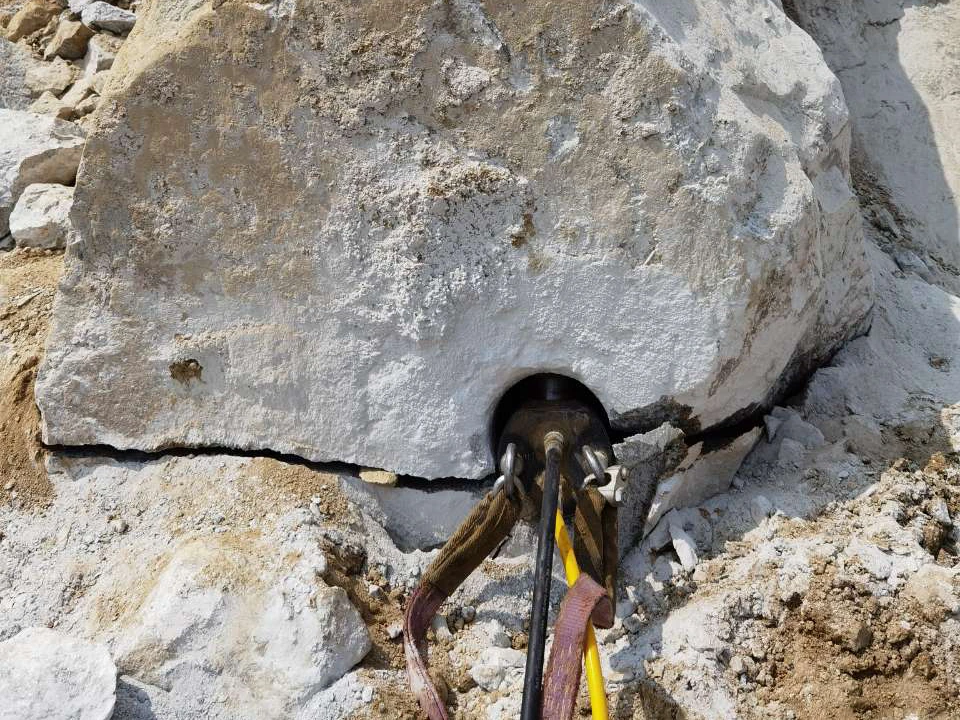

Usually, broken objects (such as concrete and rock) have high compressive strength, but low tensile strength. Dingli piston rock splitting machine takes advantage of its low tensile strength. Drill holes in the rock in advance during construction, put the splitter into the hole, and the hydraulic oil output by the hydraulic power unit is mechanically amplified by the booster, which drives the piston in the splitter to generate huge driving force and push the splitter The piston in the middle stretches out, and the splitting force can reach thousands of tons in an instant. The hard rock can be easily split from the inside in about 2 minutes and can be split in a predetermined direction to achieve the purpose of expansion, crushing, and excavation.
Applications
Company Information
About Us
Shanxi Zhongde Dingli Machinery Manufacturing Group, established in 2000, is a company specializing in the manufacture, supply and service of mining construction machinery. Our main products include rock splitters, excavator converted drilling rigs, pile breakers, carbon dioxide rock breaking systems and related accessories. For more than 20 years, our products have been widely used in mining, quarrying, road construction, construction, tunnels, subways, underground mines and other fields. We take pride in the quality of our customer service and ensure fast on-time delivery to meet your urgent requirements. We are always on call to serve you, and we promise to go the extra mile to meet our customers’ current and future needs.
