1 CBM Per Day Mini Domestic Sewage Treatment PE Purification Tank For 3 Households
- Category: >>>
- Supplier: Wuxi Ewater Water Treatment Co. Ltd.
Share on (1600799480730):
Product Overview
Description
Water Purification Tank/
Johkasou

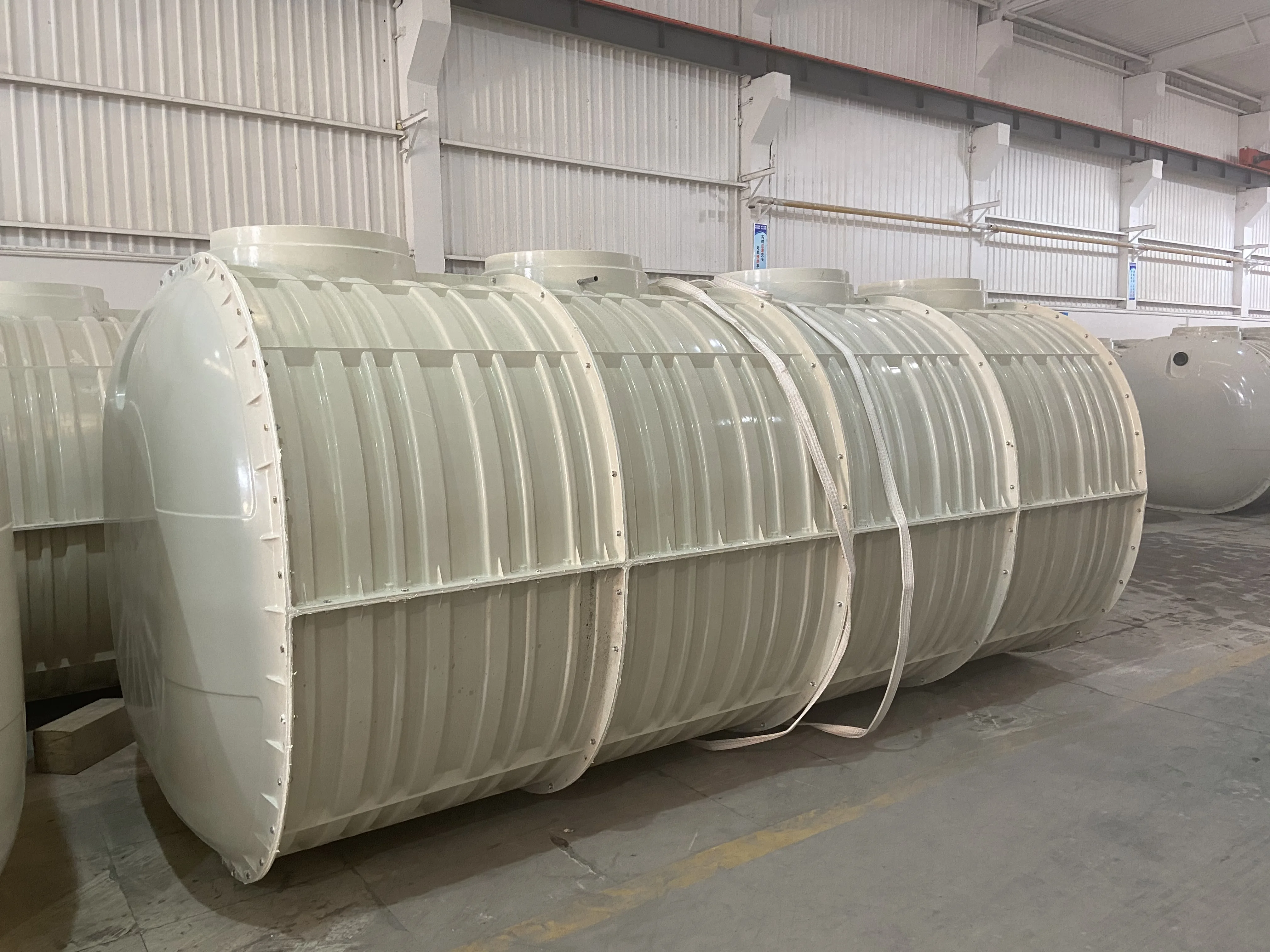

EW series purification tank(aka Johkasou translated from Japanese) is high-efficiency sewage purification equipment with the function of nitrogen and phosphorus removal based on the A/A/O process.

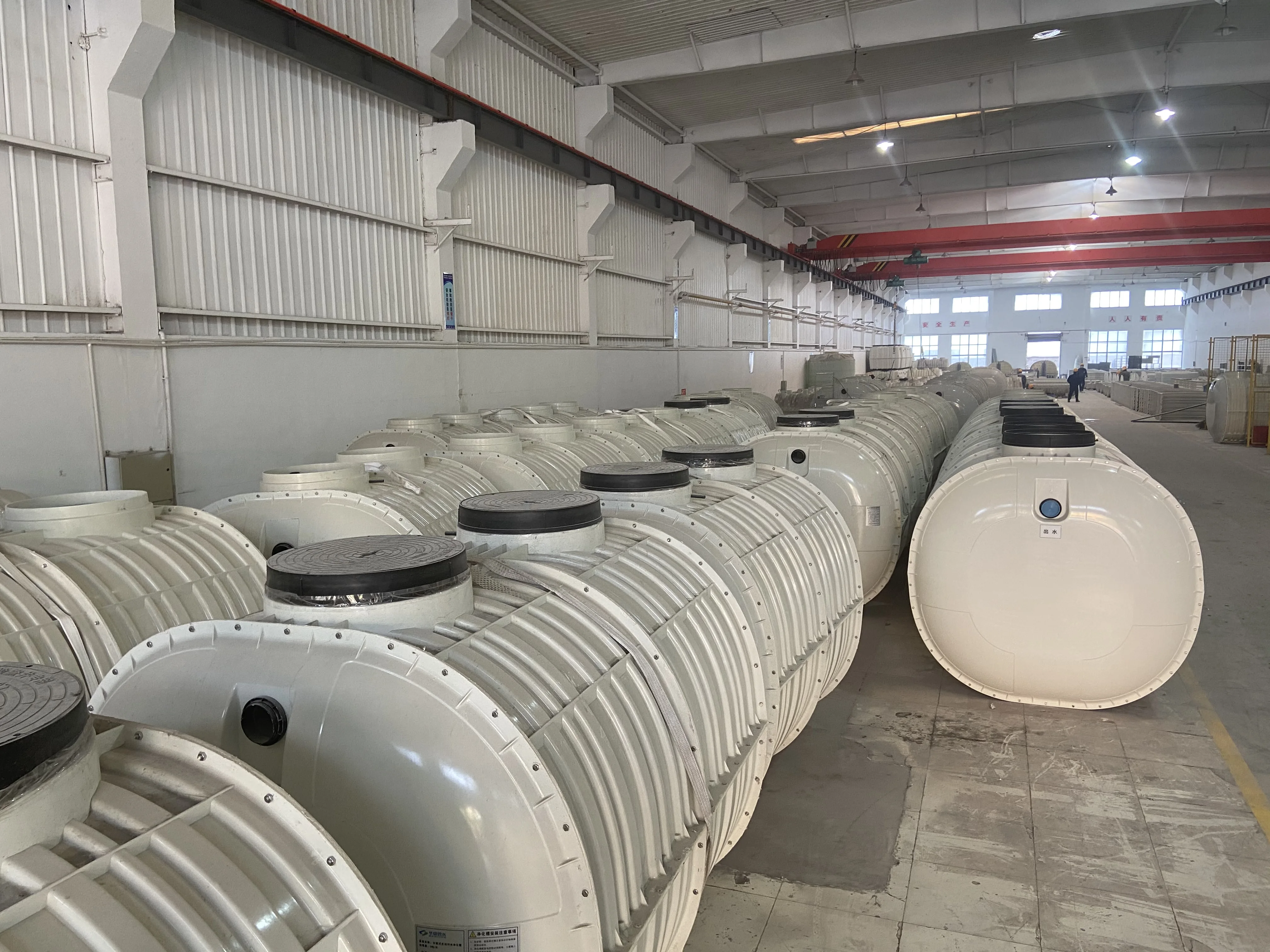

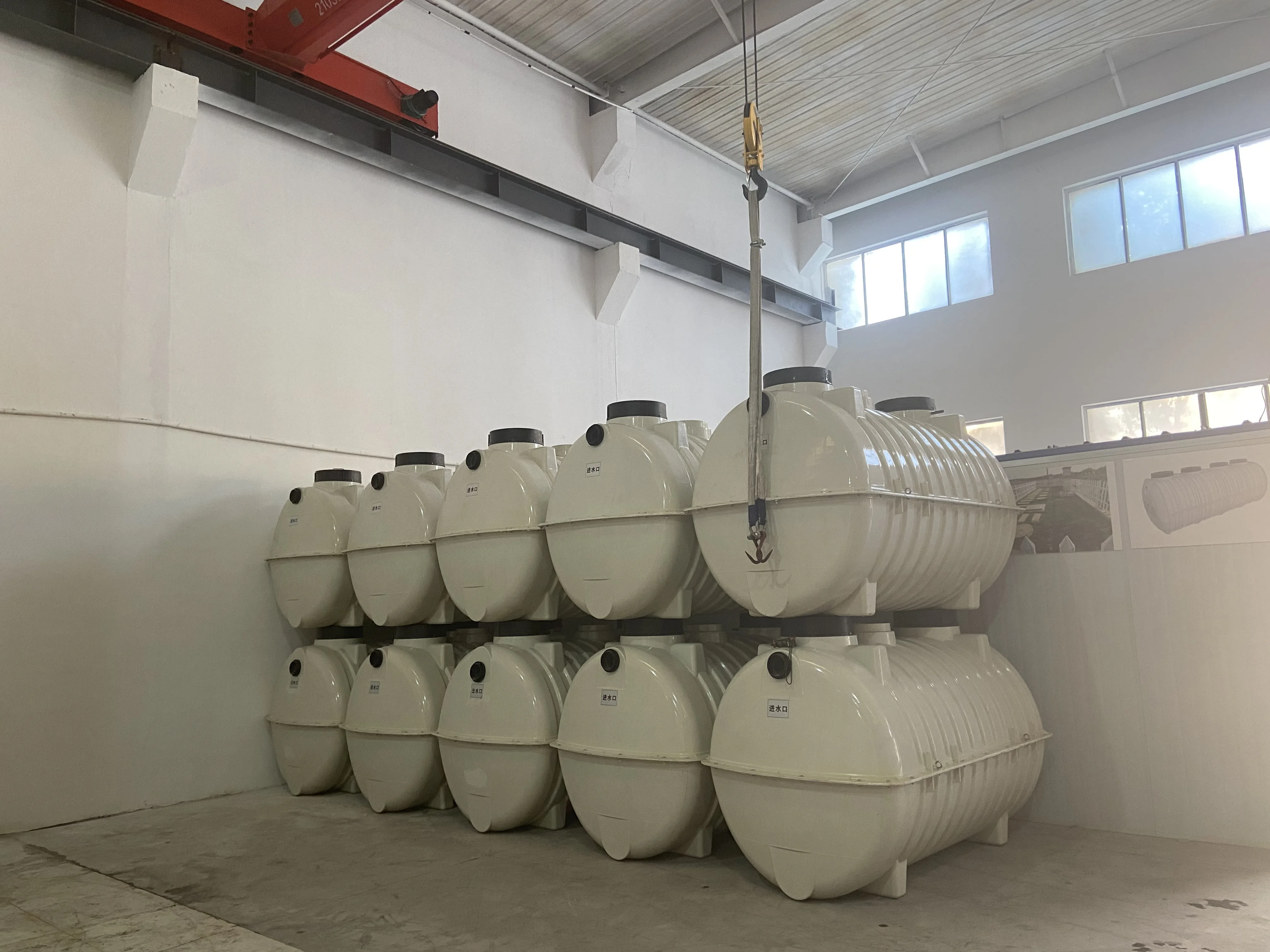

The tank body is formed by SMC molding process at one time, which is easy to assemble and efficient with a long service life up to 30 years. The processing capacity is 1-100 tons/day.
* High structural strength and corrosion resistance, 30 years life.
* Unique water distribution system ensure no blind spots or short flow, with large effective volume.
* Patented technology to provide a reliable environment for microbial growth.
* The system starts quickly, impact load, and has a small amount of sludge.
* SMC molding process is one-time molding, simple and efficient assembly, simple and easy for installation.
* Unique water distribution system ensure no blind spots or short flow, with large effective volume.
* Patented technology to provide a reliable environment for microbial growth.
* The system starts quickly, impact load, and has a small amount of sludge.
* SMC molding process is one-time molding, simple and efficient assembly, simple and easy for installation.
Model | Capacity (m3/d) | Dimension (mm) | Manhole Size (mm) | Power (W) | Forming Process |
EW-1 | 1 | 2400*1300*1400 | φ400*2 | 45 | SMC Molding |
EW-2 | 2 | 2130*1150*1650 | φ630*2 | 55 | SMC Molding |
EW-5 | 5 | 2420*2010*2000 | φ630*2 | 110 | |
EW-8 | 8 | 3420*2010*2000 | φ630*3 | 110 | |
EW-10 | 10 | 4420*2010*2000 | φ630*4 | 170 | |
EW-15 | 15 | 5420*2010*2000 | φ630*5 | 220 | |
EW-20 | 20 | 7420*2010*2000 | φ630*6 | 350 | |
EW-30 | 30 | 10420*2010*2000 | φ630*6 | 470 | |
EW-50 | 50 | φ2500*10500 | φ630*6 | 1500 | Winding FRP |
EW-100 | 100 | φ3000*13500 | φ630*6 | 3000 |

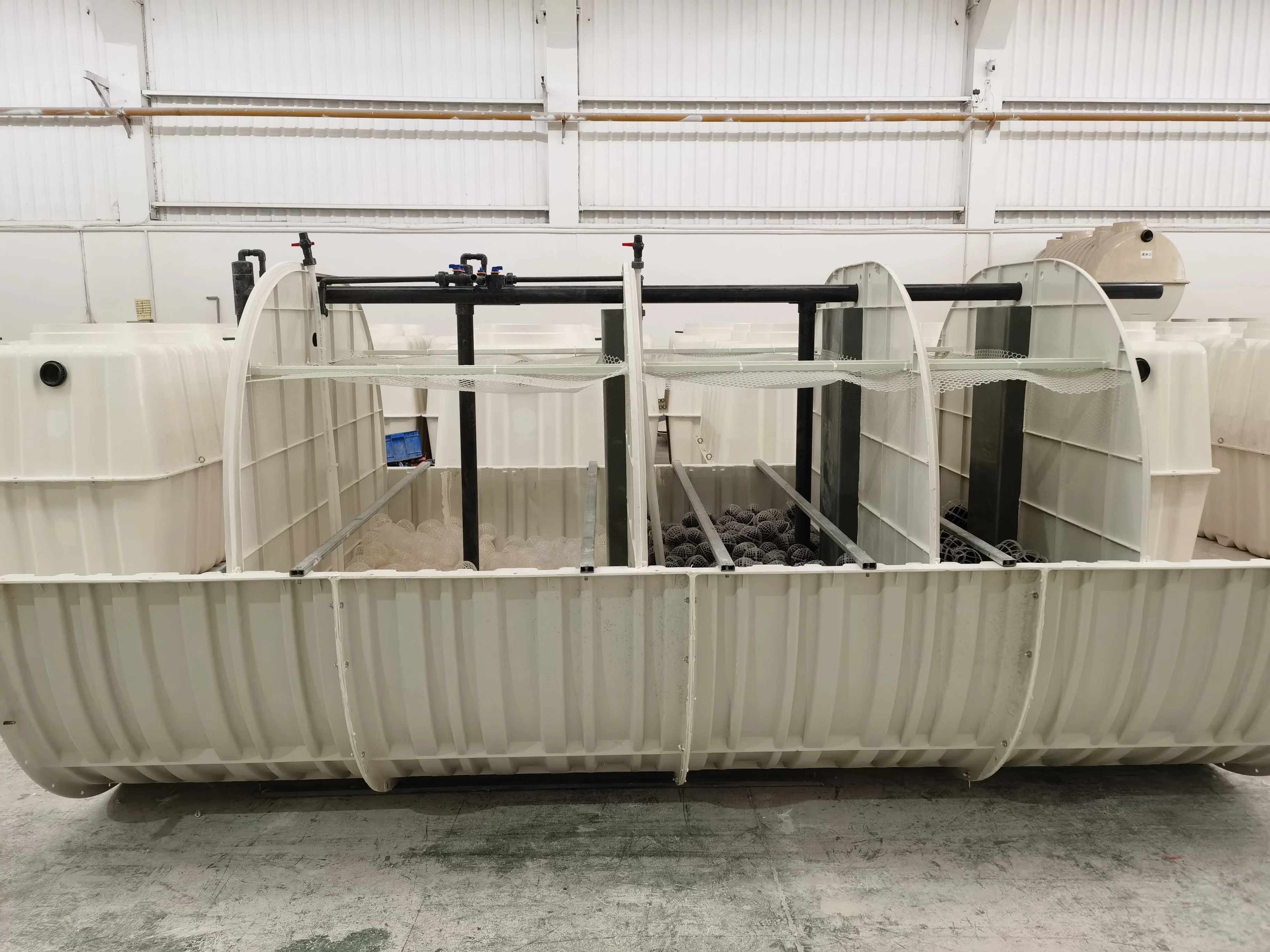

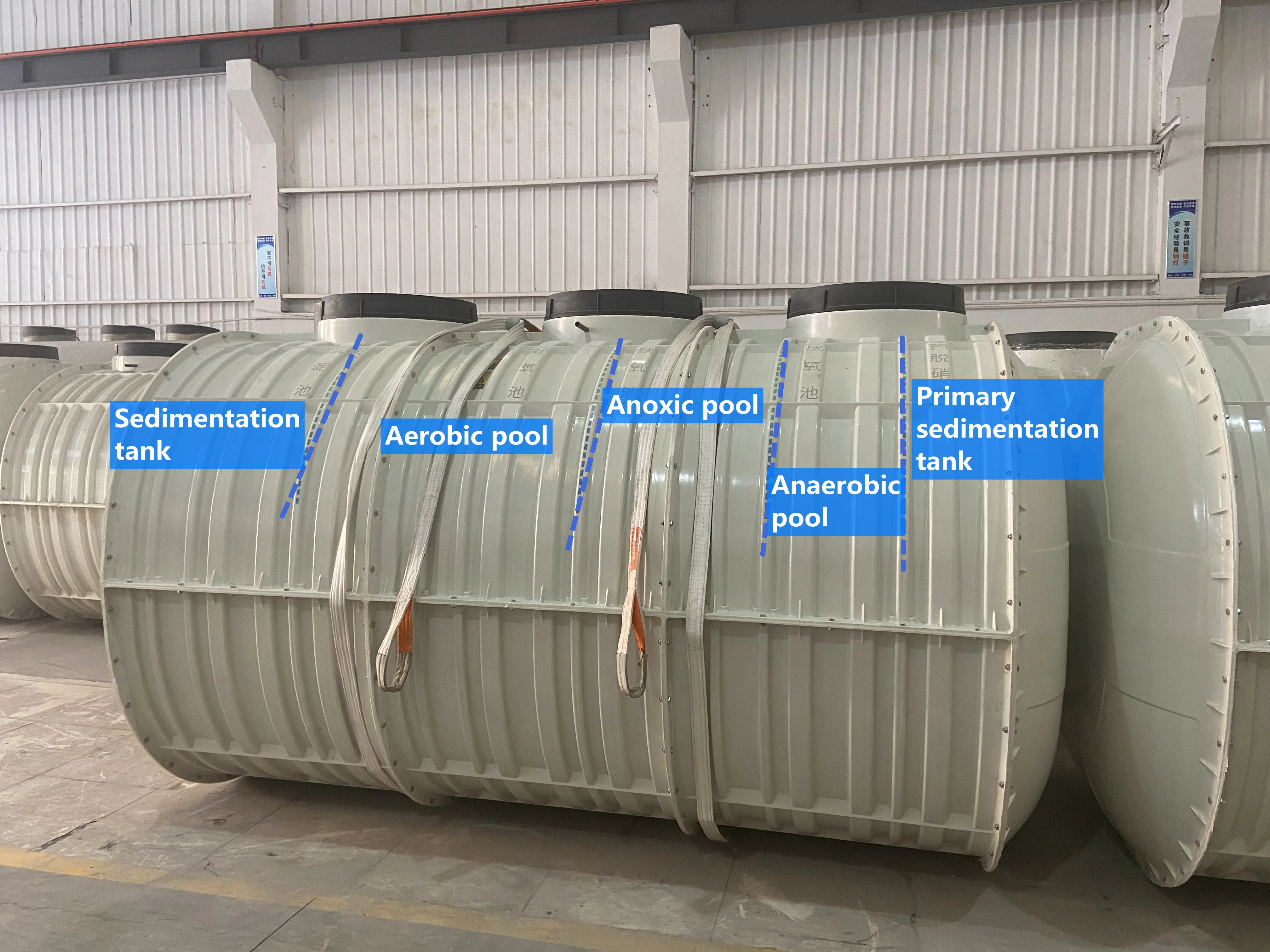

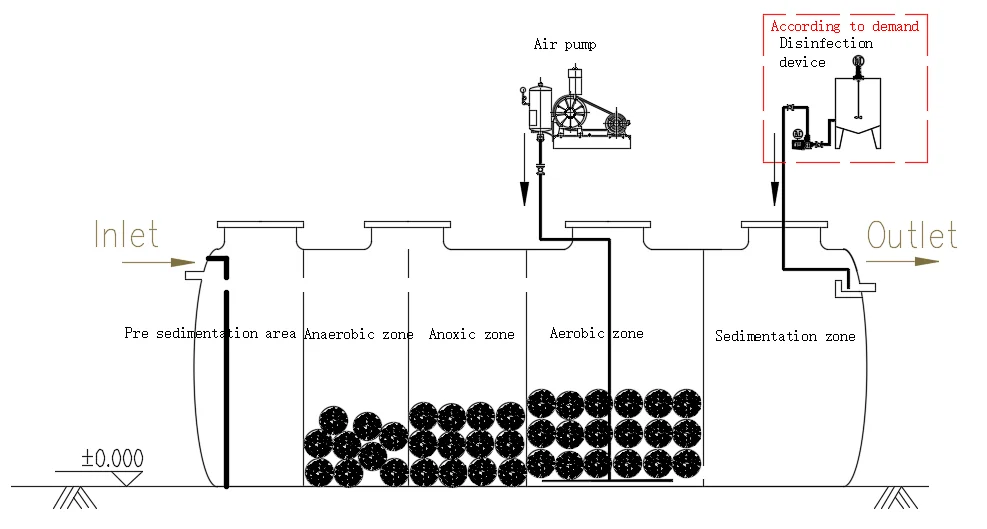

Pre Sedimentation Zone
* Remove coarse suspended particles.
Anaerobic Zone
* Use anaerobic bacteria to degrade the concentration of organic matter in sewage.
Anoxic Zone
* Remove nitrogen.
Aerobic Zone
* Using aerobic bacteria, the activated sludge generated under the condition that the air pump provides sufficient oxygen absorbs and degrades organic matter.
Sedimentation Zone
* Using the action of gravity, the biological residues and some organic and inorganic particles that have died and fallen off during the aforementioned biochemical process are removed, and the settled sludge is returned to the anaerobic zone. For the effluent of the effluent weir in the sedimentation zone, if there is a requirement for bacterial content control, a set of disinfection dosing device (sodium hypochlorite or other disinfectant) can be installed to kill the bacteria below the required standard; the sludge deposited at the bottom, every other 3-6 months after being pulled out by the suction truck, it can be used as fertilizer for crops.
* Remove coarse suspended particles.
Anaerobic Zone
* Use anaerobic bacteria to degrade the concentration of organic matter in sewage.
Anoxic Zone
* Remove nitrogen.
Aerobic Zone
* Using aerobic bacteria, the activated sludge generated under the condition that the air pump provides sufficient oxygen absorbs and degrades organic matter.
Sedimentation Zone
* Using the action of gravity, the biological residues and some organic and inorganic particles that have died and fallen off during the aforementioned biochemical process are removed, and the settled sludge is returned to the anaerobic zone. For the effluent of the effluent weir in the sedimentation zone, if there is a requirement for bacterial content control, a set of disinfection dosing device (sodium hypochlorite or other disinfectant) can be installed to kill the bacteria below the required standard; the sludge deposited at the bottom, every other 3-6 months after being pulled out by the suction truck, it can be used as fertilizer for crops.

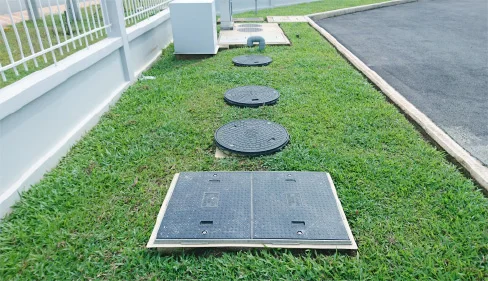

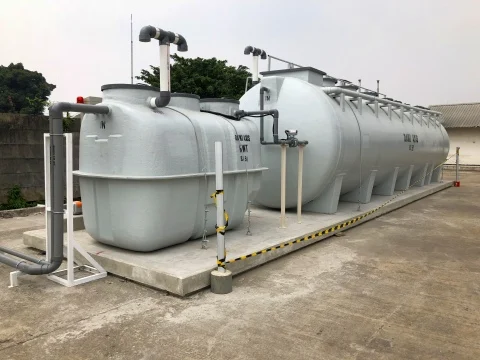

Johkasou can be buried under the ground or placed on the ground.
① Small and medium-sized domestic sewage treatment in rural areas
② Small and medium-sized sewage treatment in restaurants, hotels, etc.
③ Point source sewage treatment in suburban areas
④ Closed and semi-closed sensitive water body sewage treatment
④ Biochemical sewage treatment in scenic spots
⑤ Drinking water source protection ecological protection area sewage treatment
⑥ Temporary land plots such as villages in cities and construction sites to be demolished
⑦ Expressway intersections, high-speed service areas, etc. are difficult to cover by the entire sewage pipe network
