TEC1 04901/04902/04903/04904/04905/04906 low power 5V 1A/5W semiconductor cooling Refrigerator thermoelectric peltier chip
- Category: >>>
- Supplier: Shenzhen Cxcw Electronic Co. Ltd.
Share on (1600799485485):
Product Overview
Description

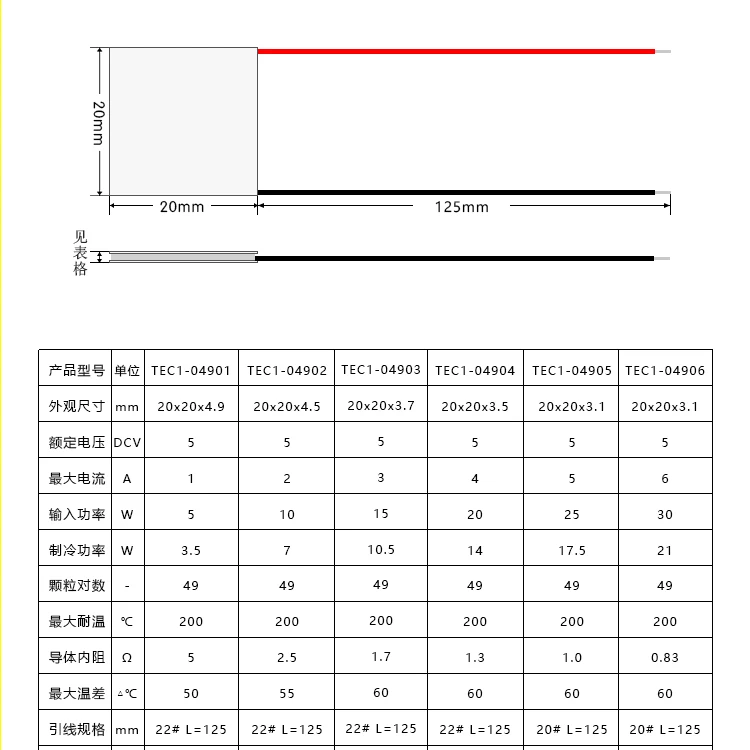

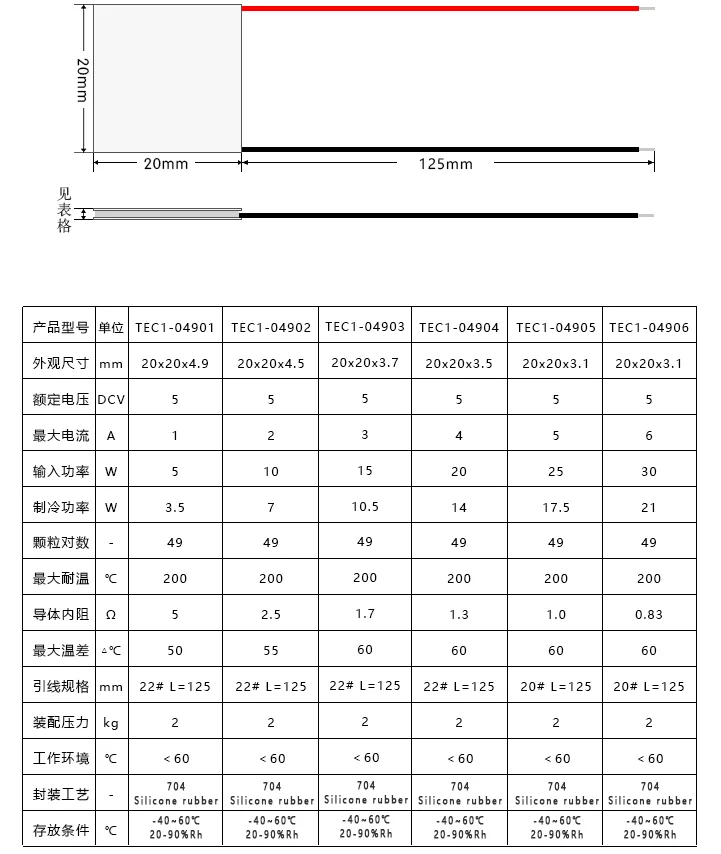

TEC1-04901/04902/04903/04904/04905/04906 low power 5V 1A/5W semiconductor cooling Refrigerator thermoelectric peltier chip
| Name | Umax(V) | Tmax(A) | Qmax(K/C degree) | R(om) | Size(mm) |
| TEC1-12701 | 12 | 1 | 12 | 60 | 40*40*5 |
| TEC1-12702 | 12 | 2 | 24 | 65 | 40*40*4.2 |
| TEC1-12703 | 12 | 3 | 36 | 65 | 40*40*4.2 |
| TEC1-12704 | 12 | 4 | 48 | 65 | 40*40*4.0 |
| TEC1-12705 | 12 | 5 | 60 | 65 | 40*40*3.9 |
| TEC1-12706 | 12 | 6 | 72 | 65 | 40*40*3.7 |
| TEC1-12708 | 12 | 8 | 96 | 65 | 40*40*3.6 |
| TEC1-12710 | 12 | 10 | 120 | 65 | 40*40*3.5 |
| TEC1-12712 | 12 | 12 | 144 | 65 | 40*40*3.4 |
| TEC1-12715 | 12 | 15 | 180 | 65 | 40*40*3.3 |
Chip Type: TEC1-12712
Overall dimensions: 40 * 40 * 3.3mm
Number of pairs of components 127 pairs
Wire specifications: lead length 200 ± 8mm RV standard single-headed wire 5mm tin
Internal resistance: 1.0 ~ 1.1Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test)
Maximum temperature difference: above 62 ℃
Operating current: Imax = 9.5A (maximum voltage 15.5V start 12A)
Rated voltage: DC12V (maximum voltage: 15.5V)
Cooling power: 114W (cooling surface temperature is too high will reduce the cooling power)
Assembling pressure: 85N / cm2
Working environment: Temperature range -55 ℃ ~ 83 ℃ (high ambient temperature will directly affect the cooling efficiency)
Packaging process: around the standard 704 silicone rubber seal
Packaging standards: foam box packaging, storage conditions Ambient temperature -10 ℃ ~ 40 ℃
Storage conditions: -40 ~ 60 ℃
Power requirements: a single voltage 12V, current 12A or more working power (can be used in series and parallel)
Device features: red cathode, black cathode (literal for the cooling surface, no literal for the cooling surface)
