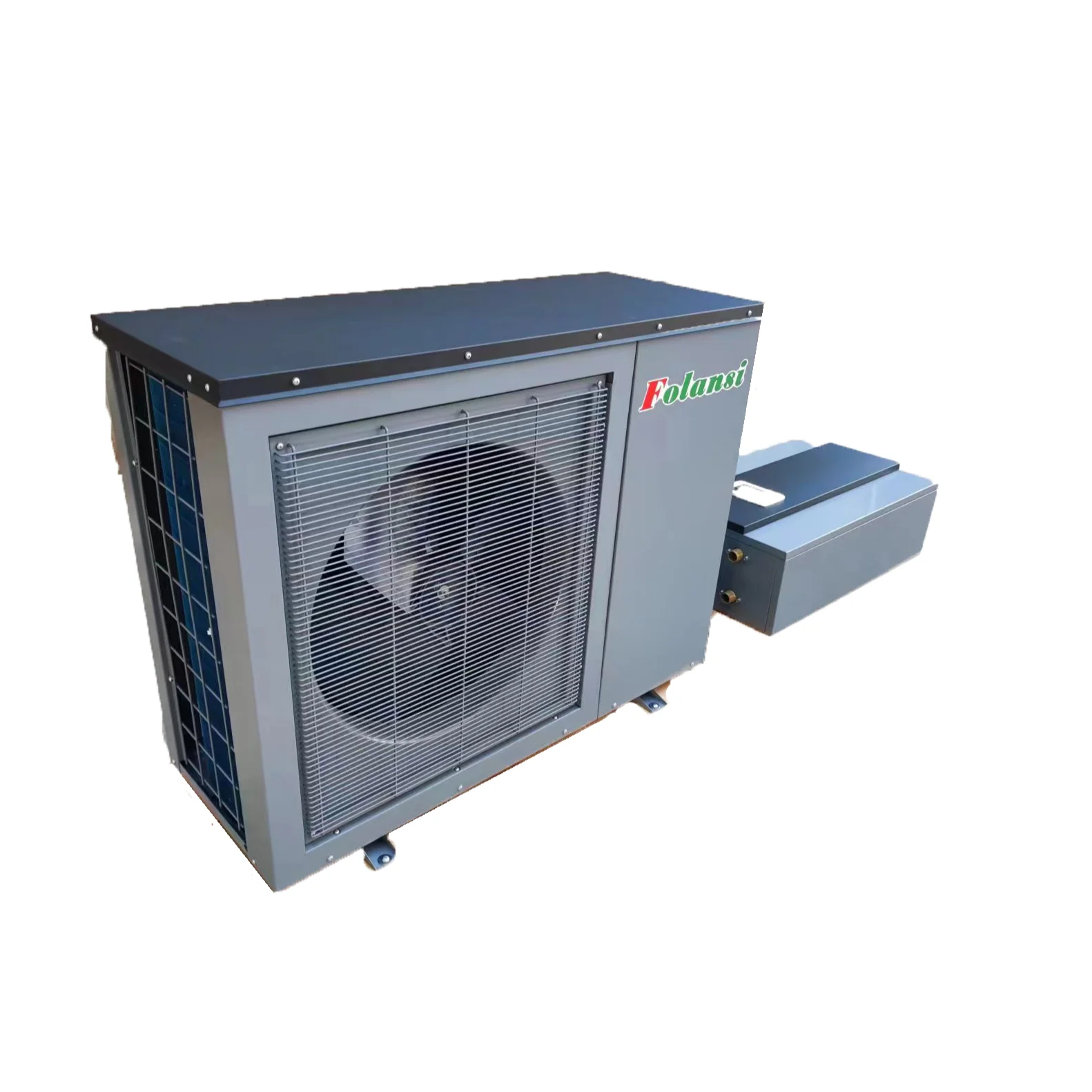

11kw DC Inverter Split Heat Pump Heating And Cooling Hot Water 240V WIFI Controlled

Product Overview

Description

Product Description:

-------------------------------------------------

	Model		FAD-03S-1
Technical parameters	Heating capacity*	KW	11
	Heating power input*	KW	2.02
	Heating capacity**	KW	7.4
	Heating power input**	KW	2.07
	Heating capacity***	KW	6.5
	Heating power	KW	2.22
	COP*		4.8
	COP**		3.58
	COP***		2.9
	Cooling capacity	KW	7.9
	Cooling power input	KW	2.49
	EER		3.17
	Max. water temp.	℃	60
	Rated water temp.	℃	55
	Water flow	m3/h	1.70
	Pressure drop	Kpa	22
	Net weight	kg	90
	TechnicalParameters
	Gross weight	kg	105
	Noise	dB(A)	46
	Pipe connection	mm	DN25
	Power supply		220~240V/1PH/50Hz
	Net size	mm	1110*450*850
	Package size	mm	1200*520*990

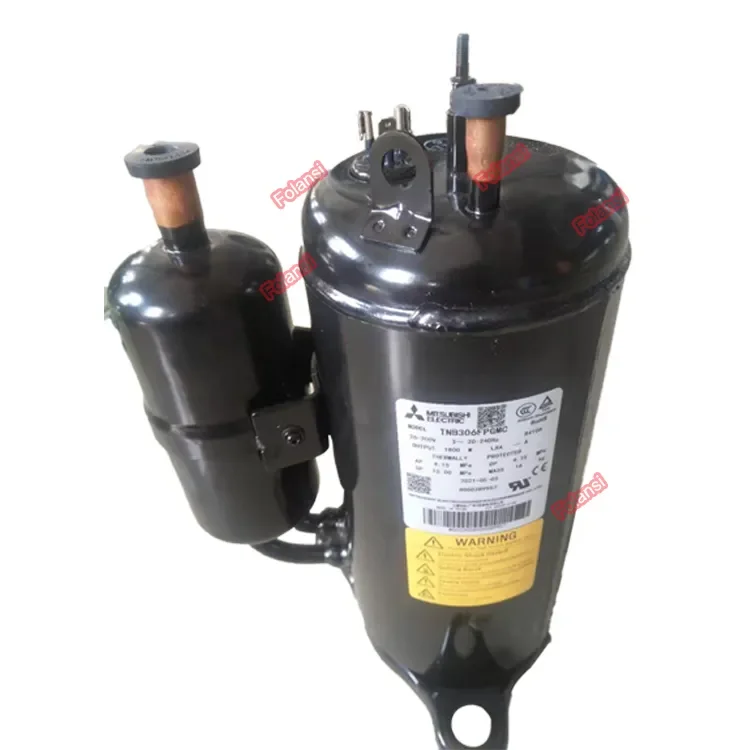

Standard features	Compressor	Brand	Mitsubishi
		Quantity	1

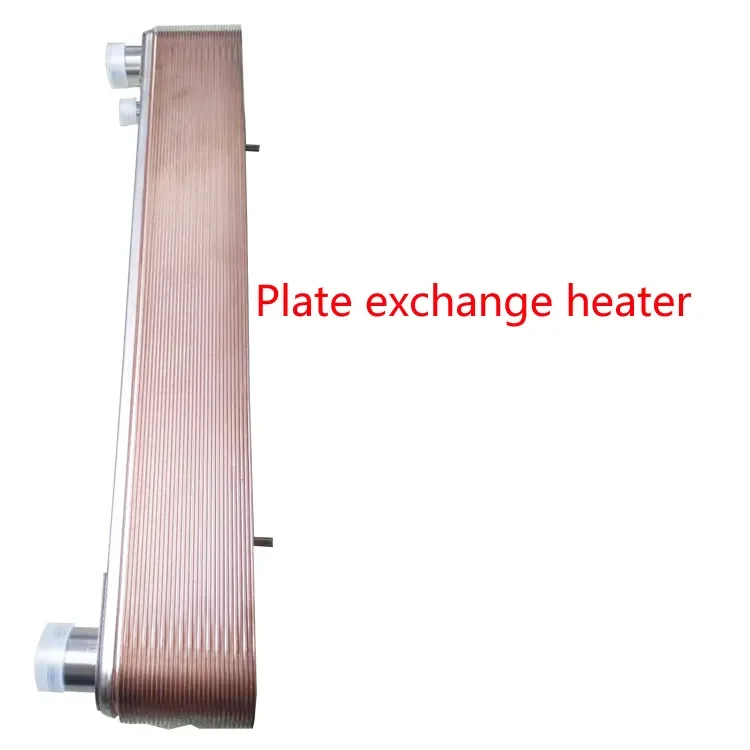

	Condenser		plate heat exchanger

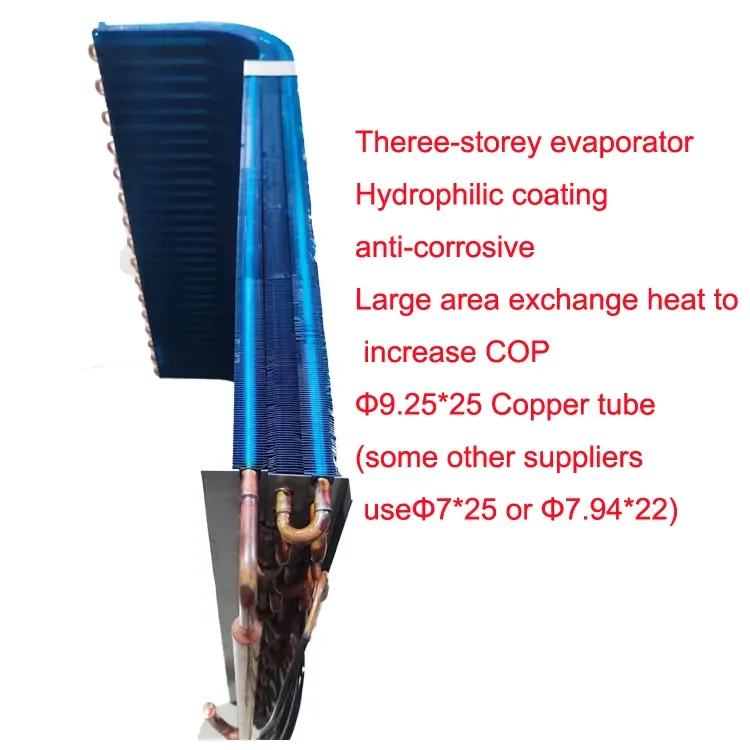

	Evaporator		Fin heat exchanger
	4-way valve		Dunan
	Flow switch		Yes
	Circulation pump		GreenPro high efficiency
	Expansion valve		Sanhua or Dunan

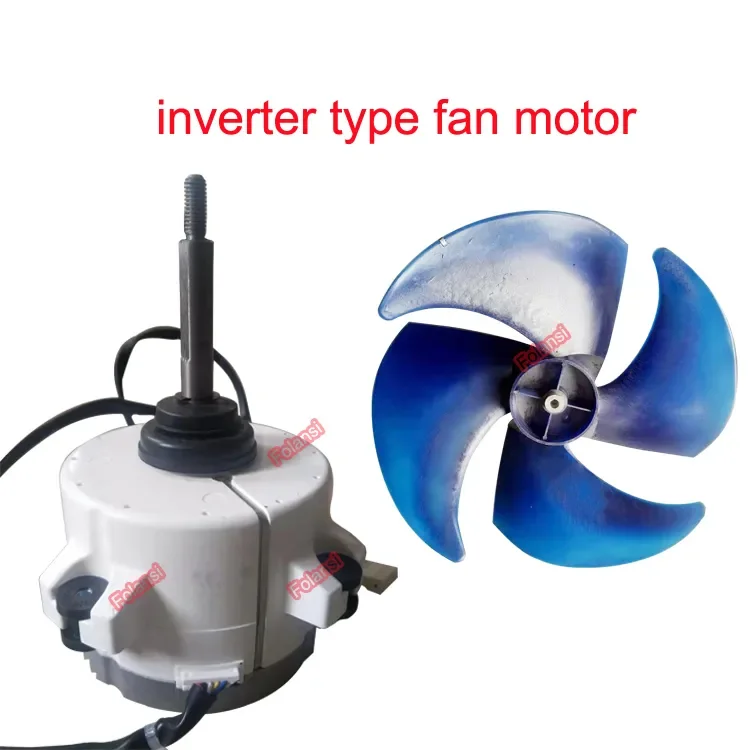

	Fan motor		90W

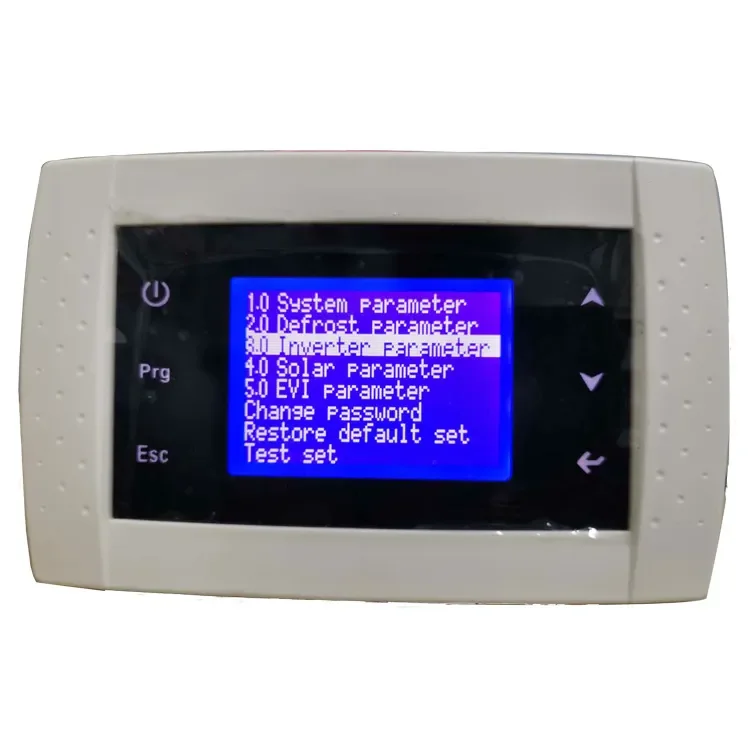

	Controller		LCD
	High pressure switch		4.2/3.6MPa
	StandardFeatures Low pressure switch		0.02/0.15MPa
	Working mode		Cooling, heating, hot water, cooling+hot water, heating+hot water
	Refrigerant		R410a
	expansion  tank		yes





 Remark
1,Working temp.:-25℃- 43℃
2,Test condition:
* Ambient temp.:7℃/6℃,inlet/ outlet water temp.:30℃/35℃;
** Ambient temp.:-2℃/-1℃,inlet/ outlet water temp.:30℃/35℃;
*** Ambient temp.:-15℃,inlet/ outlet water temp.:30℃/35℃;
