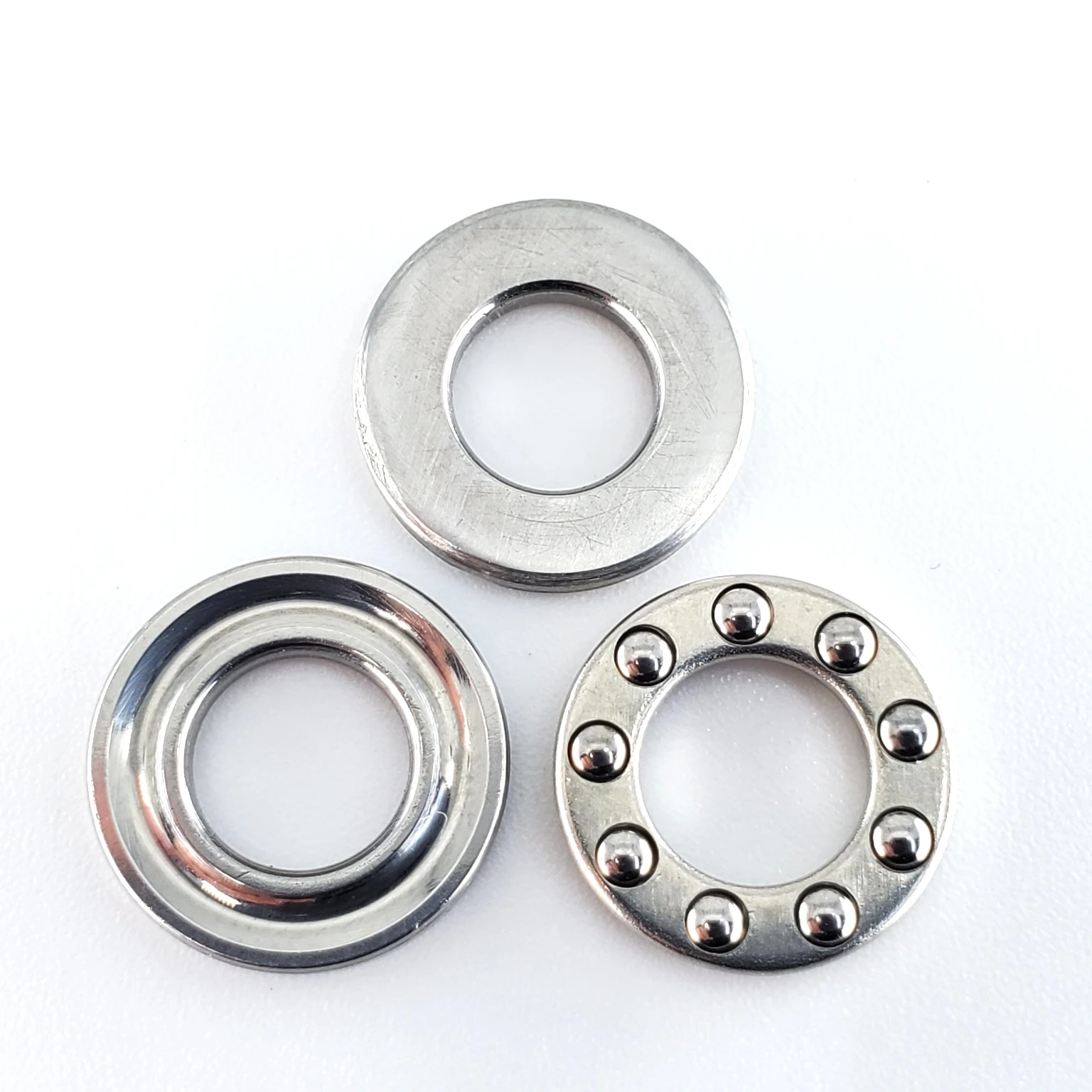

Axial miniature plane thrust ball bearing F9 17M

Product Overview

Description





C&H Axial miniature plane thrust ball bearing is a kind of roling bearing which bears axial load, its nominal contact angle is more than 45°the basic parts are shaft ring, seat ring and rolling body with or without cage.

• The unique ultra-precise research technologyof the groove of the plane bearing improves the performance of the bearing.


• The new process of hydrogen nitriding treatment on the surface of cage makes the tensile strength of cageincrease by 64%.


• High speed hot heading machine forgingtechnology is adopted to improve material utilization rate by 18%, producing a low noise and long life planar thrust balbearing.

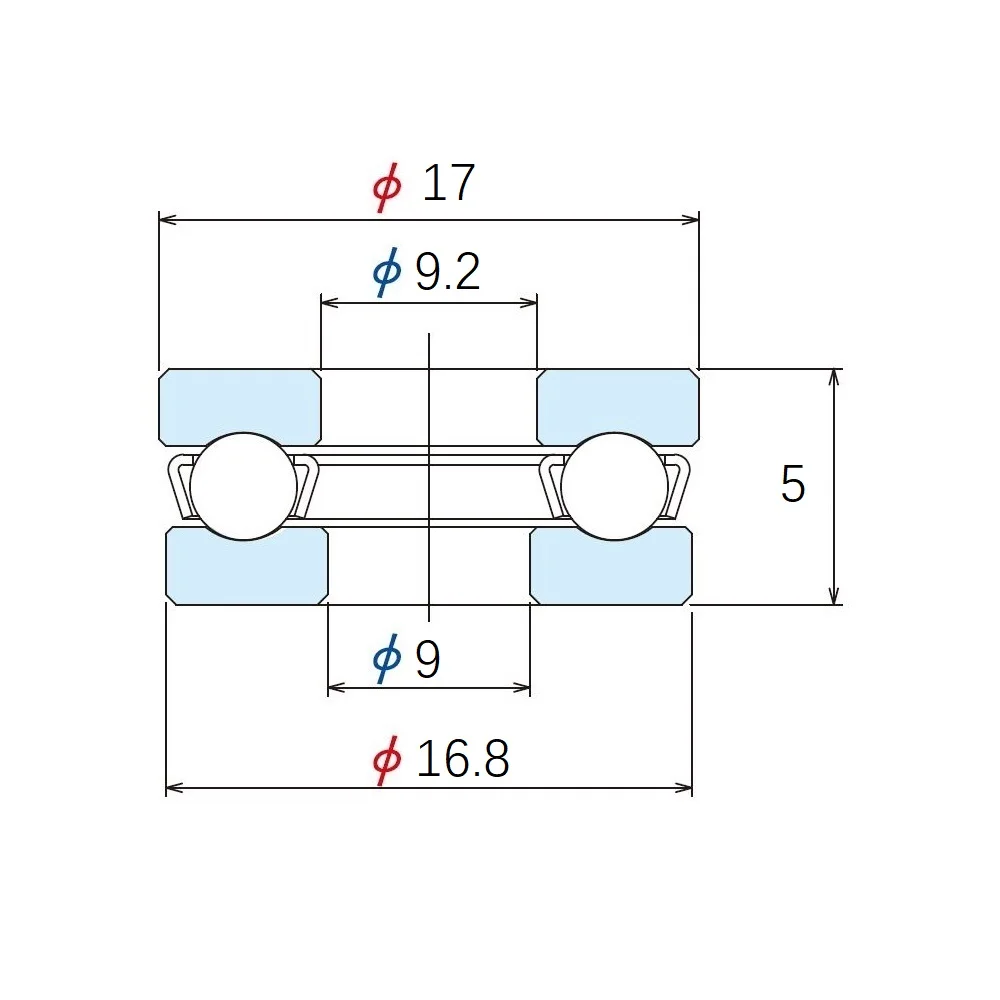

d - bore	9 mm
D - Outside diameter	17 mm
T - Width	5 mm
D1 - Inner Ring O.D.	9.2 mm
d1 - Outer Ring I.D.	16.8 mm
Weight	0.0045 kg

elevator parts/plastic machinerv/office eauipment/medical eauioment/steppina motors;

reduction andspeed change devices/pressure rotors/fitness and sports equipment.
