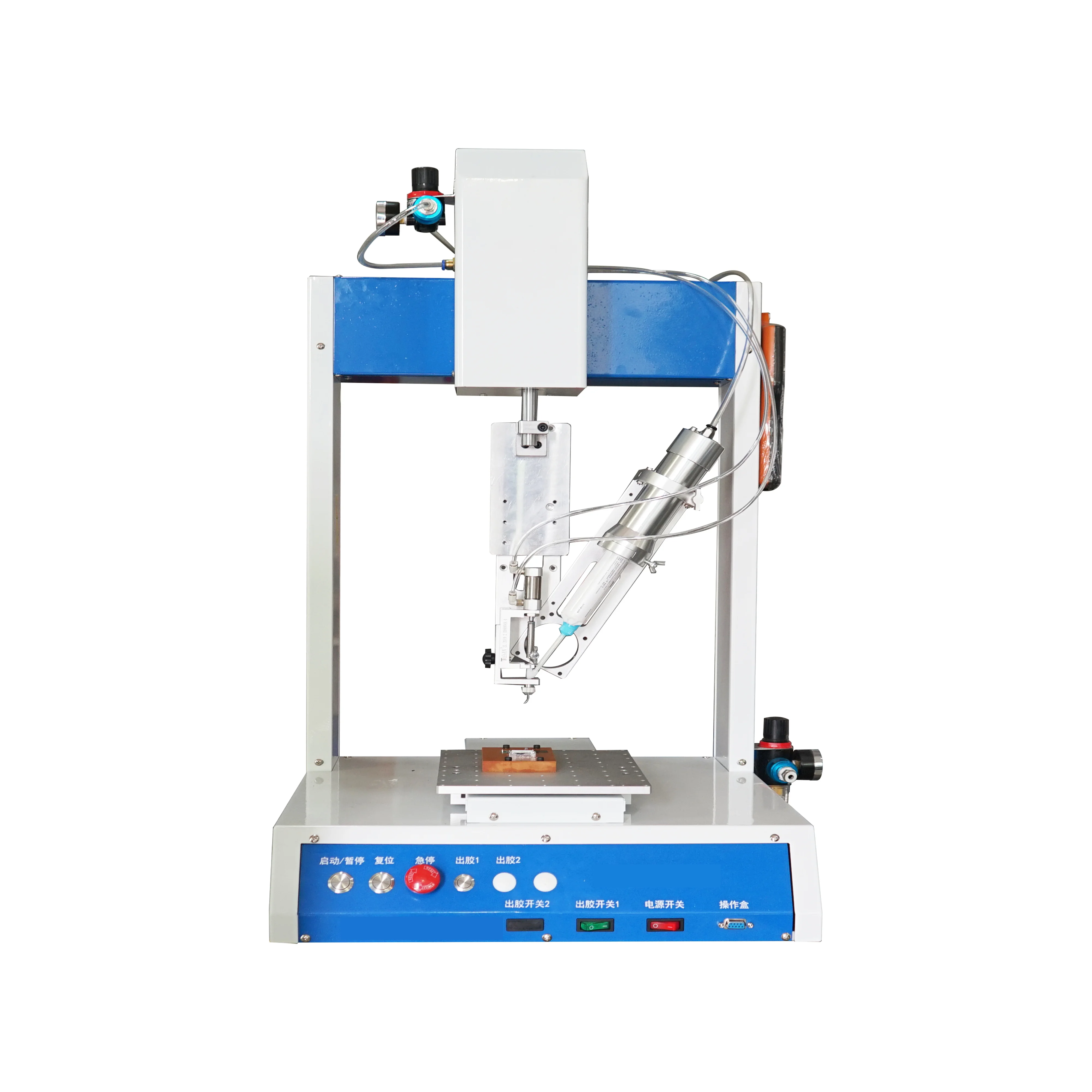

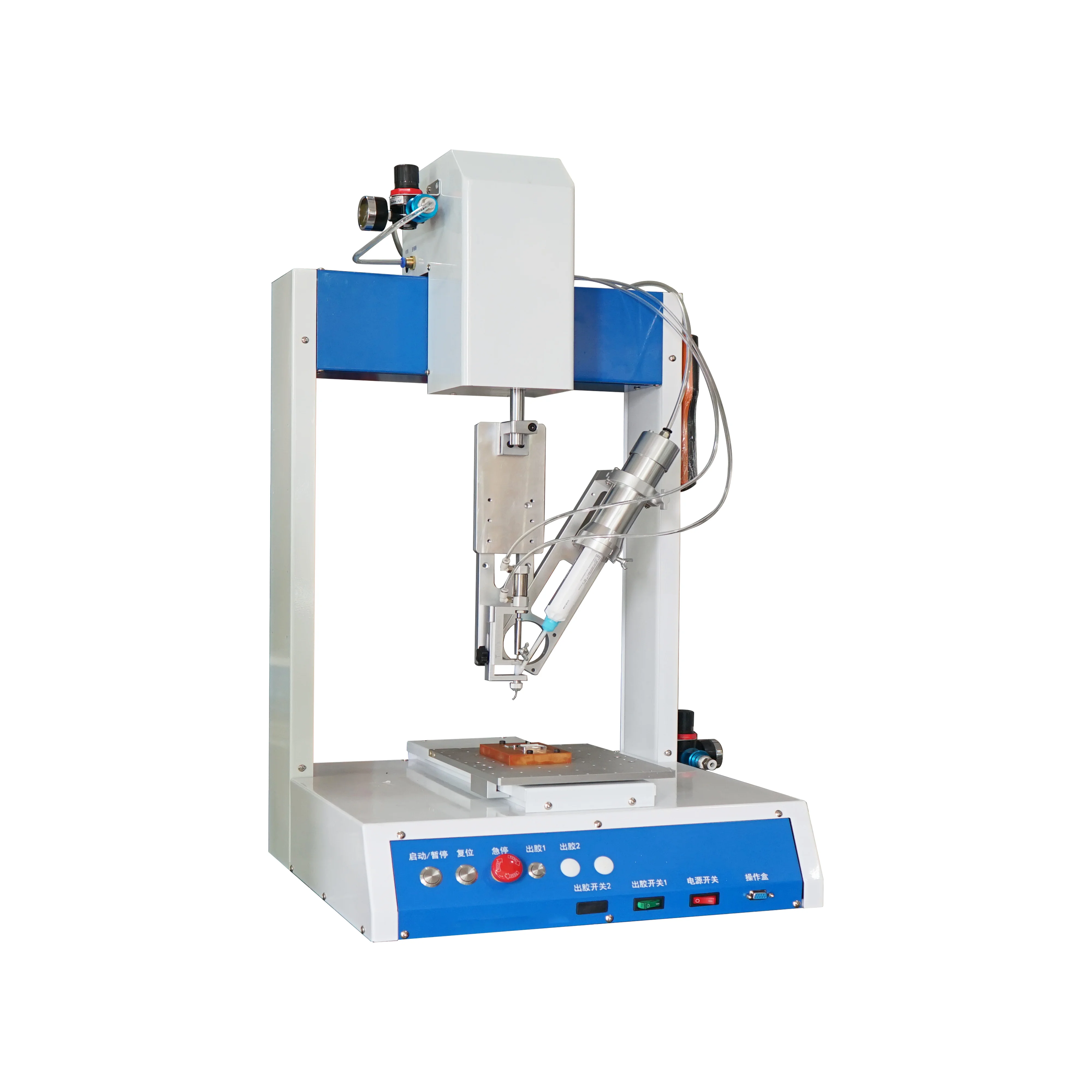

Glue Dispenser Automatic Machine Four Axes Glue Dispensing Machine With R Rotary Axis automatic glue dispenser machine
- Category: >>>
- Supplier: Dongguan Jinxiang Automation Technology Co. Ltd.
Share on (1600799569555):
Product Overview
Description
Products Display
Product Description
Automatic glue dispensing machine is to spray or dispense the glue automatically for bonding, filling, coating, sealing, etc. in the product process. The dispensing equipment has the capacity to integrate the gluing system with X/YZ movements for precise glue dispensing. The dispensing machine is easy programming with teaching pendant box, and is applicable for various glue types as glue, wide applied in semiconductor sealing, PCB electronic parts fixing and protection, mobile phone & laptop shell bonding, LCD glass substrate sealing, LED dispensing, optical lens dispensing and sealing, automotive parts coating. Chip bonding, hardware parts coating and bonding, battery sealing, horn dispensing, quantitative liquid filling, etc. According to customer’s requirement, we manufacture different kinds of automatic dispensing machines, such as: single dispensing head and single work platform series, single dispensing with R rotary axis and single work platform series, double dispensing head and double work platform series, fixture rotation series, as well as other customized mode, etc.
Product features
1.The R axis can be rotated 360° to dispense glue for the product. The dispensing mouth follows the best direction/side, and the direction can be changed at will.
2.Flexible operation, can be configured with AB two-component glue or single component glue operation
3.Operation with handheld LCD panel teach box, which is easy to program and learn.
4.With functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
5.Excellent teaching function to support array, graphical browsing, three dimensional elliptic, common graphical library inserting, group editing and so on.
6.The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set by parameters.
7.The glue outflow is quite stable, without leaking and dripping.
8.It is suitable for UV glue, AB glue, Epoxy (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, tin paste, cooling paste, anti-solder paste, transparent paint, screw fixation agent, etc.
1.The R axis can be rotated 360° to dispense glue for the product. The dispensing mouth follows the best direction/side, and the direction can be changed at will.
2.Flexible operation, can be configured with AB two-component glue or single component glue operation
3.Operation with handheld LCD panel teach box, which is easy to program and learn.
4.With functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
5.Excellent teaching function to support array, graphical browsing, three dimensional elliptic, common graphical library inserting, group editing and so on.
6.The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set by parameters.
7.The glue outflow is quite stable, without leaking and dripping.
8.It is suitable for UV glue, AB glue, Epoxy (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, tin paste, cooling paste, anti-solder paste, transparent paint, screw fixation agent, etc.
Specification
Part Name | Four Axes Automatic Glue Dispensing Machine With R Rotary Axis | ||
Model | CBDJ-331R | CBDJ-441R | |
Axes range | 300X*300Y*100Zmm*360°R | 400X*400Y*100Zmm*360°R | |
Work range | 300X*300Y*100Zmm | 300X*400Y*100Zmm | |
@ can be customized | |||
Repeatability precision | ±0.02mm(X/Y/Z) ±0.02° | ||
Voltage | AC110/220V, 50/60Hz | ||
Driving mode | Precision stepper motor + precision rail + precision belt (optional closed-loop stepper motor) | ||
Motor system | Micro Precision Stepping Motor | ||
Number of axes | 4 axes | ||
Number of platform | 1 sets | ||
Number of dispensing head | 1 set | ||
Control panel | Teach pendant box with touch Screen | ||
Program record capacity | 9999 files, 8000 pints per file | ||
Moving speed (mm / sec) | 0.1-800/400 | ||
Air pressure | 0.4-0.6MPA(4～6kg cm2) | ||
Working Temperature | 0--40℃ | ||
Working humidity | 20-90% | ||
Applicable glue | UV glue, AB glue, Epoxy (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, tin paste, cooling paste, anti-solder paste, transparent paint, screw fixation agent, etc. | ||
Packing Dimension | 480*500*725mm | 580*600*725mm | |
Net weight(kg) | 50kg | 60kg | |
Main Products

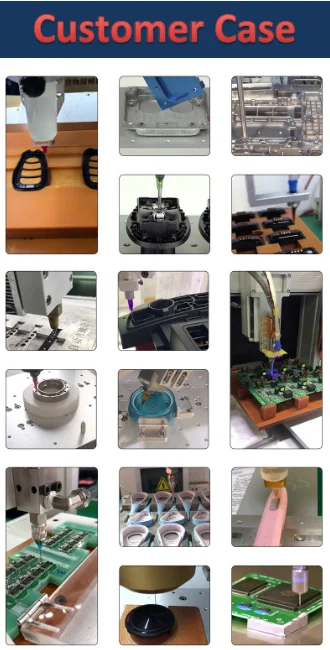

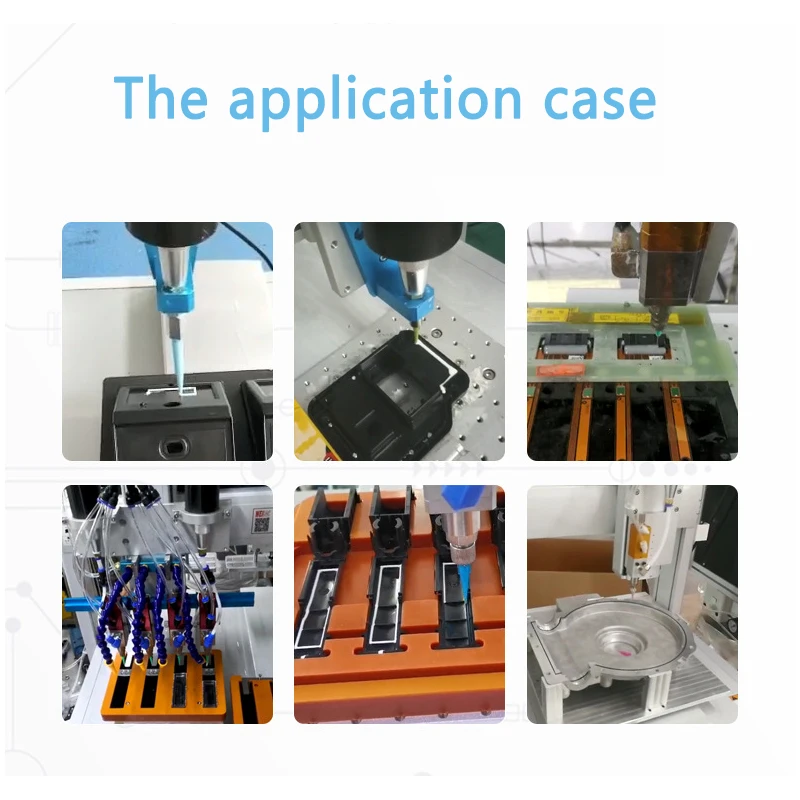

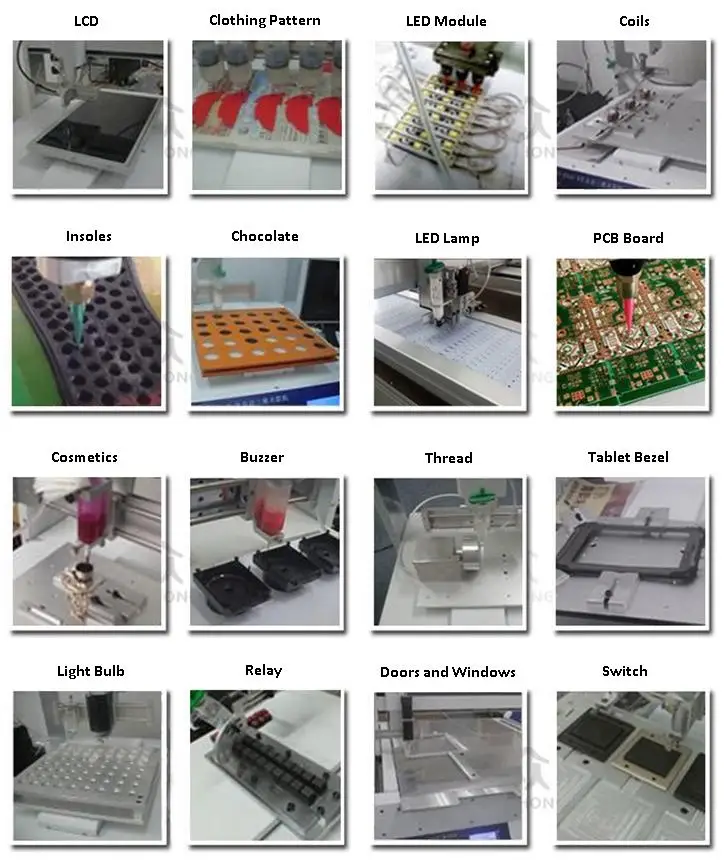

Application Case

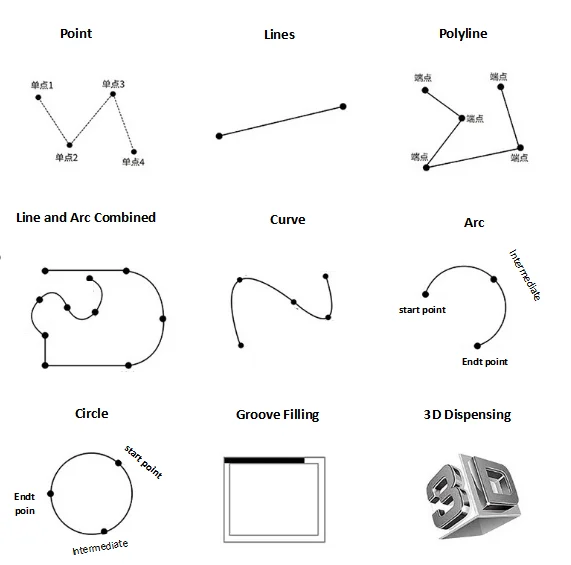

It can draw points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves to realize any planar trajoctory path, as well as 3D dispensing.
Company Profile
Certificate
Packing & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
Q3: How about the quality?
Q4: Can we be your distributor?
Q5: How’s the package?
Q6: How’s the delivery time?
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
