TESmart 300M VGA KVM Extender For DVR Security System Control PC Remotely With Video Transmitter And Receiver Video Extender
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (1600799576370):
Product Overview
Description
Product Description

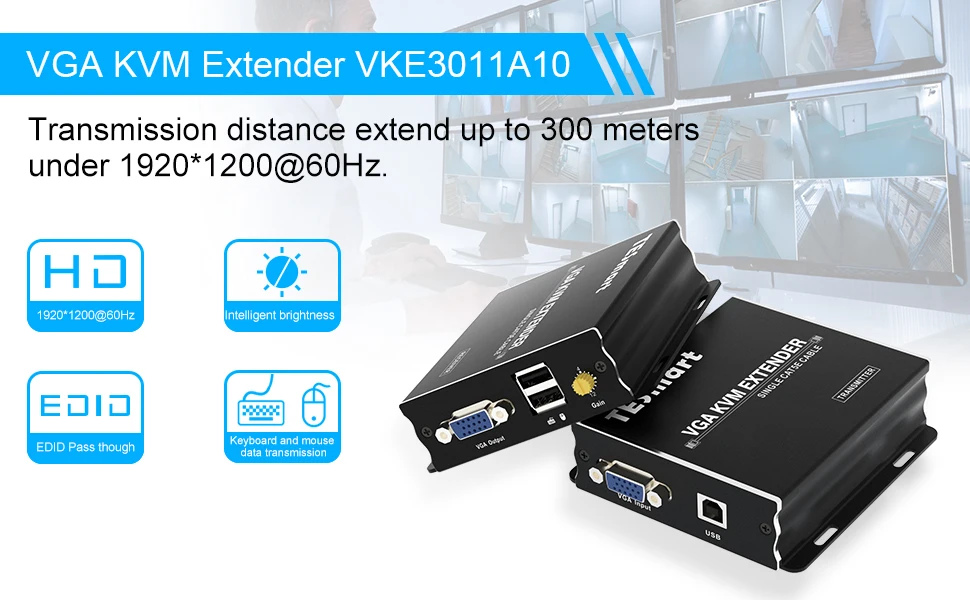

300M VGA KVM Extender
VGA KVM Extender VKE3011A10, uses single UTP LAN cable CAT5e/6 to substitute VGA cable to achieve long distance transmission, the transmission distance extend up to 300 meters under 1920*1200@60Hz. Support EDID pass through, best compliant with different display devices.
Application:
This product can be used on remote DVR for Security System, servers in data centre and monitor room
Features：
⭐Resolution up to 1920*1200@60Hz over CAT5e/6 UTP/FTP cable up to 300 meters.
⭐With smart brightness and contrast adjustment algorithm, easy to adjust 0-15 gain levels to match 0-300 meters UTP/FTP cable
⭐Smart gain control, effective for common mode noise suppression, keep high fidelity picture quality even by 300 meters transmission.
⭐Easy to control PC remotely with transmitting keyboard and mouse data
⭐EDID pass through, compatible with most display devices
This product can be used on remote DVR for Security System, servers in data centre and monitor room
Features：
⭐Resolution up to 1920*1200@60Hz over CAT5e/6 UTP/FTP cable up to 300 meters.
⭐With smart brightness and contrast adjustment algorithm, easy to adjust 0-15 gain levels to match 0-300 meters UTP/FTP cable
⭐Smart gain control, effective for common mode noise suppression, keep high fidelity picture quality even by 300 meters transmission.
⭐Easy to control PC remotely with transmitting keyboard and mouse data
⭐EDID pass through, compatible with most display devices

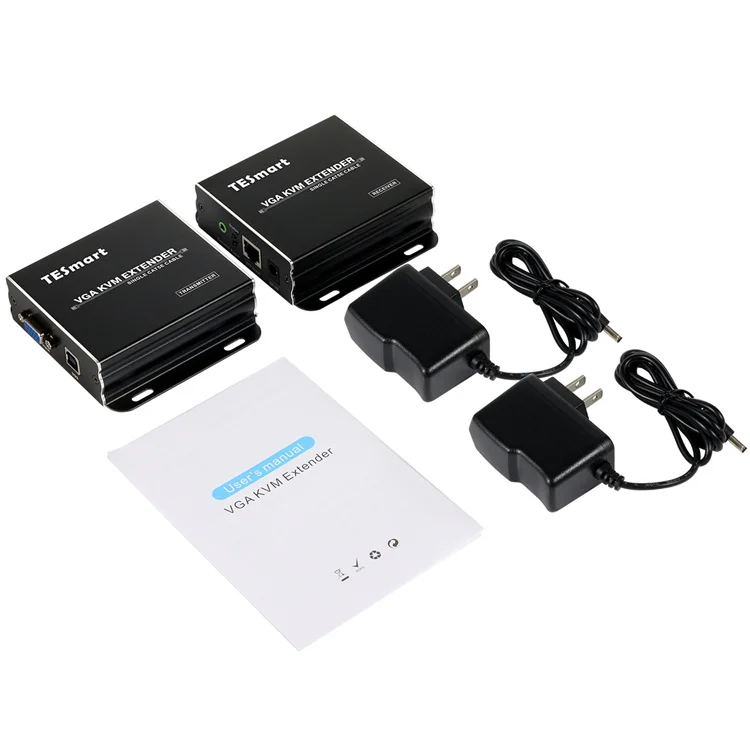

Package Included：
1* VGA KVM Transmitter
1* VGA KVM Receiver
2* DC 5V 1A Power Adapter
1* Quick-Start Guide
1* VGA KVM Transmitter
1* VGA KVM Receiver
2* DC 5V 1A Power Adapter
1* Quick-Start Guide
Specification
VKE3011A10 | 300M VGA KVM Extender | |||
Technical | ||||
Max. resolution | 1920*1200@60Hz | |||
EDID pass through | Yes | |||
Video bandwidth | 138 MHz | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Input | Transmitter: 1* VGA Receiver: 1*RJ45, 2* USB Type A (Keyboard & mouse) | |||
Output | Transmitter: 1*RJ45, 1* USB Type B Receiver: 1* VGA | |||
Mechanical | ||||
Casing material | Aluminum Alloy | |||
Power supply | DC 5V 1A | |||
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | |||
Operating Humidity | 10 to 90% RH | |||

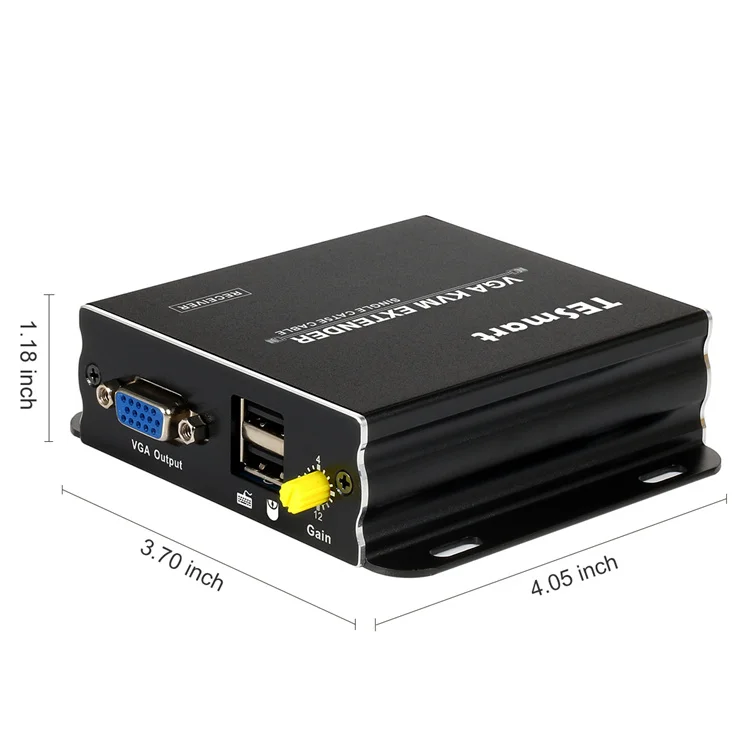

Product | Dimension | TX:94 (L) x 103 (W) x 30 (H) mm RX:94 (L) x 103 (W) x 30 (H) mm | ||
Weight | TX:167g RX:170g | |||
Item | Dimension | 245 (L) x 135 (W) x 90 (H) mm | ||
Weight | 687g | |||
Carton | Dimension | 515 (L) x 285 (W) x 470 (H) mm | ||
Quantity | 20pcs | |||
Total Weight | 14.59kg | |||
