PCIe Intel I350 T4 Quad 1GbE Server Network Card NIC
- Category: >>>
- Supplier: Shenzhen Dongjunriyi Technology Co. Ltd.
Share on (1600799587220):
Product Overview
Description
Product Description
PCIe Intel I350-T4 Quad 1GbE Server Network Card
The new Intel® Ethernet Server Adapter I350
family builds on Intel’s history of excellence in Ethernet products. Intel continues its market leadership with this new
generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the
next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of
performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family
of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
family builds on Intel’s history of excellence in Ethernet products. Intel continues its market leadership with this new
generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the
next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of
performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family
of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
Detailed Image
Product Features：
* PCI-Express host interface specification v2.1 with 5GT/s BUS width
* PCI-Express interface: x4
* Onboard with Quad 1GbE RJ45 port
* Complies with the 3ab,IEEE802.3u and IEEE802.3 specifications
* Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
* Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1qVLAN
* Supports Receive-side scaling (RSS)
* Supports IPv4, IPv 6 protocols
* Supports Jumbo Frames up to 9.5K
* Supports UDP.TCP and IP Checksum offloading
* Statistics for management and RMON
* PCI-Express interface: x4
* Onboard with Quad 1GbE RJ45 port
* Complies with the 3ab,IEEE802.3u and IEEE802.3 specifications
* Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
* Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1qVLAN
* Supports Receive-side scaling (RSS)
* Supports IPv4, IPv 6 protocols
* Supports Jumbo Frames up to 9.5K
* Supports UDP.TCP and IP Checksum offloading
* Statistics for management and RMON
* Support for virtual machines device queues
* Next Generation VMDq Support (8VMs)
* Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
* Chipset: ASM1806&NHI350AM2*2
Drivers support for FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/
* Next Generation VMDq Support (8VMs)
* Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
* Chipset: ASM1806&NHI350AM2*2
Drivers support for FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/
System Requirements：
* FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10
* Available PCI Express x4/x8/x16 slot
* Available PCI Express x4/x8/x16 slot

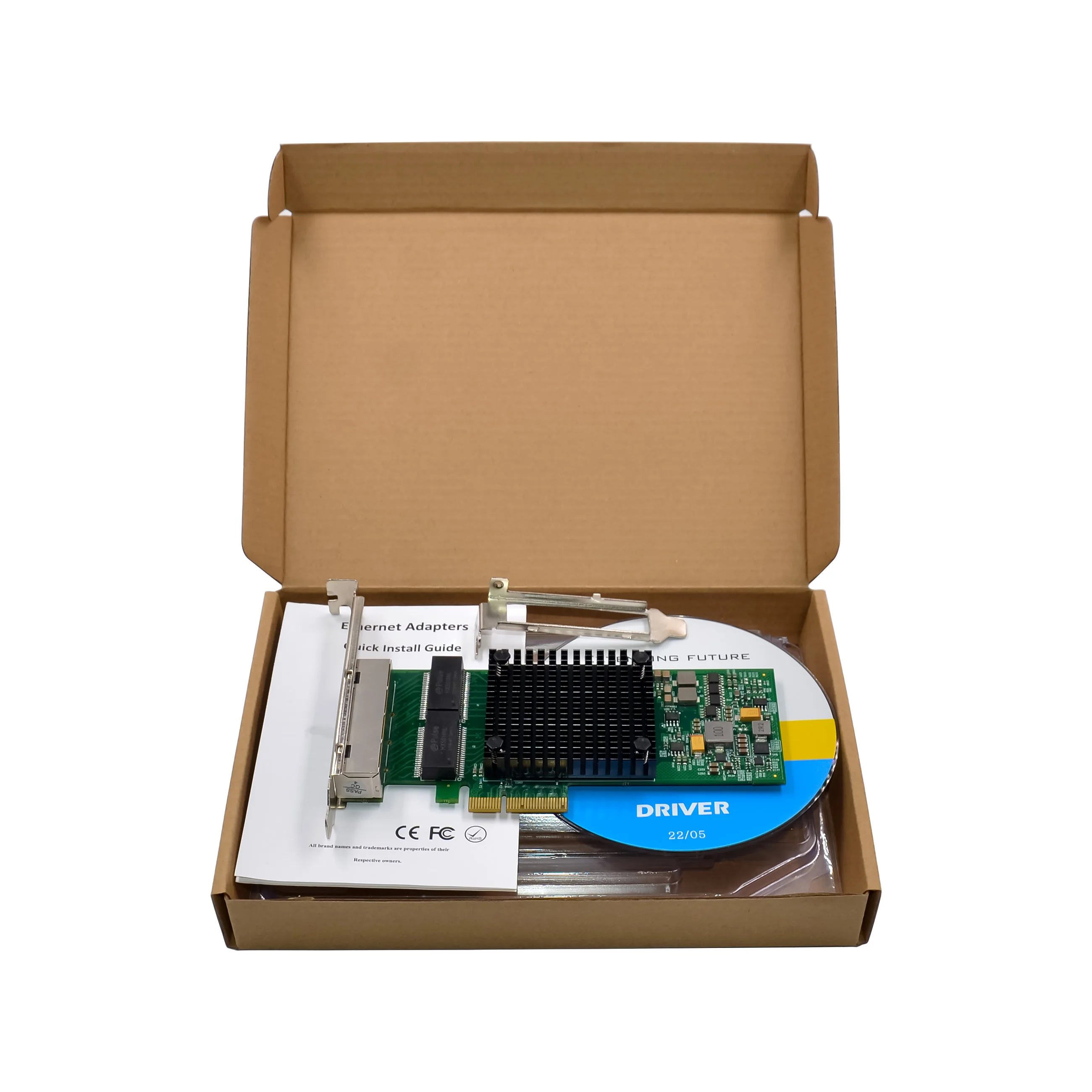

Package content：
* 1 x PCIe Network card
* 1 x User’s Manual
* 1 x CDDriver
* 1 x User’s Manual
* 1 x CDDriver
* 1 x Low profile bracket
System Requirements:
Cabling Requirements:
Intel 1 Gigabit adapters
* For 1000BASE-T OR 100BASE-TX.use Category 5 or Category5e wiring, twisted 4-pair copper:
* Make sure you use Category 5 cabling that complies with the TIA-568 wiring specification For more information on this
specification.
* Length is 100 meters max.
* Category 3 wiring supports only 10Mbps
CAUTION: If using less than 4-pair cabling, you must manually configure the speed and duplex setting of the adapter and the link
partner. In addition, with 2-and3-pair cabling the adapter can only achieve speeds of up to 100Mbps
* For 100BASE-TX.use Category 5 wiring.
* For10BASE-T.use Category 3 or 5wiring
