Tobee Effluent Handling
$12,600

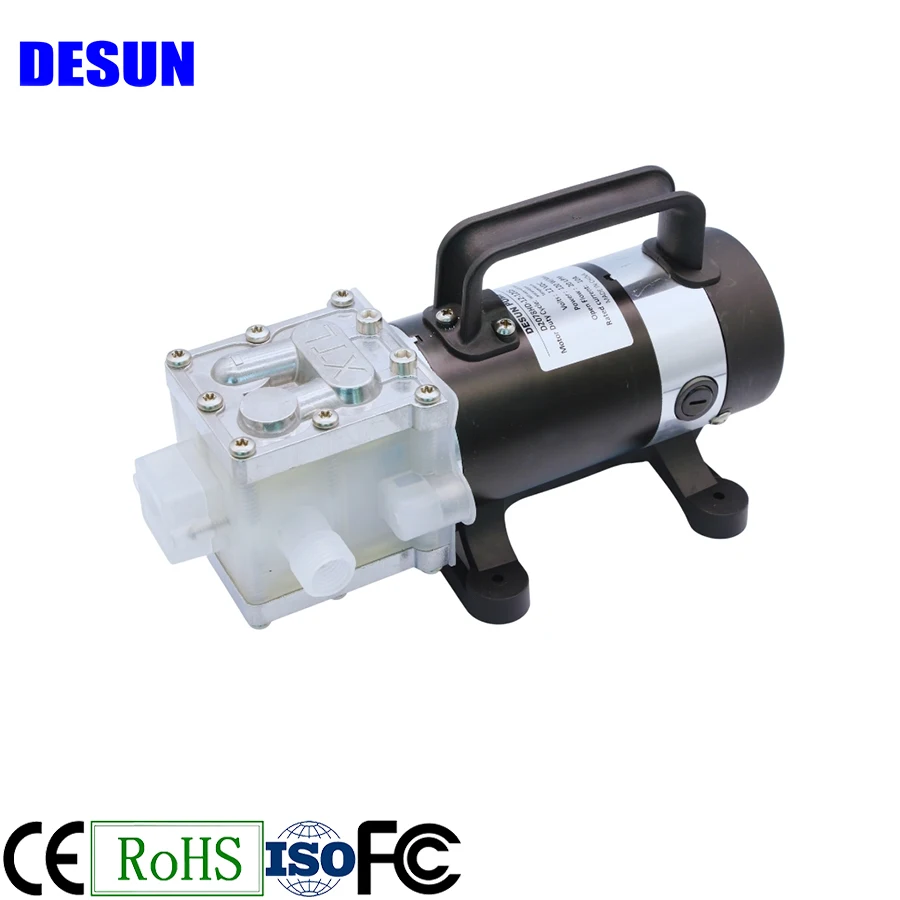

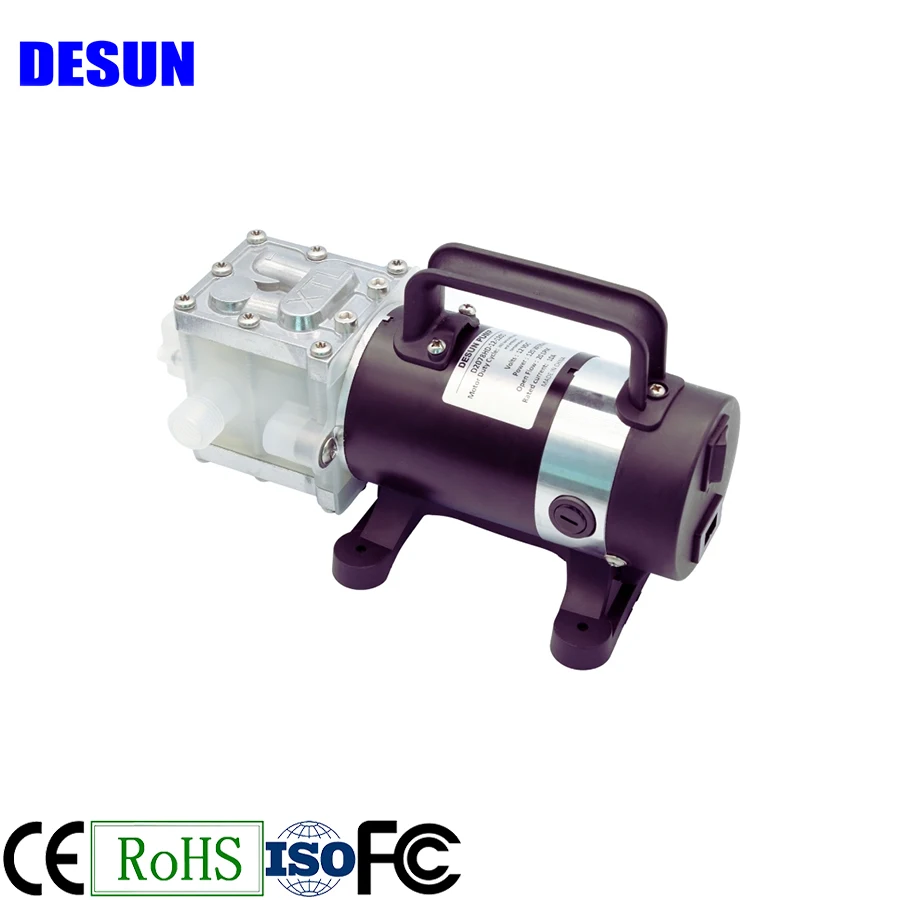

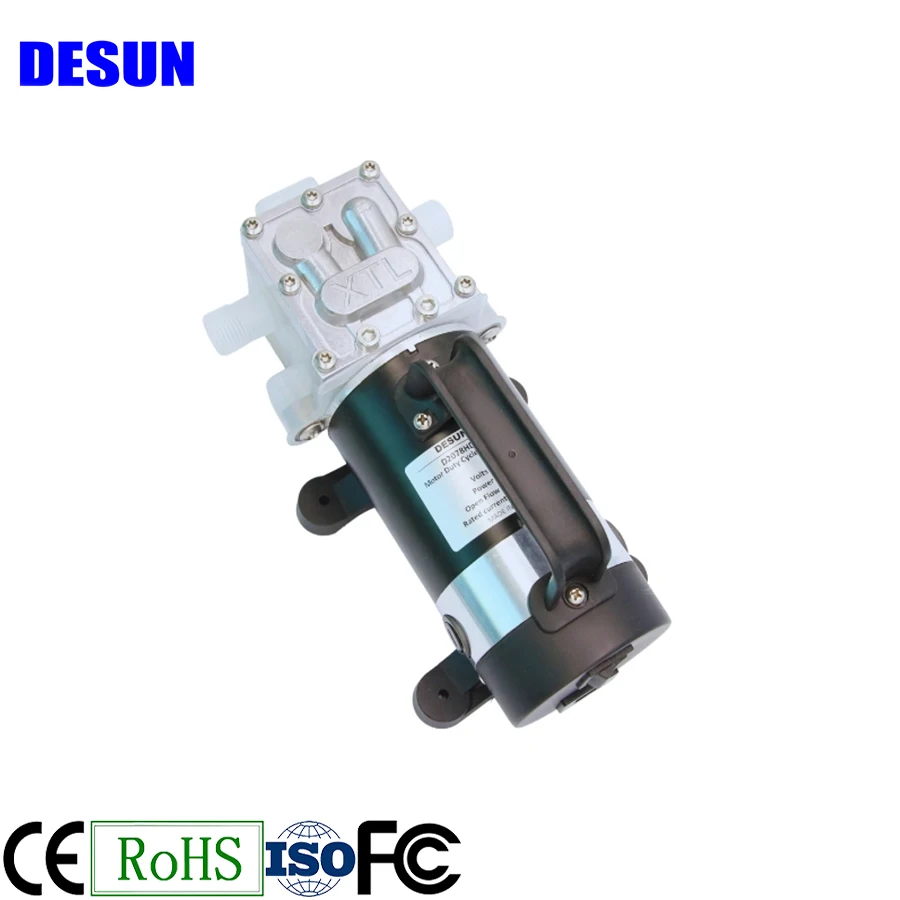

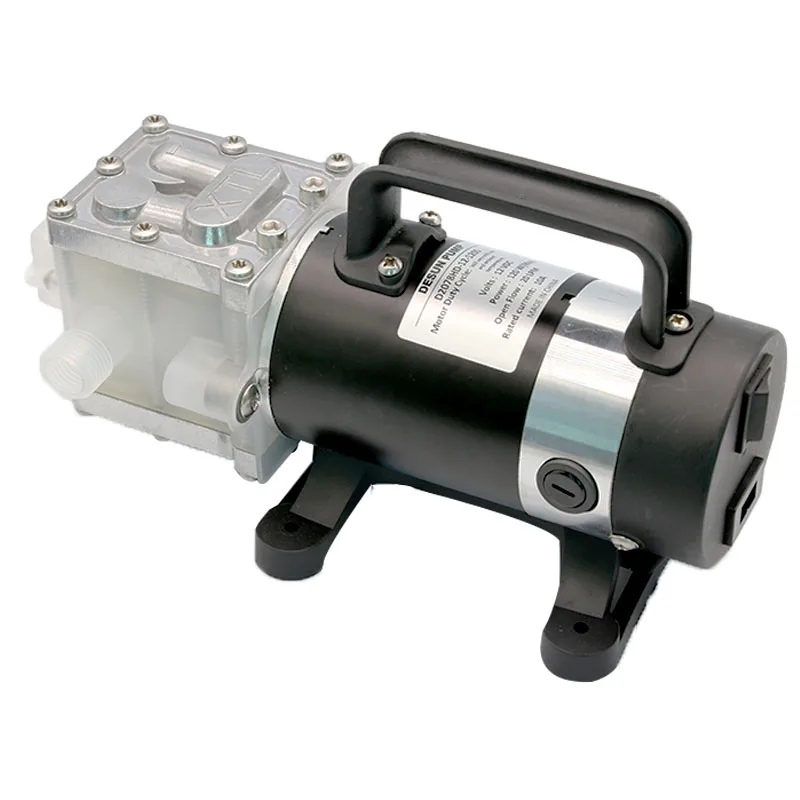

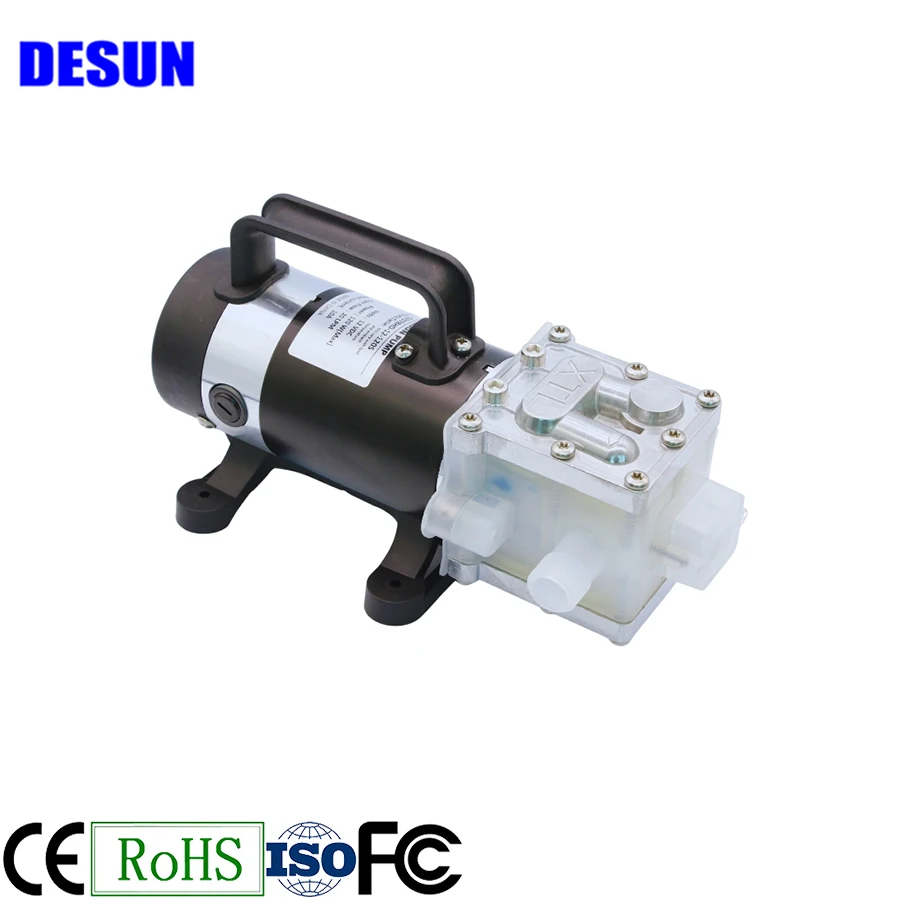

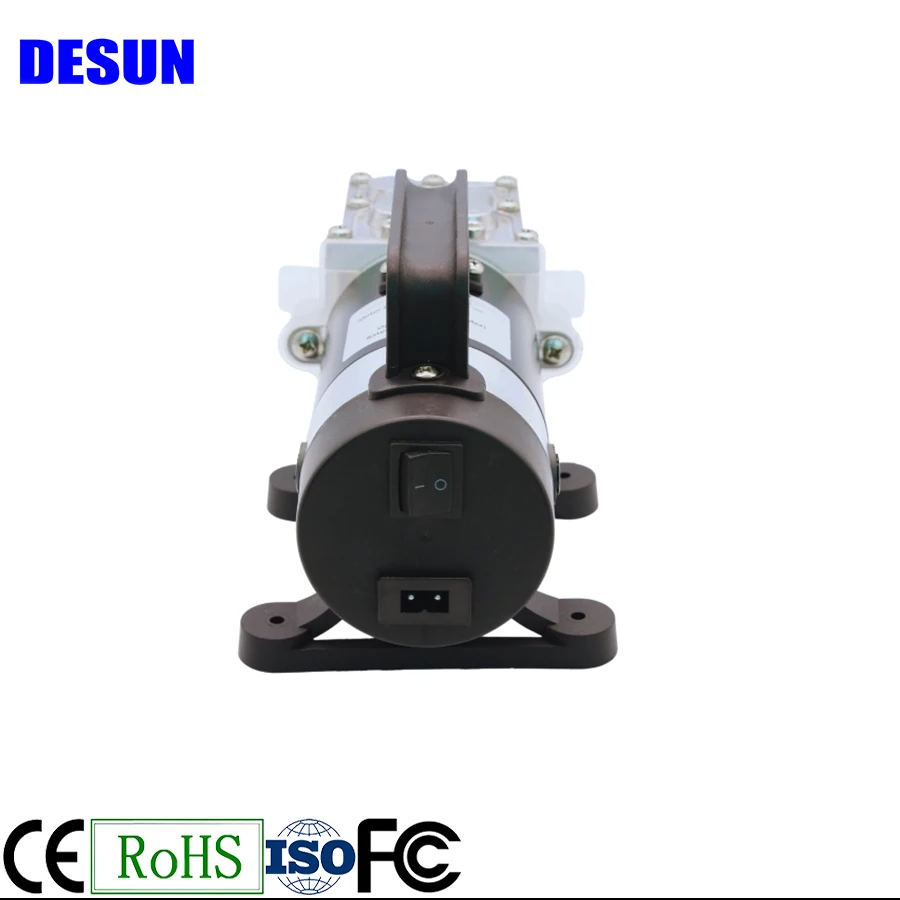

large flow 120W 20L/Min 12V/24V Mico Dc Diaphragm Electric Wine Pump food grade pump
- Category: >>>
- Supplier: Dongguan Desun Technology Development Co. ltd
Share on (1600799631498):
Product Overview
Description
Products Description
D2078HD-12-120S FOOD GRADE ELECTRIC SELF-PRIMING PUMP
Model | Voltage | Power | Weight | Flow | Suction Lift(M) | Appliction |
D2078HD-12-120S | 12V | 120W | 2.7KG | 20L/MIN | 2M | Pumping wine, beverage, etc.. |
MODEL EXPLANATION
Take "5210HD-12-100" as an example, 5210 represents the motor model, H represents the pump's head type, D represents the interface type, 12 represents the voltage, and 100 represents the power.
Mainly used for Food and Beverage industry, such as wine, milk, potion, soy milk, drinking water, milk tea, edible oil and other liquids
Mainly used for Food and Beverage industry, such as wine, milk, potion, soy milk, drinking water, milk tea, edible oil and other liquids
PUMP'S HEAD TYPE EXPLANATION
TYPE Y INTELLIGENT PUMP HEAD
Features:
When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor；
The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun.
Application scope:
Car washer, solar energy automatic water, water system automatic control or other fluid automatic control auxiliary equipment, etc...
TYPE H REFLUX PUMP HEAD
Features:
When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve is opened, the water flow circulates in the pump cavity, and the motor will be
continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability.
Application scope:
When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve is opened, the water flow circulates in the pump cavity, and the motor will be
continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability.
Application scope:
High-pressure spraying equipment, agricultural spraying, and so on need high-pressure fog application occasions.
INTERFACE TYPE EXPLANATION
The pump's head type and the interface can be freely replaced, please contact us for the details.
RELATED MODELS TECHNICAL PARAMETERS
* The technical parameters above are only a few for your reference.
* All models can be equipped with adapters.
* All models can be powered by solar power, DC power, solar panels, batteries, etc.
* All models can be powered by solar power, DC power, solar panels, batteries, etc.
* You can tell us what you use the pump for or the parameters required, then we'll recommend you suitable pumps.
ATTENTION
* Do not use water or dirty water whose temperature exceeds 60℃ (silt in dirty water will cause irreversible damage to the pump).
* Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water. Dry the pump body after use.
* Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
* Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).
* It is strictly forbidden to use this machine without the filter, and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).
* The diameter of the spray hole must meet the specified value, otherwise, the water pump will be damaged.
* Please confirm the power supply before use, the power supply parameters must be consistent with the pump input parameters
* Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water. Dry the pump body after use.
* Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
* Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).
* It is strictly forbidden to use this machine without the filter, and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).
* The diameter of the spray hole must meet the specified value, otherwise, the water pump will be damaged.
* Please confirm the power supply before use, the power supply parameters must be consistent with the pump input parameters
Our Advantages
Category
Company Profile
Packaging
FAQ
Do you accept OEM/ODM Service?
Yes, we have been the professional OEM/ODM supplier for many years.
What's your main products?
Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want.
How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.
What's your product MOQ?
We accept sample order, the MOQ can be negotiated.
How long is your delivery time?
Sample order within one week. Bulk order within 25 days. If the pumps in stock, within2 days.
How long is your warranty of pump?
Warranty is one year, can be repaired free of charge
What's the payment method?
By Trade Assurance, Paypal, T/T, L/C, Western Union, etc...
What certificates have your pumps passed?
All our products have passed CE, RoHs, Reach. Parts of pumps met UL.
How do you ship the goods?
Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity
What's your port of loading?
Yes, we have been the professional OEM/ODM supplier for many years.
What's your main products?
Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want.
How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.
What's your product MOQ?
We accept sample order, the MOQ can be negotiated.
How long is your delivery time?
Sample order within one week. Bulk order within 25 days. If the pumps in stock, within2 days.
How long is your warranty of pump?
Warranty is one year, can be repaired free of charge
What's the payment method?
By Trade Assurance, Paypal, T/T, L/C, Western Union, etc...
What certificates have your pumps passed?
All our products have passed CE, RoHs, Reach. Parts of pumps met UL.
How do you ship the goods?
Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity
What's your port of loading?
Shenzhen port, Dongguan port, Guangzhou port, for other we can communicate it.
