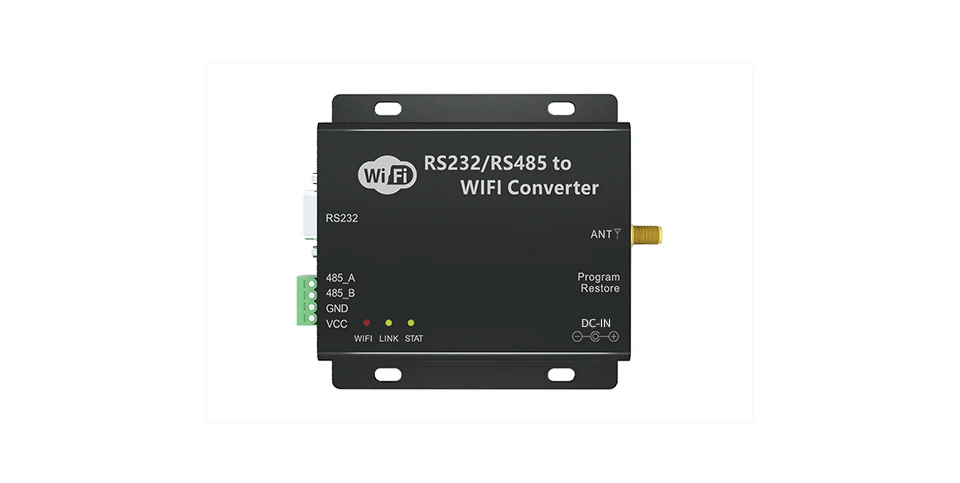

Cleqee E103 W02 DTU CC3200 2.4GHz 20dBm 300m RS232 RS485 RF Radio Wifi Converter Transceiver WIFI Module

Product Overview

Description

Cleqee-2 E103-W02-DTU CC3200 2.4GHz 20dBm 300m RS232 RS485 RF Radio Wifi Converter Transceiver WIFI Module





Model : E103-W02-DTU







Specification:

• Frequency : 2.4GHz


• Power : 20dBm


• Distance : 100m


• Interface : RS232/RS485


• Supply voltage: 8~ 28V


• RF IC:CC3200









RF Parameter	Value	Remark
Working frequency	2402~2484 MHz	Default: 2.4GHz
Transmitting power	20 dBm	About 100mW
WiFi version	802.11 b/g/n
Test distance	300 meter	In open and clear air, with maximum power, 3dBi antenna gain, height of 2m



Hardware Parameter	Value	Remark

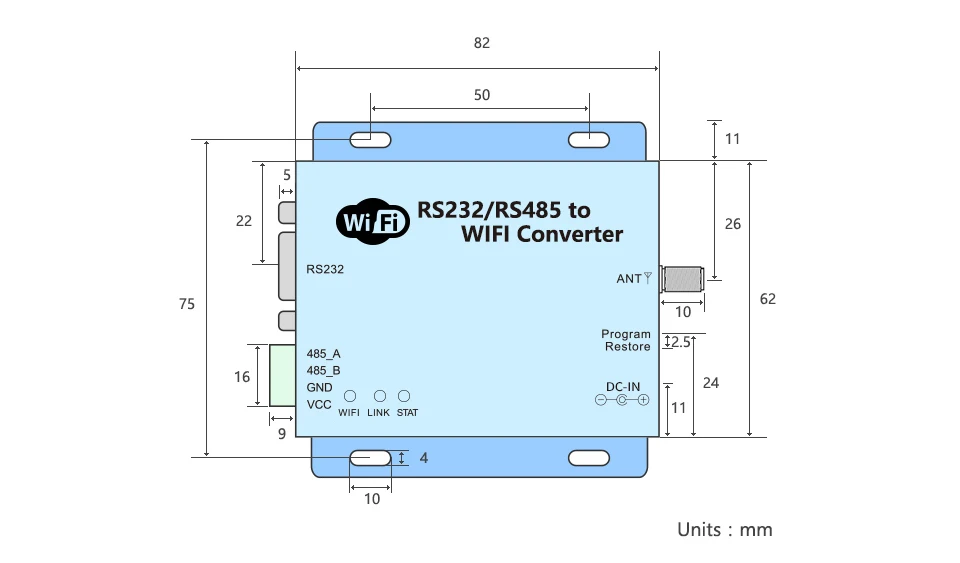

Size	82 * 62 * 25 mm
Antenna type	SMA-K	50Ω characteristic impedance, external thread
Communication interface	RS232 / RS485
Package	DB-9 / Screwing



Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	10	12	28	V
Transmitting current	70	77	84	mA	20dBm(100mW)
stand-by current	13	14	15	mA
Operating temperature	-40	20	+85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	+125	℃
