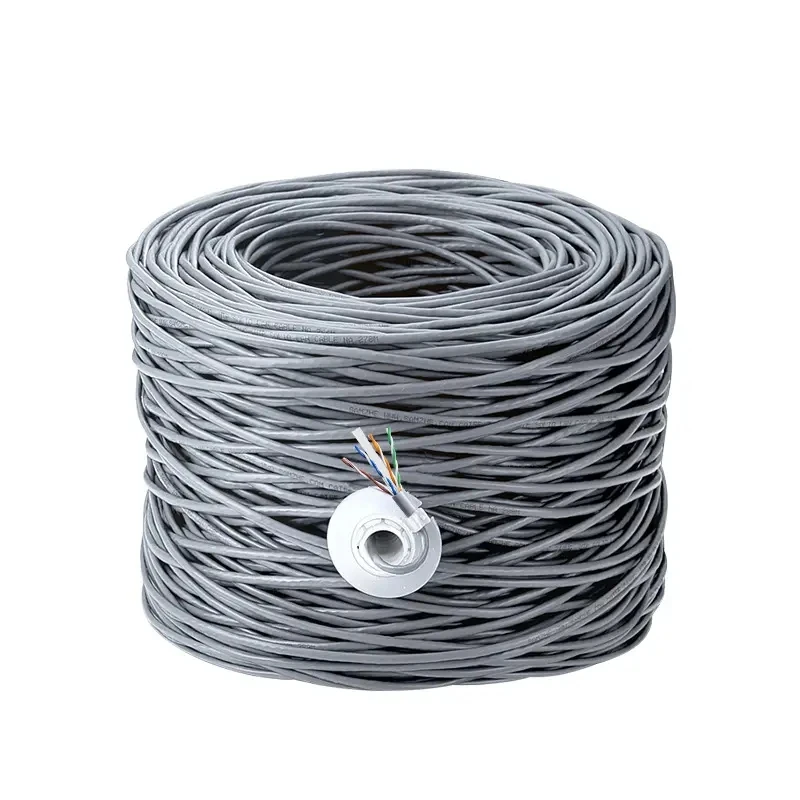

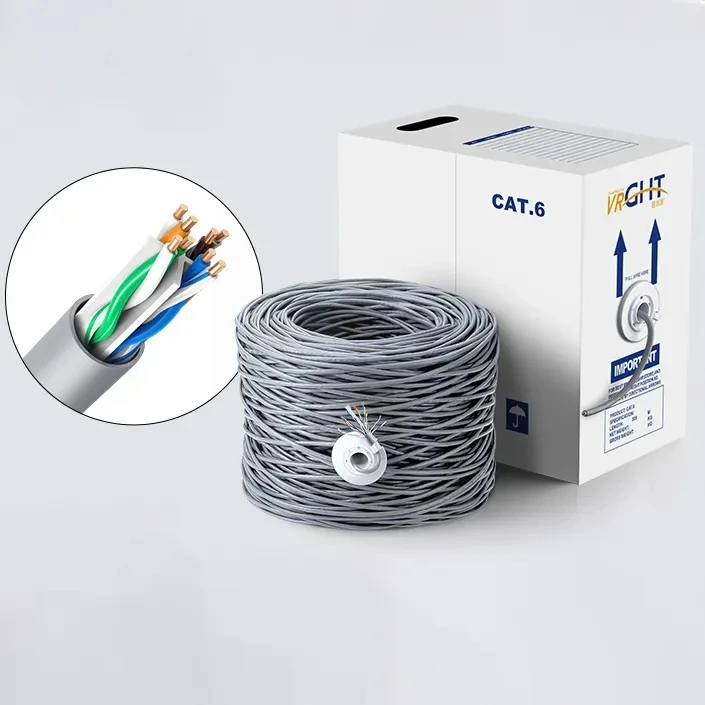

High quality With Competitive price 24AWG UTP 4 pair CCA cat6 cat5e network LAN cable

Share on (1600799634403):


Price:

Quantity:


Product Overview

Description



Product Description


High quality With Competitive price 24AWG UTP 4 pair CCA cat6 cat5e network LAN cable
























































































Rating


75℃ 30V


Conductor Resistance


Max 78.8ohm/km at 20℃


Dielectric Strength


Min AC1.5KV


Spark Test


5.0KV


AC Leakage Current Through overall Jacket


AC 1500V <=10mA


Insulation


Unaged


Tensile Strength


16.5 Mpa


Elongation


500%


Aged


Tensile Strength


14.2 Mpa(100℃ 168h)


Elongation


250%(100℃ 168h)


Jacket


Unaged


Tensile Strength


13.8 Mpa


Elongation


150%


Aged


Tensile Strength


11.7 Mpa(100℃ 168h)


Elongation


80%(100℃ 168h)


Cold Bend Test


-20℃ 4hours No Cracking


DC Resistance Unbalance


Max 5%


Pair-to-Ground Capacitance Unbalance


Max 3300pF/km


Characteristic Impedance


1~500MHZ 100±15OHM


Propagation Delay


500MHZ Max 536ns/100m


Delay Skew


1~500MHZ Max 40ns/100m

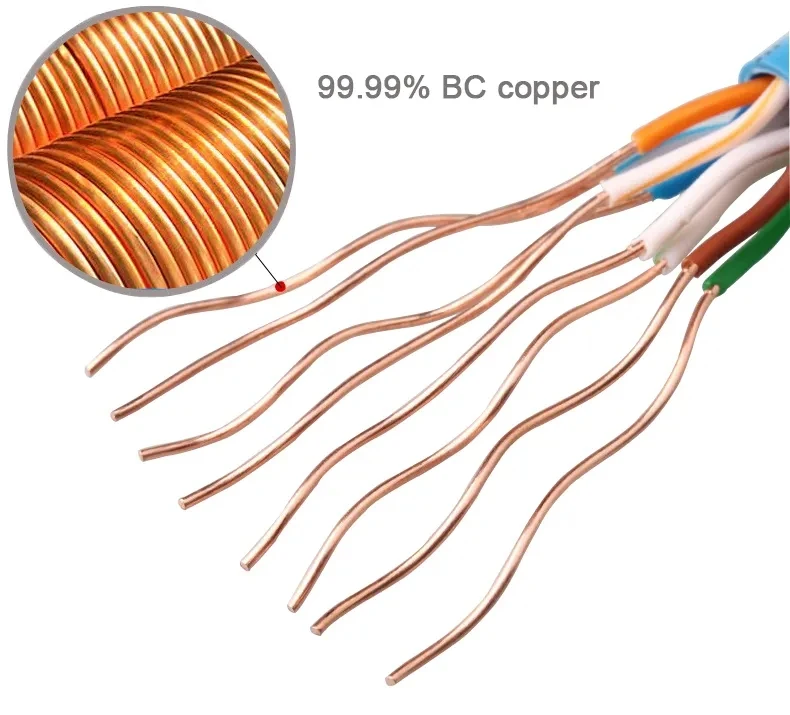

 3.29-2 Lan  _1_meitu.jpg

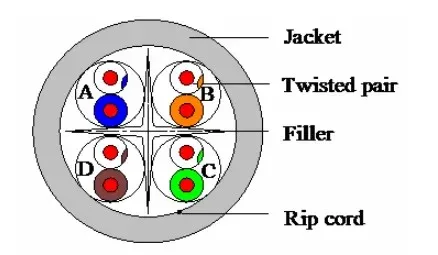

3.29-1 Lan  .jpg





Electrical Performance




1 Low Frequency
2 Dielectric Strength:2.5kVdc-2 second
3 DC Loop Resistance:Max 19ohm/100m
4 Resistance Unbalance:Max 2%
5 Insulation Resistance:Min 500 Mohm-km@100-500Vt
6 Capacitance Unbalance(pair to ground):Max1600pF/100m









Electrical Characteristic:




1.0-100.0MHz Impedance (ohms): 100 ohm+/- 15 ohm
1.0-350.0MHz Delay Skew (ns/100m): <=45
Pair-to-Ground Capacitance Unbalance (pF/100m): <=330
Max. Conductor DC Resistance 20oc(ohms/km): 6.58









Products Description:




ISDN, 10BASE-T (IEEE802.3), 100BASE-T (IEEE802.3),
155 Mbps ATM, 100Vg-AnyLAN (IEEE802.12), TP-PMD
(ANSI X3T9.5), 16Mbps Token Ring (IEEE802.5)
Industry Standards: ANSITIA/EIA 568-B.2, EN50173,
EN50288-3-1, ISO/IEC11801









Standard Compliances




1 All Category 6 Requirements as Per ANSI/TIA/EIA, ISO/
IEC, and CENELEC EN Standards:
2 ANSI/TIA/EIA 568-B.2 CAT.5e
3 2nd Edition ISO/IEC 11801 Class D
4 CENELEC EN 50173-1
5 IEC 61156-5, CENELEC EN 50288-2-1 Horizontal Cable
6 Flame Retardancy is Verified According to IEC 60332-1
