Customized Metal Stainless Steel Silica Sol Lost Wax Investment Castings Parts
- Category: >>>
- Supplier: Dongguan Dusheng Hardware Products Co. Ltd.
Share on (1600799638541):
Product Overview
Description
Products Description
Product Name | Customized Metal Stainless Steel Silica Sol Lost Wax Investment Castings Parts |
Material | Stainless steel and Iron （optional) |
Color | White, black, red, blue..et. according to customer's requirement |
Drawing | 3D Drawing: .step / .stp, 2D Drawing: .dwg / .pdf |
Design software | Auto Cad, Solidworks, Pro-E, UG |
Producing Process | Silica sol investment casting |
Sureface treatment | KTL(E-coating), Zinc plating, Mirror Polishing, Sand Blasting, Acid pickling, black oxide, Painting, Hot galvanizing,Powder coating, Nickel plating |
Process | Lost wax casting |
Casting Tolerance | P690-D1 |
Presicion | Process accuracy: 0.005~0.008mm; Position accuracy: 0.01mm |
Material Standard | ASTM, AISI, DIN, BS, JIS, NF, AS, GB, AAR and Others |
Surface Roughness | Ra 0.8 ~ 3.2 μm |
Casting Size | Max linear size: 1200mm, Max diameter size: 600mm |
Weigh Range | 0.1KG~100KG |
Machining Surface roughness | Ra0.4~0.8um |
Package | 1.Inner plastic bags with foam, outer for cartoon or wooden cases with good protect; |
2.According to customer's requirement | |

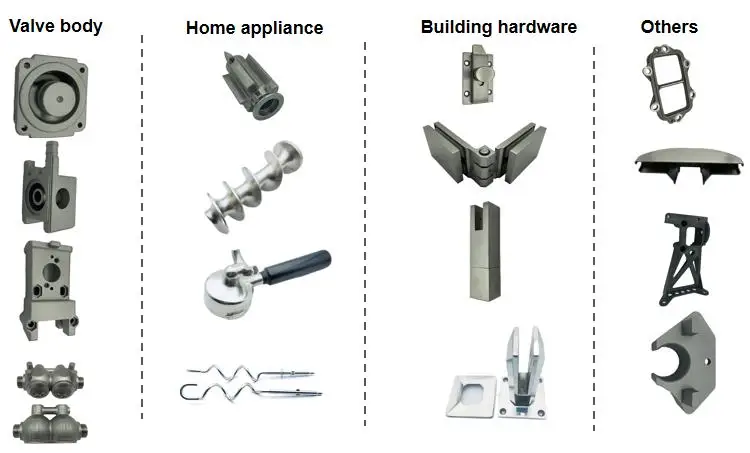

Applications | Home Appliance, Building Hardware, automobile& truck, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment and so on. |
Deliver way | DHL, Fedex, TNT, UPS, DDU, DDP, by sea, by air..ect. |
Lead time | Normaly 7-15days, just according to order quantity. |
Quality contorl system | ISO9001: 2015 |
Payment term | 50% once order confirmed, balance payment before shippment. |
Company Profile
About Us
Dongguan Dusheng Hardware Products Co., Ltd provides one stop service.
1. With more than 20 years' experience in investment
casting
casting
2. Main Products: Silica Sol Investment casting, CNC machining, Stainless steel,Iron Steel, Aluminum, Brass(Copper)
3. Surface treatment: Polishing, Brushing, Electrolysis, Coating, Plating
4. Capacity: 60 tons
5. Factory machine list: Wax ejecting machines x 5 Slurry dipping machines x6 Melting furnace x 1
Casting shell machine x 1 Shot blasting machines x 12 4-axis CNC milling machines x 2
CNC lathe x 2
Direct-reading spectrometer x 1 Rockwell apparatus x 1 Projector x 1
6. Factory area:2600 m²
7. Employees: 65-70
8. Certification: ISO9001, Reach, SGS
9.Service time: 24 hours
3. Surface treatment: Polishing, Brushing, Electrolysis, Coating, Plating
4. Capacity: 60 tons
5. Factory machine list: Wax ejecting machines x 5 Slurry dipping machines x6 Melting furnace x 1
Casting shell machine x 1 Shot blasting machines x 12 4-axis CNC milling machines x 2
CNC lathe x 2
Direct-reading spectrometer x 1 Rockwell apparatus x 1 Projector x 1
6. Factory area:2600 m²
7. Employees: 65-70
8. Certification: ISO9001, Reach, SGS
9.Service time: 24 hours

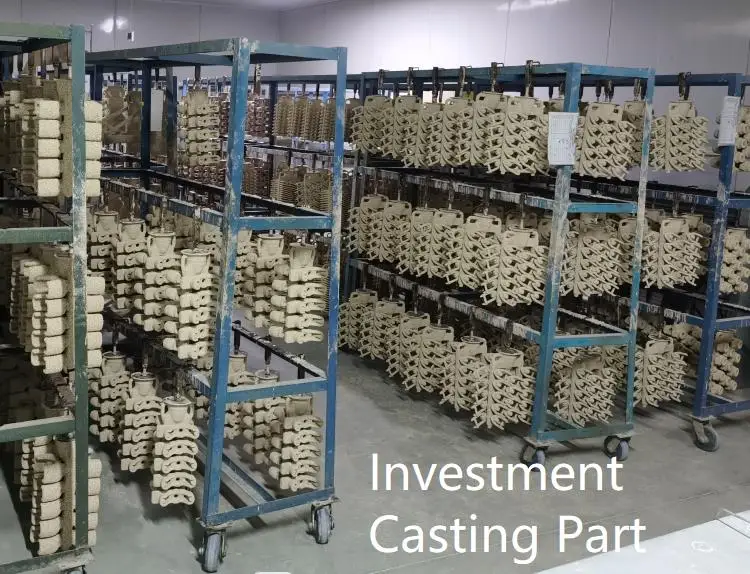

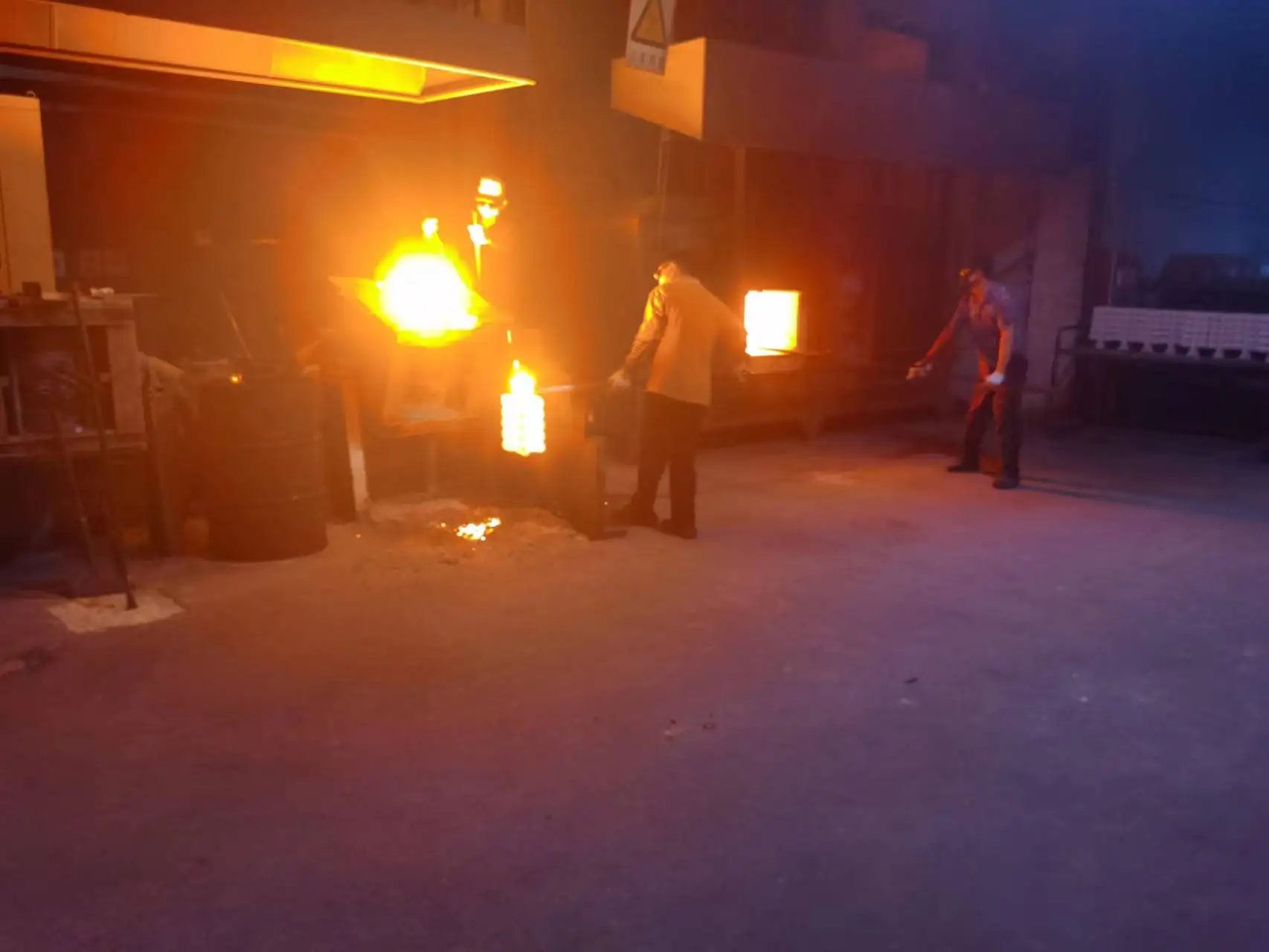

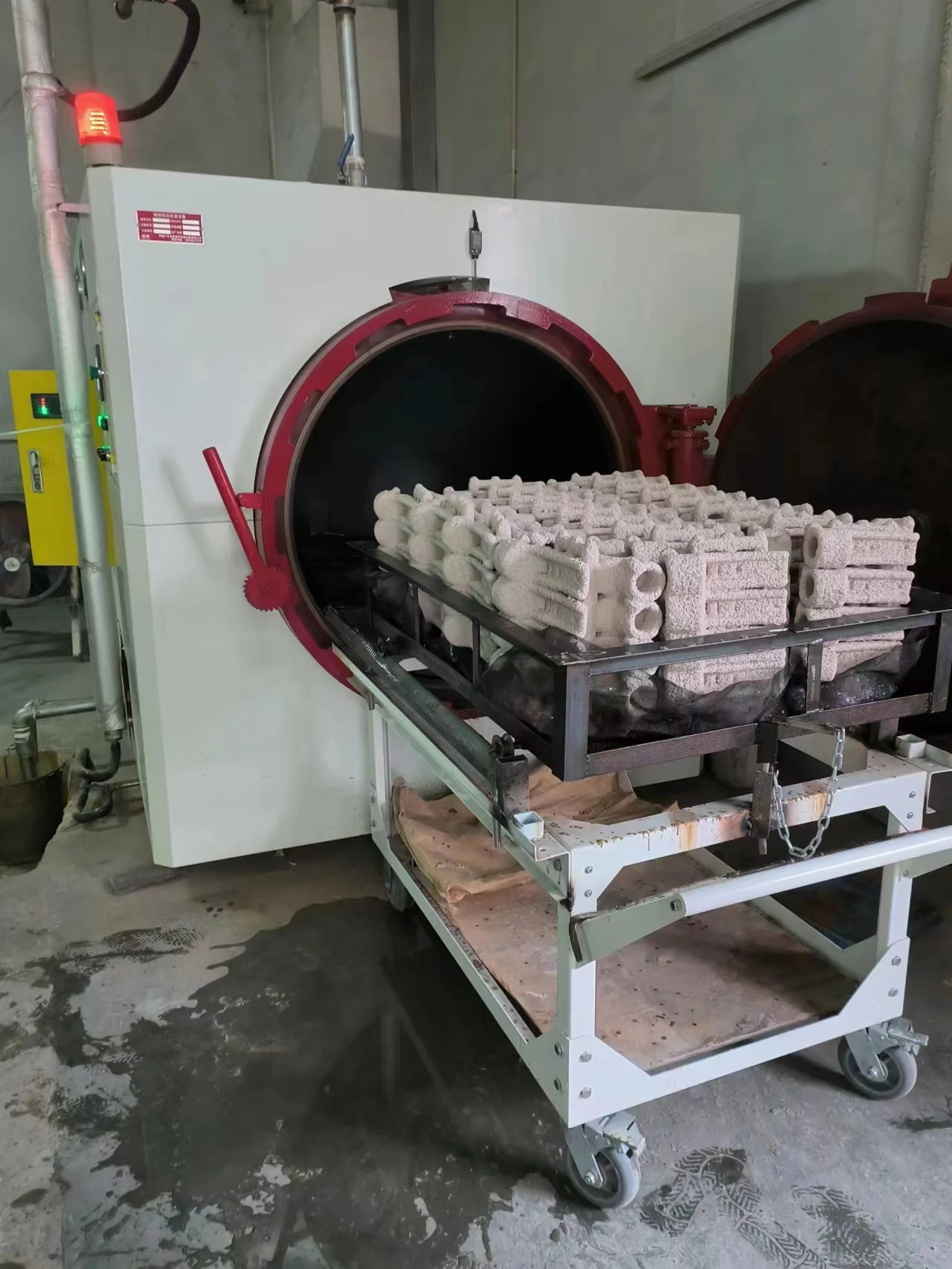

Production process
Engineering Review
* The first step of this manufacturing process begins with a full Design For Manufacturing (DFM) review with the customer.
* This would include an evaluation of print dimensions as it relates to the investment cast process, wax injection mode build considerations such as gate placement, post-case material requirements and expected tolerances for fit, form and function of the part, and final inspection criteria to determine a mutually acceptable part.
* This would include an evaluation of print dimensions as it relates to the investment cast process, wax injection mode build considerations such as gate placement, post-case material requirements and expected tolerances for fit, form and function of the part, and final inspection criteria to determine a mutually acceptable part.

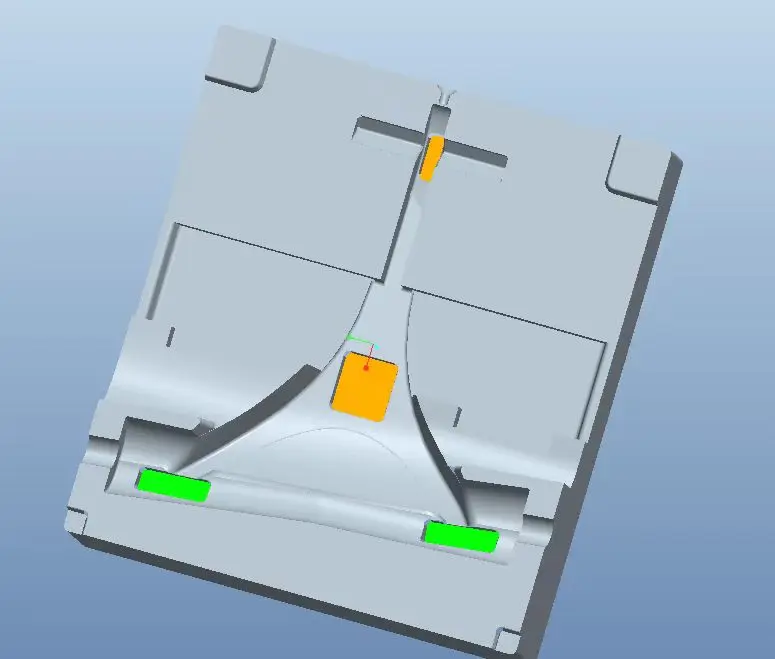

Mold Design & Build

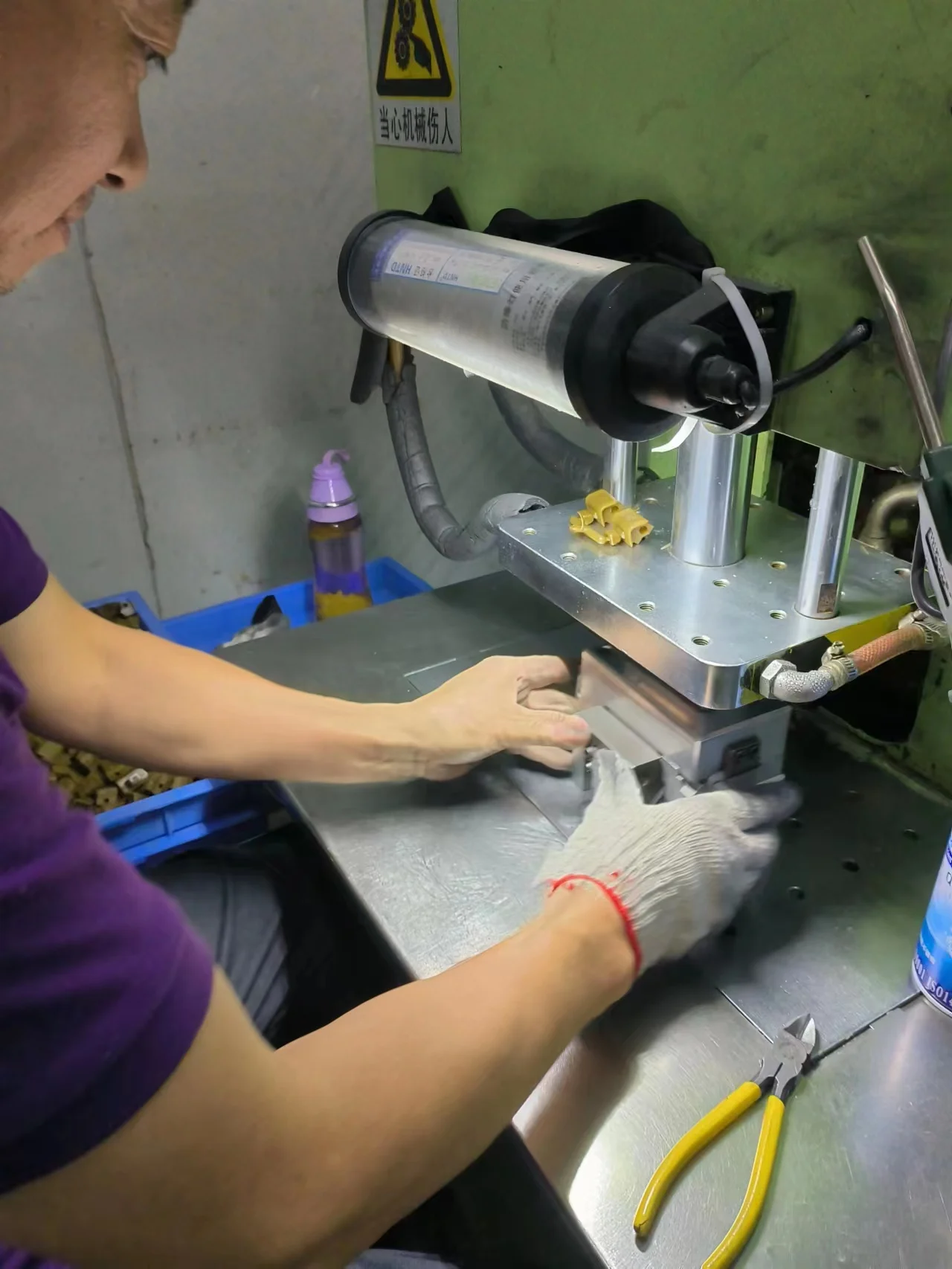

* The process begins with a precision-engineered wax injection mold to produce wax patterns representing the final part.
* These design considerations are discussed with the mold builder and a mold design is created.
* Our wax injection molds are built here at Aero Metals at our in-house mold shop.
* The molds are designed and built to reproduce millions of wax parts over its lifetime.
* These design considerations are discussed with the mold builder and a mold design is created.
* Our wax injection molds are built here at Aero Metals at our in-house mold shop.
* The molds are designed and built to reproduce millions of wax parts over its lifetime.
Surface treatment
Product packaging
Inner packing
In general, we will pack with PE bag of each in carton for protection, if you or your customers have special packing, we can design the packing with multi language manual, color box, gift box, etc.
Shipment packing
Since is heavy, to protect it well in delivery, We will load the cartons on the pallets wrapped with strap. Meantime, we can pack per your packing guide and have the t
Quality Control
Certifications
FAQ
Q: What parameters should we offer us for proper quotation?
A: 3D & 2D drawings, request for material and surface treatment
Q: Are your samples free of charge?
A: Yes, Free Samples will be provided within 1 week upon the mold completed
Q: What’s your MOQ?
A: 500PCS
Q: What’s the lead time for the mass production:
A: 30days
A: 3D & 2D drawings, request for material and surface treatment
Q: Are your samples free of charge?
A: Yes, Free Samples will be provided within 1 week upon the mold completed
Q: What’s your MOQ?
A: 500PCS
Q: What’s the lead time for the mass production:
A: 30days
Q: What’s the Payment term?
A: Generally, TT. 30% deposit, the balance will be paid before shipment.
Q: Can we visit your company to inspect products before delivery?
A: You are welcome to visit our company to inspect us and our products
Q: What about your packages?
A: plastic bags,carton box, pallet package, etc
A: Generally, TT. 30% deposit, the balance will be paid before shipment.
Q: Can we visit your company to inspect products before delivery?
A: You are welcome to visit our company to inspect us and our products
Q: What about your packages?
A: plastic bags,carton box, pallet package, etc
