B302 1 Microscopic Binocular Biological Electronic Microscopy Dental Microscopes Digital Microscope
B302-1 Microscopic Binocular Biological Electronic Microscopy Dental Microscopes Digital Microscope
B302-1 Microscopic Binocular Biological Electronic Microscopy Dental Microscopes Digital Microscope
B302-1 Microscopic Binocular Biological Electronic Microscopy Dental Microscopes Digital Microscope
B302-1 Microscopic Binocular Biological Electronic Microscopy Dental Microscopes Digital Microscope
B302-1 Microscopic Binocular Biological Electronic Microscopy Dental Microscopes Digital Microscope
B302-1 Microscopic Binocular Biological Electronic Microscopy Dental Microscopes Digital Microscope

B302 1 Microscopic Binocular Biological Electronic Microscopy Dental Microscopes Digital Microscope

Share on (1600799657459):


Price:$334.00 - $400.00

Quantity:


Product Overview

Description

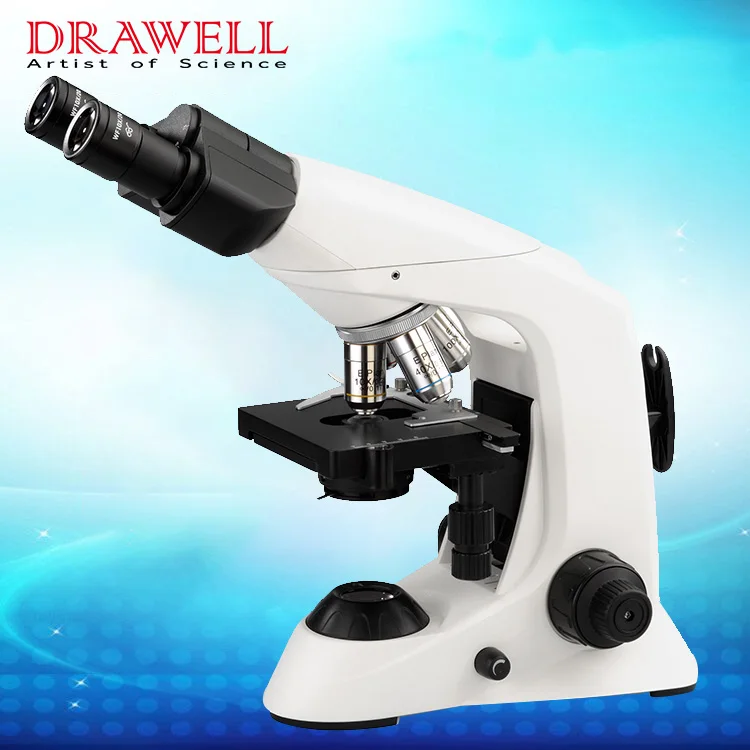

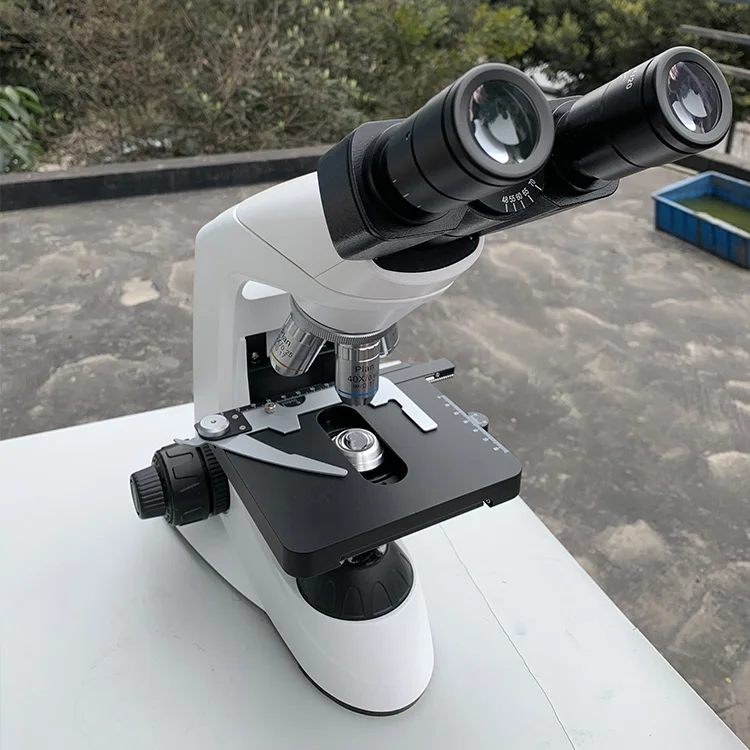

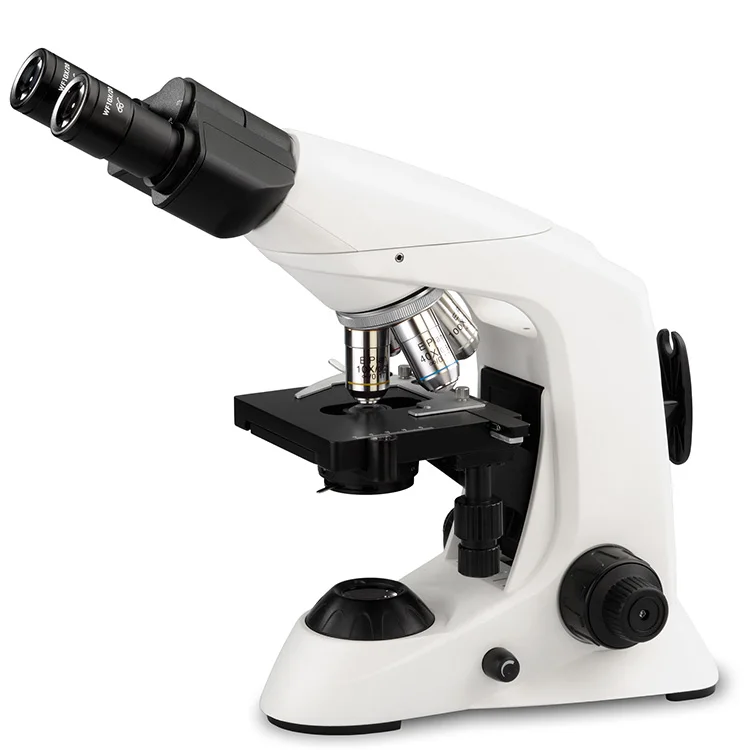

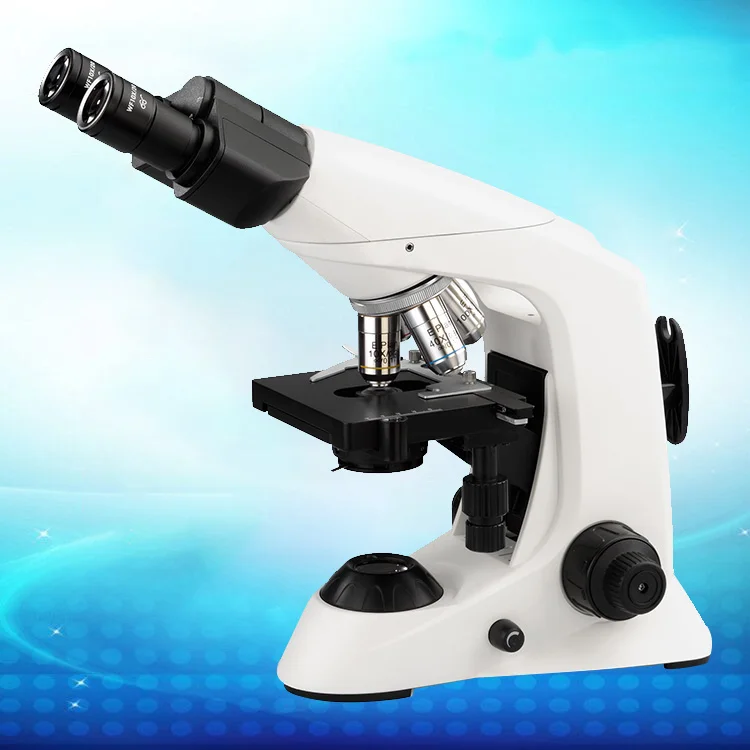

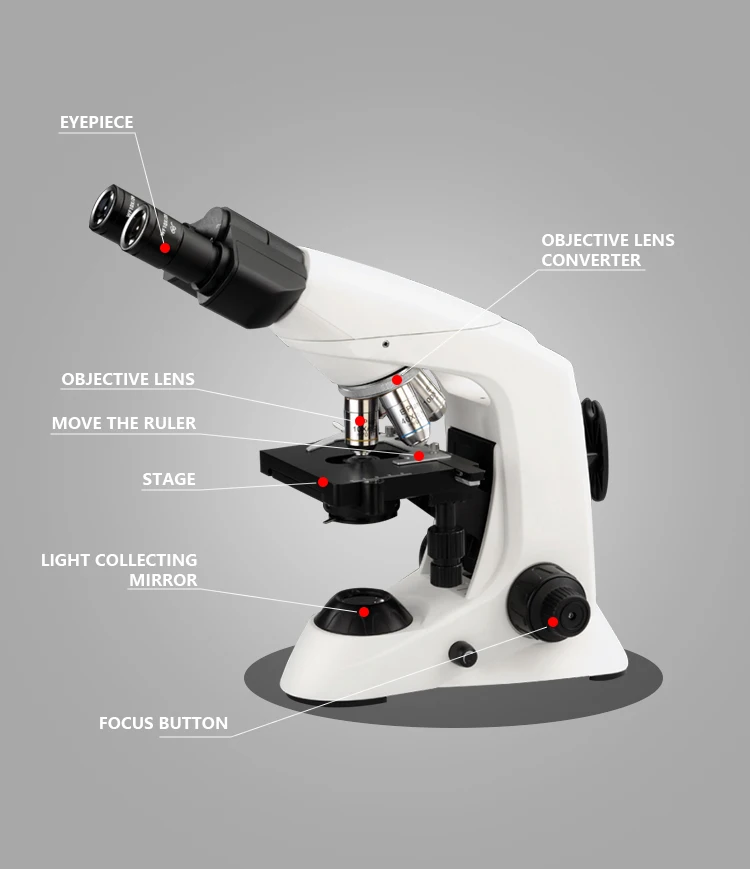

B302 Series Biological Microscope

Perfect Optical System
l High resolution and perfect definition from infinity correct optical system
l 100X water objective instead of 100X oil objective, more be convenient for using

Perfect Appearance Design
l Drop-style integrated appearance design, looks elegant

Perfect Ergonomics Design
l Low position operation, convenient for long-term using
l New wound device for cable, easy to move and keeping

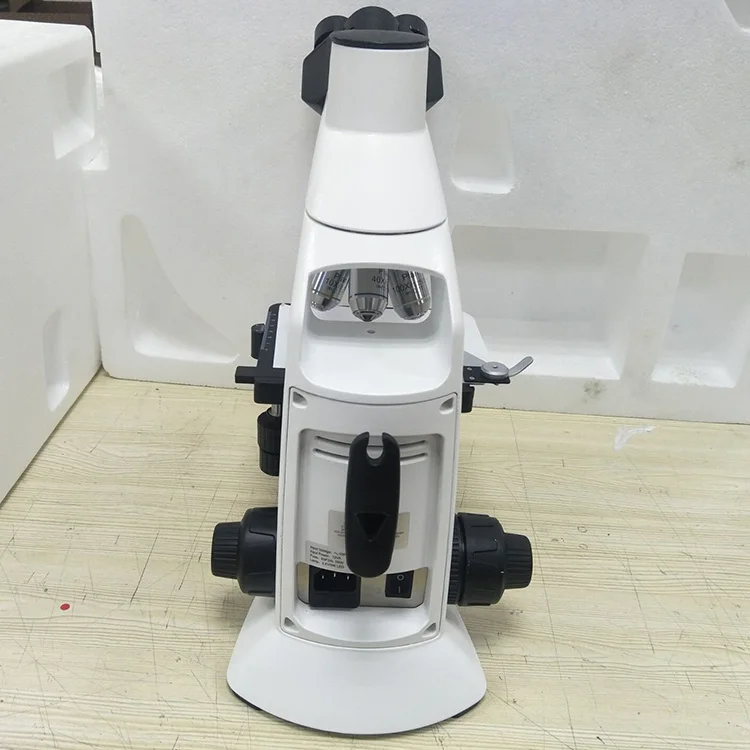

l The changing of objectives can be watched by back side through the back watching window

B302 Series Biological Microscope Outfits


Items
Specification
B302-1
B302E500
Main Body
●
●
Eyepiece
WF10X/20mm (High eyepoint)
●●
●●

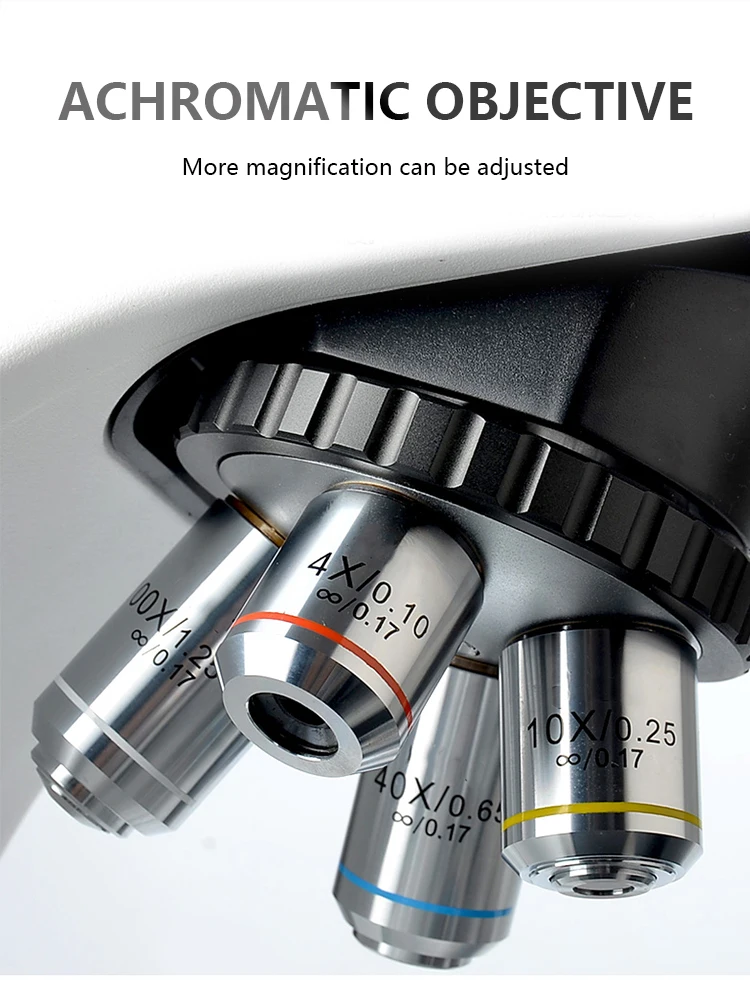

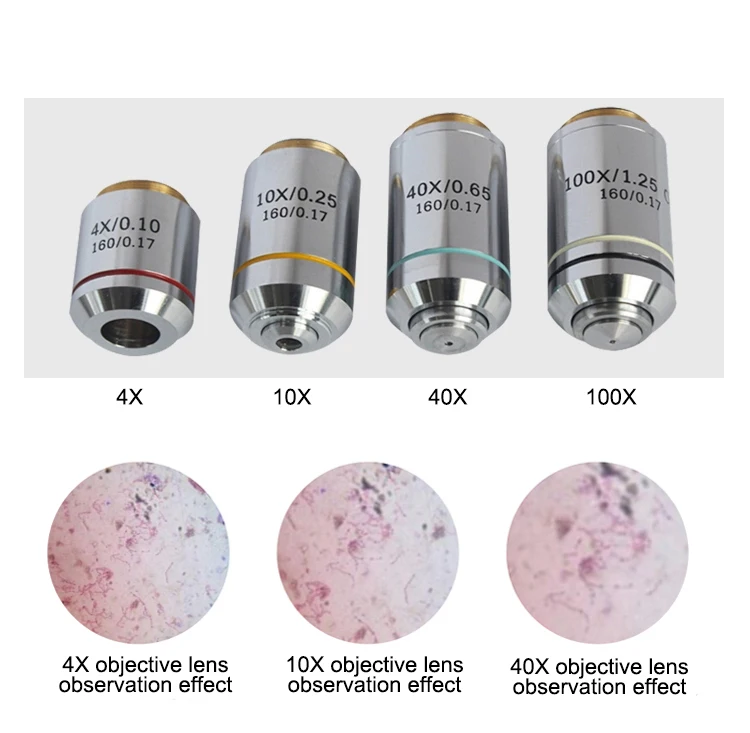

Infinity Objective
EPLAN 4X/0.10
●
○
EPLAN 10X/0.25
●
○
EPLAN 40X/0.65(S)
●
○
EPLAN 100X/1.25(S，Oil)
●
○
PLAN 4X/0.10
○
●
PLAN 10X/0.25
○
●
PLAN 20X/0.40(S)
○
○
PLAN 40X/0.66(S)
○
●
PLAN 60X/0.80(S)
○
○
PLAN 100X/1.25(S，Oil)
○
●
PLAN 100X/1.15(S，Water)
○
○
Observing Head
Seidentopf Binocular Head, Inclined 30°,Rotatable 360°,
Interpupilary Distance: 48-75mm
●
●
Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°,
Interpupilary Distance: 48-75mm
Light Distribution: 20:80
○
○
5 MP Pixel Digital Head
1/2’’CMOS color sequential scanning. USB2.0
Light Distribution: 20:80
○
○
Nosepiece
Quadplex
●
●
Mechanical Stage
Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder
●
●
Rackless(Integrated) stage,
Size: 140×135mm,Travel Range: 75×35mm,
Two-slide holder
○
○
Abbe Condenser
N.A.1.25，With iris Diaphragm
●
●
Coaxial Coarse and Fine Focusing Knobs
Coarse Focusing Travel Range: 25mm
Fine Focusing Travel Range: 2µm/division
●
●
Aspheric Illumination
3W LED Illumination，Voltage: 100V-240V
●
●
Dark Field Unit
Dark Field Ring (Dry, N.A.0.9)
○
○
Polarizing Unit
Analyzer, Polarizer
○
○
C-mount
1×/0.75×/0.5×C-mount（Adjustable）
○
Wire Winding Device
●
●


Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

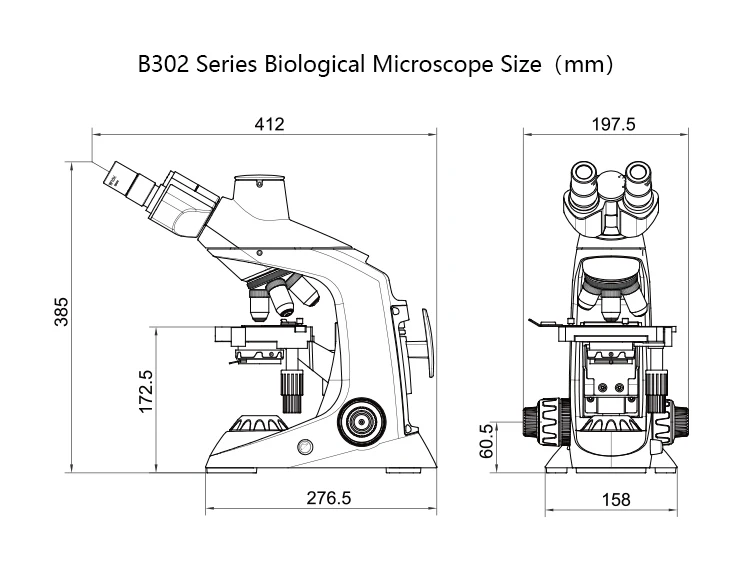

Packing Size: 345mm×260mm×455mm     Gross Weight: 6.7 kgs     Net Weight: 5.3 kgs




Product Description


Items
Specification
B203
B204
B203
LED
LED
LED
TR
Eyepiece
WF 10×-18 mm
YY
YY
YY
WF 10×-18 mm(With Pointer)
o
o
o
WF 16×-13 mm
o
o
o
WF 10×-18 mm(Reticule 0.1 mm)
o
o
o
Achromatic
4×
Y
Y
Objective
10×
Y
Y
40×(S)
Y
Y
100×/1.25 (Oil) (S)
Y
Y
20×
o
o
60× (S)
o
o
Plan Objective
4×
Y
10×
Y
40×/0.65 (S)
Y
100×/1.25 (Oil) (S)
Y
20×
o
60×(S)
o
Monocular Head
Inclined 30°, Rotatable 360°
Seidentopf Binocular Head
Inclined 30°,Rotatable 360°,
Y
Y
Interpupilary Distance 50-75mm
Seidentopf
Inclined 30°,Rotatable 360°,
Y
Trinocular Head
Interpupilary Distance 50-75mm,
Light Distribution: 20:80
Nosepiece
Quadplex
Y
Y
Y
Focusing Knobs
Coaxial Coarse and Fine Focusing Knobs
Y
Y
Y
Mechanical Stage
Stage Size:120mm×115mm,
Y
Y
Y
Travel:50mm×70mm
Condenser
Abbe N.A. 1.25(Iris Diaphragm)
Y
Y
Y
Dark Field Ring
Available For 4×-40× Objective
o
o
o
Polarizing Attachment
Analyzer / Polarizer
o
o
o
Mirror
Plano-concave mirror
o
o
o
C-mount
1×/ 0.5×（Focus Adjustable）
o
Base
LED Illumination Systems（non-rechargeable）
Y
Y
Y
LED Illumination Systems
o
o
o
（rechargeable）
6V 20W Halogen Lamp,
o
o
o
Wide Voltage: 100V-240V




















Application Field








Certificate




Company Profile




Drawell International Technology Limited is a leading company of manufacturing and selling laboratory equipment and scientific instruments, founded in year 1999 in China, then has become an joint venture company after being invested by US company since2014.
DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer,
Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in
Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc. Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .


Exhibitions




Logistics & payment




FAQ


Q1. Are you factory or trading company?
We are a factory.

Q2. What's the MOQ ?
(1). Normally,MOQ is 1 piece. But if the items are in stock,there is no MOQ.The quantity is according to the clients requires.
(2). If there is no stock,the general MOQ are in big difference due to the differentproducts. But the quantity still can be negotiated.

Q3. What is your principle for the samples ?
We do not provide free sample.

Q4.Which payment can be acceptable ?
We could accept the payment by L/C, T/T, Paypal, Western Union,etc.

Q5. How about your delivery time?
Generally, it will take 7 to 15 working days after receiving your advance payment. Depend on the quantity.

Q6. Certificate & Quality.
CE and ISO certified for most products. Good quality firstly to avoid any defective products, Protective packaging to avoid destroy during delivery.

Q7.Language.
Pure English operation panel, display , manuals ; installation & operation videos will be provided to you as a guidance

Q8.Service
We could provide Online instruction; Real-time support by video-call or voice-chat, During warranty time, we can send product accessories when you need for free;Technical guidance is free and ready forever.

Q9.Training
Your technicians can come to our factory for training , Drawell engineers can go your place for local support( installation , training, debugging, maintenance ); Products can be customized according to your requirements; OEM service is available with customers' brand.
