CE Approved Granulation Machine For Ammonium Sulphate NPK Bentonite Cat Litter Granules Making Machine
- Category: >>>
- Supplier: Jiangsu Fuyi Machinery Technology Co. Ltd.
Share on (1600799698526):
Product Overview
Description
Products Description

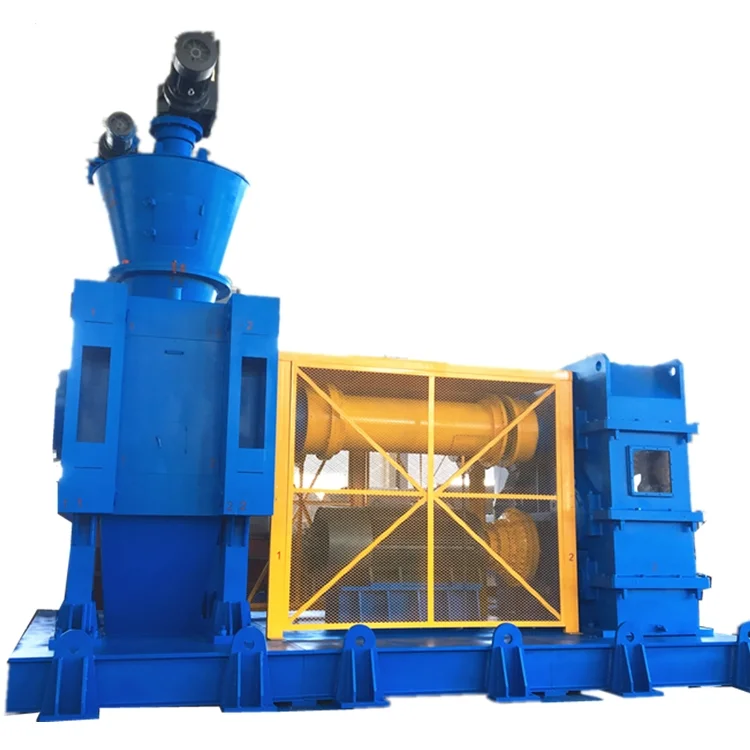

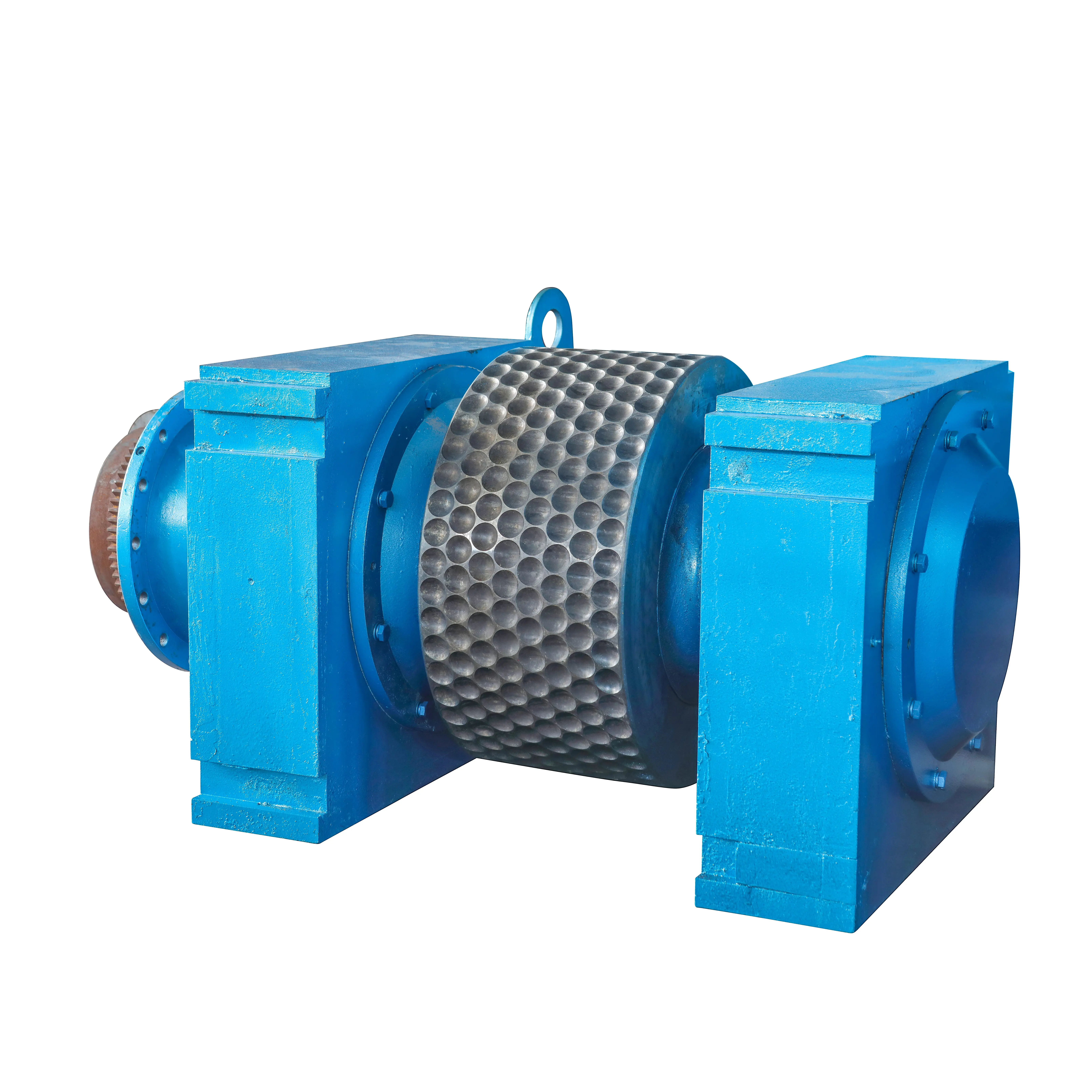

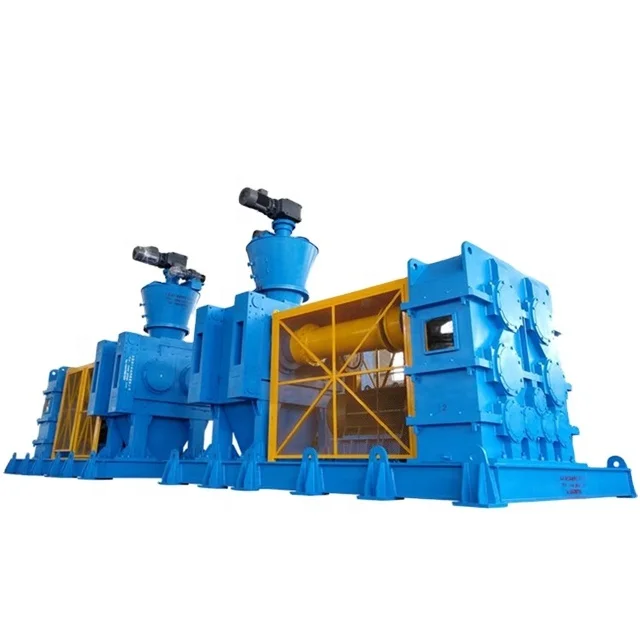

DH series dry type roller press granulator

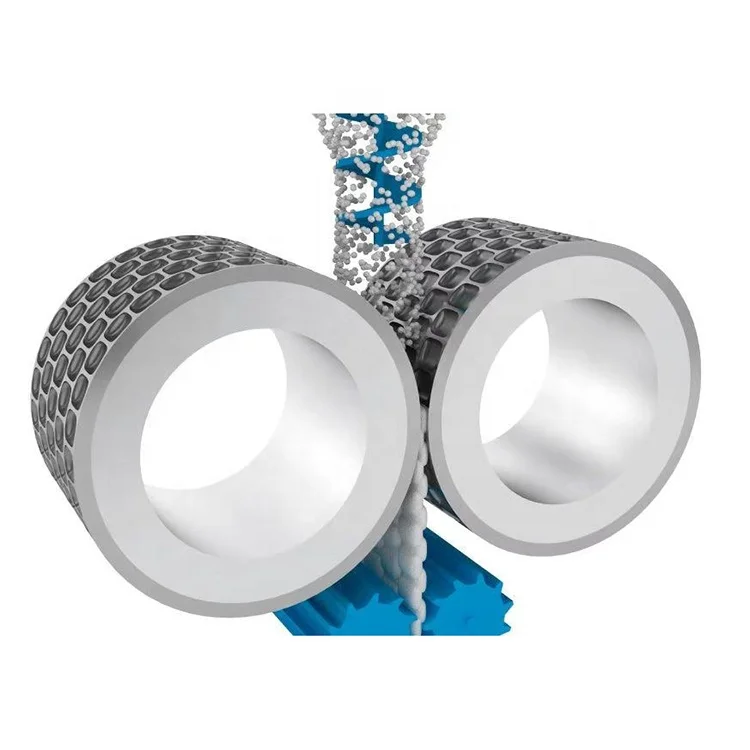

The working principle of dry granulation is mainly to extrude the material between two reverse rotating rollers by external force, and use dry roller granulation technology to crush and screen the material with moisture content ≤1%, so that the massive material meets the application requirements of particles. In the process of rolling, the actual density of the material can be increased by 1.5~3 times to reach a certain particle strength requirement.

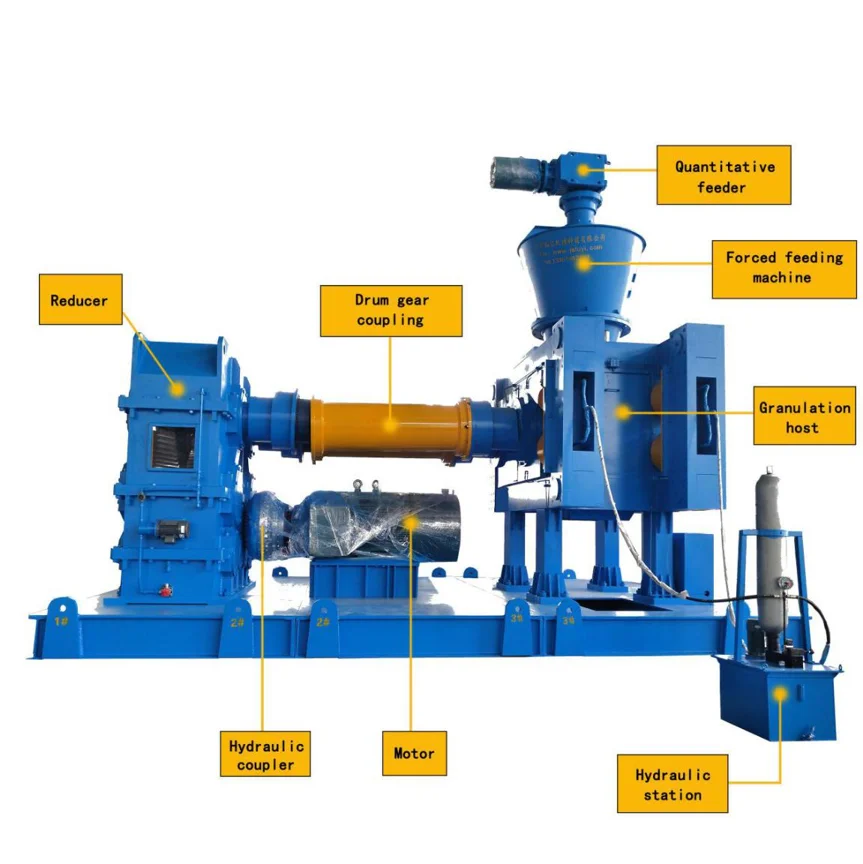

(1) quantitative screw feeder
(2) forced feeder
(3) coupling

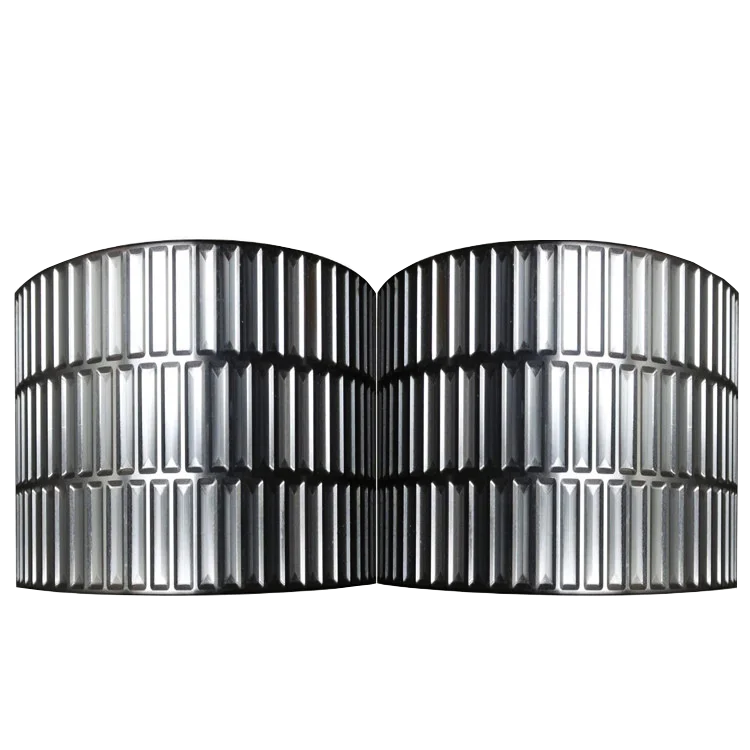

(4) roller
(5) hydraulic station
(2) forced feeder
(3) coupling
(4) roller
(5) hydraulic station

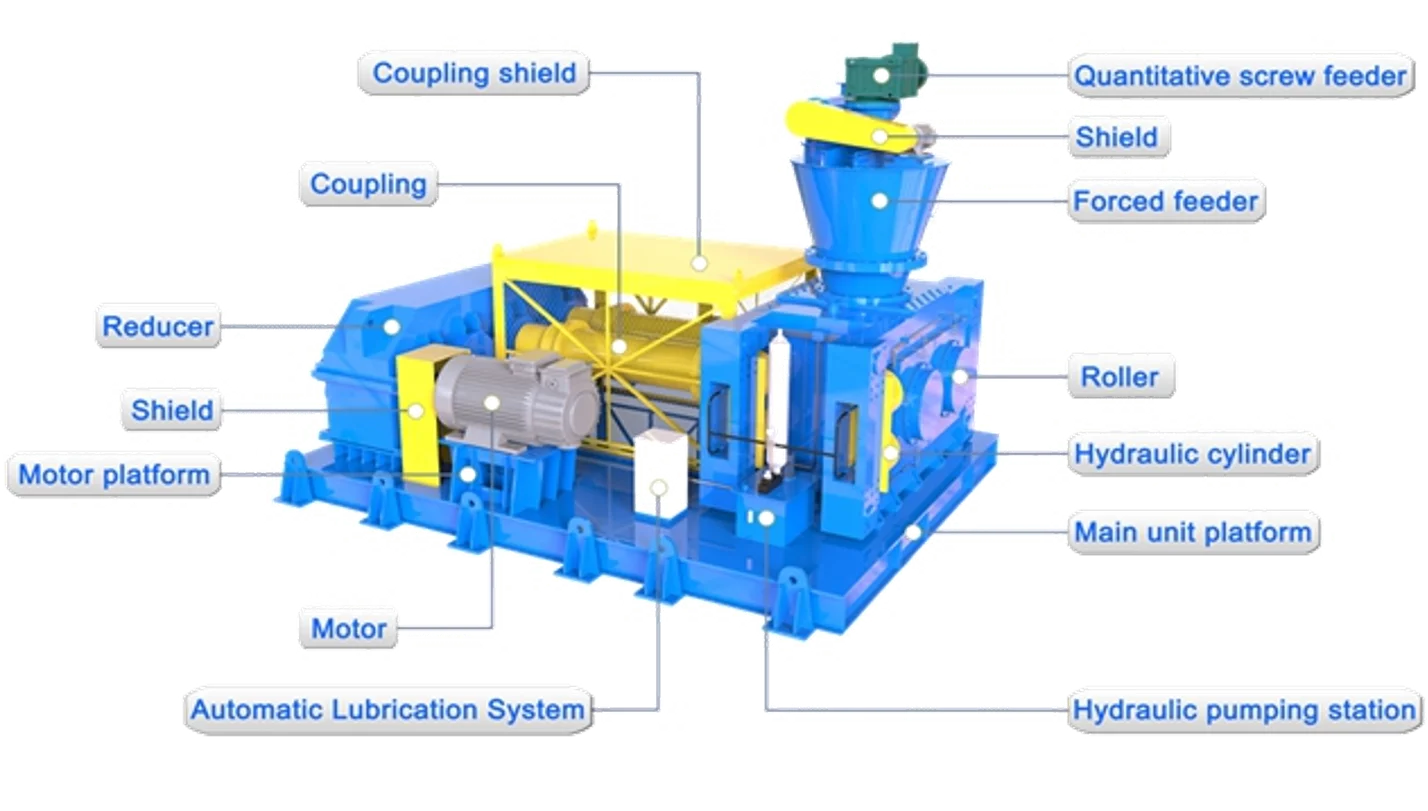

Structure

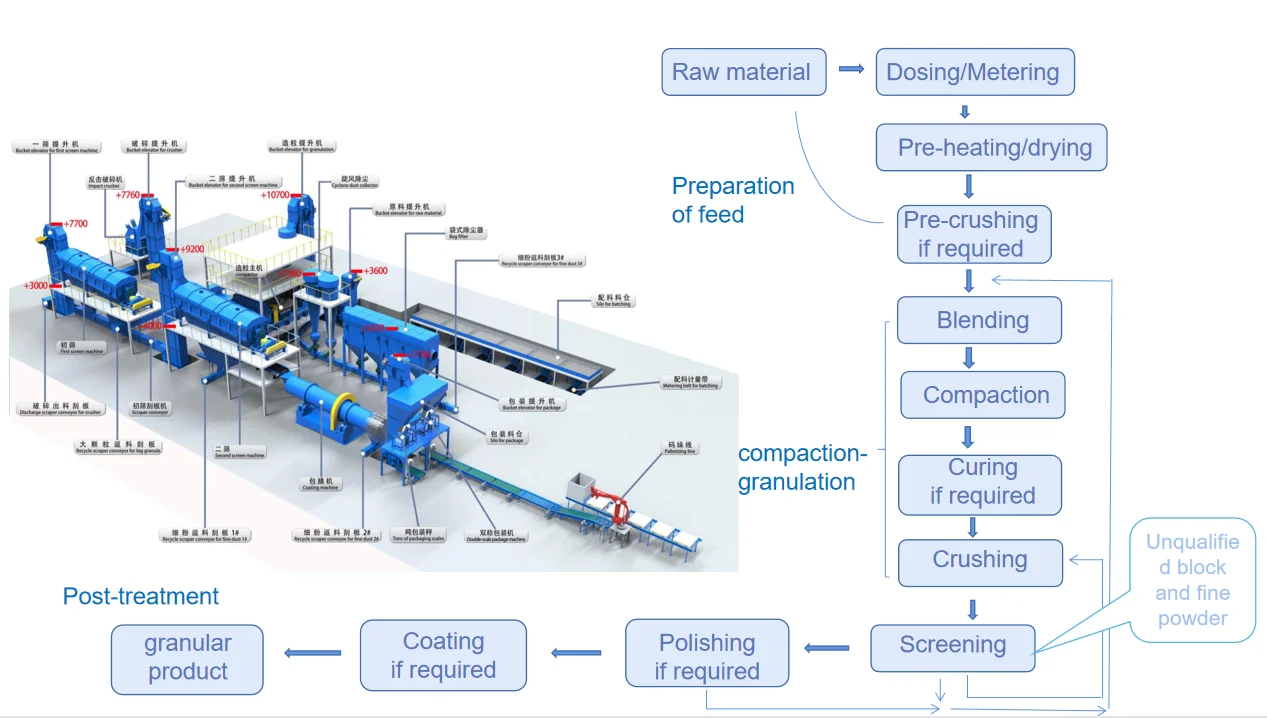

Process Technology
Technology Process
Model | DH240 | DH360 | DH450 | DH650 | DH850 | DH1050 | |||||
Roller diameter(mm) | φ240 | φ360 | φ450 | φ650 | φ850 | φ1050 | |||||
Valid usable width of roller(mm) | 100-160 | 170-230 | 190-280 | 290-330 | 420-450 | 450-500 | |||||
Rotation rate(rpm) | It can be adjusted on site according to different material characteristic. | ||||||||||
Maximum thickness of flakes(mm) | 4 | 8 | 12 | 16 | 32 | 45 | |||||
Flakes output(t/h) | 0.5-1.5 | 1.3-2.3 | 2.5-3.5 | 5.0-7.0 | 12-22 | 22-45 | |||||
Finished product granule size(mm) | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | |||||
Finished product output(t/h) | 0.3-0.75 | 0.9-1.3 | 1.8-2.5 | 3.5-4 | 5-8 | 10-16 | |||||
Compactor power(KW) | 22 | 30-37 | 55-75 | 110-132 | 220-225 | 400-550 | |||||
Total power for whole line(KW) | 55 | 55 | 90 | 175 | 400 | 850 | |||||
External dimension(mm) | 2300*1700*1860 | 2350*2000*2600 | 2600*2200*2900 | 3600*2800*3200 | 5000*3800*4100 | 7000*5000*6000 | |||||
Compactor weight(t) | 5 | 7 | 10 | 21 | 46 | 85-95 | |||||

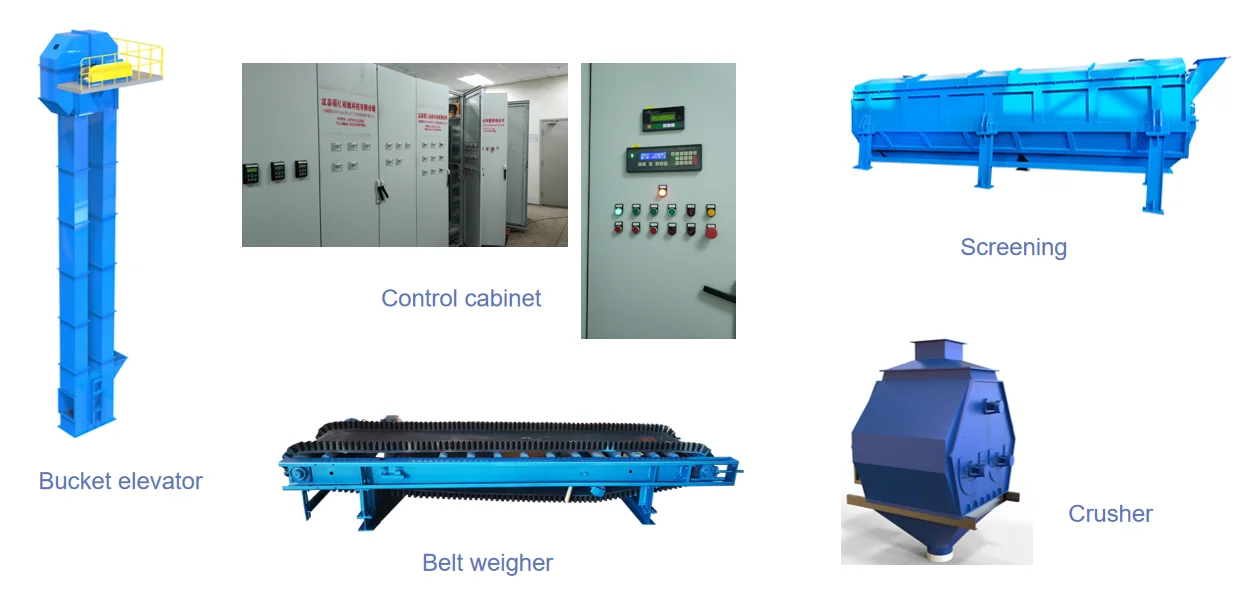

Related ancillary equipment

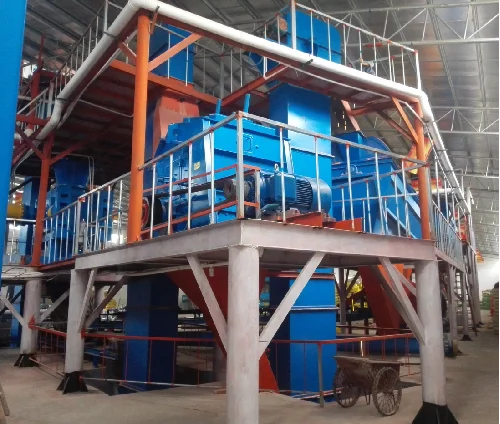

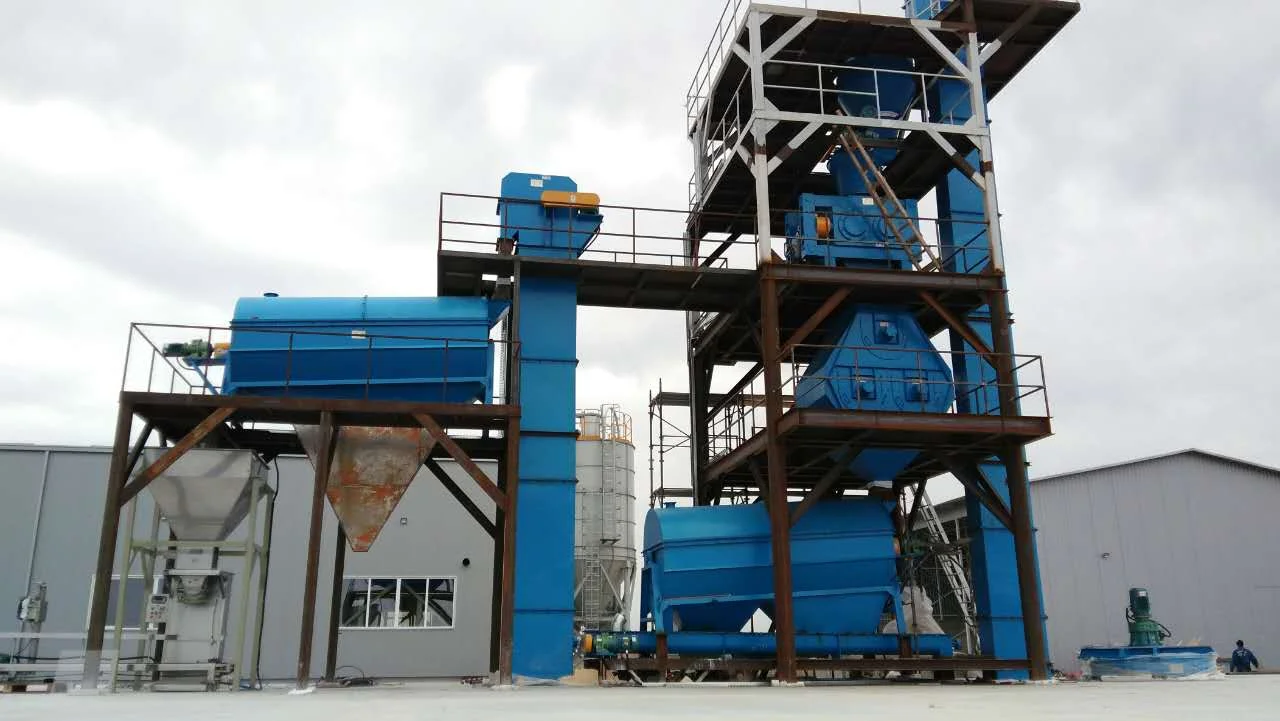

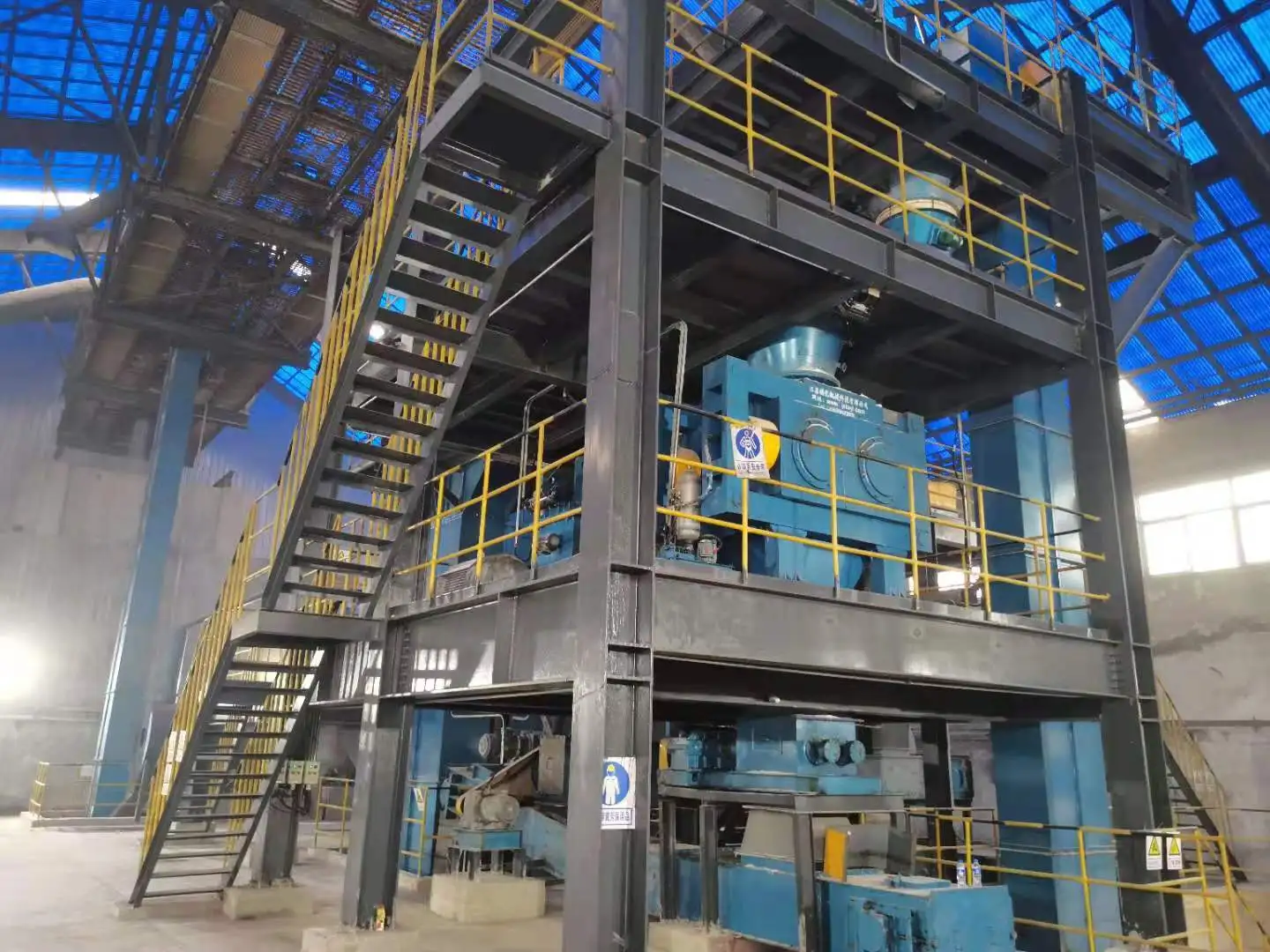

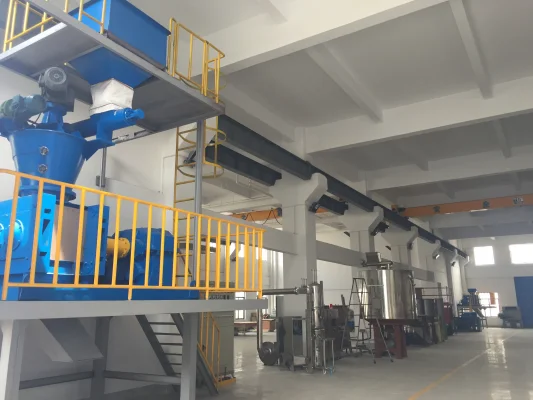

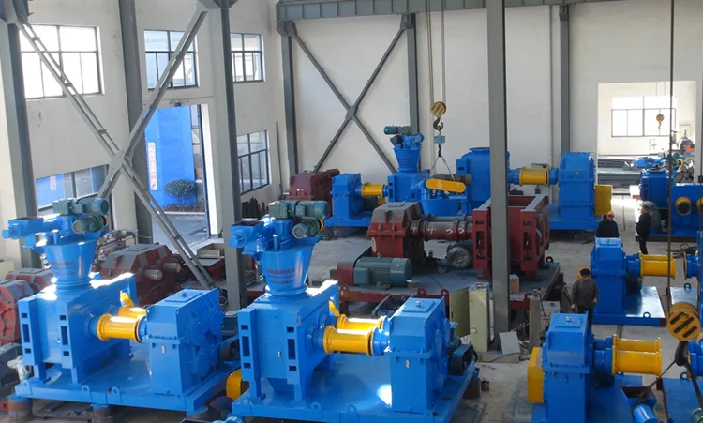

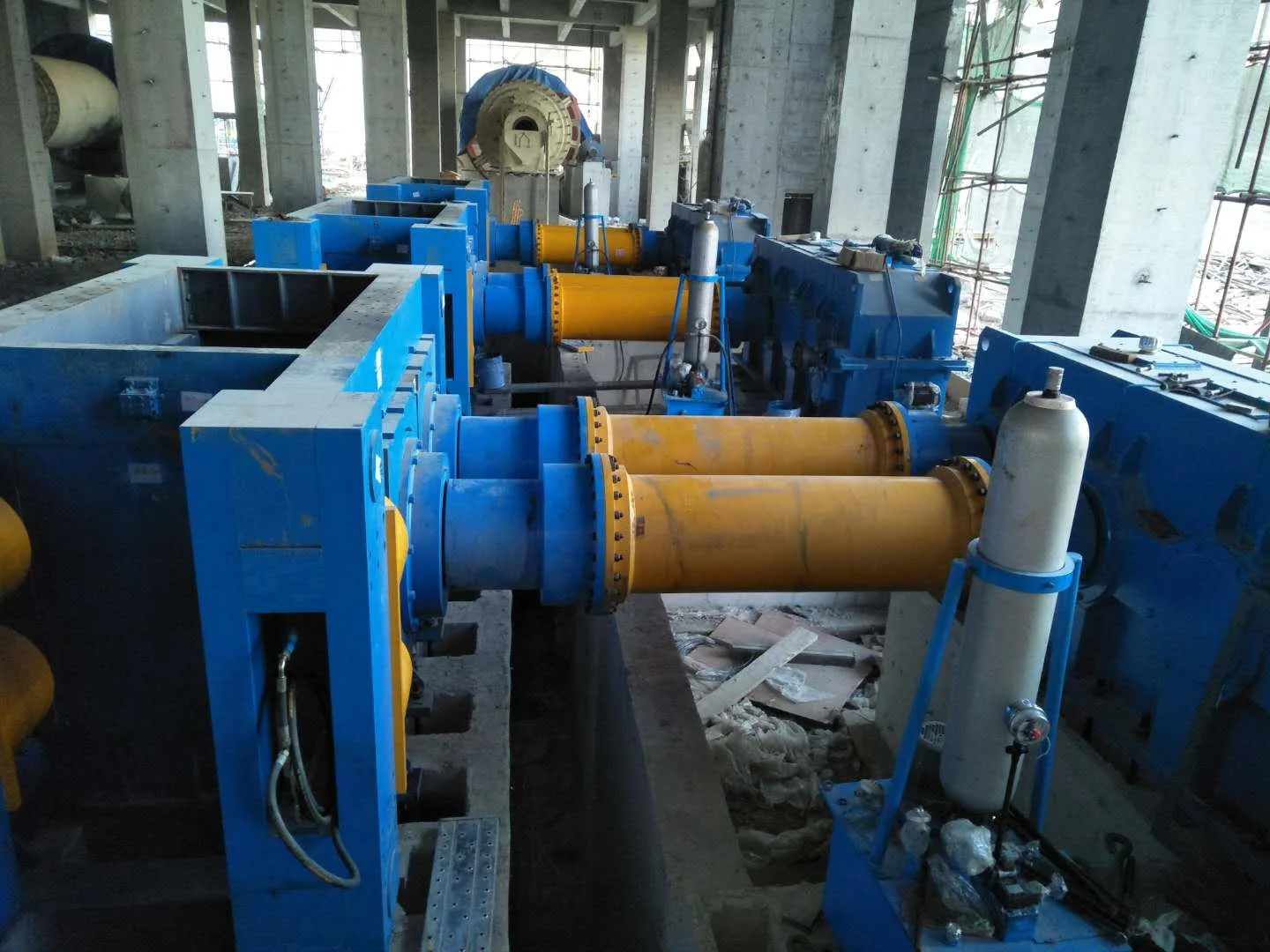

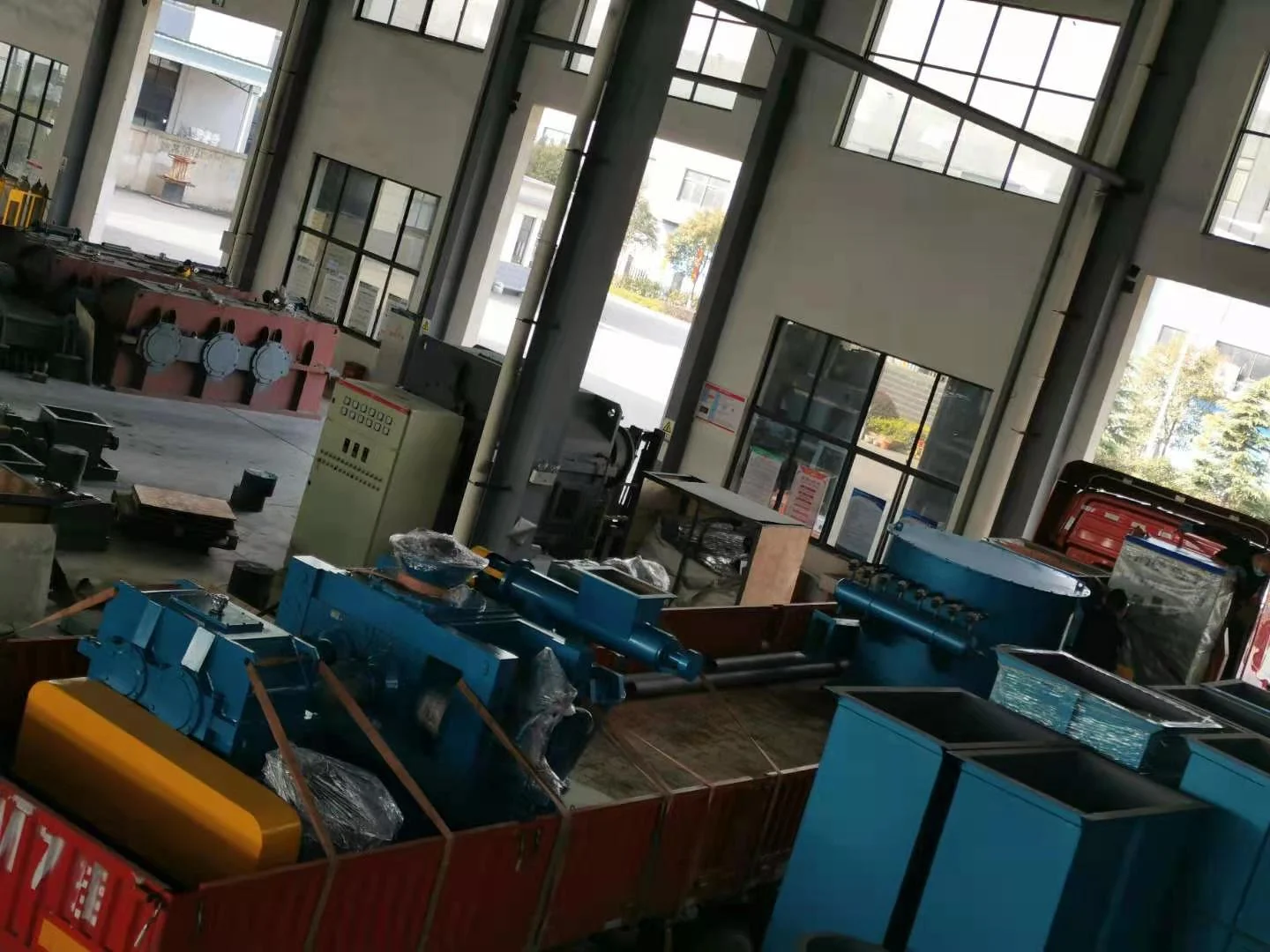

Scene display

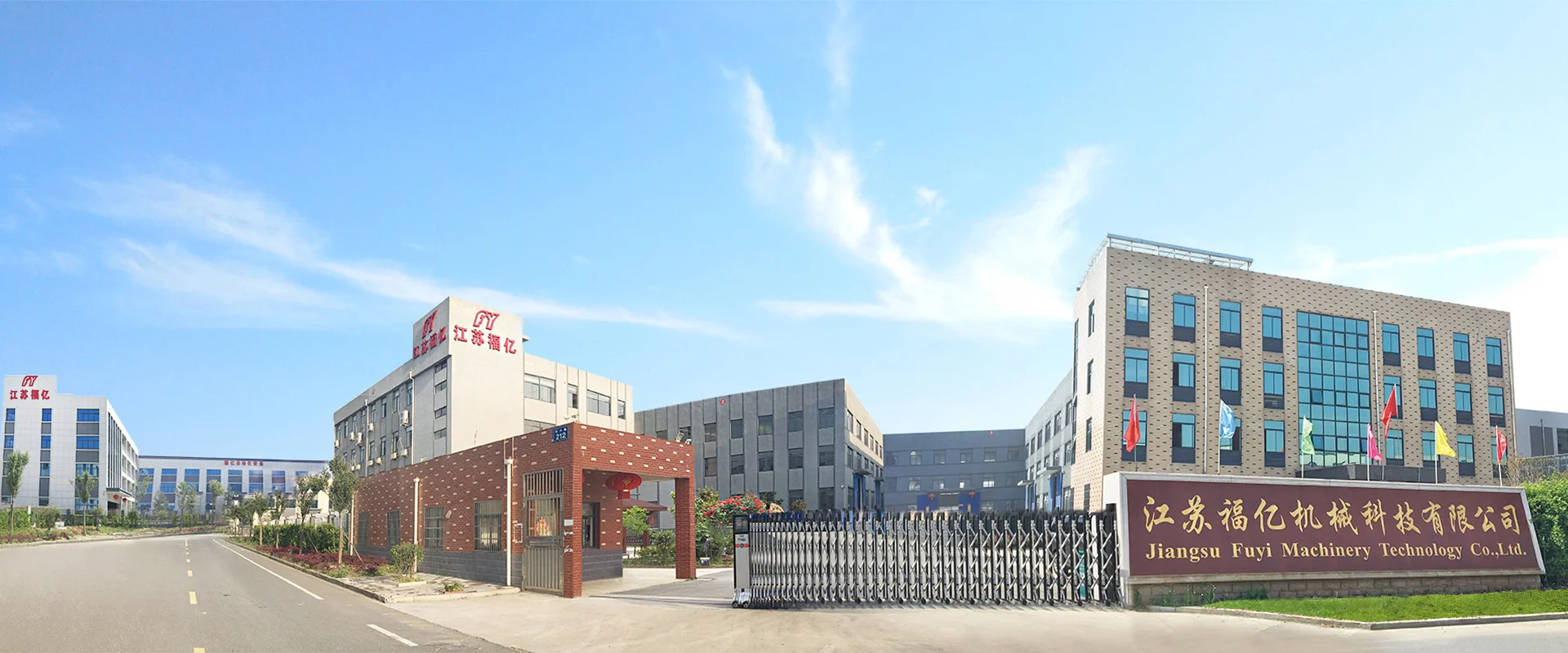

Corporate Profile
Jiangsu Fuyi Machinery Technology Co., Ltd. was founded in March 2006, is located in No. 212,Huaxing Road ,Jintan Economic Development Zone,Changzhou city, Jiangsu province. Jiangsu Fuyi Machinery Technology Co., Ltd., Changzhou Fuyi drying Equipment Co., Ltd., Jiangsu Fuyi Automation Equipment Co., Ltd. together production and manufacture.
Company is one professional enterprise, specialized in the developing and manufacturing of dry granulating equipment, drying equipment, dynamic calcinations equipment , etc. By Absorbing advanced drying & granulating technology at home and abroad, we improve the technology of rotary flash dryer and dry granulator.
Company is one professional enterprise, specialized in the developing and manufacturing of dry granulating equipment, drying equipment, dynamic calcinations equipment , etc. By Absorbing advanced drying & granulating technology at home and abroad, we improve the technology of rotary flash dryer and dry granulator.

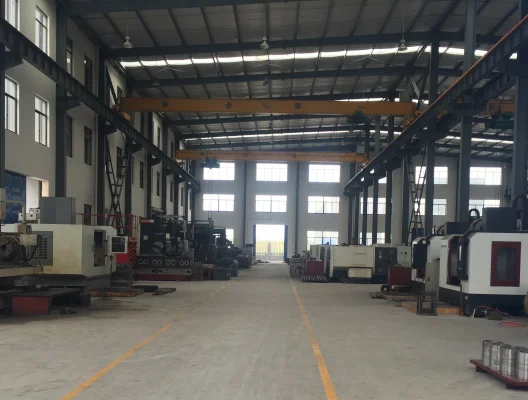

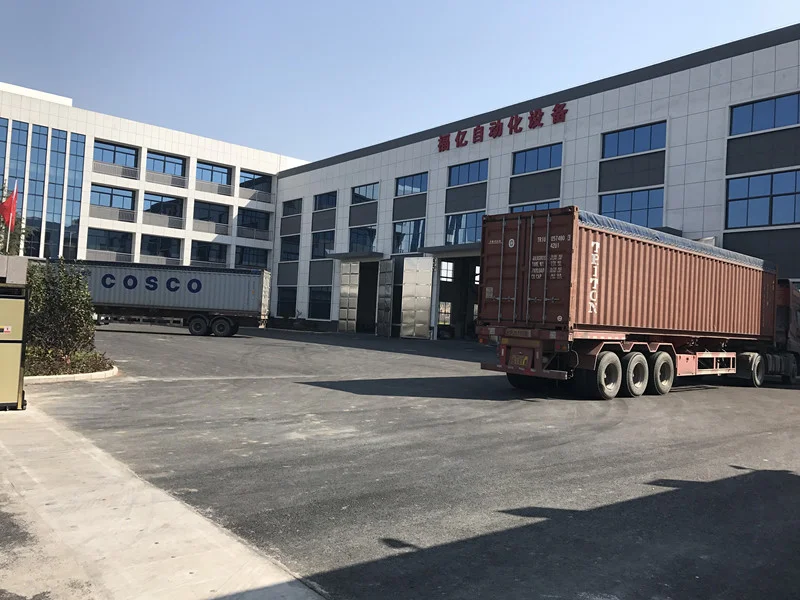

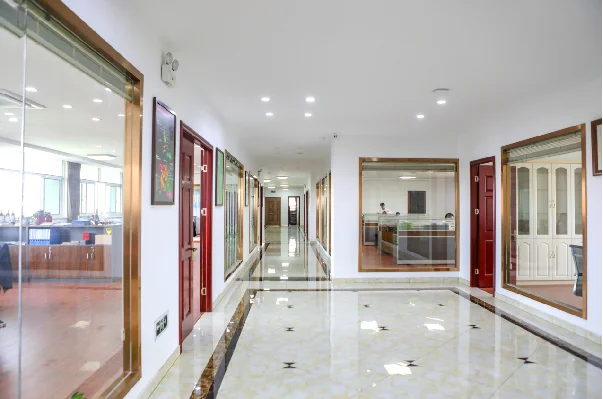

Corporate environment
