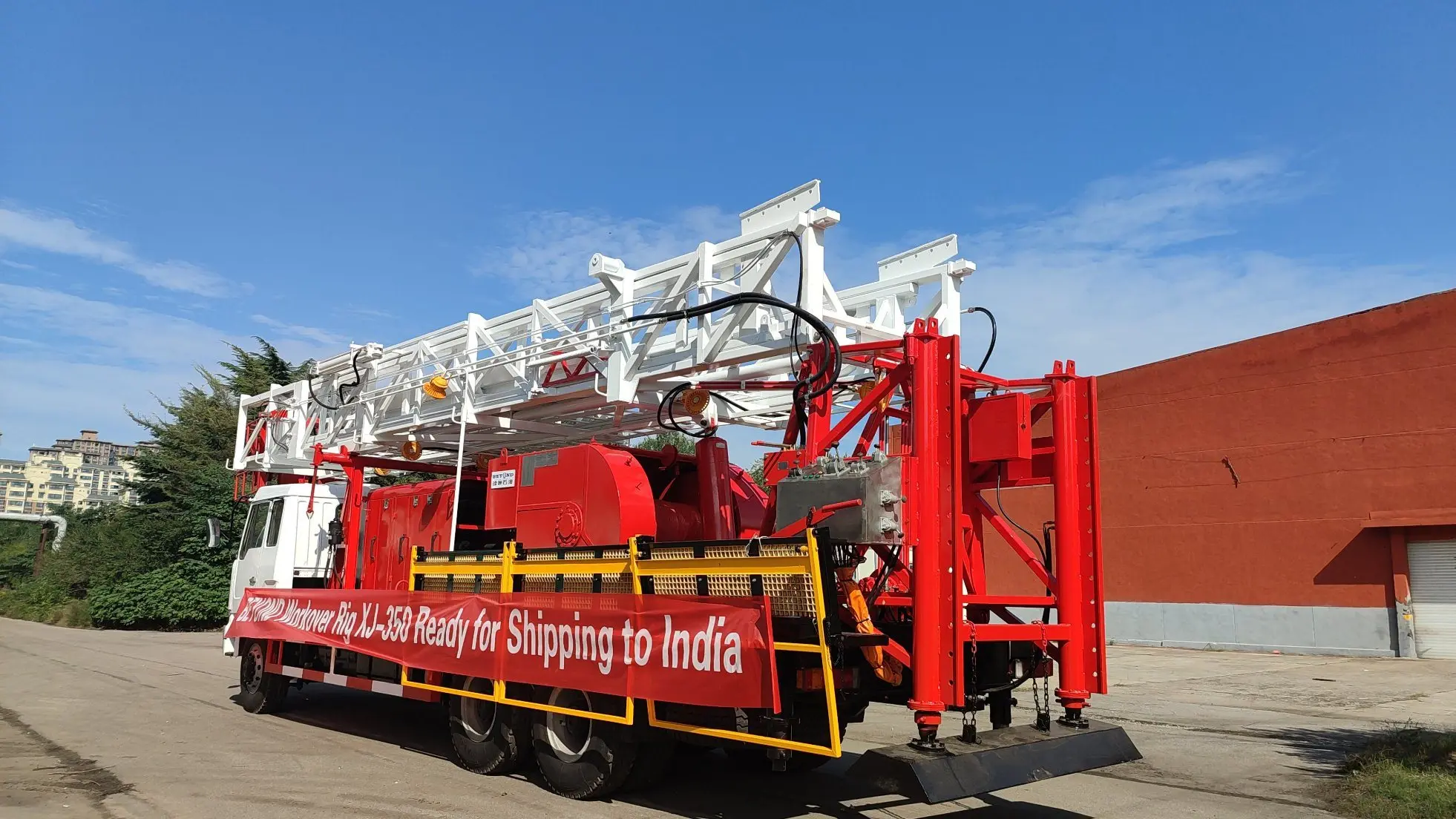

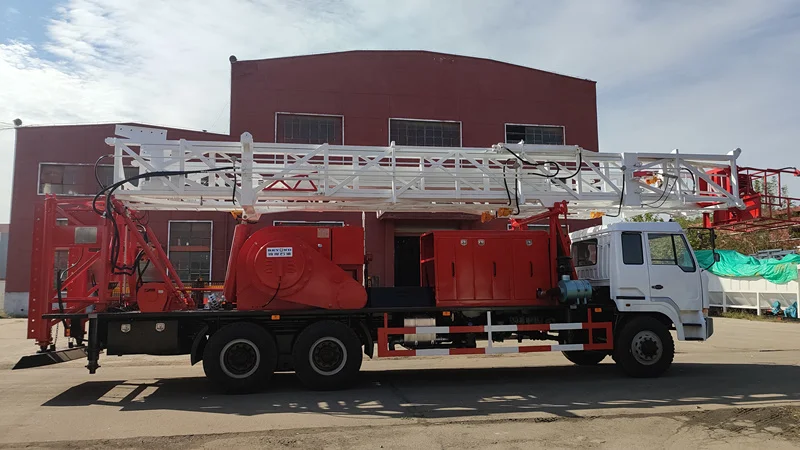

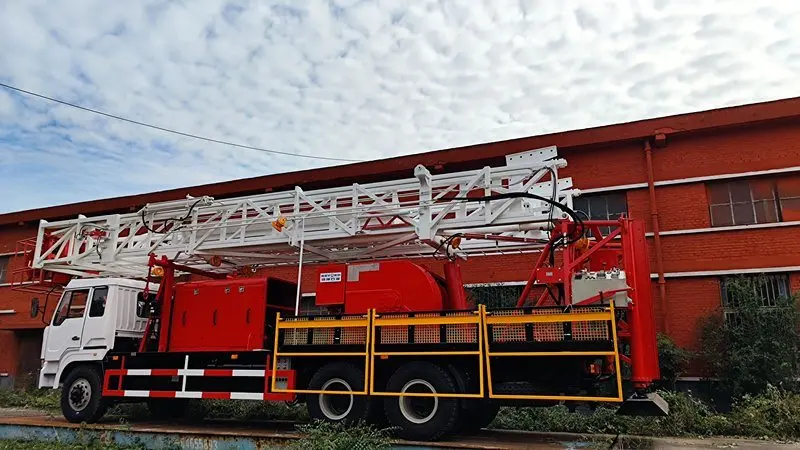

Oil Drilling Rig Equipment XJ750 Petroleum Drilling Rig and Spare Parts
- Category: >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (1600799700906):
Product Overview
Description
Product Parameters
ZJ15CZ (XJ-550) | ZJ20CZ (XJ-650) | ZJ30CZ (XJ-750) | ZJ40CZ (XJ-850) | |
名称 | 参数 | 参数 | 参数 | 参数 |
ITEM | Specification | Specification | Specification | Specification |
装机功率 | 540HP (402KW) | 630HP (470KW) | 630 HP×2 (470 KW×2) | 630 HP×2 (470 KW×2) |
Installed Power | ||||
最大静钩载 | 1350kN | 1580kN | 1800KN | 2250kN |
Max.Hook Load | ||||
最大钻柱重量 | 500kN | 700KN | 750KN | 1150KN |
Max. Drill String Load | ||||
绞车额定功 | 450HP | 600HP | 750HP | 850HP |
Drawworks Rated Power | ||||
传动形式 | 液力+机械 | 液力+机械 | 液力+机械 | 液力+机械 |
Transmission Mode | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical |
驱动形式 | 10×8 | 12×8 | 14×8 | 14×10 |
Drive Mode | ||||
名义钻井深度 | 1500m | 2000m | 3000m | 4000m |
Nominal Drilling Depth (4 1/2"DP) | ||||
井架高度 | 33m | 35m | 38m | 38m |

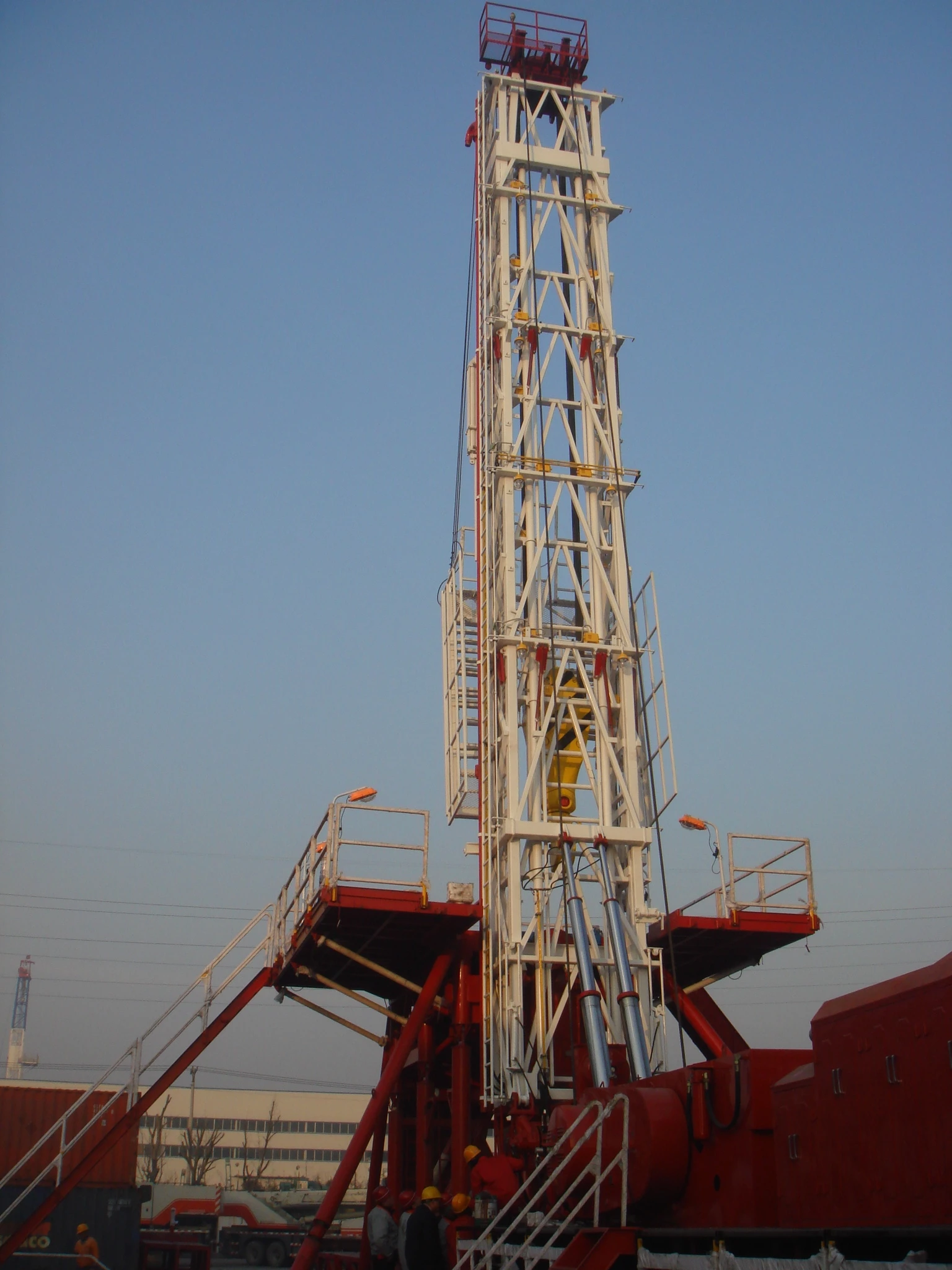

Mast Height | ||||
钻台面高度 | 4.5m | 4.5m | 6m | 6m |
Rig Floor Height | ||||
钢丝绳直径 | Ф26mm | Ф29mm | Ф32mm | Ф32mm |
Wirerope Diameter | ||||
液压系统 | 14MPa | 14MPa | 21MPa | 21MPa |
Hydraulic System | ||||
气路系统 | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa |
Pneumatic System | ||||
游动系统 | 5×4 | 5×4 | 5x4 | 6×5 |
Travelling System | ||||
运输尺寸 | 19.37×3.05×4.49m | 20.1×3.05×4.49m | 23×3.2×4.8m | 23×3.2×4.8m |
Overall Size | (含井架Including Mast) | (含井架(Including Mast) | (含井架Including Mast) | (含井架Including Mast) |
总 重 | 约52000 kg | 约58000Kg | 约73000 kg | 约85000 kg |
Total Mass |
