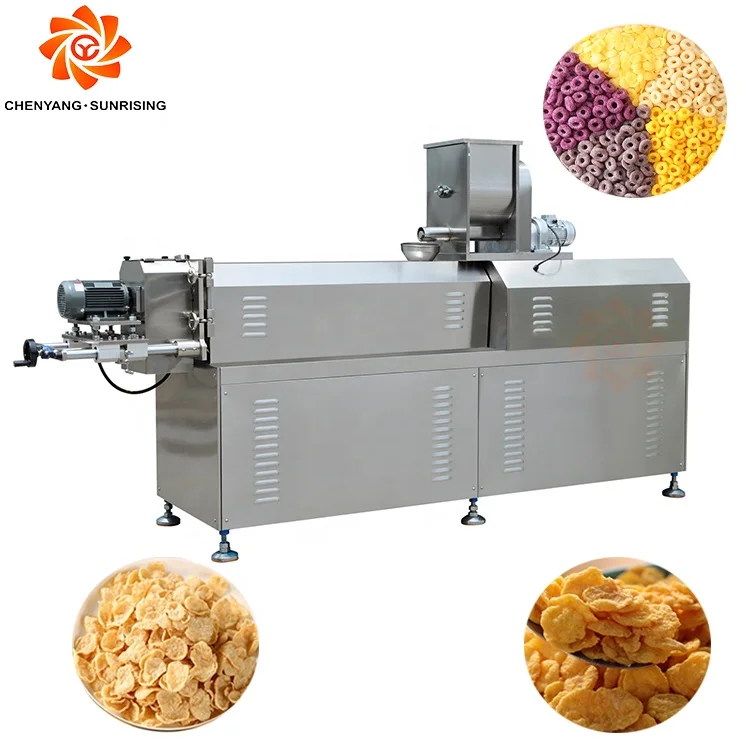

Automatic Puffed cornflakes making extruder machine breakfast cereal corn flakes complete production line
- Category: >>>
- Supplier: Jinan Chenyang Technology Co. Ltd.
Share on (1600799709689):
Product Overview
Description
Products Description
Name | Automatic breakfast cereal machine corn flake making machine |
Raw material | corn powder,can be made into various shapes,a healthy choice for your breakfast with milk. |

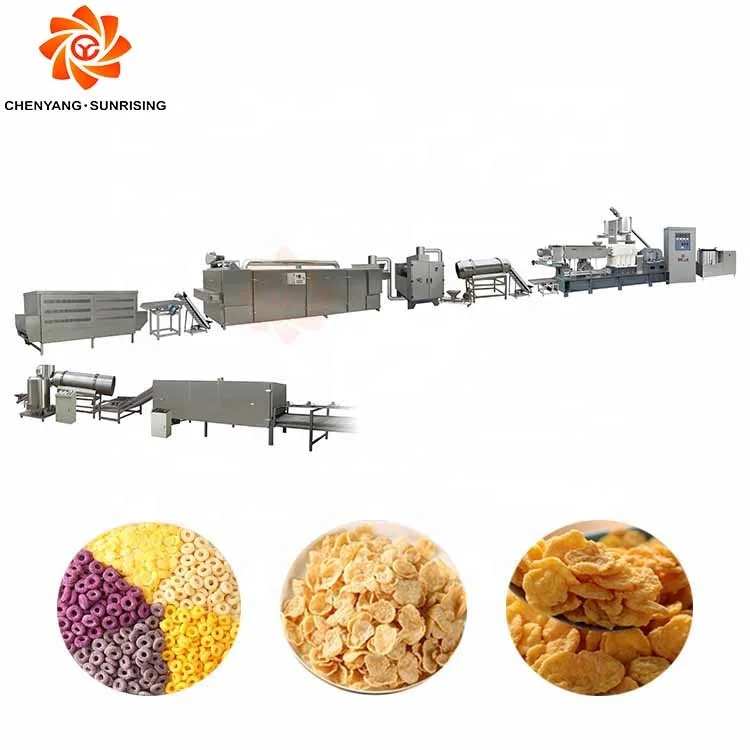

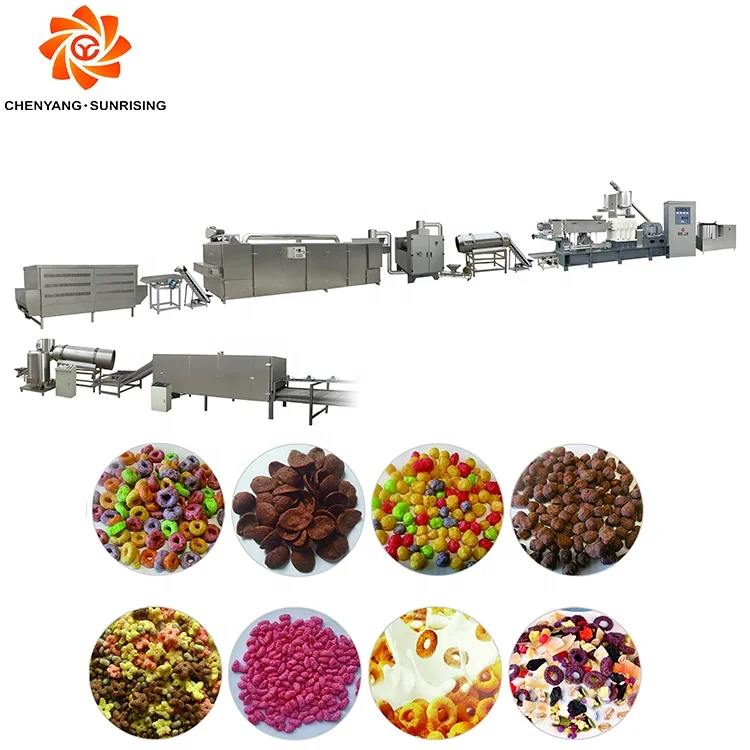

Work flow | Mixer--Screw conveyor--Extruder--Vibration Cooler--Roller drum--Air conveyor --Flaking machine--Dryer--Vibration Cooler--High-temperature dryer--Sugar sprayer--Dryer--Cooling machine |
Products | Corn flakes and different shapes breakfast cereals,such as ring ,ball ,flake,star,letter etc |
Machine material | Stainless steel 304 201 or as customer’s request |
Energy | Electricity ,Diesel, Steam ,Gas |
Advantage | Easy to carry, Long shelf life |
Details
Our advantages
Name | Big Mixer | Small Mixer |
Installed Power | 7.5kw | 4kw |
Power Consumption | 6 kw | 3.2kw |
Output | 600kg/h | 400kg/h |
Size | 1.4x0.7x1.4m | 1x0.6x1.2m |
Name | Screw Conveyor |
Installed Power | 1.1kw |
Output | 600kg/h |
Size | 3m |
Rotate Speed | 350r/min |

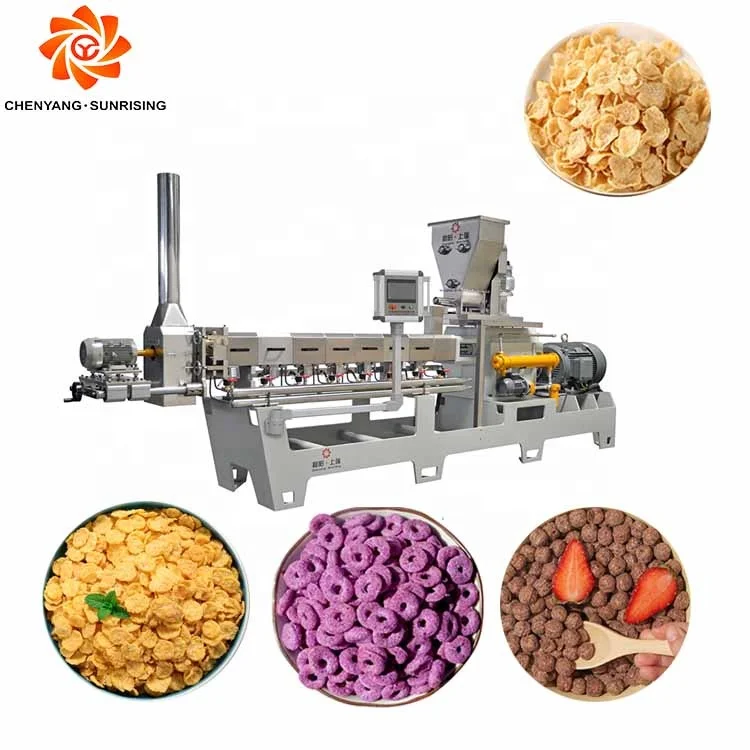

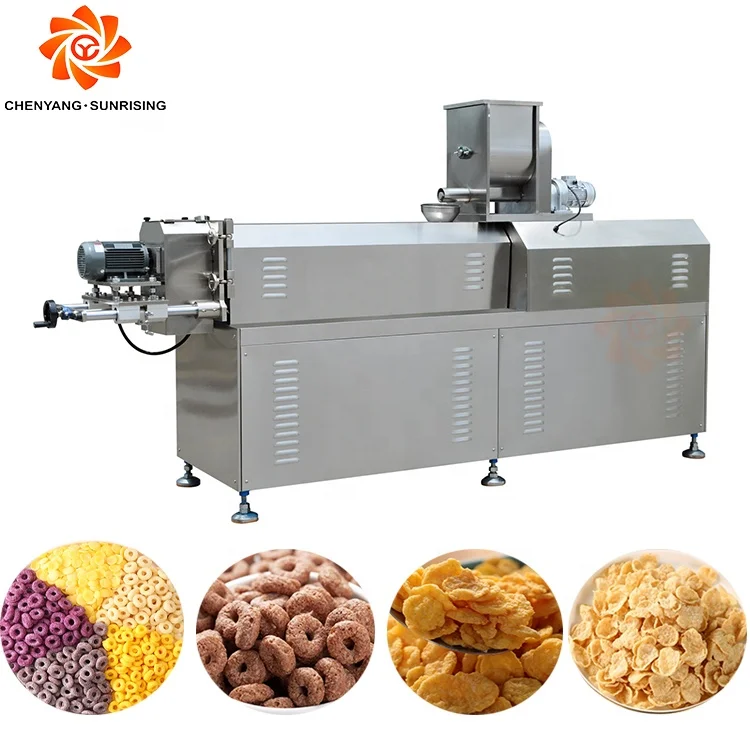

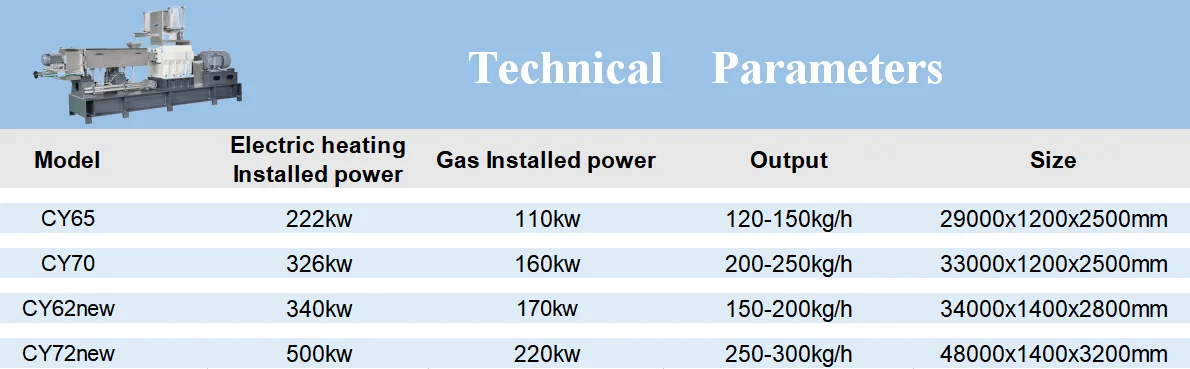

Name | Double Screw Extruder |
Model | CY65,CY70,CY62,CY72 |
Gas Installed power | 110kw,160kw,170kw,220kw |
Screw Diameter | 65mm,70mm,62mm,72mm |
Output | 120 kg/h-300kg/h |
Name | Vibration Screen |
Installed Power | 0.25kw |
Output | 200 kg/h-400kg/h |
Function | The material is thrown up on the screen and moves forward in a straight line |
Name | Roller Drum |
Heating Method | Electricity |
Heating Power | 0.37kw |
Name | Flaking Machine |
Heating Method | Electricity |
Power | 1.1kw |
Size | 260×130×152cm |
Name | Dryer |
Model | CYK-III,CYK-IV,CYL-IV,etc |
Heat Method | electricity,gas |
Output | 120 kg/h-350kg/h |
Material | stainless steel |
Name | Large Hoister |
Heating Method | Electricity |
Power | 0.75kw |
Function | Change the material into the drying box when the material is not uniform. |
Name | Cooling Conveyor |
Installed Power | 2KW |
Heating Method | Electricity |
Our services
A. Provide free technical consulting services.
B. Provide with product samples, enterprise profiles, credit certificates and other materials.
C.Provide reasonable quotations.
D.Free design and selection according to customer requirements
Sale of services
A.Free project planning and design services;
B.Free debugging of equipment until everything is functional;
C.Free management of equipment long distance shipping from seller's factory to named place by buyer.
B.Free debugging of equipment until everything is functional;
C.Free management of equipment long distance shipping from seller's factory to named place by buyer.
After-sales services
A.Free training of equipment maintenance and operating personally;
B.Free new production techniques and formulas;
C.Provide 1 year complete warranty and life-time maintenance service; The seller is responsible for the nature damage of the machinery in one year except for man-made damage and wearing parts.
B.Free new production techniques and formulas;
C.Provide 1 year complete warranty and life-time maintenance service; The seller is responsible for the nature damage of the machinery in one year except for man-made damage and wearing parts.
Company Profile
About Jinan Chenyang Technology Co.,ltd
Jinan Chenyang Technology Co,.Ltd is a professional machinery manufacturer. With our many years' research and study, techniques have been widely used in many fields.We can also provide special corn flake making machine designing production line according to clients' special requirements. Free formula, local installation, workshop design, machine inspection service are provided, any need will be met if inquiries.
Product packaging
• Inside package is plastic film, outside is wooden or plywood case
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate for Breakfast Cereal machine.
• Shipping, train, express or upon clients' demands.
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate for Breakfast Cereal machine.
• Shipping, train, express or upon clients' demands.
Certifications
During more than 15 years food machine production, we got much experiences and many certificates, like the CE, ISO 9001, High-tech certification from China government. We will cherish the recognition from all walks of life, and do our best to serve customers around the world.
Customer and Exhibition
As a professional corn flake making machine manufacturer,Jinan Chenyang Technology Co,.Ltd has exported with ce certification to more than 80 countries and regions, such as South Africa, India, Malaysia,Indonesia, Brazil and so on.Some of customers become our agents in their area. We hope to have long friendly business relationship with more customers from all over the world in the future.
FAQ
1. Are you manufacturer or trader?
A: Certainly we are manufacturer. Welcome to visit us to check it!
2. Do you supply formula for to buyers?
A: Yes, we supply free formula to buyers.
3. What kind of fuels we can choose during the corn flake machine?
A: You can choose gas, diesel, electricity, steam as fuels, but please tell us when you ask for quotation.
4. How much are a Breakfast Cereal machine needs?
A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.
5. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
6. Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
A: Certainly we are manufacturer. Welcome to visit us to check it!
2. Do you supply formula for to buyers?
A: Yes, we supply free formula to buyers.
3. What kind of fuels we can choose during the corn flake machine?
A: You can choose gas, diesel, electricity, steam as fuels, but please tell us when you ask for quotation.
4. How much are a Breakfast Cereal machine needs?
A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.
5. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
6. Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
