Product Overview
Description
Product Description
Horizontal cycloid reducer, is also known as the foot mounted cycloid reducer, being named based on reducer mounting forms, which applies planetary transmission principles- with rotation and revolution, and by adopting needle-tooth meshing, the power after deceleration was transmitted to the output mechanism, to achieve the deceleration requirement. It is a reducer with low design cost, high work efficiency, and simple structure in the reduction industry.
All cycloid reducers produced by Shengjie adopt the related industry standards of the Ministry of Machinery Industry. According to the structure of the reducer, there are models BWD, XWD, BWY, XWY, BW, XW, etc.
All cycloid reducers produced by Shengjie adopt the related industry standards of the Ministry of Machinery Industry. According to the structure of the reducer, there are models BWD, XWD, BWY, XWY, BW, XW, etc.
BW/XW \thorizontal double-shaft cycloid reducer
BL/XL \tvertical double-shaft cycloid reducer
BWY/XWY \thorizontal cycloid reducer with direct-connected motor
BLY/XLY \tvertical cycloid reducer with direct-connected motor
BWD/XWD \thorizontal cycloid reducer with motor connected by flange
BLD/XLD \tvertical cycloid reducer with motor connected by flange
BWE/XWE\thorizontal double-stage cycloid reducer
BLE/XLE\tvertical double-stage cycloid reducer
BWED/XWED \thorizontal double-stage cycloid reducer with motor
BLED/XLED\tvertical double-stage cycloid reducer with motor
BL/XL \tvertical double-shaft cycloid reducer
BWY/XWY \thorizontal cycloid reducer with direct-connected motor
BLY/XLY \tvertical cycloid reducer with direct-connected motor
BWD/XWD \thorizontal cycloid reducer with motor connected by flange
BLD/XLD \tvertical cycloid reducer with motor connected by flange
BWE/XWE\thorizontal double-stage cycloid reducer
BLE/XLE\tvertical double-stage cycloid reducer
BWED/XWED \thorizontal double-stage cycloid reducer with motor
BLED/XLED\tvertical double-stage cycloid reducer with motor
Features:
1. Big Volecity-Reducing Ratio: for single-stage speed-reducing, the ratio is 1/11-1/87; double-stage speed-reducing ratio is 1/121 - 1/5133; three-stage speed reducing, the ratio is 1/2057 - 1/446571; we can adopt more-stages compound according the requirement.
2. High Driving efficiency: the driving effciency can reach above 90% due to adopting rolling engagement in falling-in part.
3. Small volume, light weight: this machine has compacted structure,small volume and light weight because of adopting
the priciple of planef driving so that the input shaft and output shaft in the same axis,moreover,they will integrated with
the motor.
4. Few troubles,long life: this machine has good resistance to abrasion because the main driving engaging parts
are made of bearing steel and applying rolling friction.
5. Stable Running: For most driving procedure, we adopt multi-teeth falling-in. so the running will be stable and
little noise.
6. Convenient dismounting, easy maintanance: Due to reasonable structure and design.
7. This machine also are of the characteristics such as strong overloading ability, ability,anti-compact, Samll inertial
moment, which are suitable for frequently start and double-side rotation.
1. Big Volecity-Reducing Ratio: for single-stage speed-reducing, the ratio is 1/11-1/87; double-stage speed-reducing ratio is 1/121 - 1/5133; three-stage speed reducing, the ratio is 1/2057 - 1/446571; we can adopt more-stages compound according the requirement.
2. High Driving efficiency: the driving effciency can reach above 90% due to adopting rolling engagement in falling-in part.
3. Small volume, light weight: this machine has compacted structure,small volume and light weight because of adopting
the priciple of planef driving so that the input shaft and output shaft in the same axis,moreover,they will integrated with
the motor.
4. Few troubles,long life: this machine has good resistance to abrasion because the main driving engaging parts
are made of bearing steel and applying rolling friction.
5. Stable Running: For most driving procedure, we adopt multi-teeth falling-in. so the running will be stable and
little noise.
6. Convenient dismounting, easy maintanance: Due to reasonable structure and design.
7. This machine also are of the characteristics such as strong overloading ability, ability,anti-compact, Samll inertial
moment, which are suitable for frequently start and double-side rotation.
Our Quality
Thickened housing
High strength housinig, made of HT200 cast iron, clean cavity and flat surface
High quality cycloid wheel
It adopts bearing steel and fine quenching treatment, with high strength, good wear resistance and long service life

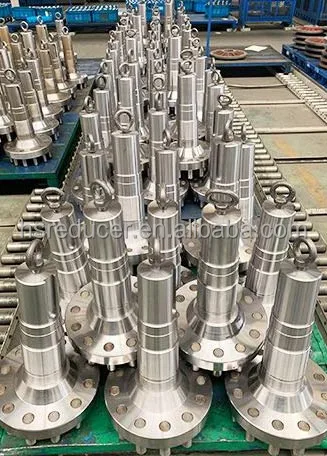

High Precision Output shaft
It adopts high strength bearing steel, after quenching and fine finishing, ensure low noise and smooth operation
Eccentric Bearing
made of high-strength carbon steel, ensure high precision, low noise, long service life

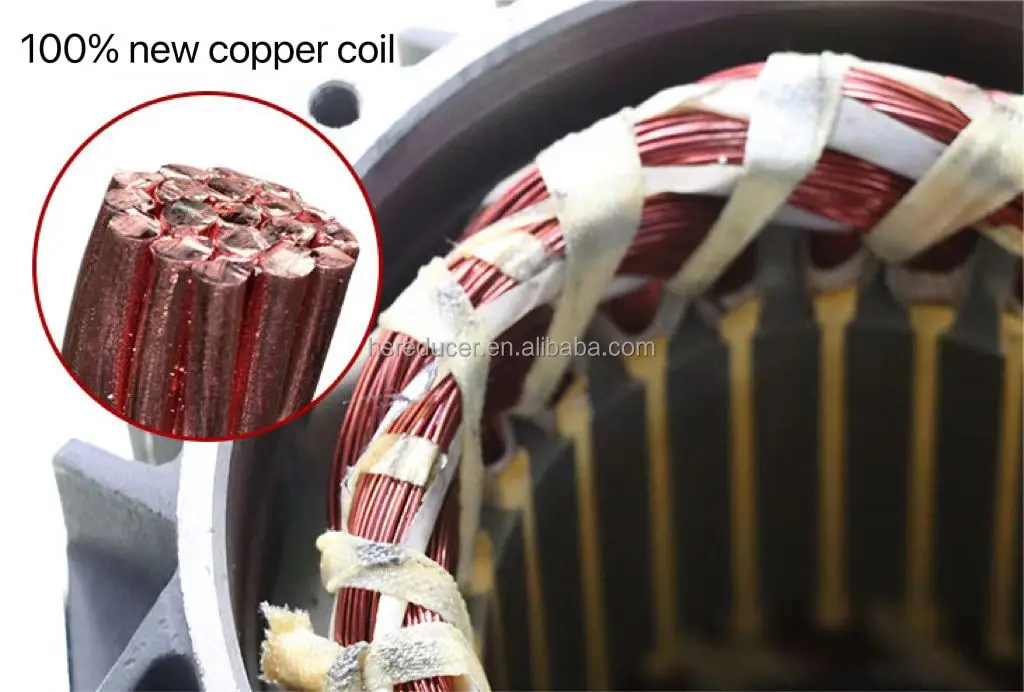

High Quality Motor
Each motor uses 100% copper coil to ensure reducer long service life

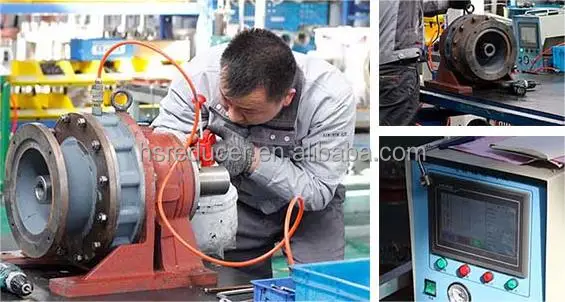

Professional Air Tightness Test
Before spraying each reducer, air tightness test will be done to minimize the occurrence of oil leakage. Ensure the long life and good operation of the reducer.
Specification
item | Cyclo gearbox |
Warranty | 1year |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Weight | 200kgs |
Customized support | OEM, ODM, OBM |
Gearing Arrangement | Helical |
Output Torque | 26-23326N.m |
Input Speed | 1000-1500rpm |
Output Speed | 11.5-166rpm |
Place of Origin | China |
Zhejiang | |
Rated Power | 0.18-75kW |
Brand Name | HS |
Material | 45# steel |
Input form | shaft input |
Ratio | 9-87 |
Color | blue/green/red/black or upon your request |
Worm gear | cast steel or 45# steel |
Bearing | C&U/QC or upon your request |
Lubricant | synthetic/mineral oil |
Quality Control | ISO9001:2015 |
Product Paramenters
Models | Power | Ratio | Max. Torque | Output Shaft Dia. | Input Shaft Dia. | |||||
single Stage | ||||||||||
X2(B0/B12) | 0.37~1.5 | 9~87 | 150 | Φ25(Φ30) | Φ15 | |||||
X3(B1/B15) | 0.55~2.2 | 9~87 | 200 | Φ35 | Φ18 | |||||
X4(B2/B18) | 0.75~4.0 | 9~87 | 500 | Φ45 | Φ22 | |||||
X5(B3/B22) | 1.5~7.5 | 9~87 | 1,000 | Φ55 | Φ30 | |||||
X6(B4/B27) | 2.2~11 | 9~87 | 2,000 | Φ65(Φ70) | Φ35 | |||||
X7 | 3.0~11 | 9~87 | 2,700 | Φ80 | Φ40 | |||||
X8(B5/B33) | 5.5~18.5 | 9~87 | 4,500 | Φ90 | Φ45 | |||||
X9(B6/B39) | 7.5~30 | 9~87 | 7,100 | Φ100 | Φ50 | |||||
X10(B7/B45) | 15~45 | 9~87 | 12,000 | Φ110 | Φ55 | |||||
X11(B8/B55) | 18.5~55 | 9~87 | 20,000 | Φ130 | Φ70 | |||||
double Stage | ||||||||||
X32(B10) | 0.25~0.55 | 121~1849 | - | Φ35 | Φ15 | |||||
X42(B20/B1812) | 0.37~0.75 | 121~1849 | - | Φ45 | Φ15 | |||||
X53(B31/B2215) | 0.55~1.5 | 121~1849 | - | Φ55 | Φ18 | |||||
X63(B41/B2715) | 0.75~2.2 | 121~1849 | - | Φ65(Φ70) | Φ18 | |||||
X64(B42/B2718) | 0.75~2.2 | 121~1849 | - | Φ65(Φ70) | Φ22 | |||||
X74 | 1.1~3.0 | 121~1849 | - | Φ80 | Φ22 | |||||
X84(B52/B3318) | 1.5~4.0 | 121~1849 | - | Φ90 | Φ22 | |||||
X85(B53/B3322) | 2.2~5.5 | 121~1849 | - | Φ90 | Φ30 | |||||
X95(B63/B3922) | 3.0~7.5 | 121~1849 | - | Φ100 | Φ30 | |||||
X106(B74/B4527) | 4.0~11 | 121~1849 | - | Φ110 | Φ35 | |||||
X117(B84/B5527) | 4.0~15 | 121~1849 | - | Φ130 | Φ40(Φ35) | |||||
