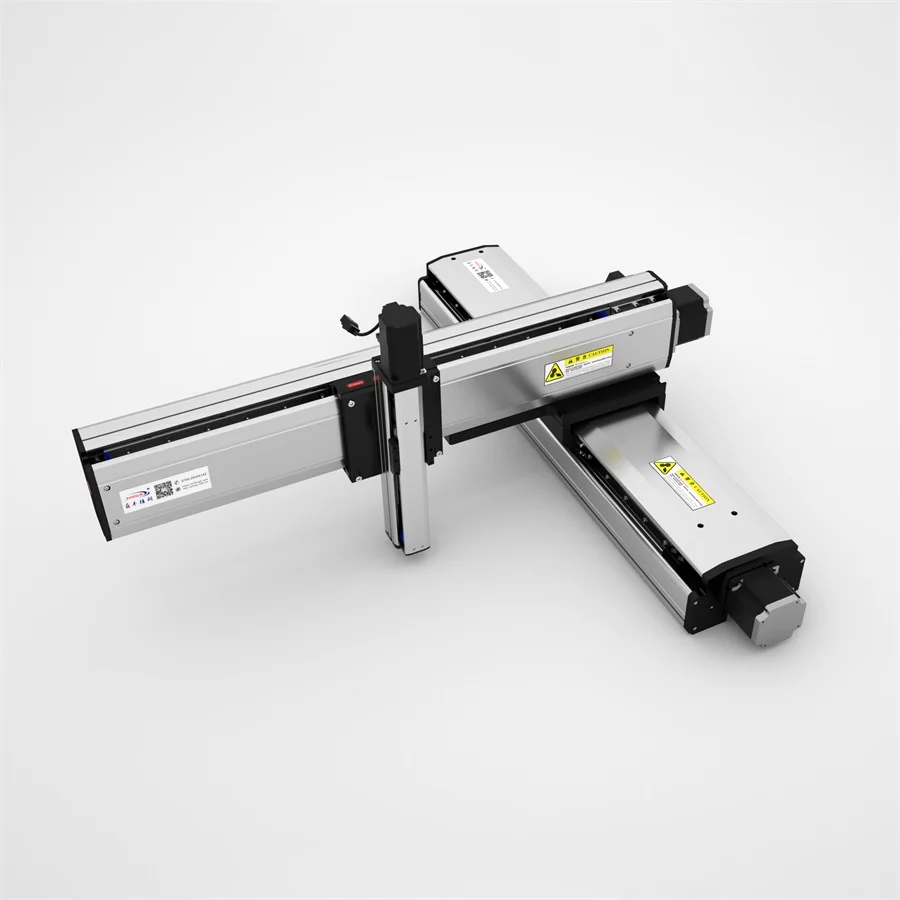

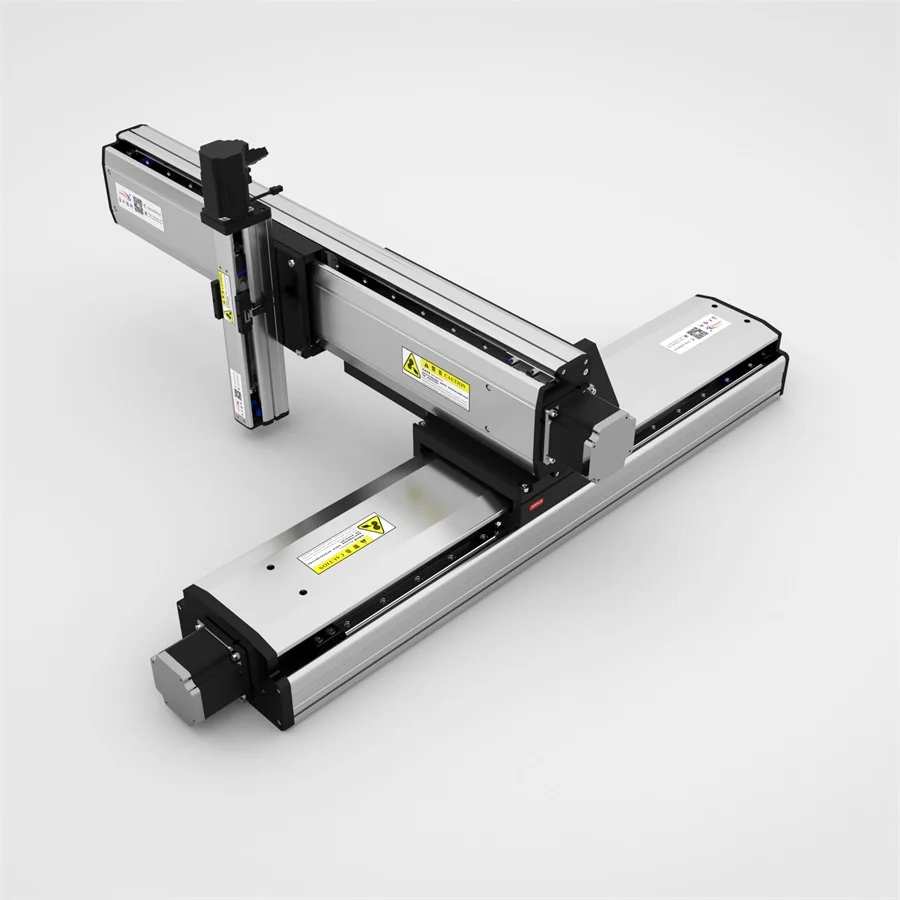

JFJK120S Customized Length High precision motor driven CNC linear guide slide
- Category: >>>
- Supplier: Shenzhen Jufeng Jingke Automation Technology Co. Ltd.
Share on (1600799720652):
Product Overview
Description

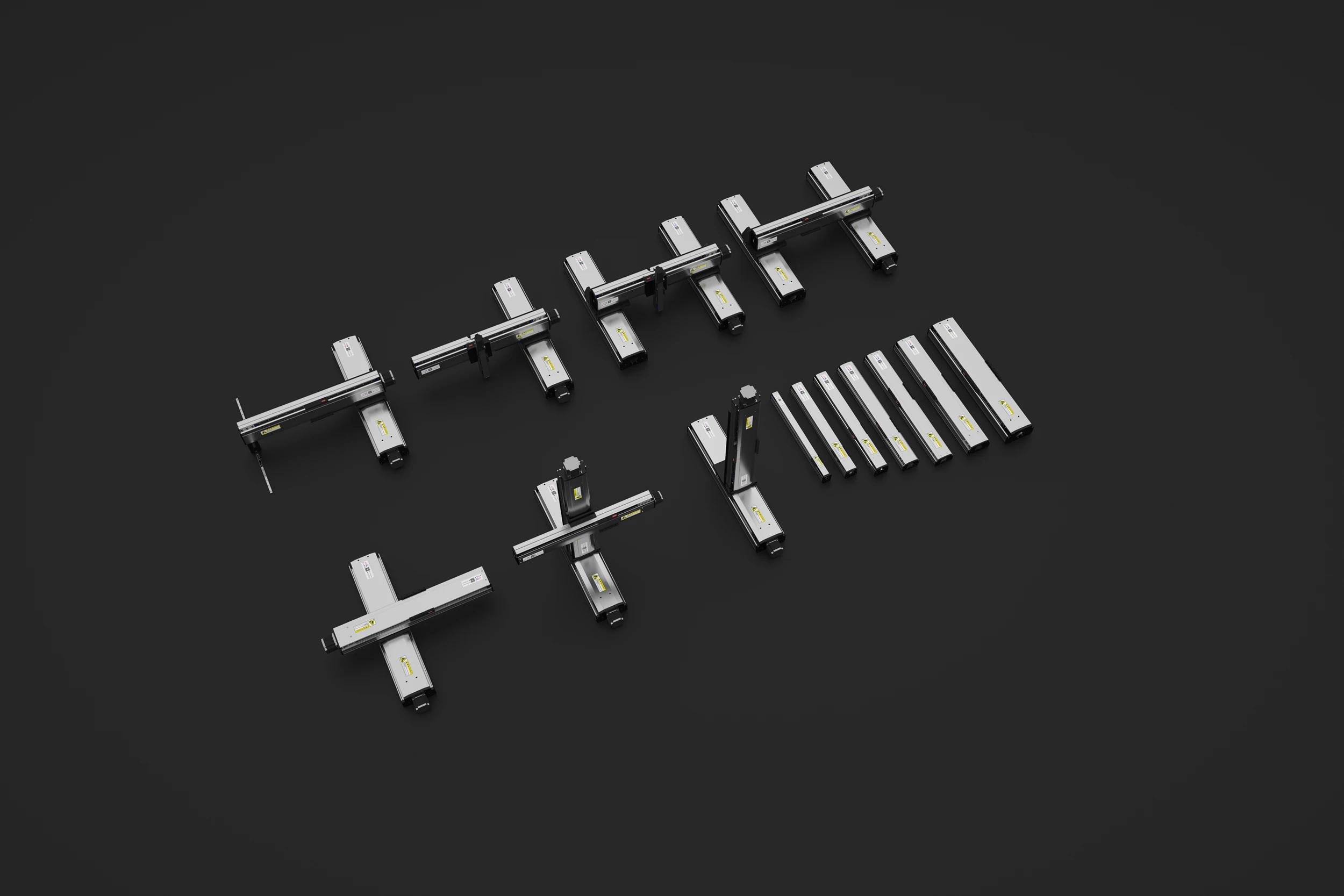

Various specifications and models are available to meet different usage requirements. If you need customization, please contact us. We can provide 3D drawings and customized accessories to reduce your time cost.

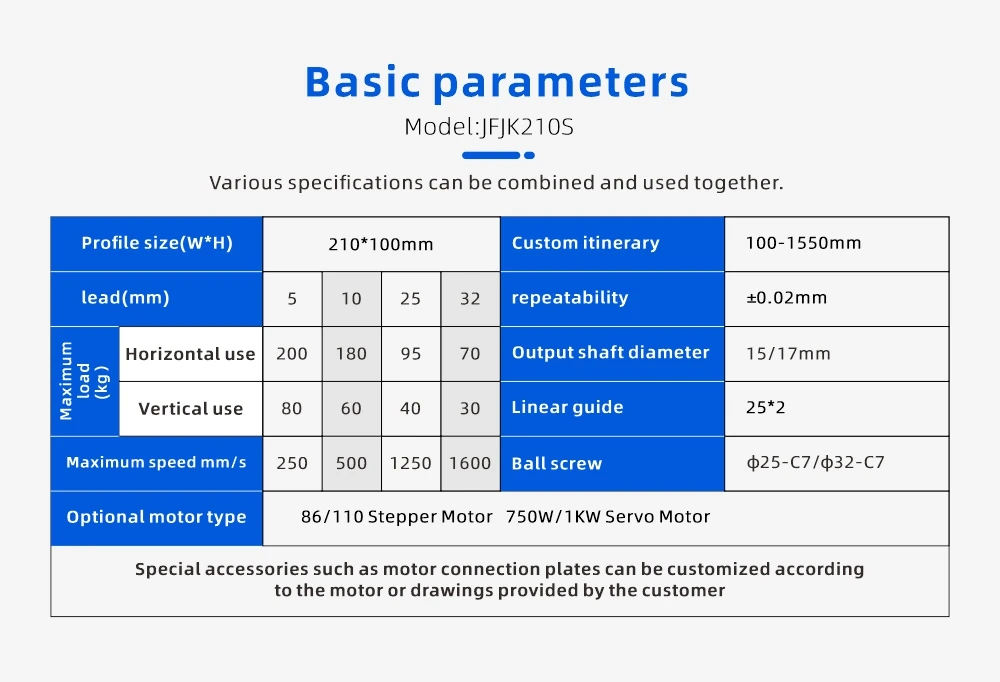

Product Paramenters
Various ball screw leads are available, and the appropriate lead is selected based on your load demand and operating speed.

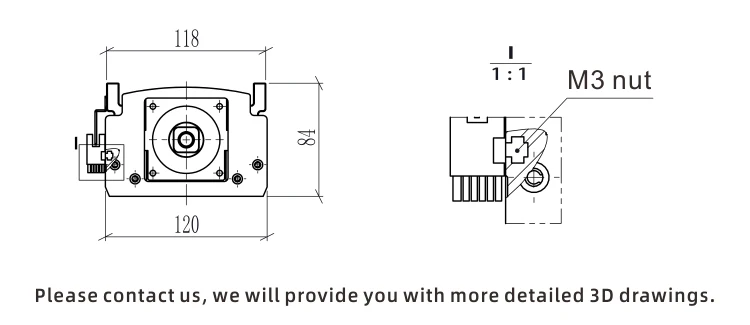

Please contact us, we will provide you with more detailed 3D drawings.

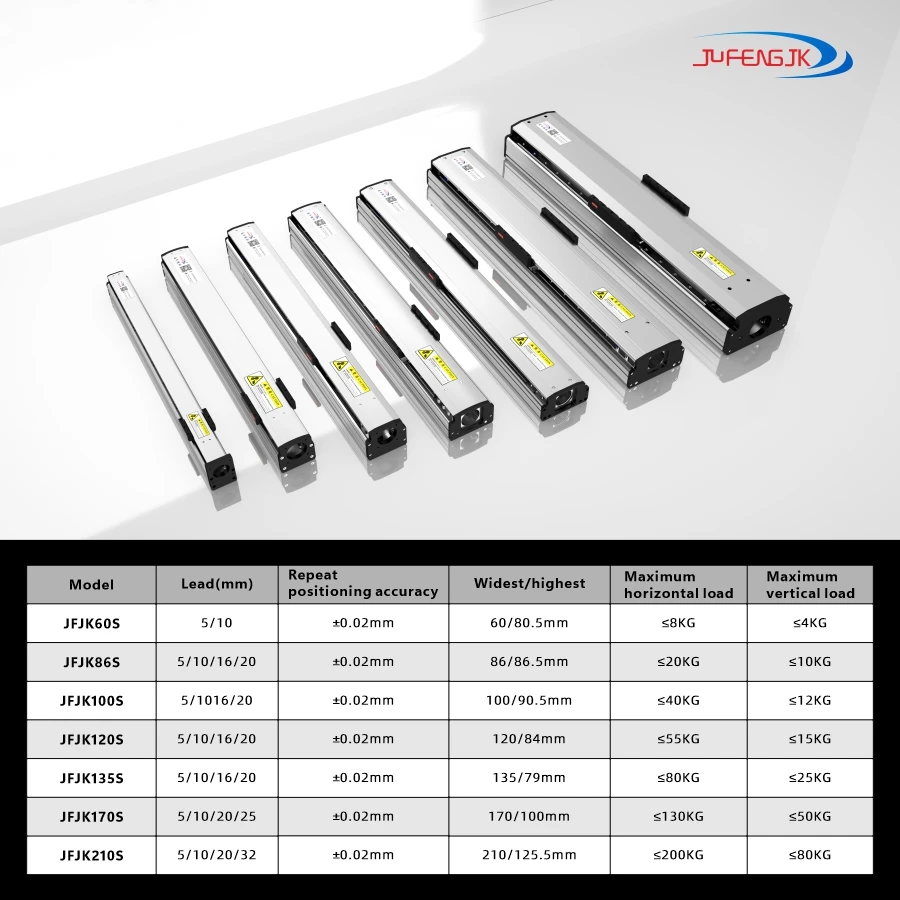

More specifications | ||||||||
Model | Horizontal load | Vertical load | Lead(mm) | Positioning accuracy | ||||
JFJK60S | ≤8KG | ≤4KG | 5/10 | ±0.02mm | ||||
JFJK86S | ≤20KG | ≤10KG | 5/10/16/20 | ±0.02mm | ||||
JFJK100S | ≤40KG | ≤12KG | 5/10/16/20 | ±0.02mm | ||||
JFJK120S | ≤55KG | ≤12KG | 5/10/16/20 | ±0.02mm | ||||
JFJK135S | ≤80KG | ≤25KG | 5/10/16/20 | ±0.02mm | ||||
JFJK170S | ≤130KG | ≤50KG | 5/10/20/25 | ±0.02mm | ||||
JFJK210S | ≤200KG | ≤80KG | 5/10/20/32 | ±0.02mm | ||||

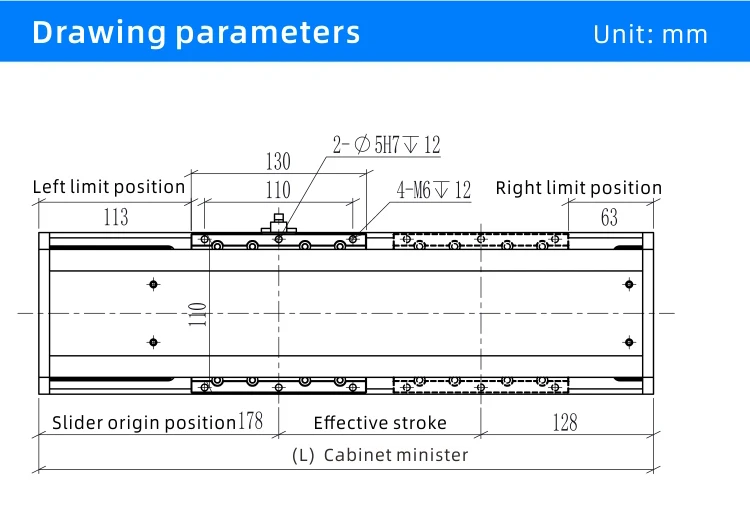

For more detailed parameters, please refer to the drawings or tables on the detail page of each model | ||||||||

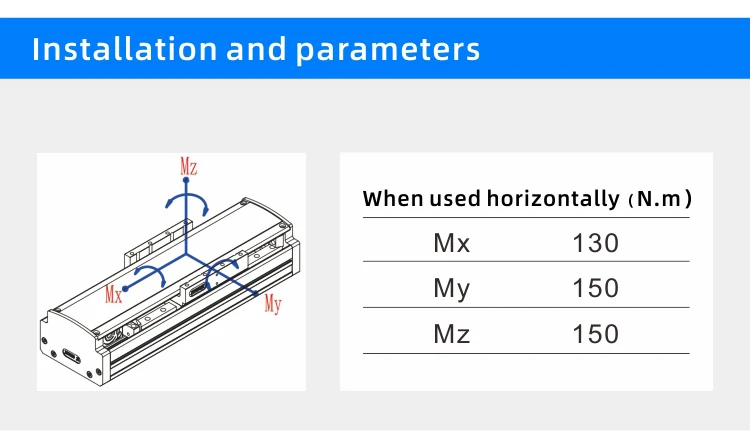

Installation Instructions

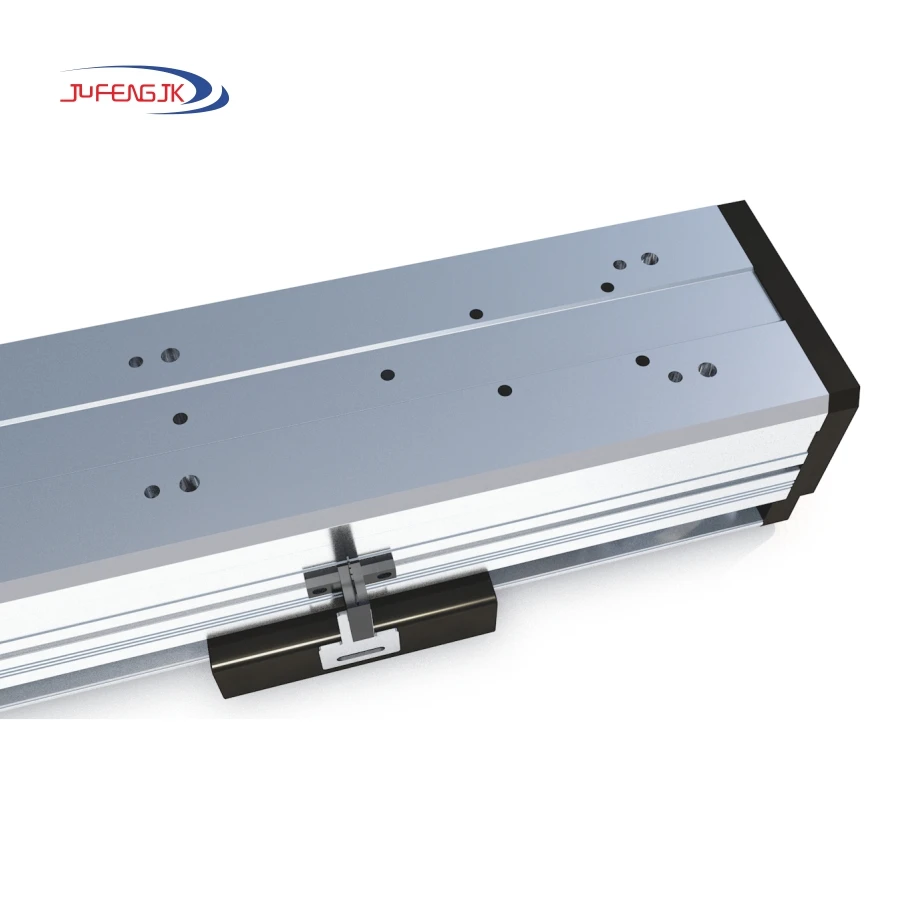

Installation and fixation

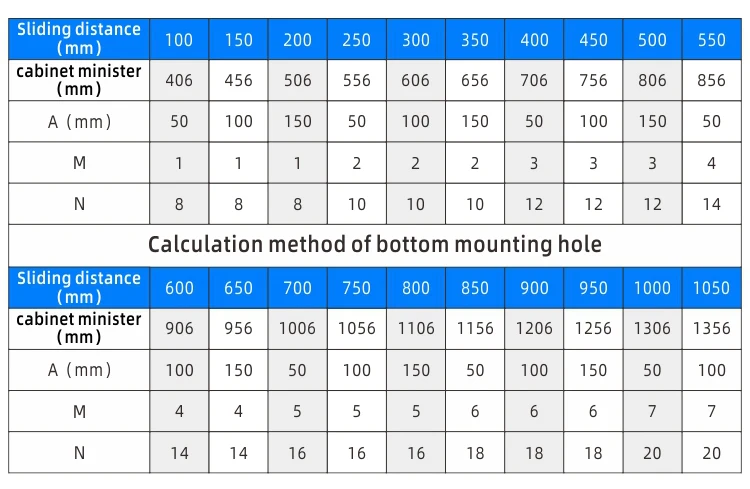

The reserved threaded hole at the bottom can be fixed from the bottom up. Remove the upper cover plate and fix it with screws from top to bottom. Please refer to the table above for the hole location distance, or contact us to provide you with more accurate drawings.

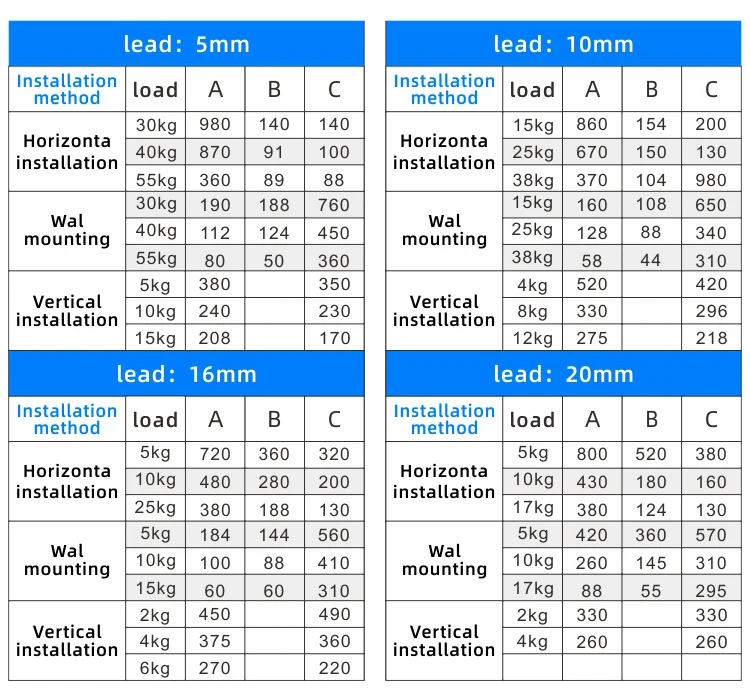

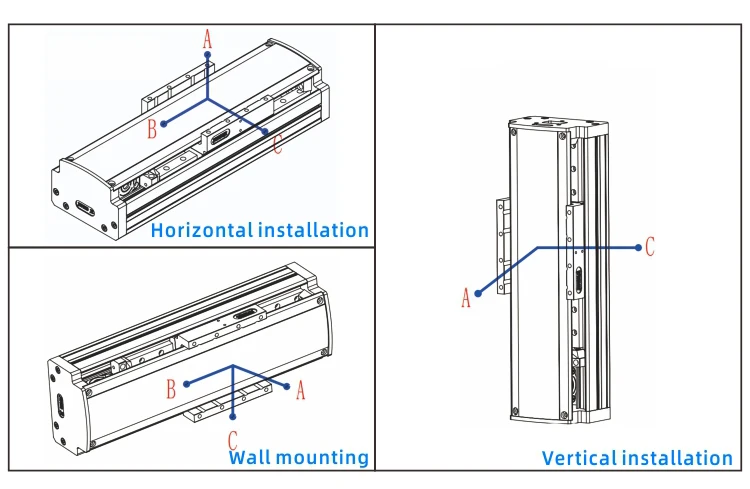

Load Cantilever Center of Gravity Force Table

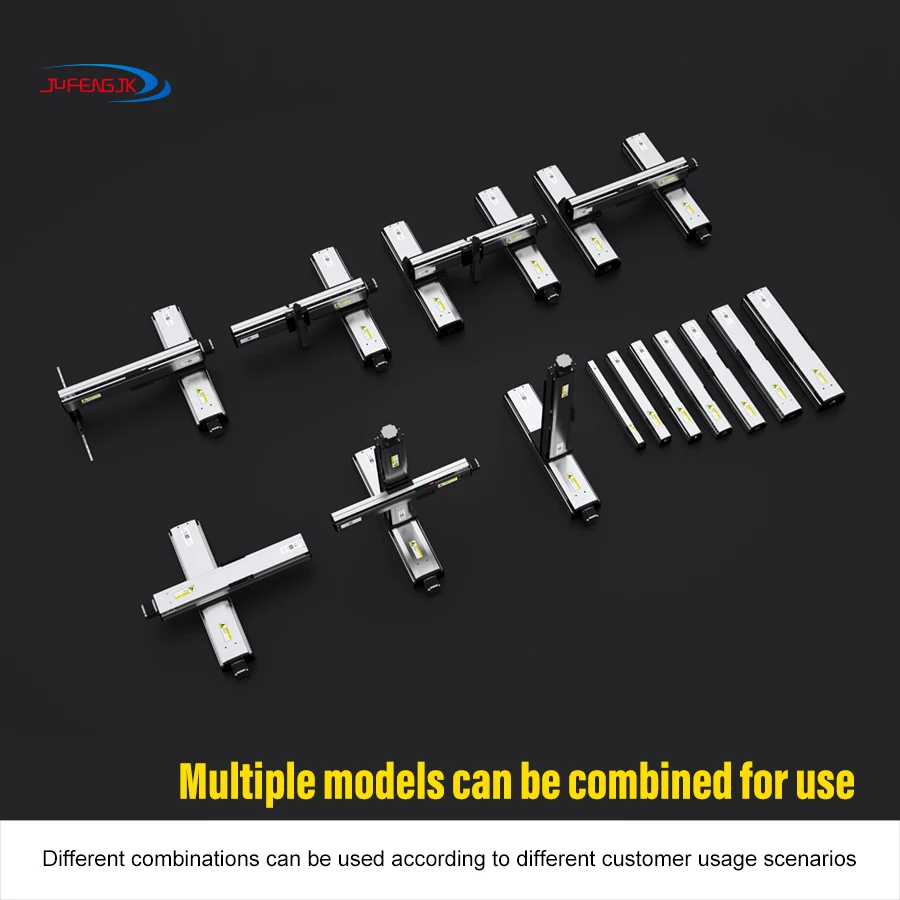

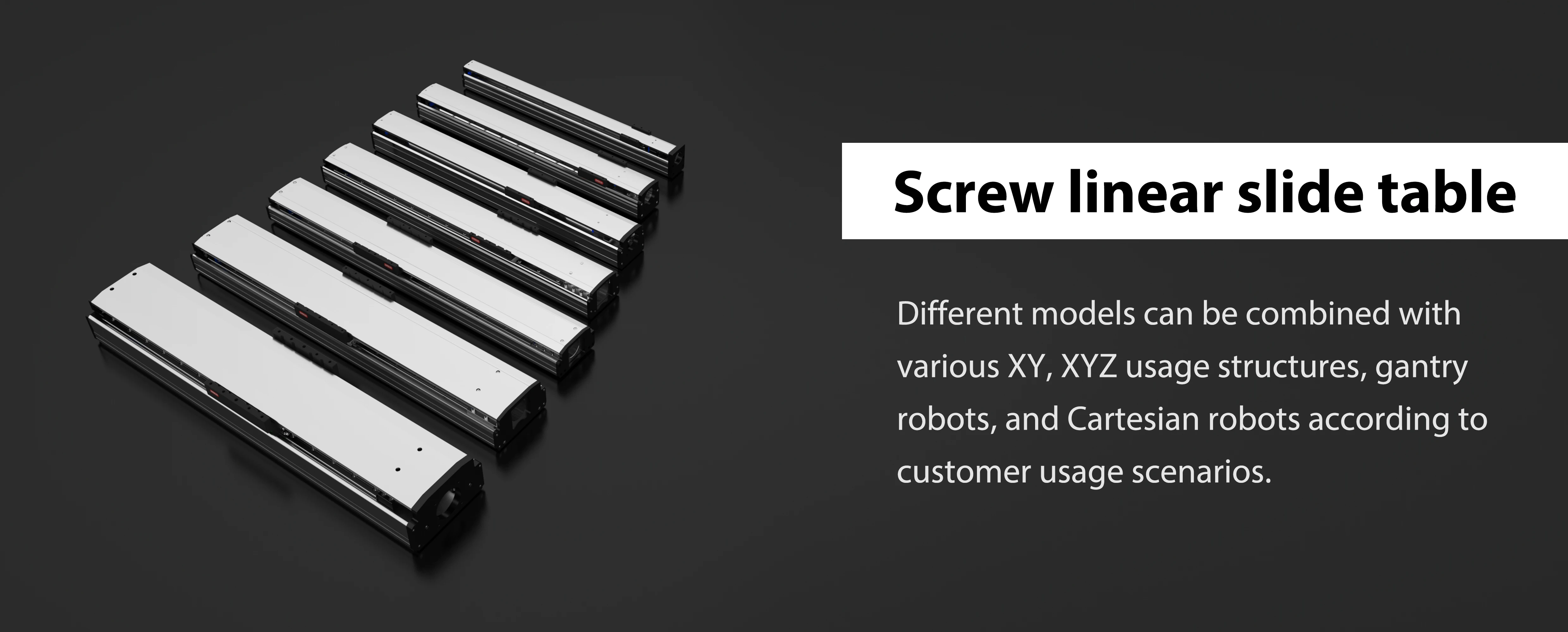

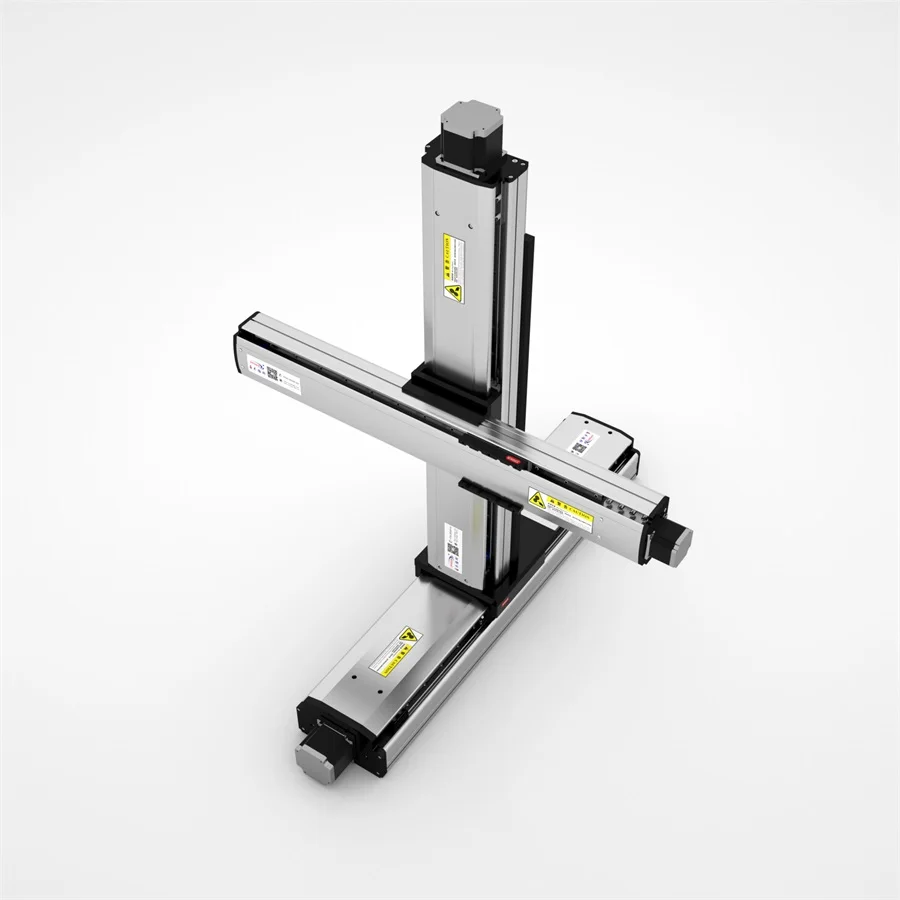

Application areas

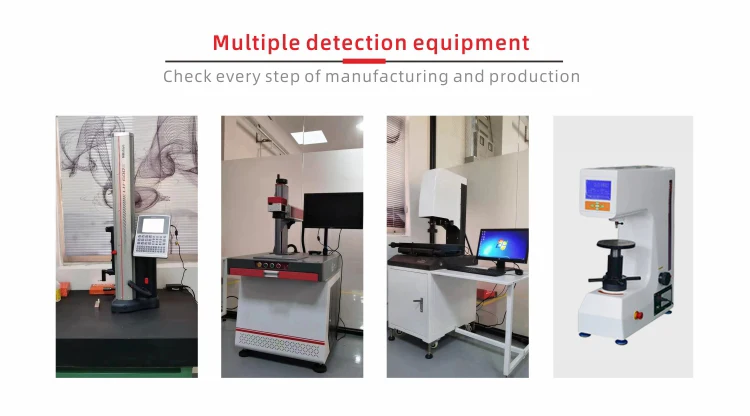

Company Profile
FAQ
Regarding shipping costs
Customized products vary in length and weight, please contact us to calculate the shipping costs separately.
FAQ:
Q:Are you a trading company or a factory?
A：We are a factory integrating development, production, sales and service.
Q:What is your delivery time？
A:3-5 days for standard products and 7-15 days for customized products
Q:What should I pay attention to before placing an order?
A:Please check the drawings in detail to confirm the length you need and whether the parameters can meet your needs.
Q:How to make an order
A:The customer confirms the drawings or samples, pays the deposit for production on the official order, and settles the remaining payment before shipment.
Q: Do you guarantee the products?
A: One-year warranty and lifelong technical support.
