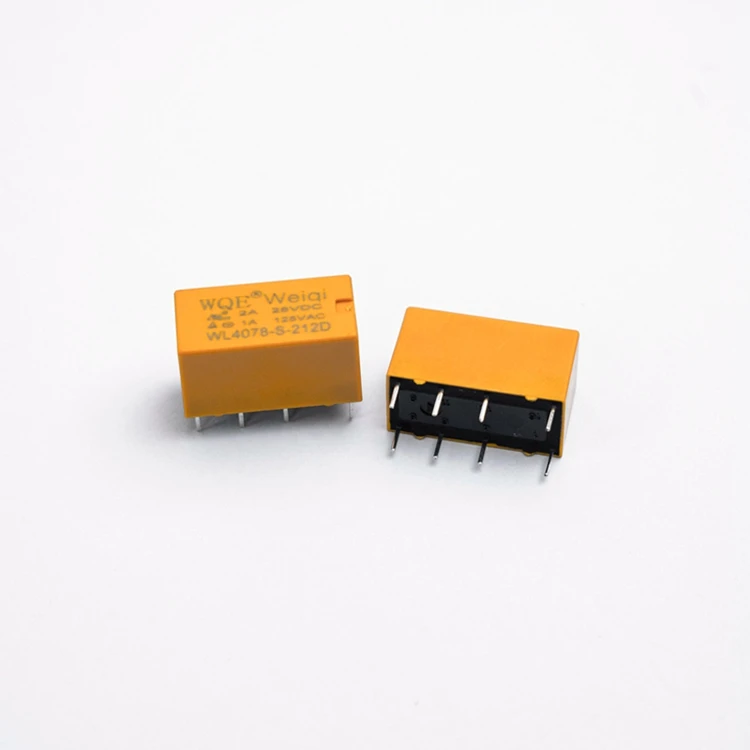

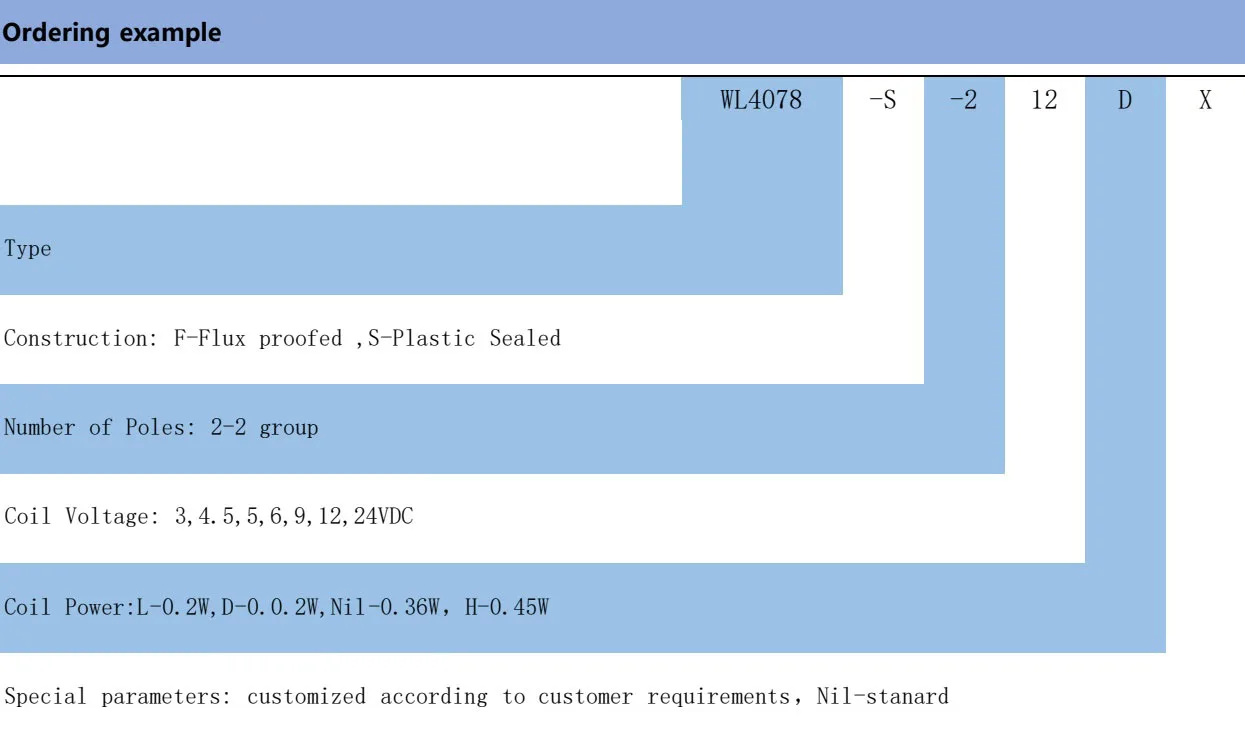

WL4078-S-212D
1、 Small size and light weight
2、3A Amps super miniature relay
2、3A Amps super miniature relay
3、 2 Form C configurayions

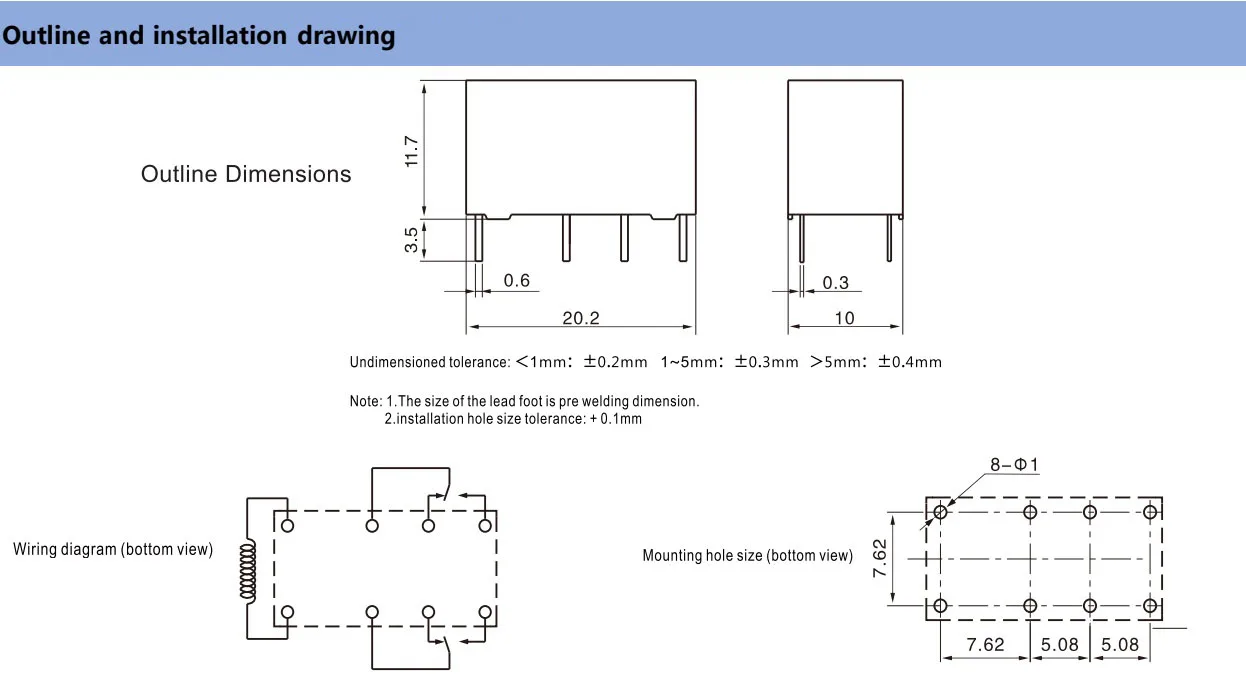

4、 Overall dimensions（20.0×10.0×11.6）mm
4、 Overall dimensions（20.0×10.0×11.6）mm

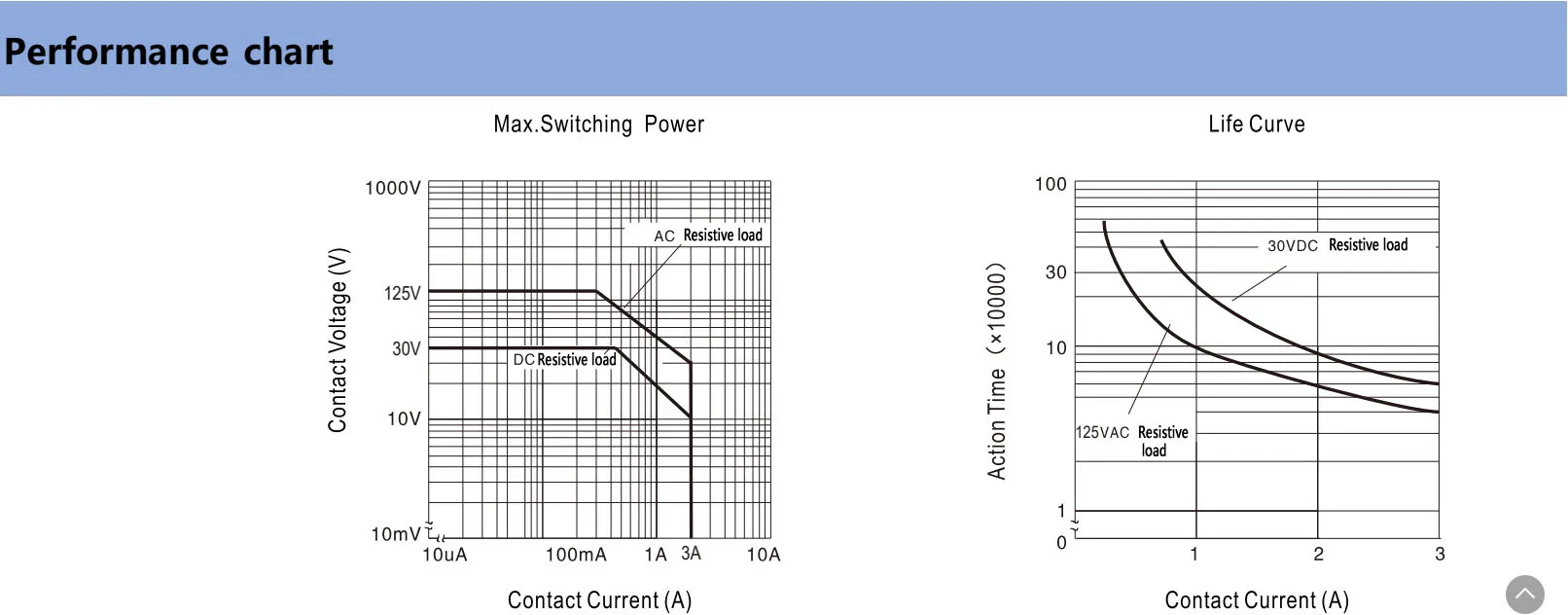

Contact load | ||||
Model | WL4078 | |||
Contact Arrangement | 2C (DPDT(B-M)) | |||
Maximum switching current | 1A | |||
Maximum switching voltage | 30W/125VA | |||
Maximum switching power | 360W 3000VA | |||
Rated load (resistive) | 1A 125VAC/30VDC | |||
Performance parameter | ||||
Contact material | Ag alloy | |||
Contact resistance | ≤50MΩ | |||
Action time | ≤6ms | |||
Release time | ≤4ms | |||
Insulation resistance | Min 100MΩ （500VDC) | |||
Dielectric Strength | Between contacts | AC 500VAC 50/60Hz 1min | ||
Between contact coils | AC 1000VAC 50/60Hz 1min | |||
To attack | Stability | 169m/S2 | ||
Strength | 980m/S2 | |||
Vibration | 10~70Hz 1.5mm Double Amplitude | |||
Mechanical endurance min | 1×107 | |||
Electrial eddurance min | 1×105 | |||
Humidity | 5%~85%RH | |||
Ambient temperature | -40℃~85℃ | |||
Weight | Approx.5.5g | |||
Coil parameters | ||||||||||
Coil Voltage | Coil Resistance | Pick-up Voltage 70% of rated voltage | Drop-out Voltage 10% of rated voltage | |||||||
Rated | Max | |||||||||
VDC | VDC | Ω±10% | VDC | VDC | W | |||||
3 | 3.9 | 60 | 2.25 | 0.3 | 0.15 | |||||
5 | 6.5 | 167 | 3.75 | 0.5 | ||||||
6 | 7.8 | 240 | 4.5 | 0.6 | ||||||
9 | 11.7 | 540 | 6.75 | 0.9 | ||||||
12 | 15.6 | 960 | 9 | 1.2 | ||||||
24 | 31.2 | 3840 | 18 | 2.4 | ||||||
3 | 3.9 | 45 | 2.25 | 0.3 | 0.2 | |||||
5 | 6.5 | 125 | 3.75 | 0.5 | ||||||
6 | 7.8 | 180 | 4.5 | 0.6 | ||||||
9 | 11.7 | 405 | 6.75 | 0.9 | ||||||
12 | 15.6 | 720 | 9 | 1.2 | ||||||
24 | 31.2 | 2880 | 18 | 2.4 | ||||||
Safetu standard | ||||||||||
Certification category | CQC | TUV | UL | |||||||
Certified load | 1A 125VAC | 1A 125VAC | 1A 125VAC/30VDC | |||||||
