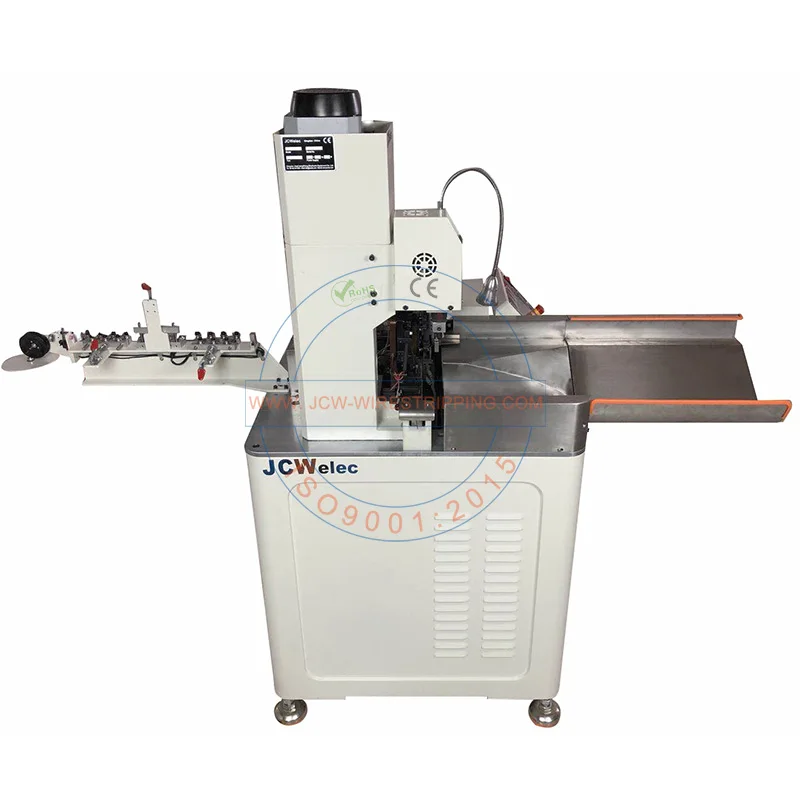

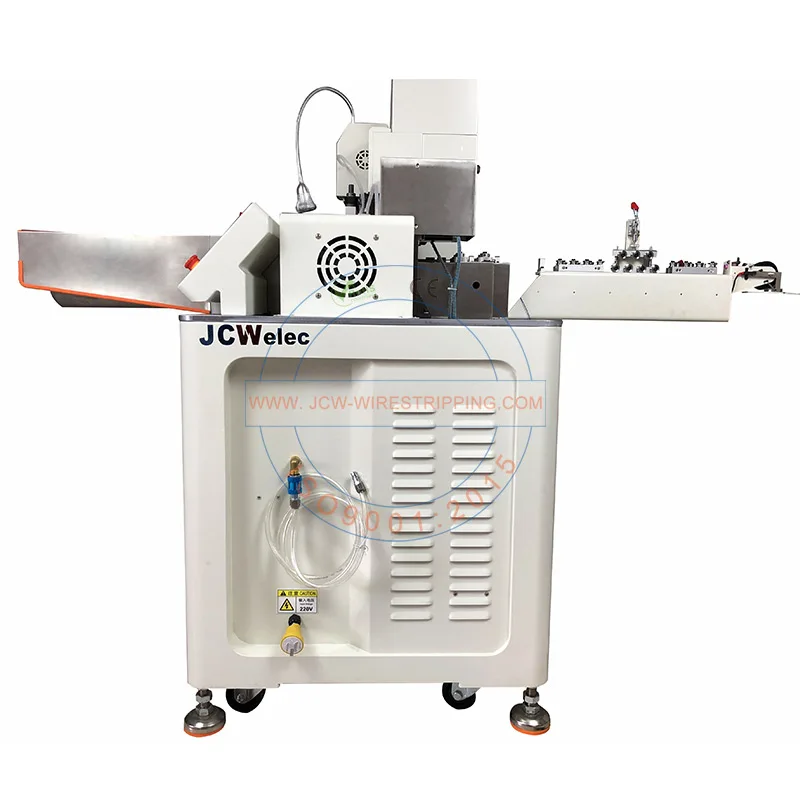

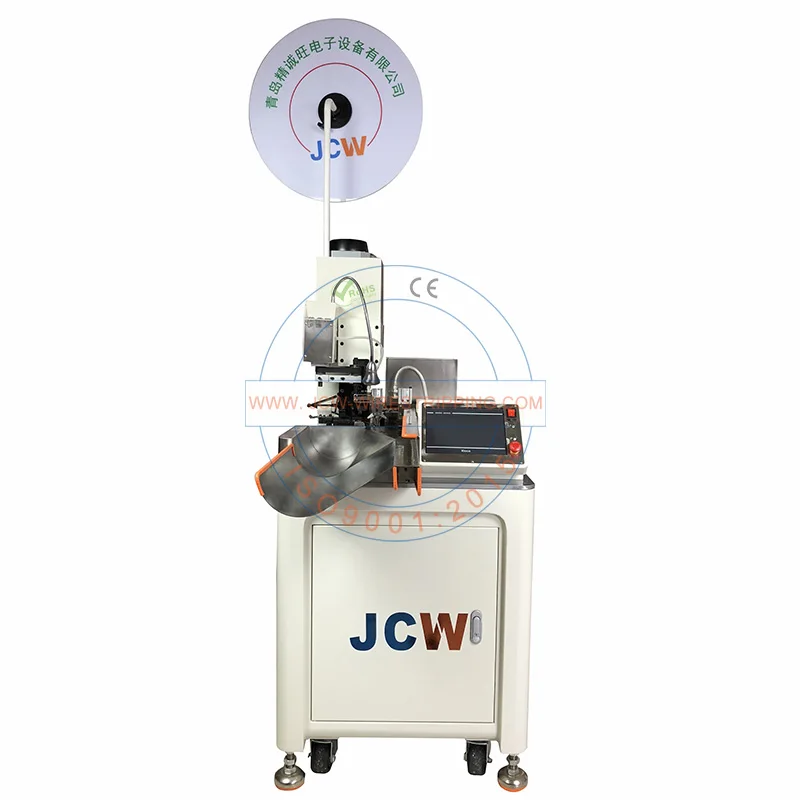

JCW CST01 Fully automatic wire steel cutting stripping terminal pressing single head cable pin 2t crimping machine
JCW-CST01 Fully automatic wire steel cutting stripping terminal pressing single head cable pin 2t crimping machine
JCW-CST01 Fully automatic wire steel cutting stripping terminal pressing single head cable pin 2t crimping machine
JCW-CST01 Fully automatic wire steel cutting stripping terminal pressing single head cable pin 2t crimping machine
JCW-CST01 Fully automatic wire steel cutting stripping terminal pressing single head cable pin 2t crimping machine
JCW-CST01 Fully automatic wire steel cutting stripping terminal pressing single head cable pin 2t crimping machine
JCW-CST01 Fully automatic wire steel cutting stripping terminal pressing single head cable pin 2t crimping machine

JCW CST01 Fully automatic wire steel cutting stripping terminal pressing single head cable pin 2t crimping machine

Share on (1600799761625):


Price:

Quantity:


Product Overview

Description







Function
Cut depth, Strip length, Full stripping, Partial stripping. Side 1: stripping, crimping. Side 2: stripping, twisting ( optional )
Wire cross-section
0.1 - 2 mm² (AWG 28 - 14) [ 4mm² on request ]
Strip length
1.5-10 mm
Strip length increment
0.1 mm
Cut length ( L )
45 - 999999 mm
Cut length accuracy
± 1mm + 0.002 x L
Production rate
4200 pcs/h by 300mm wire length
Crimping force
20 KN ( 2.0 tons ) [40 KN on request]
Optional peripheral
Wire pre-feeder, CFM, wire stacker
Detection
Wire lack, Wire knot, Terminal crimping, Air pressure
Power supply
AC 220 V ± 10%, 50 / 60 Hz [110V on request]
Air supply
0.4 ~ 0.7 MPa [ clean and dry air ]
Dimensions
L 650 x W 750 x H 1500 mm. 310KG
