LRS 75 Series 5V 12V 24V 36V 48V 35W 50W 60W 75W smps power supply led light switching power supply
- Category: >>>
- Supplier: Guangzhou Myami Electronic Technology Co. Ltd.
Share on (1600799786833):
Product Overview
Description
LRS-75 Series 5V 12V 24V 36V 48V 35W 50W 60W 75W smps power supply led light switching power supply
Features:
1:Pure copper transformer
2:Anti-interference all copper enameled wire
3:Brand Electrolytic Capacitors
4:Long service life, high temperature resistance
5:Pure copper filter
6:lower operating temperature
7:Overvoltage protection Exceeds supply voltage Protect power equipment
8:Short circuit protection output short circuit ,power, turn off the output
9:Overcurrent Protection The power supply output current exceeds Rated current automatic protection
10:Overload protection Folded Current Limit reboot recovery
11:Dust protection cover Prevent accidental touch Improve safety performance
12:Heavy "core" departure Full power copper transformer The all-copper transformer has strong conductivity and is not easy to heat up. The voltage stabilizer is smaller and more stable than traditional transformers, so you can use it with confidence
13:Rapid heat dissipation Honeycomb hole design for ventilation and heat dissipation, hollow out heat dissipation fast
Long-lasting operation, no hidden dangers Hollow out heat dissipation faster, protect the internal components of the switching power supply
14:Multiple protection performance is stable and durable, easy to install with back mounting holes, easy to install and durable
1:Pure copper transformer
2:Anti-interference all copper enameled wire
3:Brand Electrolytic Capacitors
4:Long service life, high temperature resistance
5:Pure copper filter
6:lower operating temperature
7:Overvoltage protection Exceeds supply voltage Protect power equipment
8:Short circuit protection output short circuit ,power, turn off the output
9:Overcurrent Protection The power supply output current exceeds Rated current automatic protection
10:Overload protection Folded Current Limit reboot recovery
11:Dust protection cover Prevent accidental touch Improve safety performance
12:Heavy "core" departure Full power copper transformer The all-copper transformer has strong conductivity and is not easy to heat up. The voltage stabilizer is smaller and more stable than traditional transformers, so you can use it with confidence
13:Rapid heat dissipation Honeycomb hole design for ventilation and heat dissipation, hollow out heat dissipation fast
Long-lasting operation, no hidden dangers Hollow out heat dissipation faster, protect the internal components of the switching power supply
14:Multiple protection performance is stable and durable, easy to install with back mounting holes, easy to install and durable
Specification
LRS-75 series 75W switching power supply | ||||||||||||
Project | LRS-75-5 | LRS-75-12 | LRS-75-24 | LRS-75-36 | LRS-75-48 | |||||||
Output | DC Voltage | 5V | 12V | 24V | 36V | 48V | ||||||
Rated Current | 14A | 6A | 3.2A | 2.1A | 1.6A | |||||||
Power Rating | 70W | 72W | 76.8W | 75.6W | 76.8W | |||||||
Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |||||||
Voltage adjustment range | ±10% | |||||||||||
Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||||||
Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||||
Load regulation rate | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||||
Start-up, rise time | 500ms、30ms/230VAC 500ms、30ms/115VAC (Full Load) | |||||||||||
Holding time | 60ms/230VAC 12ms/115VAC (Full Load) | |||||||||||
Input | Voltage Range/Frequency | 85-264VAC / 120-373VDC 47Hz～63Hz | ||||||||||
Efficiency (Typical) | 87% | 89% | 90% | 92% | 92% | |||||||
Working current | 1.4A/115VAC 0.85A/230VAC | |||||||||||
Impulse current | Cold start: 65A/230VAC | |||||||||||
Leakage current | ≤0.75nA at 240VAC | |||||||||||
Protect | Overload protection | ≥110%-130%protection type: hiccup mode, it will automatically return to normal after removing the abnormal condition | ||||||||||
Overvoltage protection | ≥115%-145%Protection type: turn off the output, restart automatically and return to normal | |||||||||||
Environment | Operating temperature, humidity | -30℃～+70℃; 20%～90RH | ||||||||||
Storage temperature, humidity | -40℃～+85℃; 10%～95RH | |||||||||||
Safety regulations | Withstand voltage | Input-Output:4KVAC Input-Case:2KVAC Output-Case:1.25KVAC for 1 minute | ||||||||||
Insulation impedance | Input-Output, Input-Case, Output-Case : 500VDC/100MΩ 25℃ 70%RH | |||||||||||

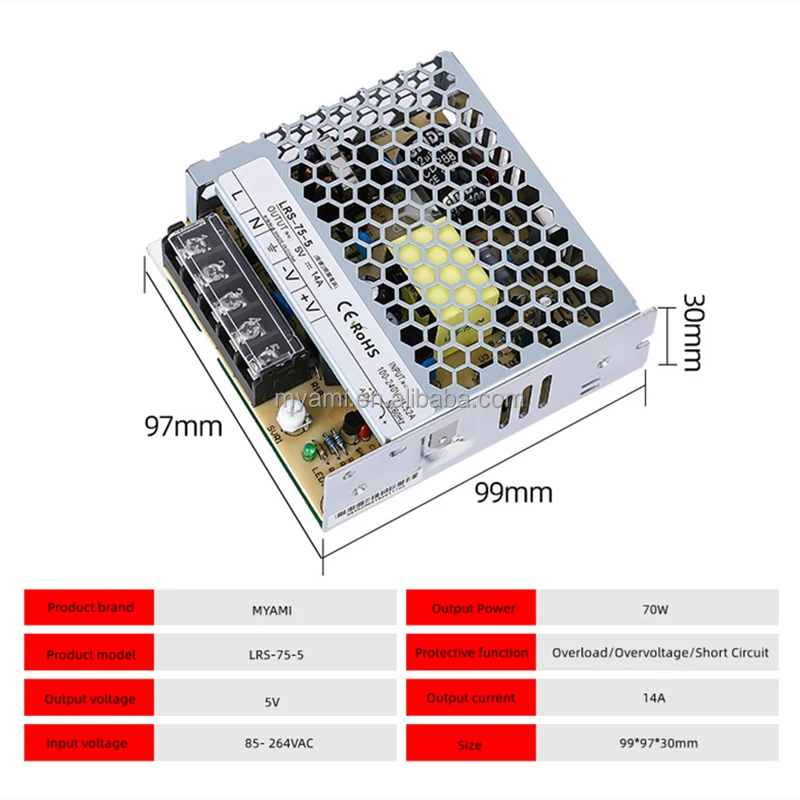

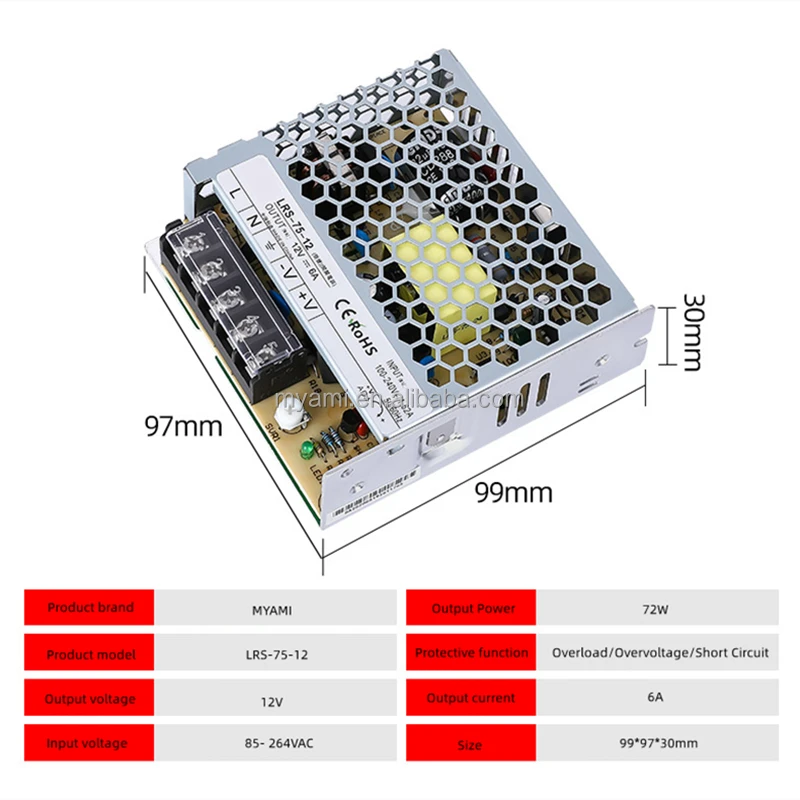

Other | Size | 99*97*30m(L*W*H) | ||||||||||
Net weight / Gross weight | 250g/272g | |||||||||||
Product Details
Recommend Products
Product Classification
Company Profile

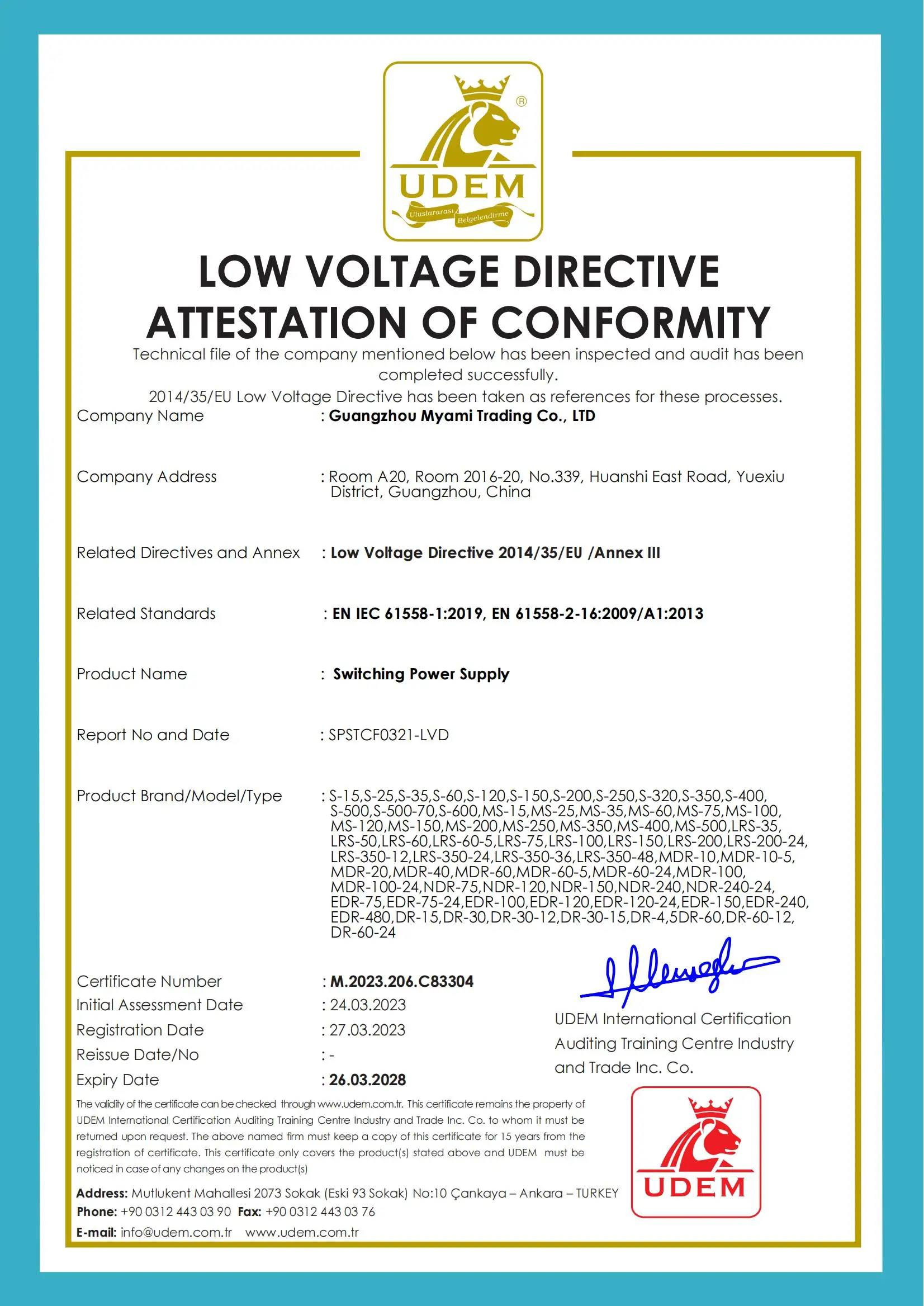

Our Certificate
