Genyu 2.0/IPS/240*320 LCD 22 pin LCD Screen ST7789V MCU 8Bit Small Size TFT 2.0 Inch TFT LCD Display
- Category: >>>
- Supplier: Shenzhen Genyu Optical Co. Ltd.
Share on (1600799836095):
Product Overview
Description
Genyu 2.0/IPS/240*320 LCD 22 pin LCD Screen ST7789V MCU 8Bit Small Size TFT 2.0 Inch TFT LCD Display
♣ Product Description

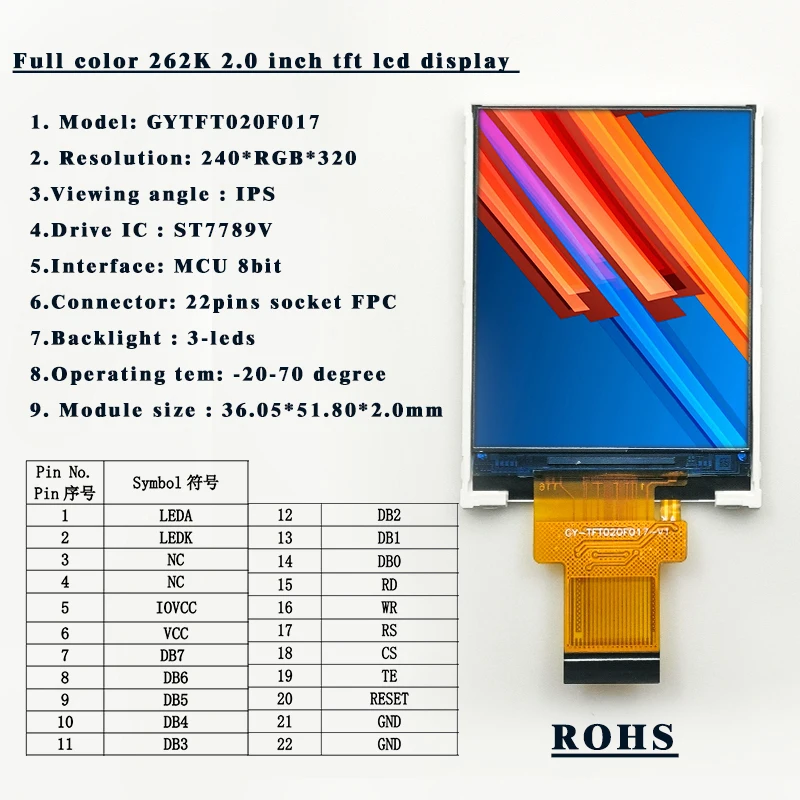

1. Pin
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21-22 |
| Symbol | A | K | NC | NC | IVVCC | VCC | D7 | D6 | D5 | D4 | D3 | D2 | D1 | D0 | RD | WR | RS | CS | TE | RESET | GND |
2. Features
(1) LCD Type : TFT
(2) Interface : 8bits MCU
(3) Drive IC : ILI9225G
(4) Viewing Angle : IPS Full viewing angle
(5) Power supply : 3.3 V
(6) Backlight : 3pcs LED white 60mA
| Display Method | 2.0 inch TFT |

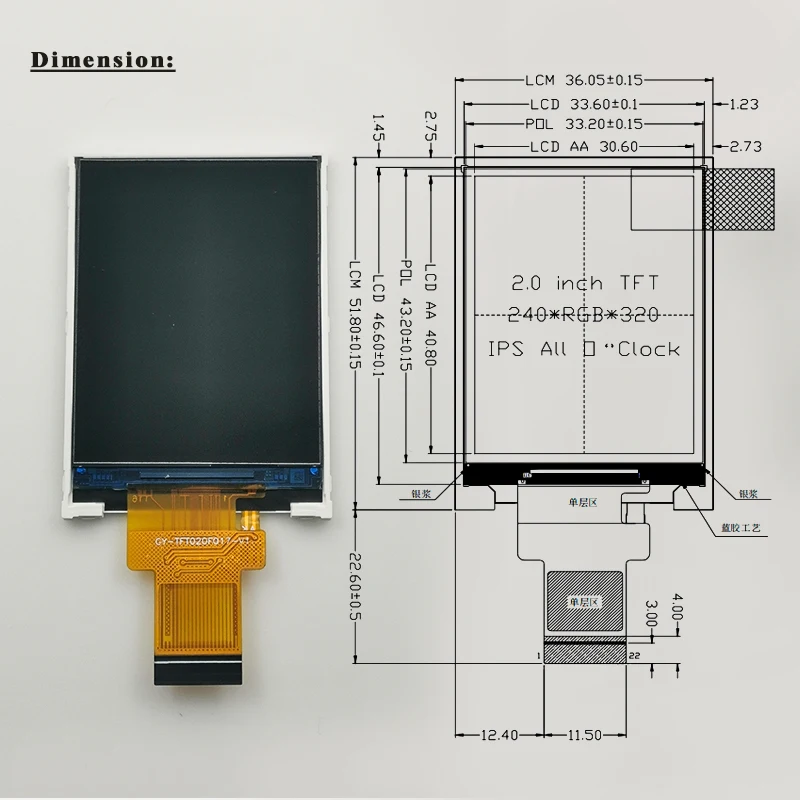

| Module Size | 36.10*51.80*2.00 mm |
| Active Area | 30.6*40.8 mm |
| Working Temperature | -20~70 °C |
| Storage Temperature | -30~80 °C |
| Connection | COG + FPC |
Want more ?
Please tell us your request, can be customized.
Contact us , my friend, just click here!
♣ Product Detail

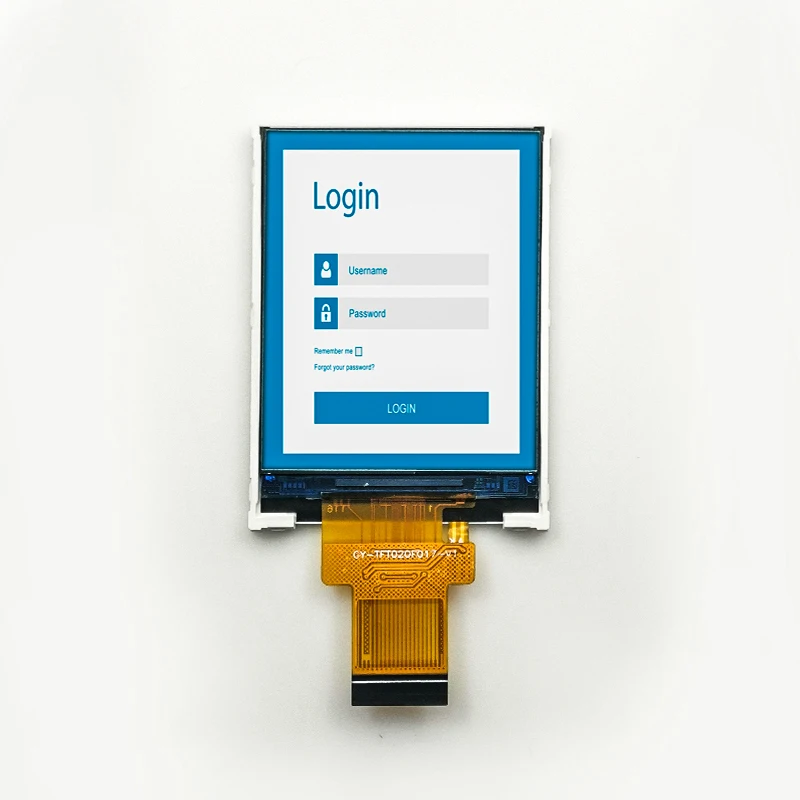

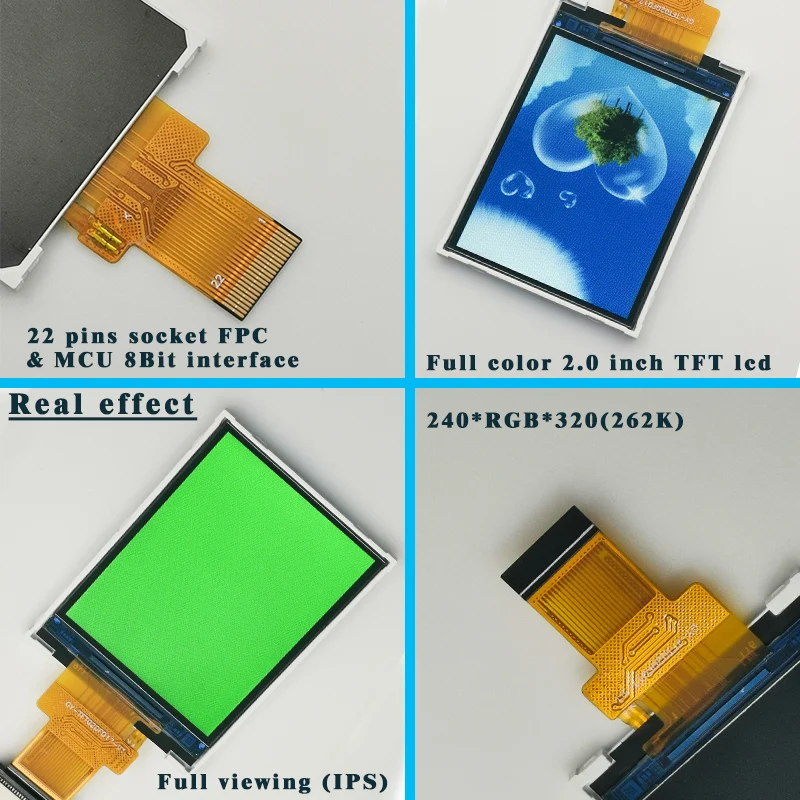

GY-TFT020F017 is 2.0 inch TFT LCD with 240*320 Resolution, TFT IPS Full viewing angle, ST7789V drive, MCU 8bit Interface, 22pin connector FPC.
Related products

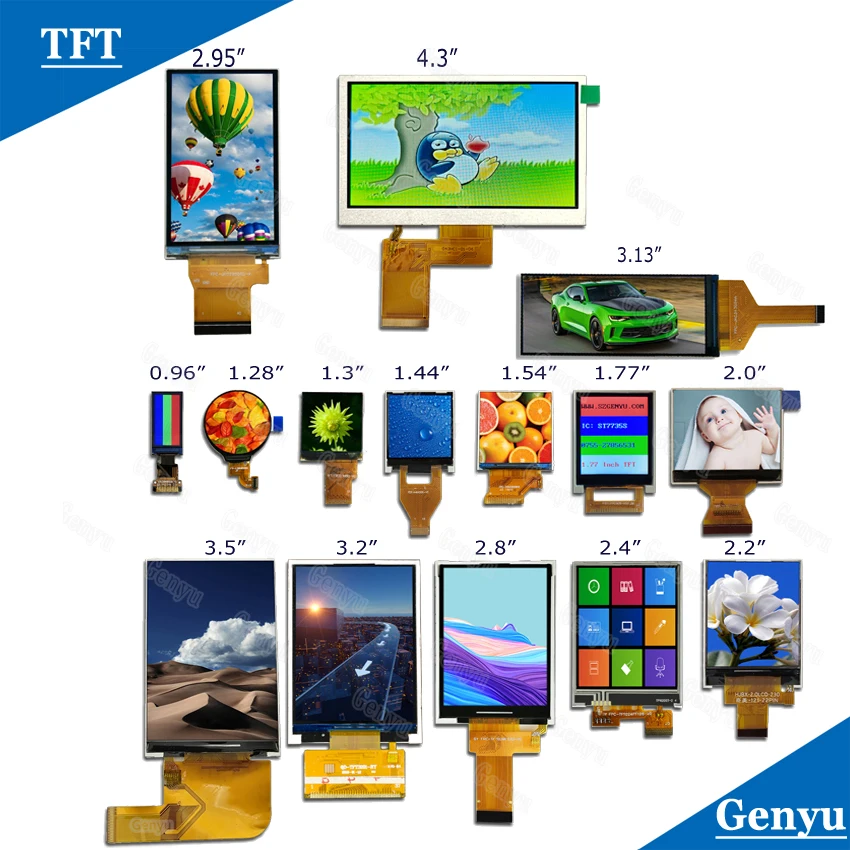

| TFT LCD Size | 0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5",3.97",4.3",7.0", 10.1" |
| View Angle | IPS Full view angle, 12:00, 6:00 |
| Interface | RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customization |
| FPC | Pull-in Connector, Solder Type, Support customization |
| For more datasheet and samples, Please Contact Erica or click here, Or click on the picture to see more TFT screen | |
