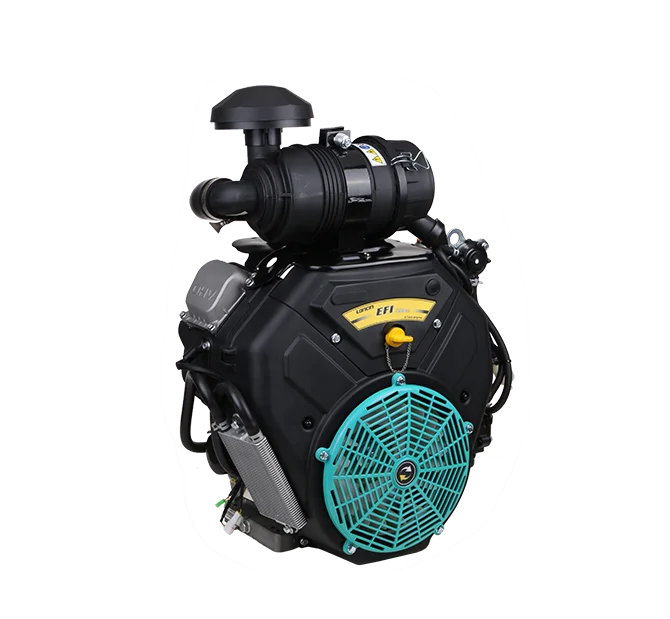

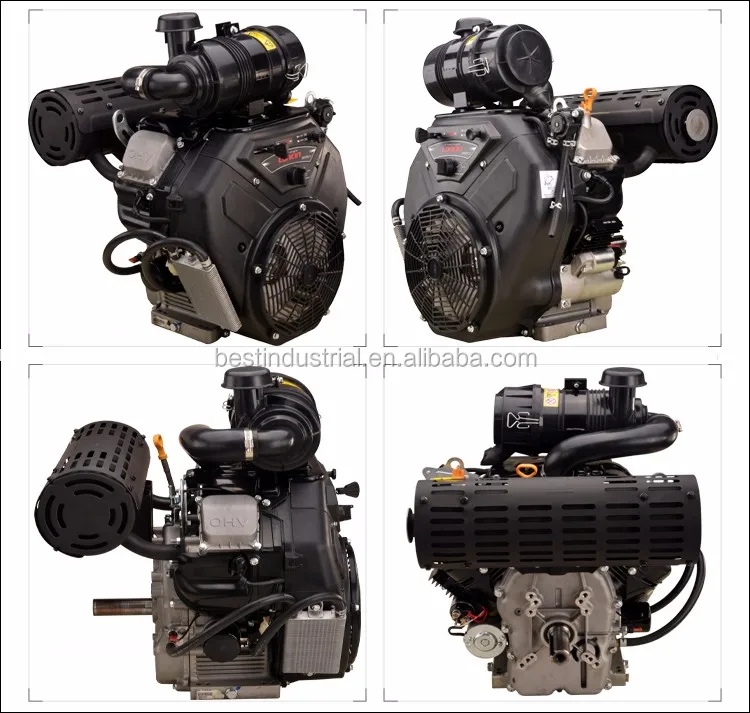

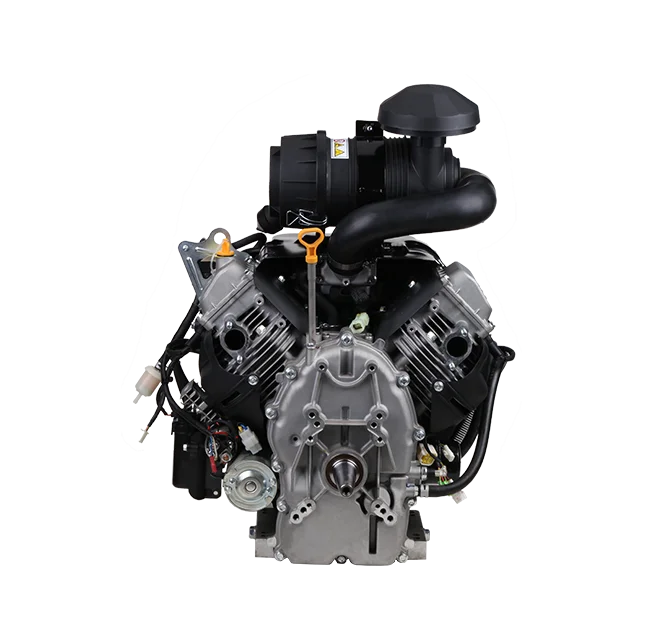

NEW!!! EFI ENGINE 1000CC OHV Air Cooled 2 Cylinder V Twin Horizontal Shaft Gasoline Engine 38HP
- Category: >>>
- Supplier: Fujian Best Industrial Co. Ltd.
Share on (1600799869665):
Product Overview
Description
Product Description
Specifications of Gasoline Engine 35HP | ||||||
Model No. | LC2V90FD | |||||
Engine Type | Air-cooled, 4-stroke, V-twin 2 Cylinder, OHV | |||||
Bore x Stroke (mm) | 90x78.5 | |||||
Displacement (cc) | 999 | |||||
Compression Ratio | 8.5:1 | |||||
Peak Power (HP/RPM) | 35/3600 | |||||
Idle speed (RPM) | 1500 +/-150 | |||||
PTO shaft rotation | Anti-clockwise(from PTO side) | |||||
Speed fluctuation ratio | <10% | |||||
Max. Torque (N.M/RPM) | 70/2600 | |||||
Fuel Consumption (g/kW.H) | <374 | |||||
Spark Plug | F7TC | |||||
Crank Shaft | 1" | |||||
Ignition system | Transistorized magneto ignition | |||||

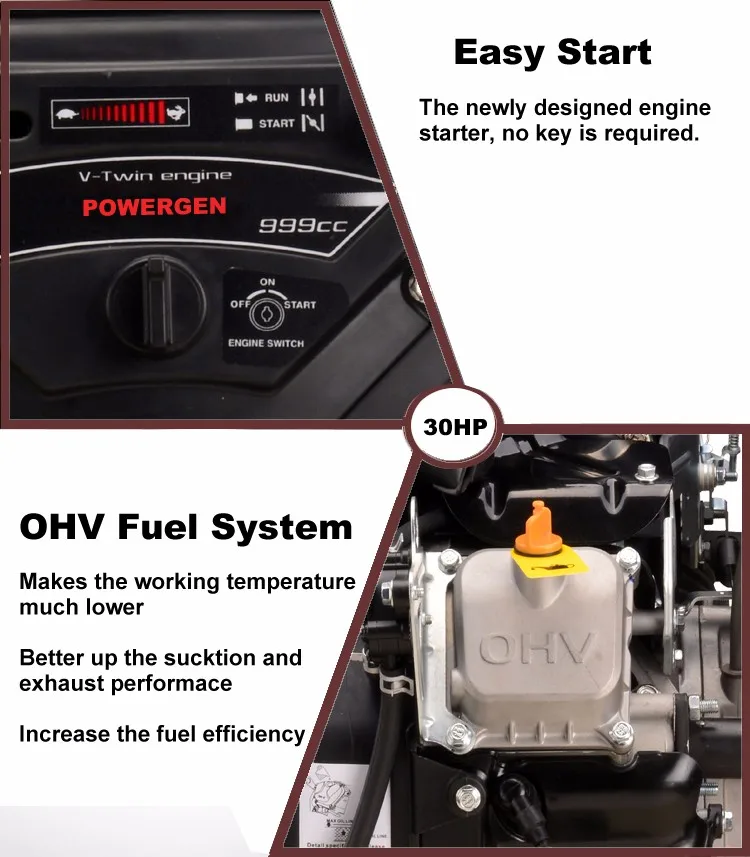

Starting System | Electric/Key Start | |||||
Lubrication system | Splash | |||||
Governor system | Centrifugal mass type | |||||
Air cleaner | Semi-dry, dual element | |||||
Carburetor | Butterfly | |||||
Dimensions (LxWxH)mm | 550 x 570 x 545 (with muffler) | |||||
Net weight (Kgs) | 60 | |||||

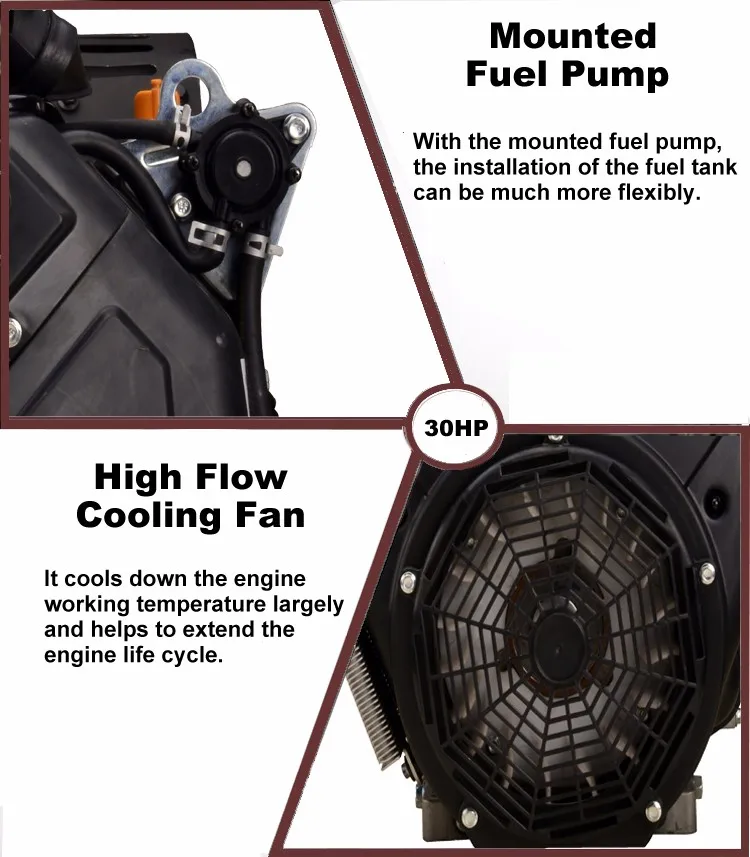

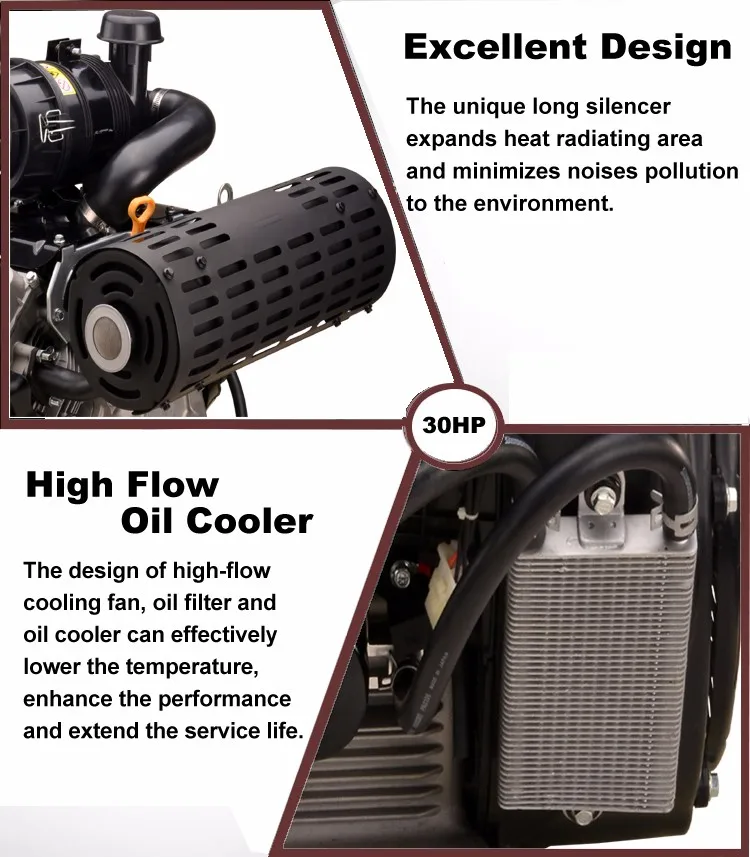

Features
Low Oil Level Auto. Shut-down System
Full Steel Crankshaft
Super Effective Filtration
Shaft Types
Packing
Packaging | ||
Size (mm) | 620 (L) * 600 (W) * 650 (H) | |
Gross Weight | 65Kg | |
Packaging Details | 1) Inner Packaging: Polybag & Foam 2) Outer Packaging: Wooden Case 3) Wrapping tape | |
Engines In Stock
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
